Hale Pet Door "Omni Sash" Window Model Pet Door
This pet door is designed to fit in vertically-sliding double hung or single hung windows. It is offered in dual pane glass and with double vinyl flaps for increased performance in severe climate areas.
Here are the factory specifications including a description of the adjustment mechanism
Designed to fit into a window track 7/8” or wider but can be factory modified to fit tracks as small as ½”.
Two 4” x 5/16"-18 pan head bolts and four 5/16"-18 jam nuts. The top two nuts hold the bolts tightly. The bottom two nuts, when adjusted downward, effect a sideways jackscrew type motion allowing the unit to be tightly secured within the window track without the use of screws. This mechanism is the same as that used on the Hale Omni Panel for sliding glass doors.
1/16” x 4 ½” tall plate on both the inner and outer sides of the adjustment area, color coordinated to frame color. Plate can be lowered to make adjustment and raised to cover mechanism when adjustment is complete.
Double pane insulated tempered glass standard.
Pile Weather Stripping
Top and bottom edges of window unit contain dense 5/16” gray nylon pile weather stripping. Nylon is woven into a .270 wide and 1/32” thick nylon backing. This weather stripping greatly reduces the amount of air that can pass through the flap particularly in the double flap version.
No Metal Contact
Both side edges are covered with 3/32” vinyl booties to provide cushioning and no metal contact.
Vinyl Weather Stripping
Unit also comes with extra length of 1 7/8” x 1/16” black vinyl weather stripping to attach to back edge of your window to prevent air leakage.
To this list we should add that this door comes with the normal Hale 3/16 " Lexan (polycarbonate) locking cover mounted from the side so as to avoid any conflict with the sliding window. As always, a steel spring-loaded lock secures the locking cover in place. A second locking cover may be added for use on the outside if desired.
Ordering this pet door requires you provide us with five bits of information
The "handing" you require for the flap
(looking from inside the house, would you like the flap to be on the left or the right?).
The full width of your window
(under the window as far as you can go in both dimensions). The unit provided will have 3" of width adjustment.
The height you can raise your window
The width of the window track itself
The height above your window when closed
A training benefit of
the Hale Pet Door line is that the magnets may be removed from the frame using a flat-bladed screwdriver. The result is the flap is extremely easy to push by even the smallest pet--a training plus. Likewise, and for the same reason, this would be the best high performance pet door to share between a very large dog and a small dog or cat.
Alternatively, Hale has developed specialized 'training' flaps which simplify training. These may be ordered at Hale replacement flaps.
Choosing a flap size
Here are the Hale recommendations. However, we suggest you do your own measuring as suggested on our measure your pet page prior to making a decision.
Because these pet doors are built custom to your specification, returns will be allowed a 50% credit toward the purchase of a different Hale Pet Door. The Patio Pacific normal return policy applies in respect to time limits only.
Tip Will your window open high enough to accept the pet door? Add 4" to flap height and see if your window will open that far!
Allow about 15 days for shipping from the factory plus 1-5 days transit time to you.
Measuring for OMNI Sash Window
Hale Pet Doors are designed for ease of installation and are ideal for most sliding windows. It is important to note however, that the product warranty may be affected if returns have been modified in any way other than specified by these instructions.
A SAFETY REMINDER!
Always wear eye protection and gloves when appropriate.
Step 1: Before installation, be sure that you have the proper size pet door for your pet. If in doubt larger is better. It may be harmful for your pet to use a pet door that is too small. However, with a window installation, the size of the pet door will be limited by the size of the window opening. Make sure that this application will work for your pet and your window before ordering. Otherwise, a different application may be better.
Step 2: Take a brief look at the large illustration of the Hale Omni Window™ model and become familiar with various components of the pet door window model. This will not only help in understanding the terms used in these instructions but can be very useful should you need to call for technical support.
Step 3: Check the package you received to make sure it contains all the necessary parts.
Complete Kit includes:
King Starboard® or Lexan® security cover
Omni Window Extension
Two strips of gray pile weather-stripping
Two short strips of pile weather-stripping
Bar Lock (only for large enough windows)
Tools you may need:
Phillips head screwdriver
Drill (if securing window shut)
Step 4: When the customer ordered their pet door, they previously measured their window width and opening height for a vertically opening window and the window height and opening width for a horizontally opening window. Measure both the window and the pet door to make sure that everything will fit.
Step 5: Clean both sides of the glass window panes. There will be some overlap of the window panes (figure 1) when you are finished installing the window insert. This is nearly impossible to clean later without removing the pet door insert, so cleaning it before installation will save time and trouble.
Step 6: Unroll the strips of fuzzy gray pile weather-stripping and feed them into the channels running along the window panel. These channels will be on the sides of the panel that the window will close against. Therefore, if you have a vertically opening window, the channels will be on the top and bottom of the window insert. If you have a horizontally opening window, the channels will be on the two sides of the window insert.
Step 7: Slide open the window (either horizontally or vertically depending on which model you are installing) and carefully place the pet door into the window track. If the track is deep enough to interfere with the pet door frame, see the supplemental instructions titled “Using the Omni Extension”.
Step 8: Fit the stationary end of the pet door into the window track.
Step 9: With your hand, push the “U” channel (Figure 2 E) up securely into the top of the track. Pull the sliding plate (Figure 2 B) down to expose the adjusting nuts. (Figure 2 A)
Step 10: Tighten the adjusting nuts with your fingers. Slide the window closed and inspect for gaps. To close any gaps, the Hale Omni Window™ Insert can be adjusted by tightening or loosening one adjusting nut. This should cause the Hale Omni Window™ Insert to lean slightly one way or the other. Once you are satisfied with the insert placement, tighten the adjusting nuts with the wrench provided. The pet door should now be held securely in the window track.
Step 11: Slide the short piece of fuzzy weather-stripping (Figure 2 D) up to expose the adjusting screws (Figure 2 C). There are adjusting screws on both edges of the Hale Omni Window™ Insert, but you only need to deal with the screws on one edge. Do not worry about the screws on the inaccessible edge! Loosen both preset screws one or two full turns. Loosening them too much may cause the slide plates (Figure 2 B) to fall out. Push the slide plates up until they stop. Tighten the adjusting screws. Slide the short piece of fuzzy weather-stripping back down to cover the adjusting screws. There will be a gap above the fuzzy weather-stripping between the edge of the panel and the edge of the adjustment unit. Cover it with a piece of foam tape (included).

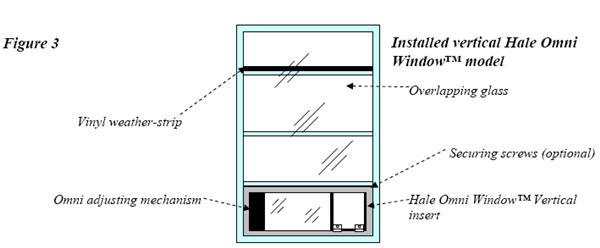

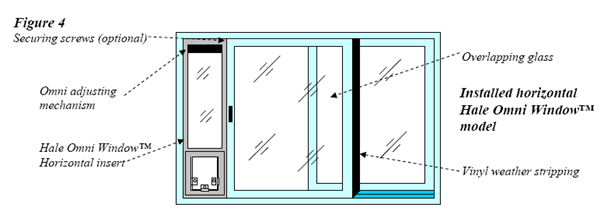

Step 12: Close window down on top (vertical window) or up against the side (horizontal window) of the pet door and again inspect for gaps. Fill any gaps with foam tape. (Figures 3 and 4)
Step 13: Decide where you would like to place the vinyl weather-stripping. For a vertically opening window, place vinyl weather-stripping on the top edge of the opening window or the bottom edge of the stationary window to seal the gap created by overlapping glass. For a horizontally opening window, place vinyl weather-stripping on the inside back edge of the opening window or the outside front edge of the stationary window to seal the gap created by overlapping glass. (Figures 3 and 4) Thoroughly clean the area that you have chosen. Cut vinyl weather-stripping to the proper length with scissors. Remove the protective paper from the adhesive area and press firmly into position.
Step 14: If you so desire, you can put a screw or two (not included) through the window frame to prevent the window from being opened. Be very careful that you don’t drill into glass! If you hit the window pane with either the tip of the drill bit or a screw, it will shatter. The glass in the pet door comes all the way to the edge of the frame, so don’t try to drill into the pet door frame at all. Alternately, if you ordered an Omni insert for a large enough window, you may have received an Omni Lock Bar. Install lock according to directions below.
Step 15: If you ordered a translucent gray Lexan® security cover for your pet door, peel the protective covering from the cover and set it aside for a couple of hours before installing it into the front frame. A drying period will prevent the inner flap from sticking to the newly uncovered Lexan®. If you ordered any color of the King Starboard® security cover, there will be no protective covering over it but you still may wish to let your door set without the security cover in place for a few hours to avoid any sticking. The cover will slide easily into place in the built in frame and can be easily locked and unlocked with the positive action pin bolt lock. Depending on the window model ordered, there may be a “removal slot” cut into the edge of the cover to enable the cover to be removed. In that case, slide the cover along the track until you can tip the cover out of the track.
Step 16: Clean up the area and you are finished.
Installing the sliding lock bar—(NOTE: The shortest effective lock bar we can manufacture is no less than 15" long. Therefore, depending on the size of the window and the size of pet door ordered, you may not receive a lock bar for the window install.)
(CAUTION) Drilling holes for installing with screws may result in damaged or fractured glass.
Hale Pet Door™ will not be responsible for damage resulting from the use of screws for installing the window lock. Hale Pet Door™ has provided a special double adhesive tape for holding the lock into position.
1. Choose an area approximately midway between top and bottom of the Hale Omni Window™ Insert. Clean the area inside the window channel and the back of the sliding window. Make sure the areas are dry. Measure from the bottom of the window track and place a pencil mark in the vertical window channel. Repeat this step and mark the back edge of the window. These marks are where you will install the lock bar. (Figure 5)

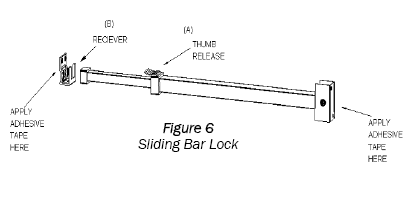

2. Peel the protective paper from the double stick tape on the back of the sliding lock bar. Make sure the thumb release is aligned upwards and press the lock bar into the window channel. (Figure 6) Peel the paper off the back of the receiver and press it very firmly onto the back of the window. You are finished.
Using the OMNI extension
1. An extension the length of your Hale Omni Window™ Insert has been included in case the window channel is so deep that it interferes with the installation of the Hale Omni Window™ Insert. The extension is attached to one edge of the OMNI™ when it is packaged. If the extension is not needed it may be removed by sliding it from its track. If the extension is on the wrong edge, slide it off and put it on the other edge. (Figure 7)

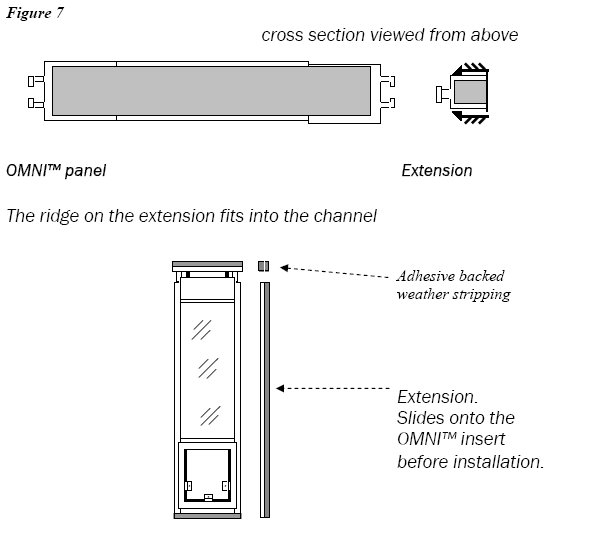

2. There are also two small pieces of adhesive back weather-stripping included. These are for filling in any gap at the top of the extension. (Figure 7) Once you are satisfied with the extension, continue with step 5 of the main installation instructions.
Q: What 3 things do I have to know/measure when choosing a pet door for sash window?
A: Track width, Height you can raise the window, How wide the window is from left to right.
Q: What makes the flaps seal on the Hale Omni Sash Window?
A: There are magnets along the sides of the flap itself along with a fuzzy type of weather stripping.
Q: What’s the frame on the Hale Omni Sash Window made of?
A: The frame of the Omni is made of extruded aluminum.
Q: Is the Hale Omni Sash dual pane and double flapped?
A: Yes, the Hale Omni Sash has dual pane glass and double vinyl flaps for increased performance in severe climate areas.
Q: How wide does the track have to be for the Hale Omni Sash Window?
A: The Hale Omni Sash Window is designed to fit into a window track 7/8" or wider but can be factory modified to fit tracks as small as 1/2".
Q: Does the locking cover slide in from the top for the Hale Omni Sash Window?
A: No, the locking cover slides in from the side for your convenience. This works well if you have something above your window that may get in the way of sliding the cover from the top.
Q: How do I measure my window for the Hale Omni Sash Window?
A: You first want to measure the full width of your window, however you will go from the deepest part of the inside track in the left all the way over and stop short of measuring inside the track on the right. Keep in mind that the unit comes with a 3" width adjustment. Next, measure the height the window will open, the width of the track, and the space from the top of the window while closed up to the bottom of the window frame. CLICK HERE to see more detailed installation information along with diagrams of where to measure your current window.
Q: Do I need tools to install the Hale Pet Door Omni Sash?
A: Yes, you will need a wrench in order to install the Hale Omni Sash as that is used to finally tighten the adjusting nuts and hold it in place. This is included in the kit that comes with the Omni. If you want, and this is optional, you can drill a screw into the frame of the window which would make it so that you can’t pull the window away from the pet door. This would make it more of a semi-permanent installation.
Q: I have a Hale Single Flap door, which flap mount should I choose, inside or outside?
A: For a Hale pet door single flap, you should select the outside flap.
