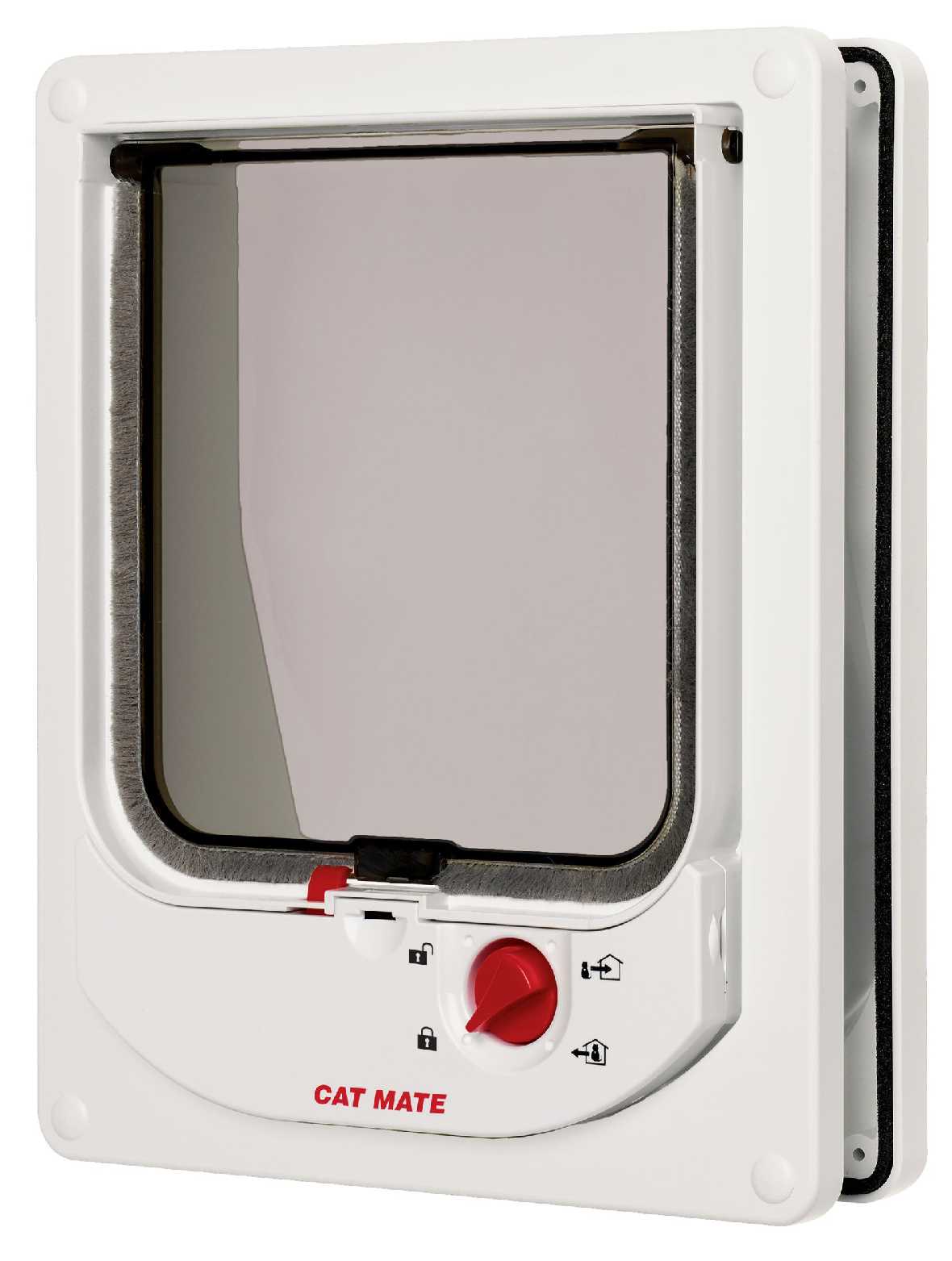

Cat Mate 254 Electronic Cat Door
- Prevents unwanted animals from entering your home
- Suitable for materials 0-2" thick, including walls and doors
- Comes with two magnetic collar keys for pet access
- Requires a 9-volt battery (not included) for operation
- Manual four-way locking system for added control
Product Details
Sizing & Fit
Installation Guide
FAQs
ReviewsProduct Details
The Cat Mate 254 Electronic Cat Door offers a secure and convenient solution for pet owners seeking to grant their cats the freedom to roam while keeping unwanted animals out of their homes. This innovative door is designed for easy installation in a wide range of materials, including walls and doors up to 2 inches thick.
Equipped with a manual four-way locking system, the Cat Mate 254 allows you to customize your pet's access to your home. The door comes with two magnetic collar keys, which enable your cat to enter while preventing access for strays and critters. Additionally, the door requires a 9-volt battery (not included) for operation, ensuring you won't need a plug-in adapter or any electricity to keep it running.
The rigid polypropylene flap is lined with brush weatherstripping, preventing drafts and energy loss. The waterproof magnetic closure further enhances the door's energy efficiency, keeping your home comfortable and secure.
The Cat Mate 254 Electronic Cat Door is backed by a 3-year warranty period and offers a 30-day return policy, ensuring you can purchase with confidence. With its combination of security, convenience, and energy efficiency, the Cat Mate 254 is an excellent choice for those seeking a reliable electronic cat door.
How It Works:
This cat flap features a manual rotary four-way locking function. This means you can set the door to completely locked or unlocked for both inside and outside, allow access outside but not back inside afterward, or your pet can use the collar key magnets to re-enter the door from the outside.
When your pet wants to enter the house from the outside, the door senses the magnetic collar key and unlocks, allowing them to push through the flap. This means that no animal without a magnet can enter your house from the outside, preventing strays or other small critters from getting inside.
Note: There is a third sliding lock mounted in the bottom center of the pet door which locks the solenoid. The solenoid is the colored (green and red) portion inside the base of the pet door that controls the electronic movement of the flap. Make sure this is unlocked to ensure proper flap functioning.
Not the cat door you're looking for? Check out our full selection of cat doors for doors.
Features and Benefits:
- Reliable security against stray cats and critters
- Easy installation in various materials
- Waterproof magnetic closure for energy efficiency
- Flexible locking system for personalized access
- Generous 3-year warranty period
- Self-lining up to 2-2/8 thick, installs in UPVC/metal, walls, wooden doors
Size Chart
- Cat Mate 254 Electronic Cat Door5 3/4"w x 5 3/4"h
Flap Dimensions:
5 3/4"w x 5 3/4"h
The entry way your dog goes through.Outside Frame Dimensions
7 5/8"w x 9 1/2"h
The outer edge of the pet door.
Rough Cut Out:
6 5/8"w x 8 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
5 3/4"w x 5 3/4"h
The entry way your dog goes through.Outside Frame Dimensions
7 5/8"w x 9 1/2"h
The outer edge of the pet door.
Rough Cut Out:
6 5/8"w x 8 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
5 3/4"w x 5 3/4"h
The entry way your dog goes through.Outside Frame Dimensions
7 5/8"w x 9 1/2"h
The outer edge of the pet door.
Rough Cut Out:
6 5/8"w x 8 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
5 3/4"w x 5 3/4"h
The entry way your dog goes through.Outside Frame Dimensions
7 5/8"w x 9 1/2"h
The outer edge of the pet door.
Rough Cut Out:
6 5/8"w x 8 5/8"h
The size of the hole needed to fit your pet door into your door.| Flap Size | Flap Dimension | Rough Cut Out | Outside Frame Dimension | Recommended Pet Height |
|---|---|---|---|---|
| Cat Flap 254 | 5 3/4" w x 5 3/4" h | 6 5/8" w x 8 5/8" h | 7 5/8" x 9 1/2" | 4" - 9" |
Important note: There is a third slide lock mounted in the bottom center of the pet door which locks the solenoid. However, several customers have misinterpreted its function, left the solenoid locked and thought that the pet door was malfunctioning. This is actually a handy feature to use in training.
Not sure if this is the correct flap size? Here is a measurement guide to help you out.
Find The Best Pet Door Size For My Pet
A
Pet Height: inches
B
Pet Width: inches
Installation Instructions
Difficulty
Moderate
Steps
04
Time Required
1-2 hours
Sections
01
Flags
00
Parts
- Interior frame
- Exterior frame
- Cutout tempalte
- Screws and screw caps
Tools
- Drill
- 1/4” drill bit
- 3/16” drill bit
- Jigsaw
- Pencil
Please Note: If you intend to do a reverse installation, which would yield magnet control from the inside rather than the outside, the warranty will be voided.
Prior to starting the installation make sure that the bottom of the template is about level with your pet’s stomach. You can place it lower if you would like. If you choose to place it lower, make sure that it is not too low that it compromises the structural soundness of the door/panel or forces your pet to stoop when in use.
Ideally you would like the door to be placed so that as the pet is going through, the magnet comes in very close contact with the bottom of the door. This way the collar key will properly trigger the unlocking mechanism.
Step 1 For Wooden Doors and Plastic Panels
- Place the template in the desired position on the door and trace completely around it.
- Prior to cutting the hole, drill two holes ¼” in diameter in the top corners.
- Use an electric jig-saw to cut along the inside of the line you previously traced. Make sure to cut the hole square to the door, especially if you have a thicker door. Ensure that the frames are free-fitting in the hole.
Step 2 For Panels 0 - 7/8” Thick
- Position the interior frame on the inside of the door and mark the four screw positions.
- Remove the frame and drill the screw clearance holes in the panel to 3/16” in diameter.
- Select the appropriate screws for the panel in your door. (See Figure 8 on the template).
- Using the appropriate screws and working from the inside of the house, tighten the interior frame to the exterior frame. Cover the screw heads with the supplied caps.
Step 3 For Panels 7/8 - 2” Thick
- Screw the interior frame to the inside of the panel with short ½” screws.
- Drill out the four screw holes in the exterior frame to allow close clearance on the screw. A 3/16” in diameter drill is recommended.
- Fit the exterior frame to the exterior of the door using ¾” screws. Cover the screws heads with the supplied caps.
Step 4 For Walls
- After making an appropriately-sized hole in your wall, line with ¾” plywood or similar material (Figure 10 on the template).
- This provides a tunnel to for the installation and accepts the fixing screws.
FAQ
|
Is the flap clear? You can see through it, but it does have a dark tint. |
|
Will this protect against raccoons? This door is not recommended for protection against raccoons. It does work well for strays and rodents. |
|
Can I install this in a wall? You can, however the installation would be very tricky as the trim frame mounts around the flap frame. We recommend this as a through-door installation only. |
|
Will the 254 keep pets in? No, this door only controls who comes in not who goes out. If you did need one that controlled both inside and outside take a look at the Cat-Mate 305. |
|
How energy efficient is this door? Since it does have a lock, it won't blow open like other non electronic pet doors. Also the brush weatherstripping around the flap helps with insulation. |
|
How large is the collar key? It is about the size of a small marble, and pretty light weight. |
|
How does the door unlock? The collar key must pass very close to the bottom of the pet door frame. As it brushes over the locks in the pet door retract, allowing the cat to push through. Then the locks pop back up securing the flap. |
|
Does the door and collars need batteries? The door does run off of a 9-volt. The collars are just magnets so they do not need any batteries. |
|
Can I plug the door into an outlet? No, there is no plug in adapter available. |
|
Are replacements for the keys available? Yes, we carry Extra Cat MAte magnetic collar keys. |
|
How much does shipping cost? Shipping is calculated at checkout. |
Warranty
Cat Mate/ Dog Mate/ Ani Mate 3 Year Limited Warranty
Guarantees your purchase for a period of three years from the date of original purchase against any defect arising due to faulty materials or manufacture. Accordingly, any defective item will be repaired free of charge or replaced at the manufacturer’s option provided that the defect has not been caused by neglect, misuse, or normal wear and tear and proof of purchase date is supplied. Your statutory rights are not affected.
