Magnador Pet Doors Outer Frame Replacement
- Outer frame replacement for all Magnador dog doors
- Comes in white or bronze
- Available in small, medium, and large
- Other Magnador pet door replacement parts and related products sold separately
Product Details

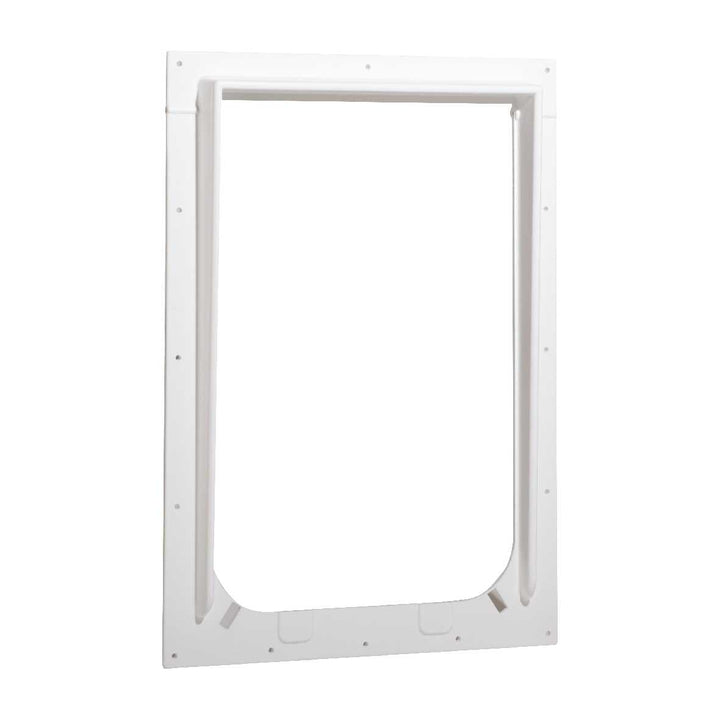

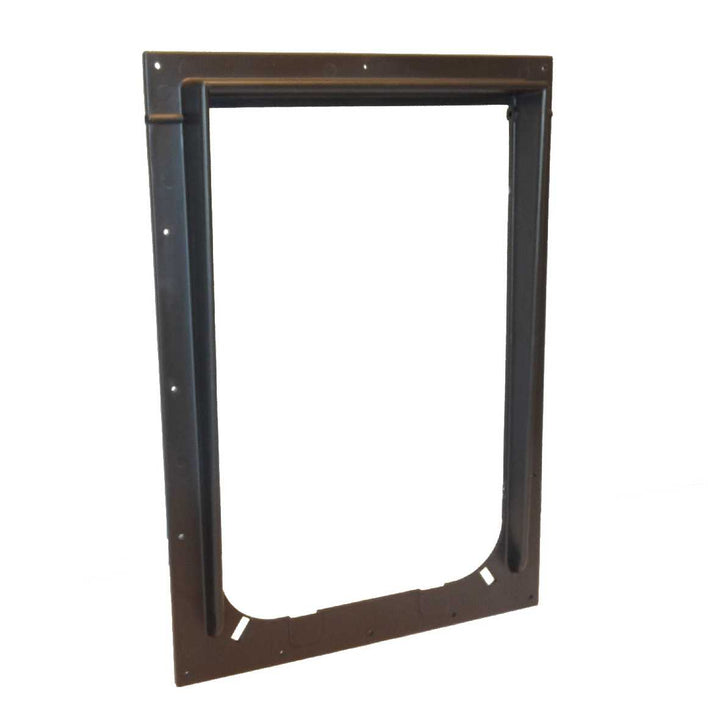

The Magnador Outer Frame fits all of the Magnador pet doors and comes in sizes small, medium, and large. The frame is available in white or bronze, and it can also be changed without needing to replace the entire pet door. Please note that this kit does not include the hinge pins for the flap, which are sold separately.
Not the dog door parts you're looking for? Take a look at our full selection of Magnador dog door replacement parts.
Size Chart
| Flap Size | Flap Dimension | Color | Outside Frame Dimension |
|---|---|---|---|
| Small"Mini" | 6" w x 8" h | White | 7 7⁄8" w x 10 1⁄2" h |
| Bronze | |||
| Medium "Mag I" | 11" w x 13" h | White | 13" w x 15 5⁄8" h |
| Bronze | |||
Large"Mag II"
| 13" w x 19 3⁄4" h
| White | 16 7⁄8" w x 23 3⁄4" h |
| Bronze |
Installation Instructions
To replace the frame of your Magnador Pet Door, the entire assembly must be taken from its installation location.
Step 1: Remove the flap from the existing frame.
Step 2: Use side cutters to cut away the top portion of the side that needs replacing.
Step 3: Slide the flap out to one side and remove the hinge pins by tapping with a hammer. Make sure to not bend the pins.
Step 4: Lay the flap into the new frame, lining up the hinge pin holes on the flap with the frame.
Step 5: Tap the hinge pins back in gently with a hammer.
Step 6: Using the same hardware and hinge pins, remount the pet door with your new frame. Screw the frame into the existing holes from the previous frame.
FAQ
|
Can this pet door be installed into my window frame? No, but there are plenty of window pet doors with specs that are made specifically to fit windows. |
|
What frame color will best match my stainless steel door? The frame only comes in white and dark bronze, but you can paint the trim kit any color you want. |
|
What do I do if I buy the wrong frame size? According to our return policy, you can get a full refund for your pet door as long as it is in its original condition and returned within 30 business days of delivery. Please see our warranty and privacy notice for more details, especially if you live outside the United states. You can then order a frame that better fits your door. You can see the frame dimensions in the product description, and if you do not know what size pet door you originally had, you can contact us and we can help you find your model number and any product details you need. Whether you need a part number or new product information, our team is prepared to answer all customer questions. |
|
How much does shipping cost? Shipping is calculated at checkout. |
Warranty
Lakeside Products warrants to the original purchaser this product to be free of defects in materials and workmanship for a period of one year from the date of purchase (proof of purchase required).
Specific exclusions from this warranty include damage caused by accident, improper installation or abuse, including damage caused by pets.
Lakeside Product’s maximum liability on any claim shall be no greater than the original purchase price of the product. Under no circumstances shall Lakeside Products be responsible for consequential damage resulting from the use or misuse of this product.
For warranty claims, please return defective product or part, including PROOF of PURCHASE DATE, freight prepaid, to Lakeside Products for repair or replacement.
Purchaser is responsible for return shipping and handling charges.
This warranty is the only warranty made by Lakeside Products and replaces any and all previous warranties.
