Pride Replacement Flaps (Fits Johnson & PetSafe Ultimate)

450 Reviews
Regular price $83.00
Shipping calculated at checkout.

Flap Size
Flap Color


  • Designed for Pride Pet Doors, discontinued Johnson Pet Doors, and PetSafe Ultimate models.
  • Black flap: Heavy-duty black rubber construction that blocks sunlight and enhances insulation for improved energy efficiency.
  • Clear flap: Lightweight, vinyl flap that comes with a brand new white aluminum frame that perfectly matches the dimensions of your existing hole.
  • Available in small to extra-large sizes for a precise fit..
  • Simple installation allows for easy replacement without modifying the door.
  • Training-friendly design with a non-transparent flap for added security.

Product Details

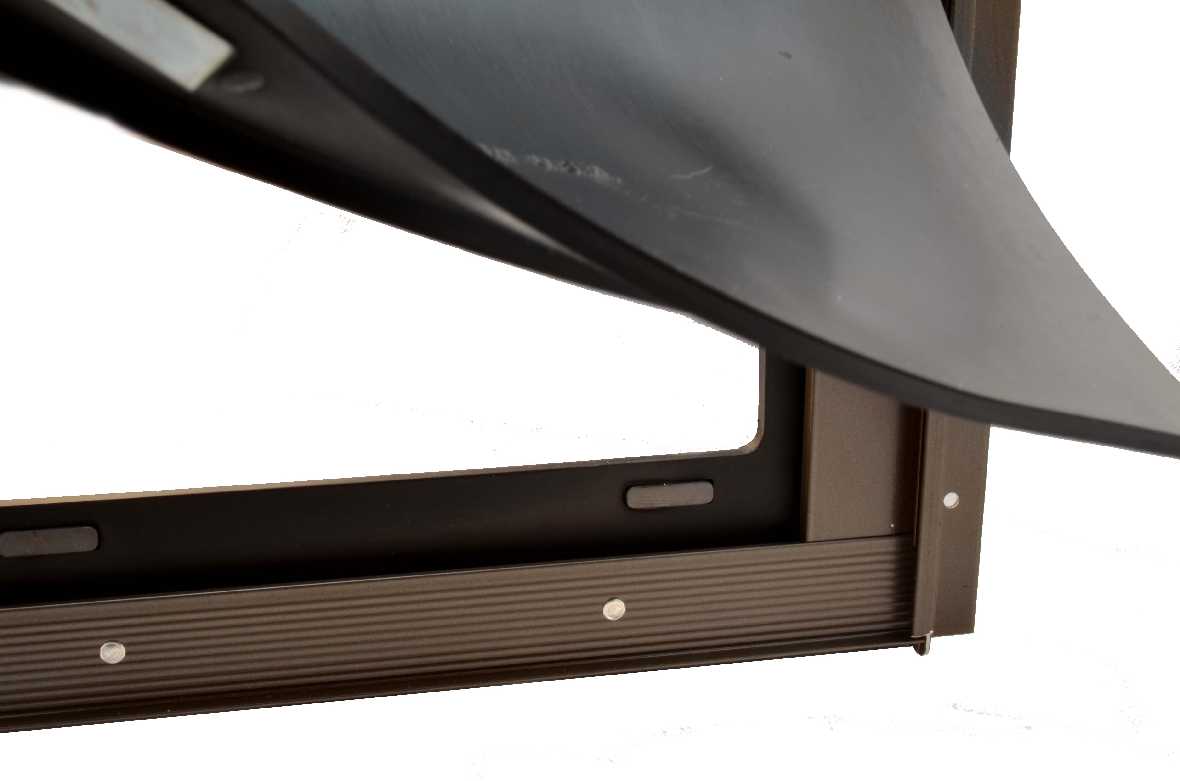

Keep your pet door functioning like new with Pride Replacement Flaps, the ideal upgrade for worn-out or damaged flaps. Now available in two flap types, you can pick between two levels of flap opacity. These replacement flaps provide durability, insulation, and a secure seal against outdoor elements. The strong magnets at the bottom ensure the flap stays shut, reducing drafts and maintaining indoor comfort.

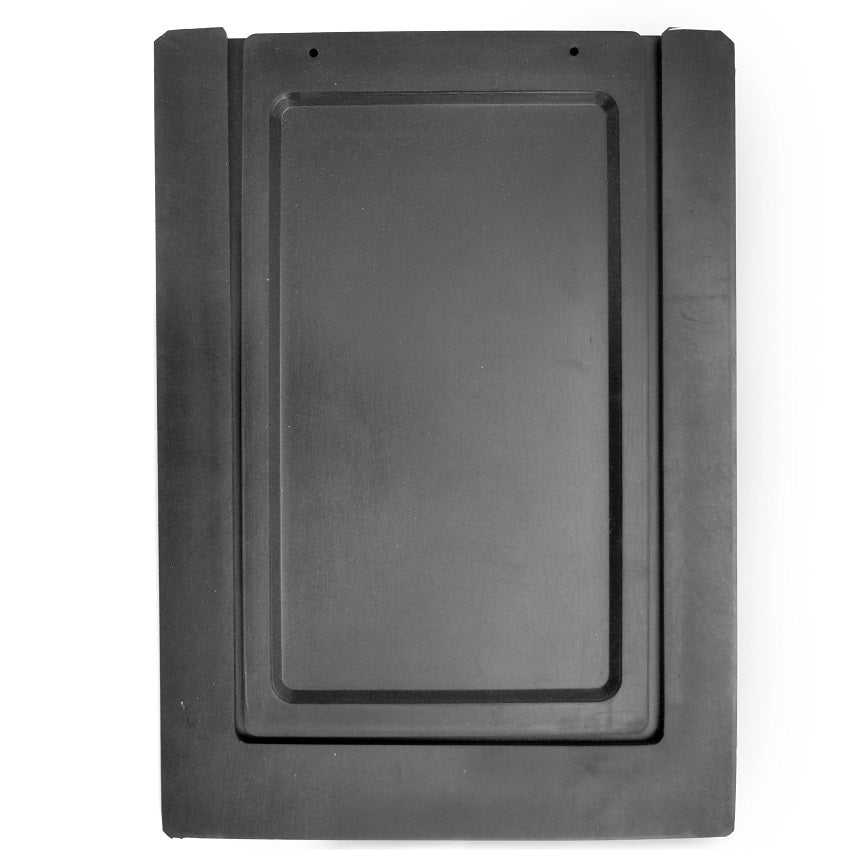

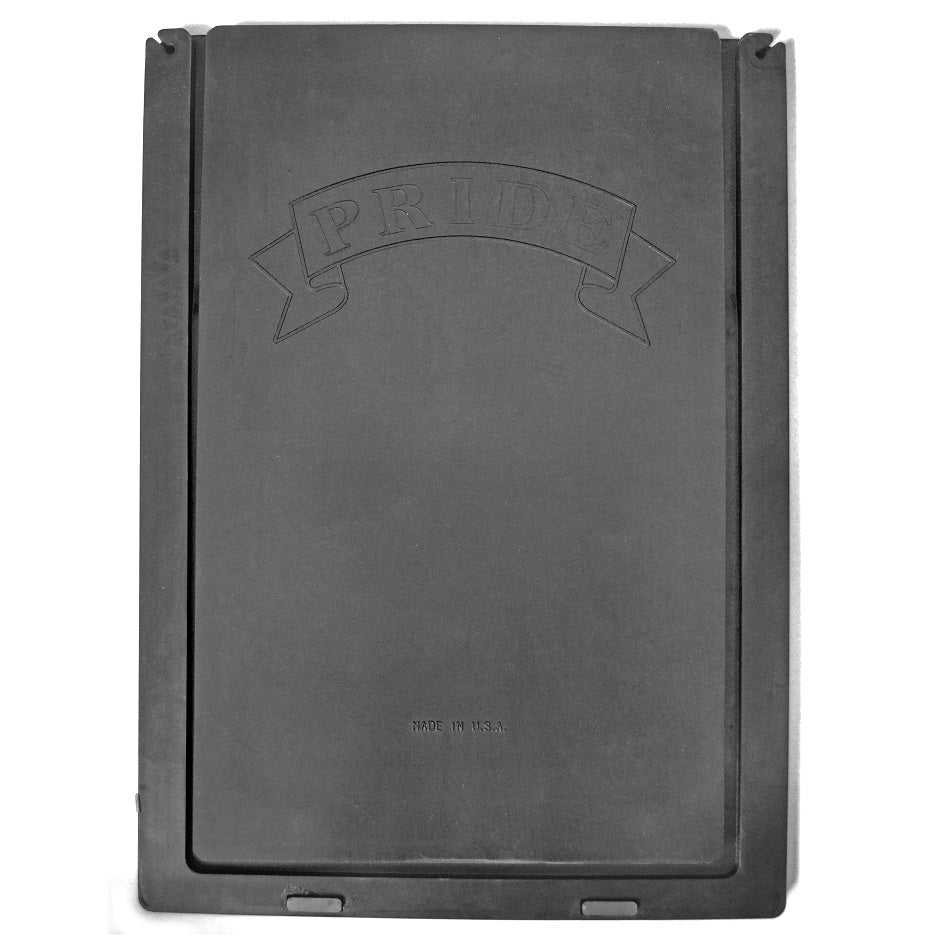

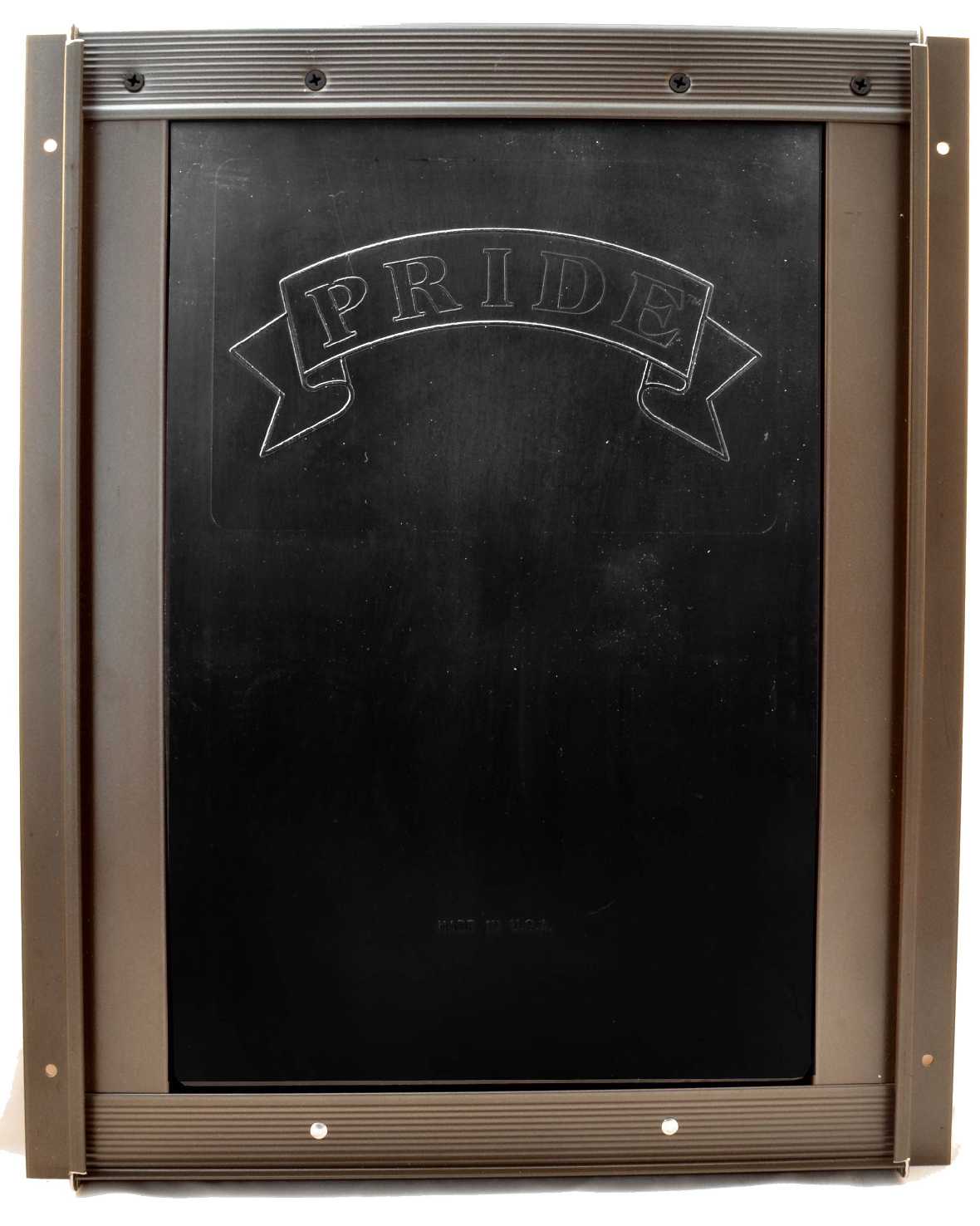

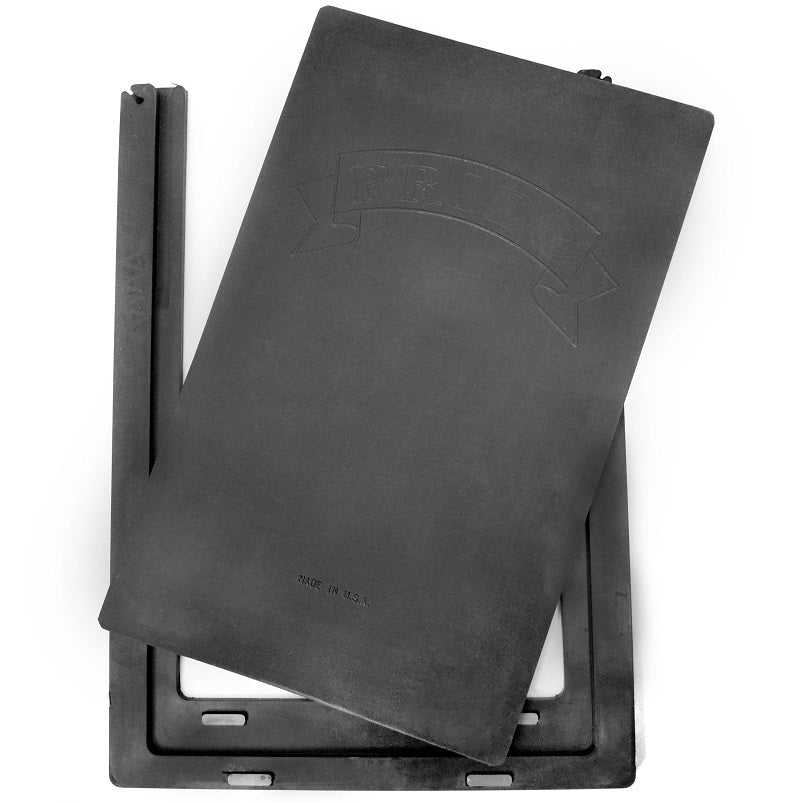

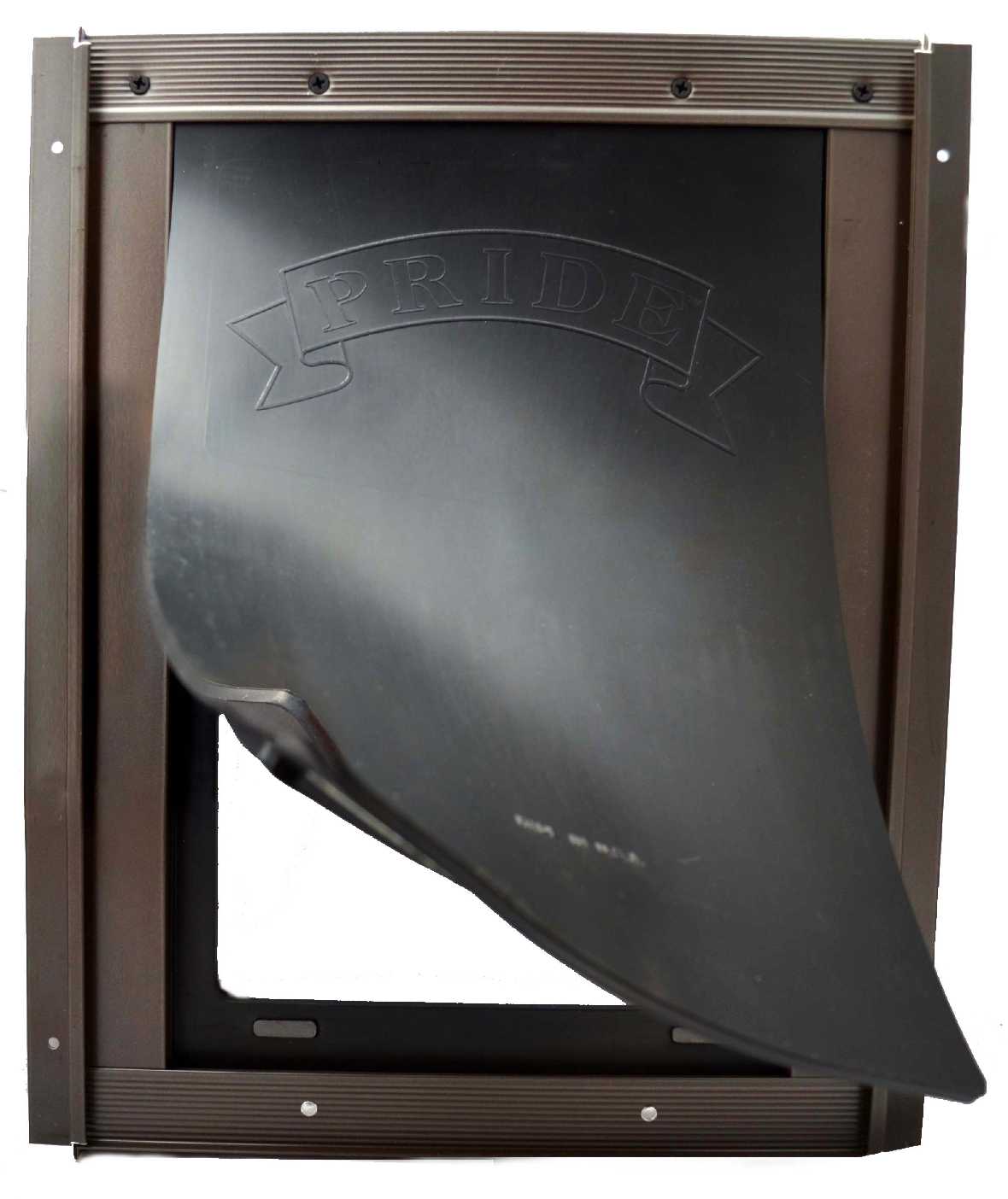

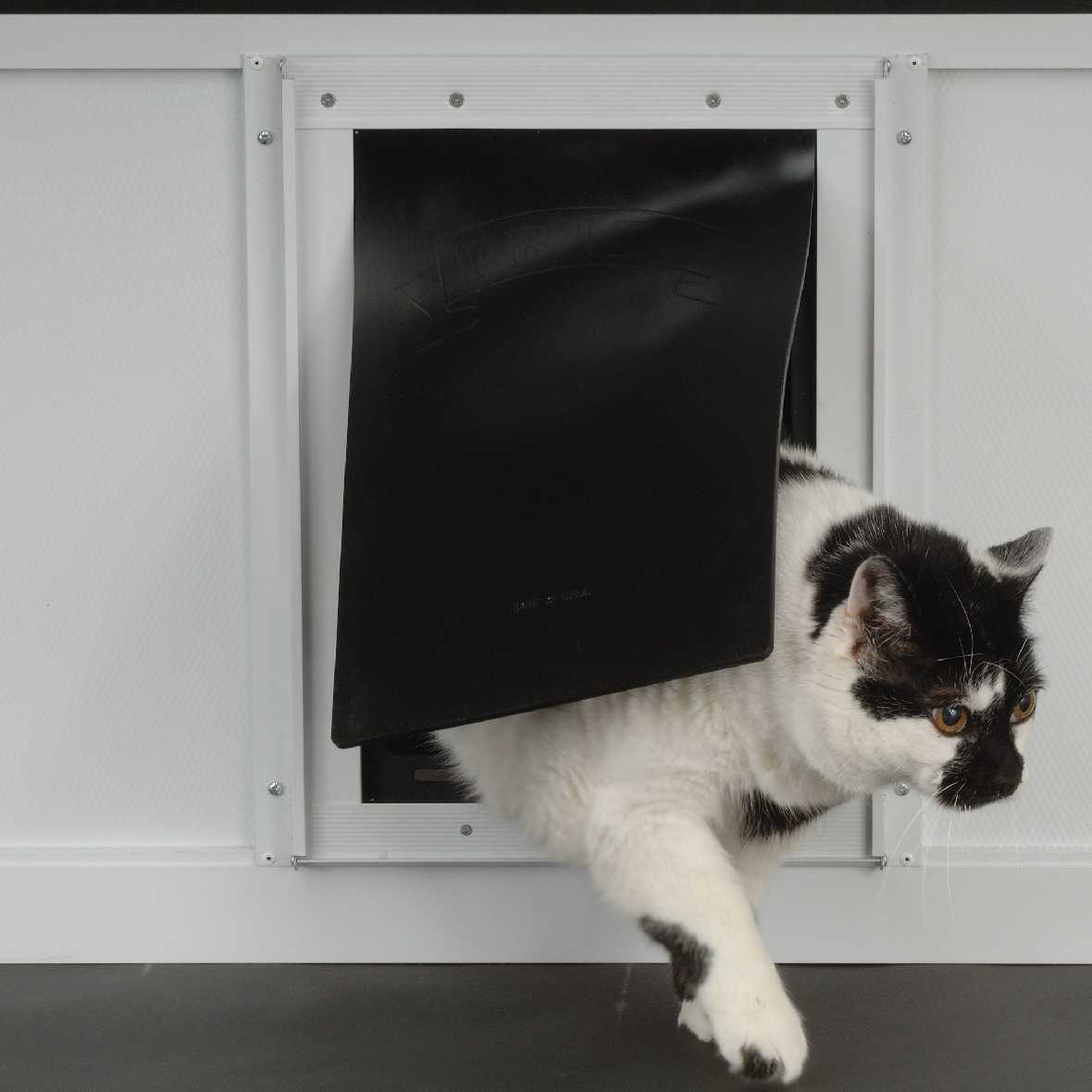

The Black Flap is the original Pride replacement flap made from heavy-duty black rubber. The non-transparent design blocks sunlight while providing a sturdy barrier against the elements.

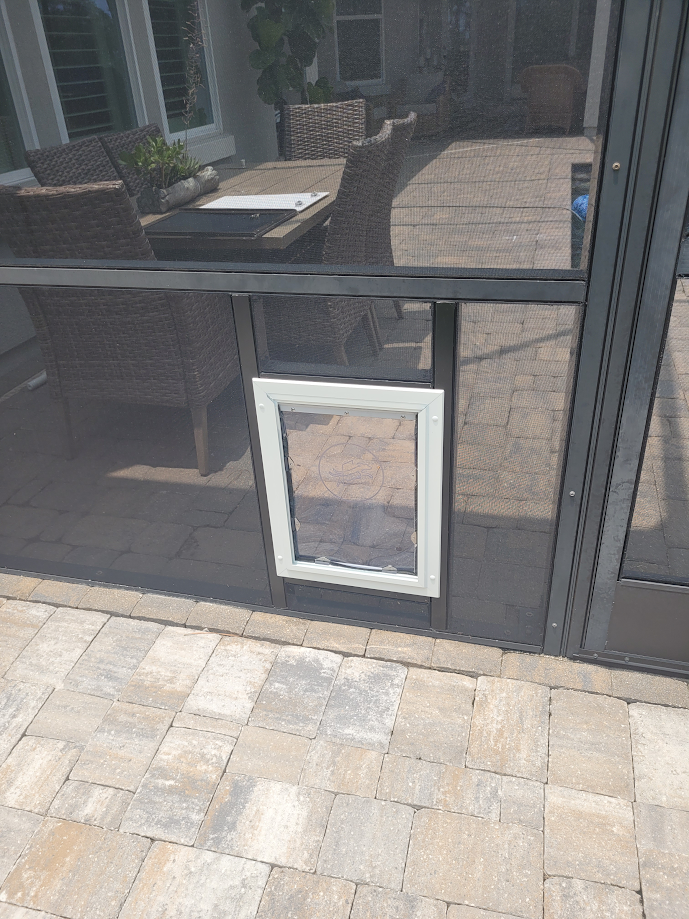

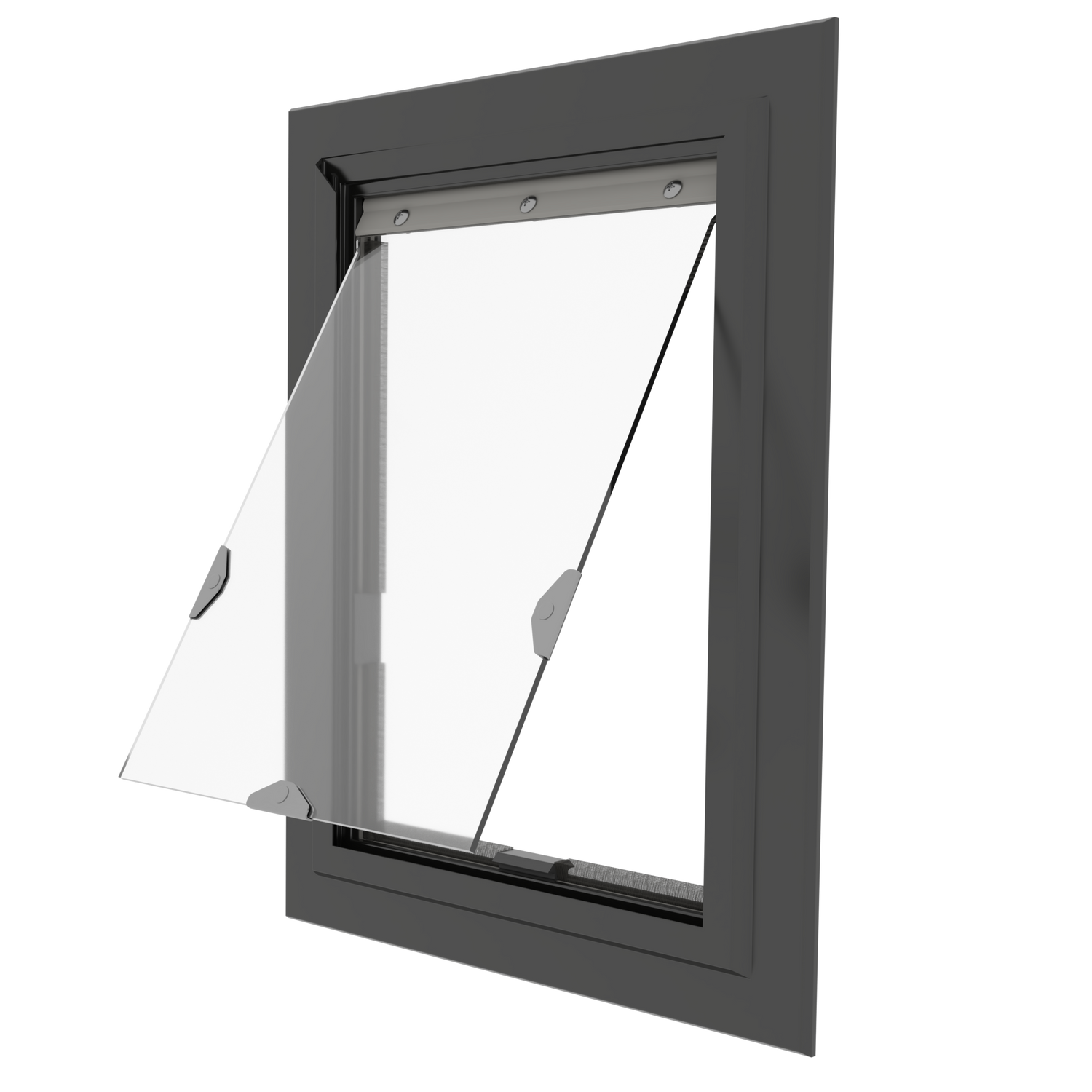

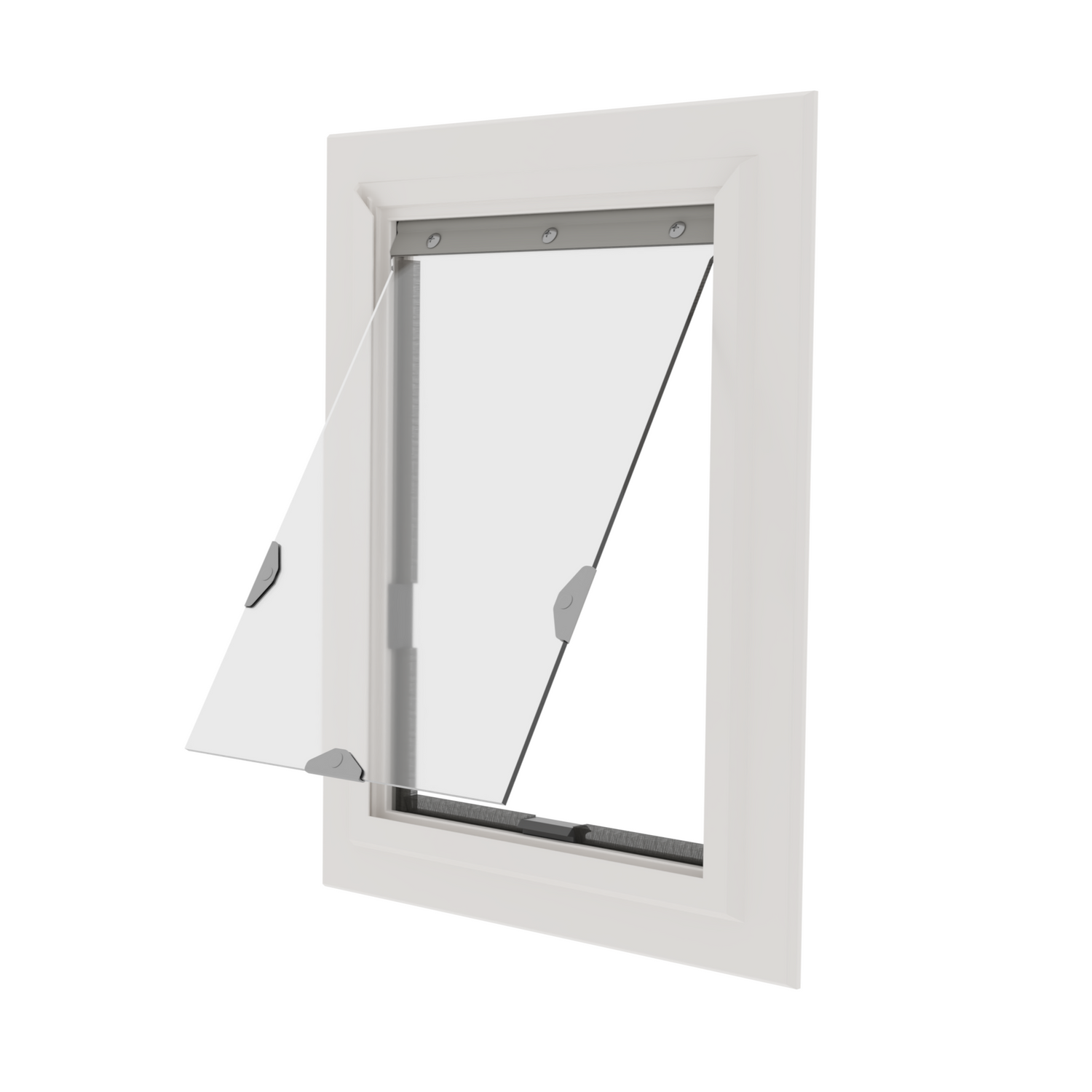

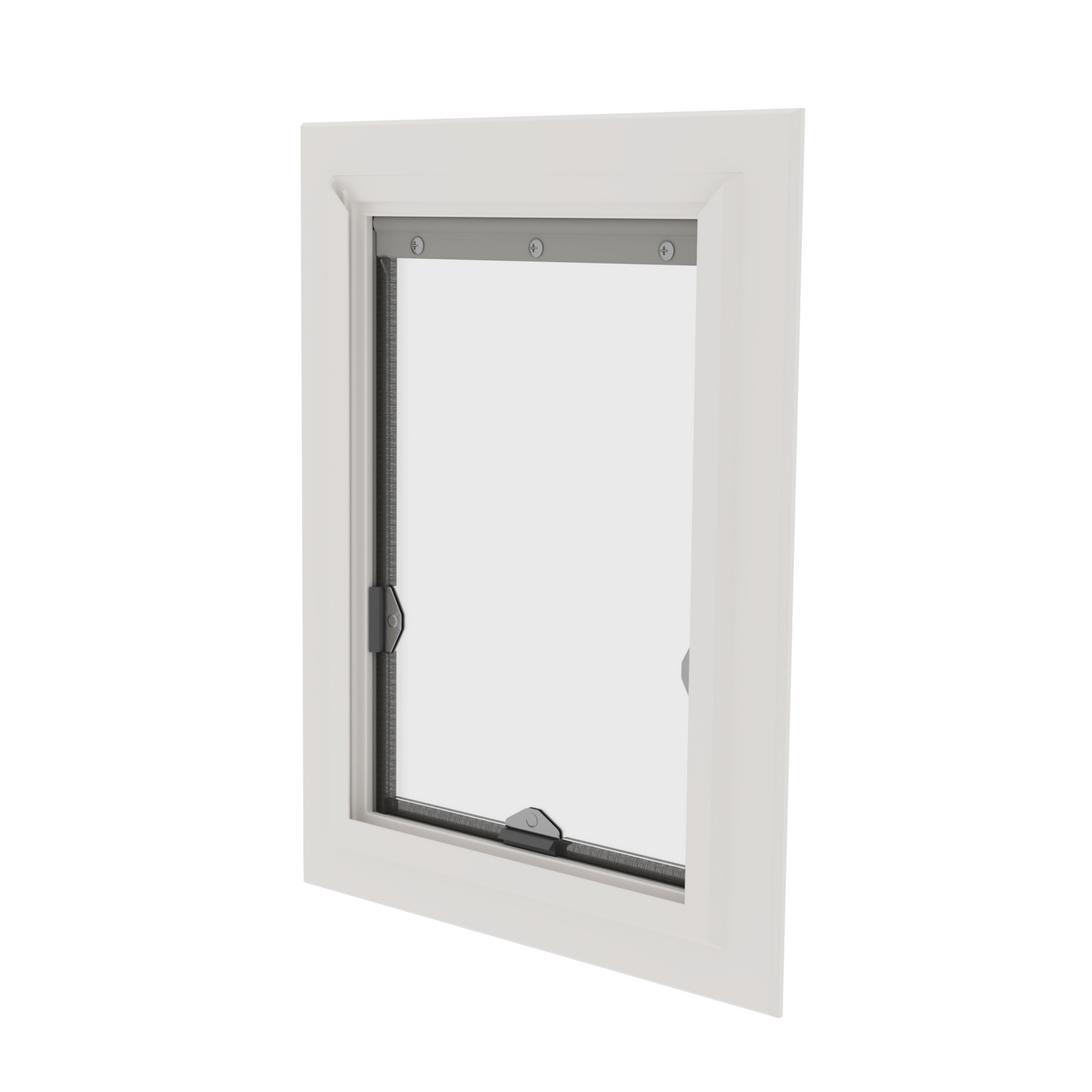

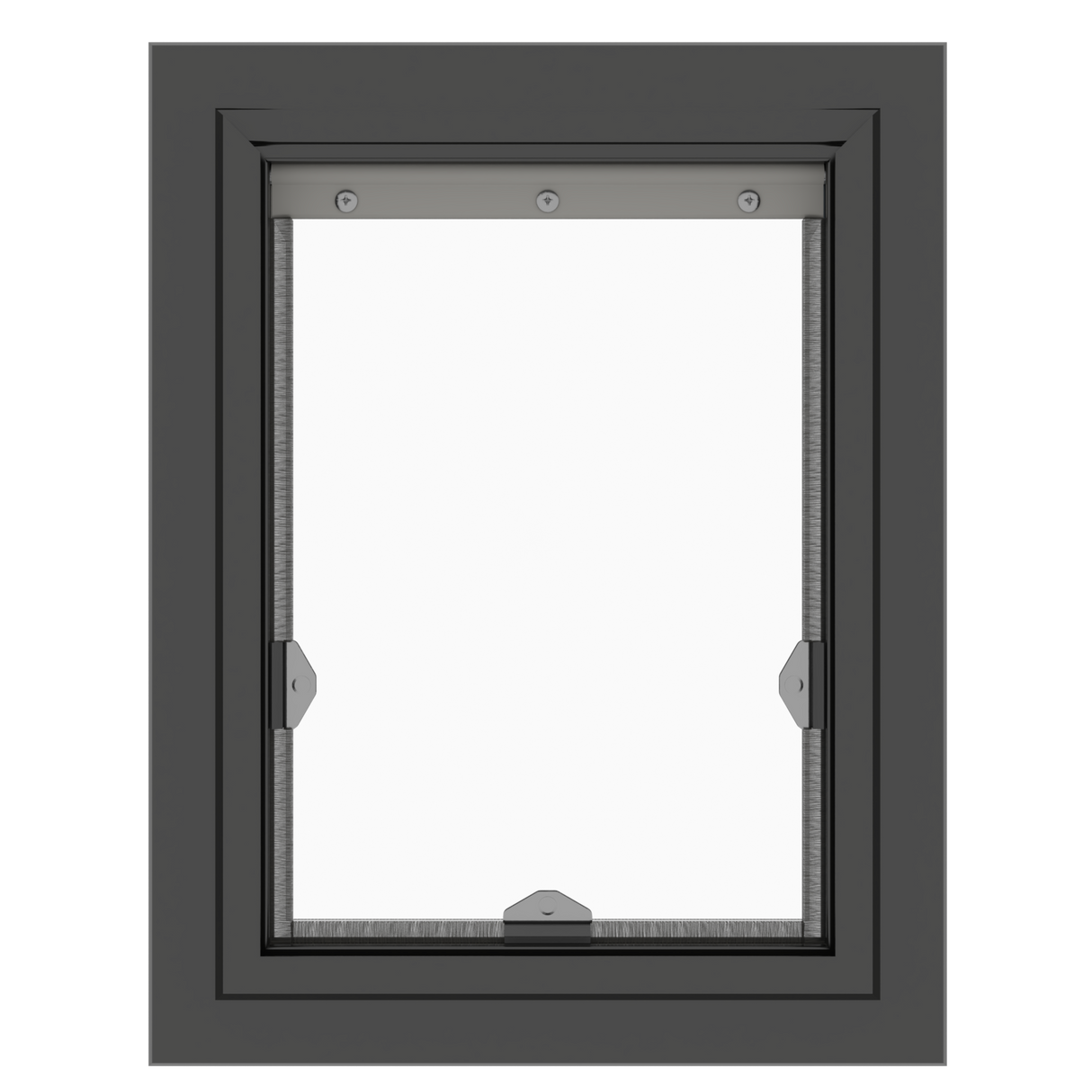

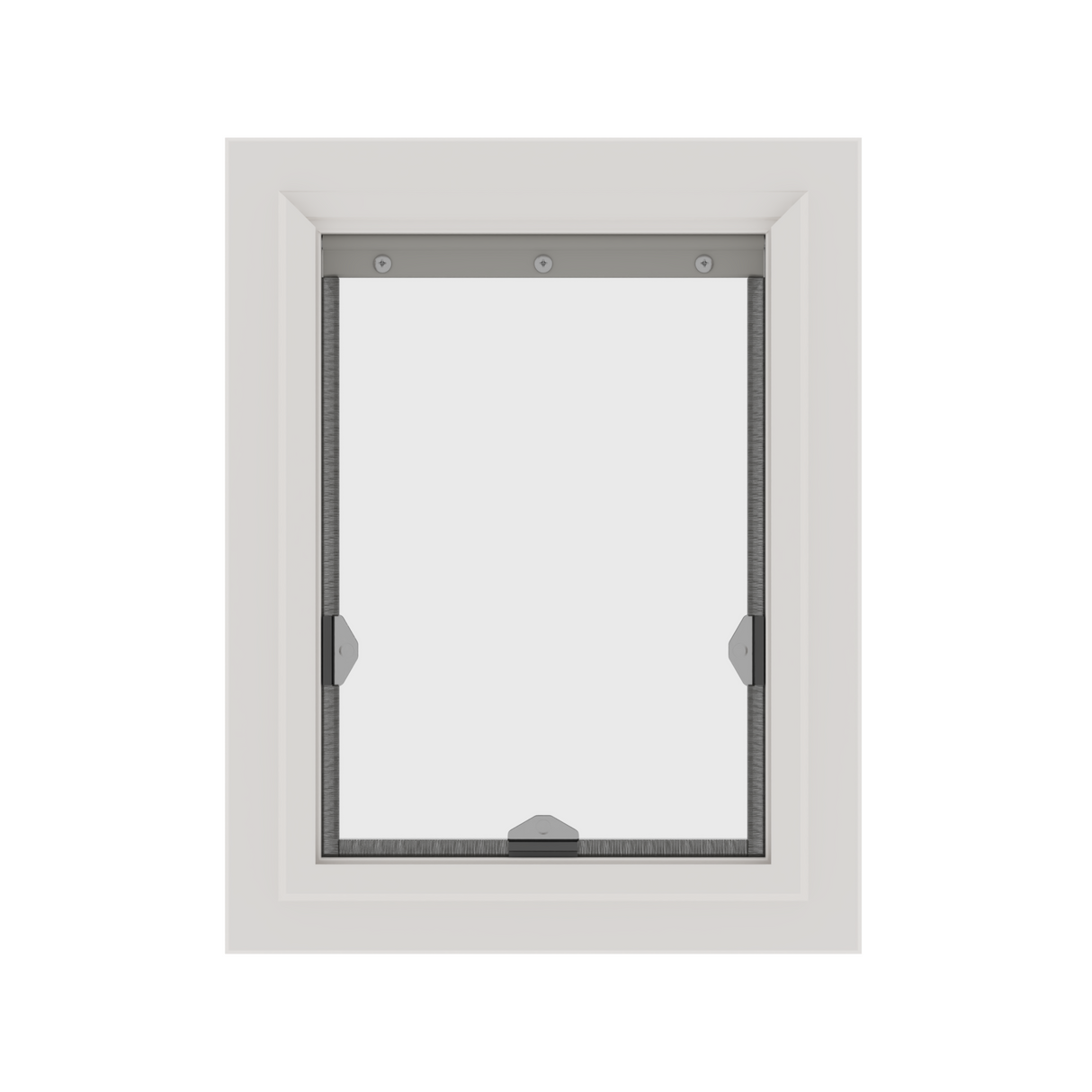

The Clear Flap is a brand new, clear-flap alternative to the traditional Pride design. The lightweight vinyl flap is easy to use, allowing pets to see through their pet door while the magnetic flap keeps it sealed against wind and rain. This flap comes with a brand new white frame that will perfectly fit your pre-existing rough cutout, and is as easy to install as the original Pride Pet Door.

Designed to fit Pride Pet Doors, as well as the discontinued Johnson and PetSafe Ultimate models, these flaps offer a seamless replacement without requiring modifications.

Installation is quick and hassle-free—reuse your existing hardware and simply swap out the old flap. Available in multiple sizes, Pride Replacement Flaps ensure a perfect fit for pets of all sizes. For small-sized doors, slight modifications may be required when replacing Johnson or PetSafe Ultimate flaps.

Restore your pet door’s performance with a high-quality replacement flap that stands up to daily use, extreme weather, and years of reliable service.

Please Note: The black flap prevents pets from being able to see through the pet door. For safety, make sure that when the locking cover is in place, the pets are on the same side as the cover so that they can see it.

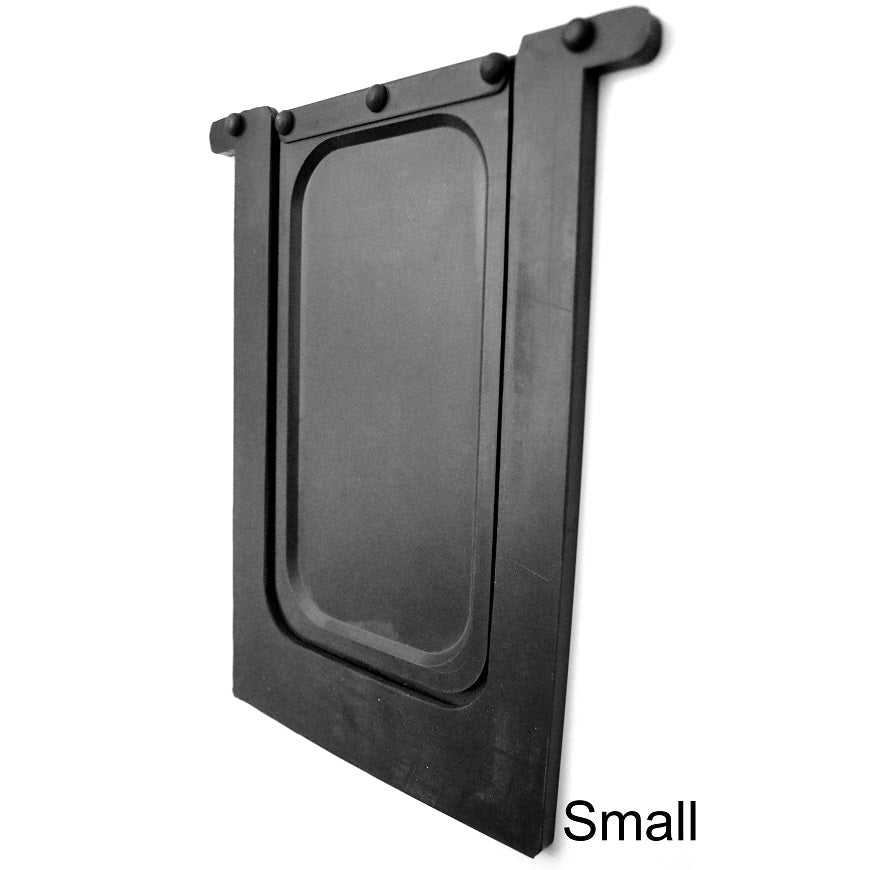

Small Size Only Information:

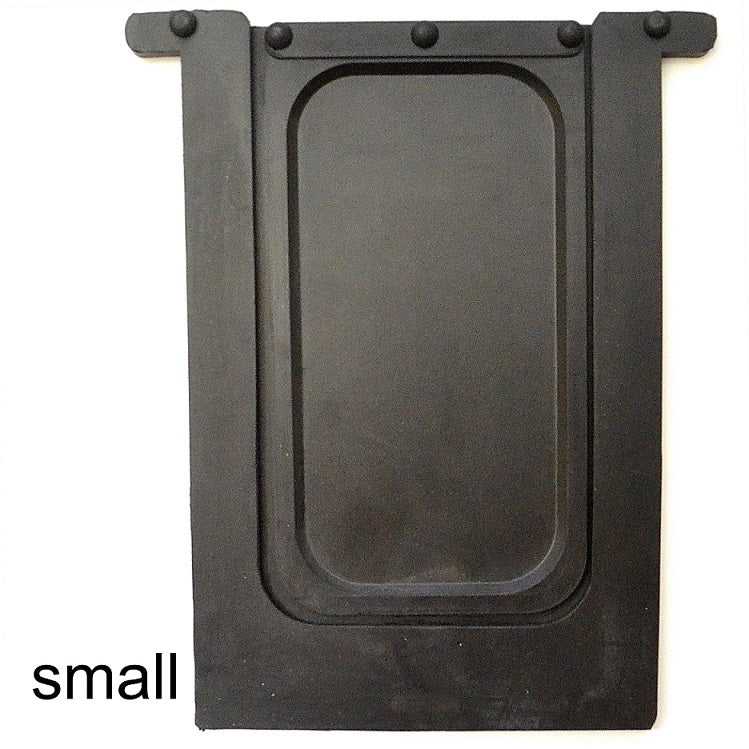

Small flap has numbs that slide into a top channel.  They do not screw into place like the Medium, Large and Extra Large sizes.  The Small flap is not an exact replacement for Johnson or PetSafe Ultimate flaps.   Customers have been able to modify the small and use it in their PetSafe pet doors, but it is not a simple substitute and once altered it is not returnable.

Model Numbers:

Pride (Flap screw size 6/32 x 5/8"):
Small: SD300, Medium: MD400, Large: LD500, and Extra Large: XLD600
Johnson (Flap screw size unknown):
Small: S-2, Medium: M-2, Large: L-2, and Extra Large: XL-4
PetSafe Ultimate (Flap screw size unknown):
Small: S-VA-11, Medium: M-VA-11, Large: L-VA-11, and Extra Large: X-VA-11
Sizing & Fit

Size Chart

Flap Dimensions:

4 3/4"w x 7"h

The entry way your dog goes through.

Outside Frame Dimensions

9 1/8"w x 10 1/2"h

The outer edge of the pet door.

Small flap
Small frame
Small rough cut

Rough Cut Out:

7 5/8"w x 9 5/8"h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

8 1/2"w x 12 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

12 5/8"w x 15 3/4"h

The outer edge of the pet door.

Medium flap
Medium frame
Medium rough cut

Rough Cut Out:

11 1/8"w x 14 7/8"h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

11 1/2"w x 17"h

The entry way your dog goes through.

Outside Frame Dimensions

15 1/2"w x 19 3/4"h

The outer edge of the pet door.

Large flap
Large frame
Large rough cut

Rough Cut Out:

14"w x 18 7/8"h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

14 1/2"w x 19 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

18 3/4"w x 22 3/4"h

The outer edge of the pet door.

Extra Large flap
Extra Large frame
Extra Large rough cut

Rough Cut Out:

17 1/4"w x 21 3/4"h

The size of the hole needed to fit your pet door into your wall.

FLAP SIZE INNER FLAP DIMENSION INNER/OUTER FLAP DIMENSION ROUGH CUT OUT OUTSIDE FRAME DIMENSION
Small 4 3/4" x 7" 6" x 9" 7 5/8" w x 9 5/8" h 9 1/8" w x 10 1/2" h
Medium 8 1/2"w x 12 1/2"h 10 1/2"w x 14 1/2"h 11 1/8"w x 14 7/8"h 12 5/8"w x 15 3/4"h
Large 11 1/2"w x 17"h 13 1/2"w x 18 1/2"h 14"w x 18 7/8"h 15 1/2"w x 19 3/4"h
Extra Large 14 1/2"w x 19 1/2"h 16 1/2"w x 21 1/7"h 17 1/4"w x 21 3/4"h 18 3/4"w x 22 3/4"h

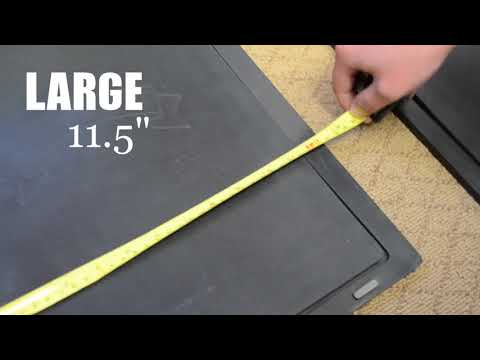

Important: To measure the "Flap Dimension," measure the width of the center rectangular-shaped flap. Do not measure the width of the U-shaped gasket. Your measurement may not exactly match due to flaps shrinking and warping as they age, but should be close. Do not measure the full flap.

Click here for information about using these flaps in your Petsafe Ultimate or Johnson Pet Door.
