• Restores insulation and seal performance to your existing Hale pet door.
  • Maintains smooth pet access with flexible, textured vinyl construction.
  • Preserves magnetic closure integrity with pre-installed strikes and frame magnets.
  • Available for Door, Wall, Panel, Sash, Screen, and Single Pane Through Glass models.
  • Training flap option supports temporary acclimation for hesitant pets.
  • Custom sizing available for unique Hale installations.

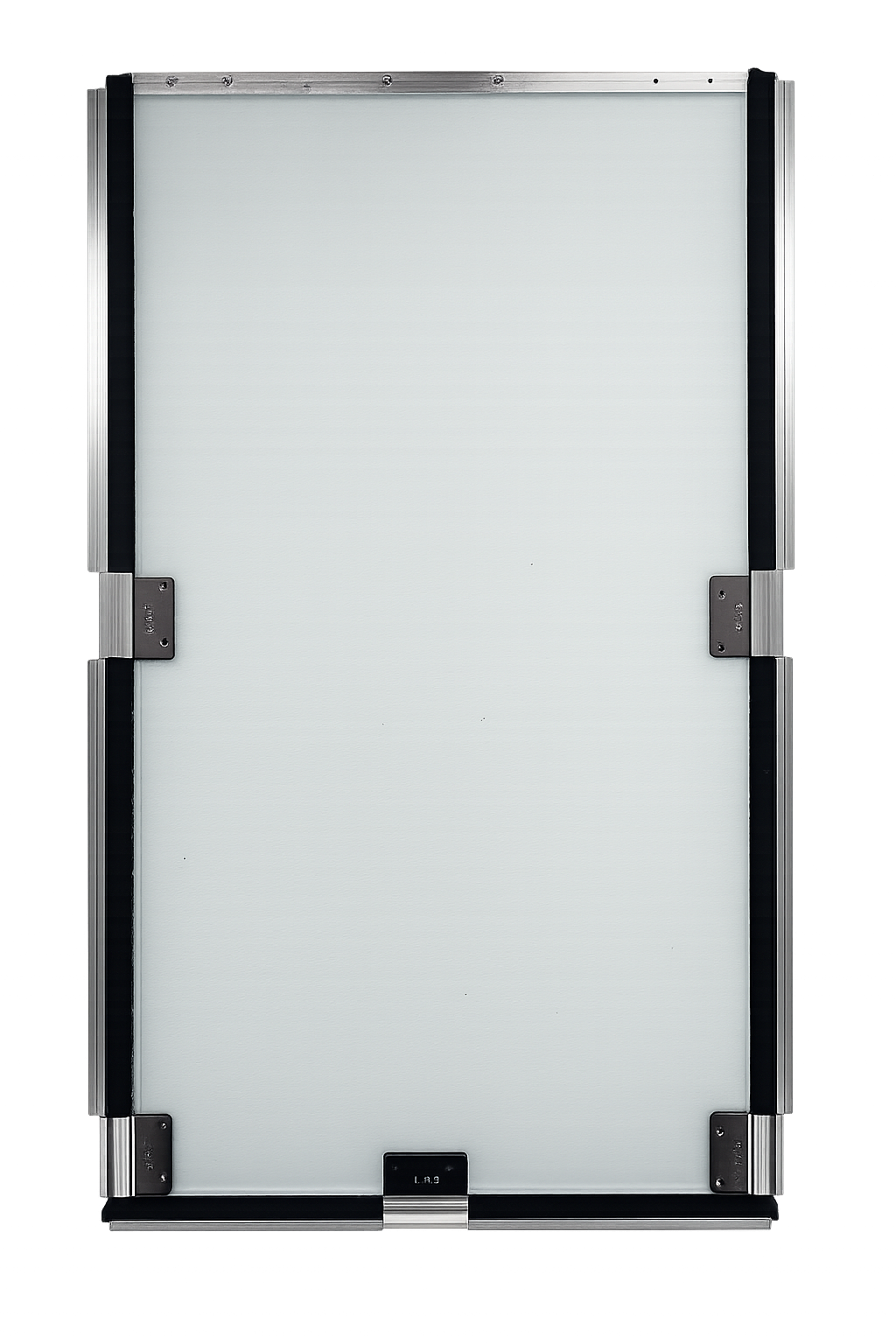

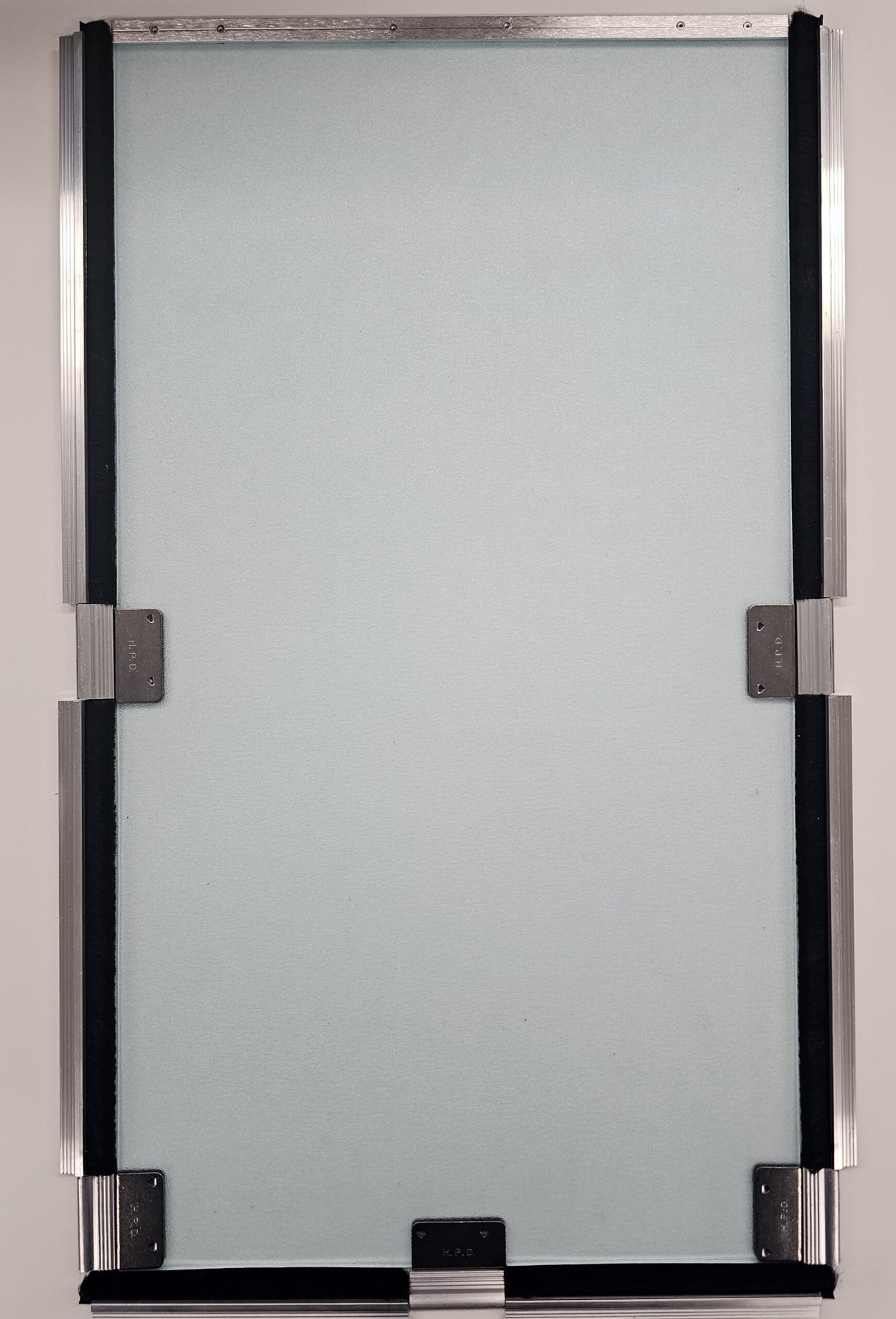

Hale Pet Door Replacement Flaps

Precision Fit. Proven Hale Quality.

75 Reviews
Made in the USA USA flag icon
Regular price $98.00

Fast & Free Shipping in the USA.

Satisfaction Guarantee -

10 Year Warranty

Flap Size
Flap Location or Type

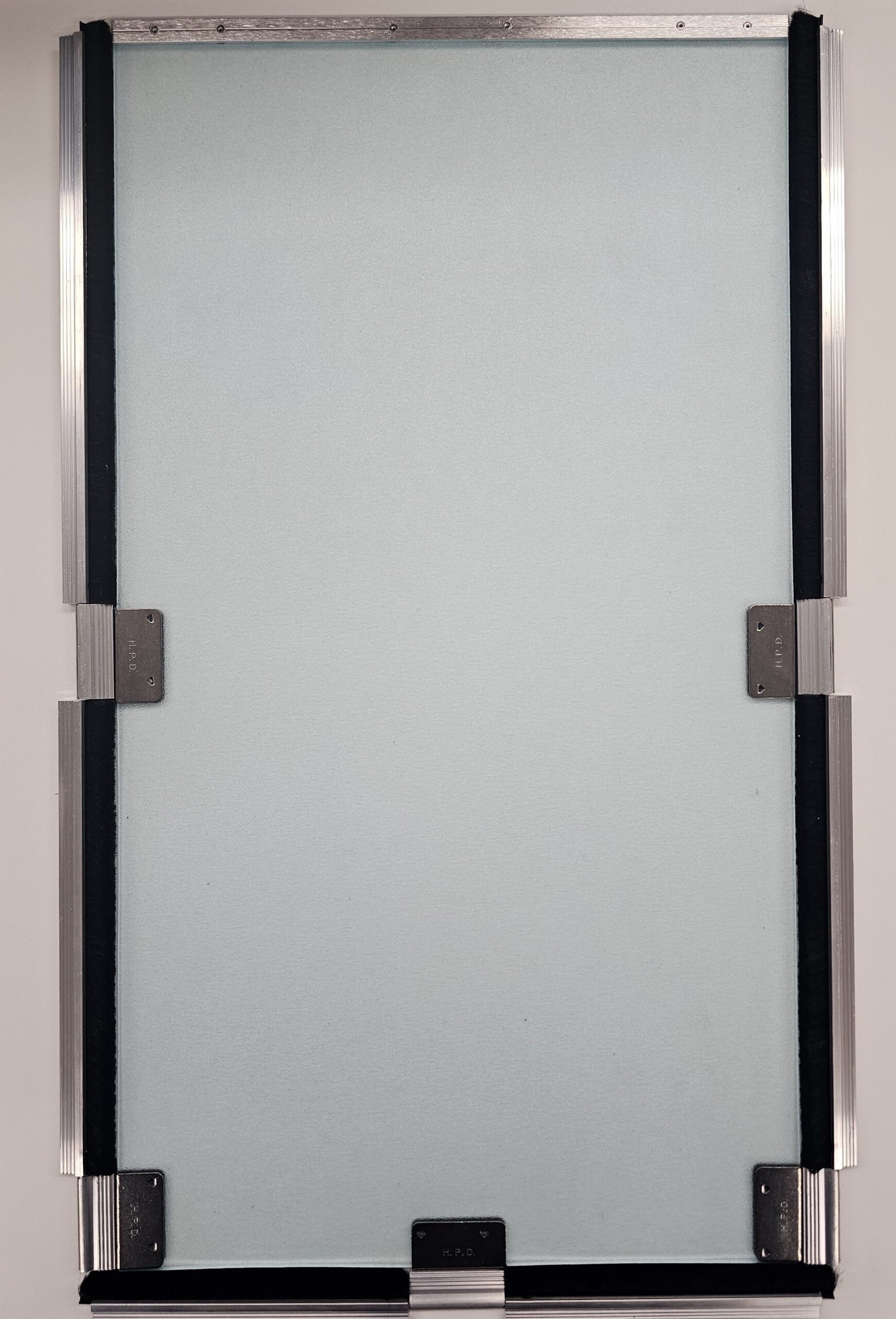

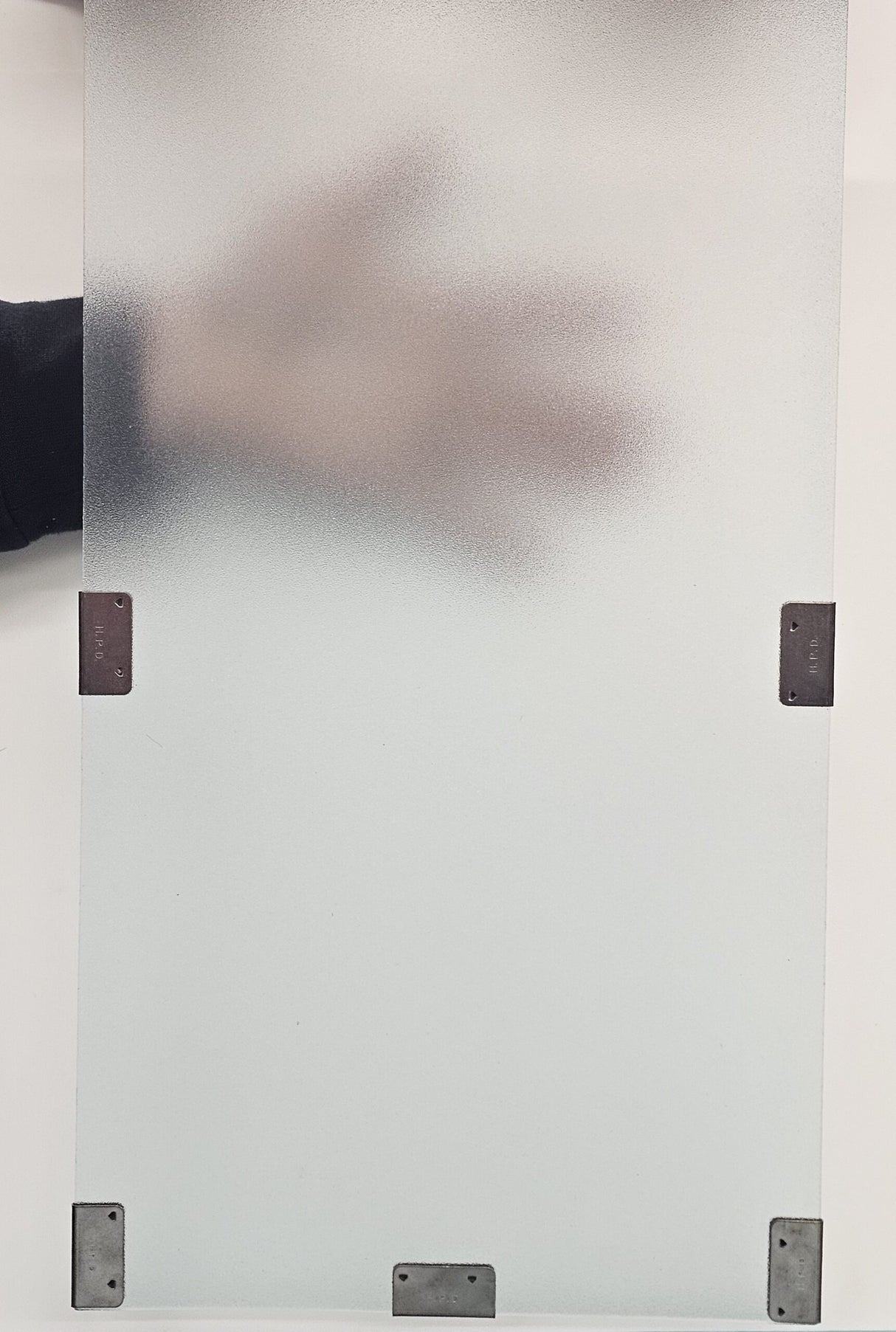

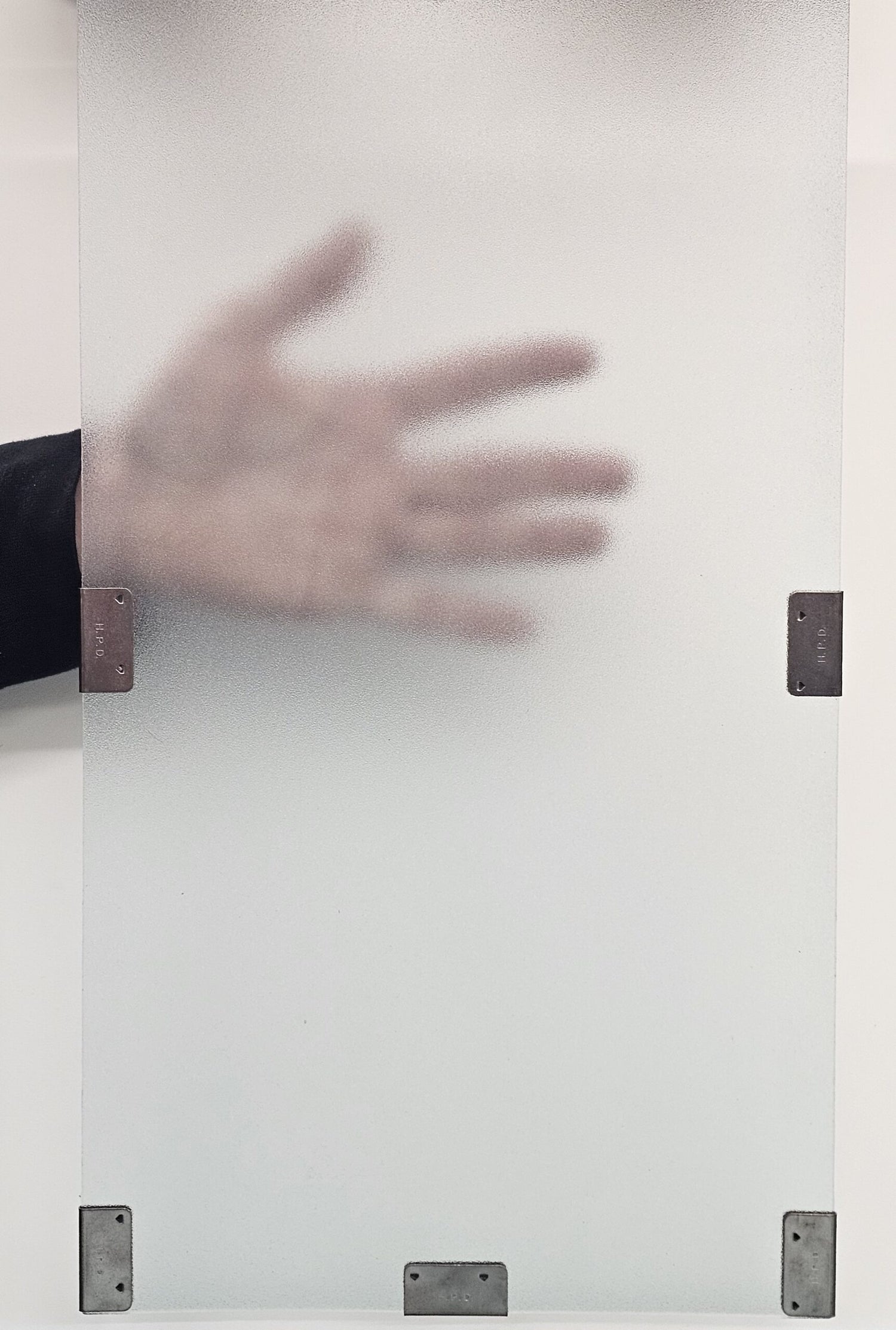

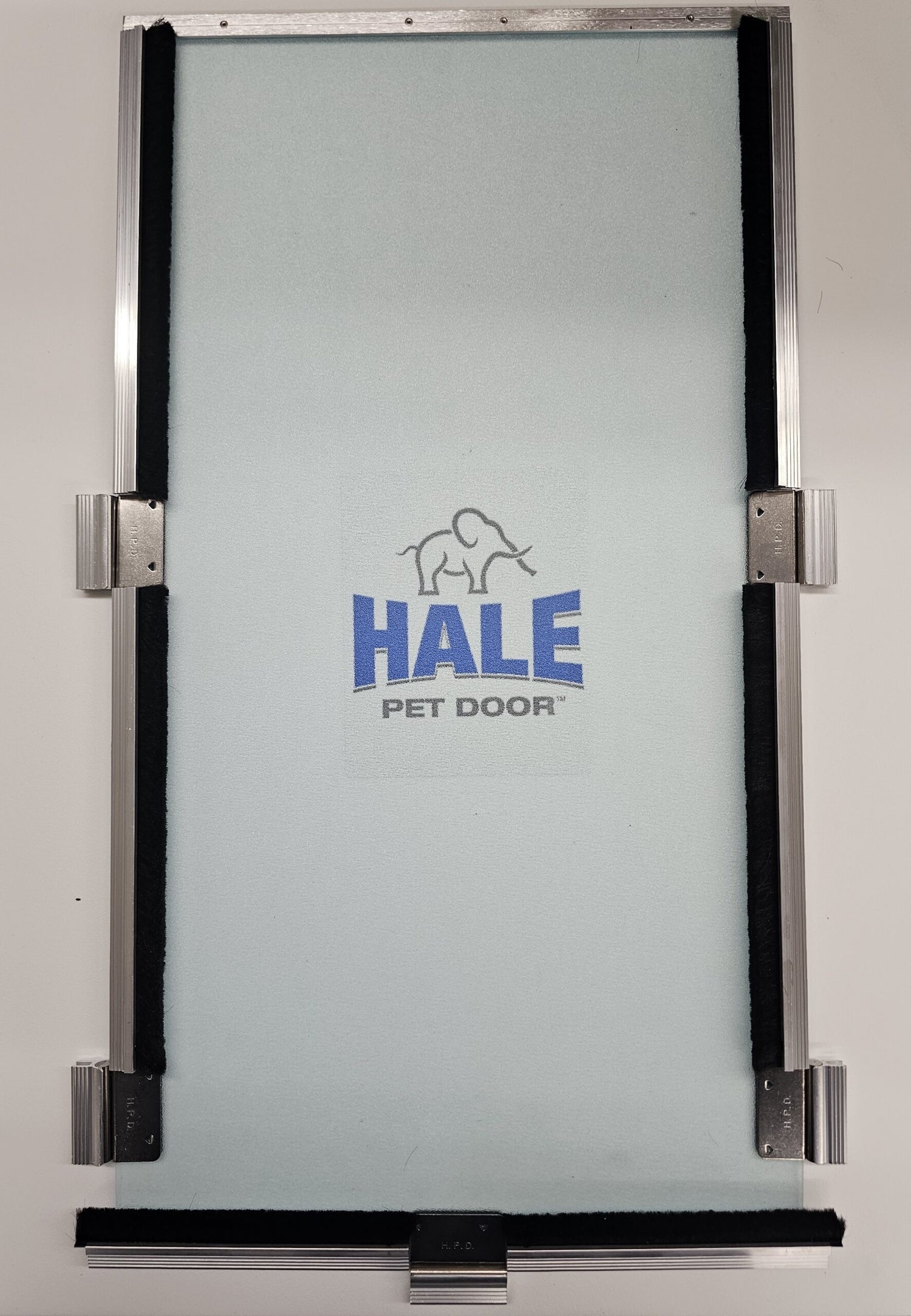

Genuine Hale replacement flaps restore insulation, seal integrity, and smooth operation using updated textured frosted vinyl construction with pre-installed magnets, strikes, and weather stripping for a precise fit.

  • Restores insulation and seal performance to your existing Hale pet door.
  • Maintains smooth pet access with flexible, textured vinyl construction.
  • Preserves magnetic closure integrity with pre-installed strikes and frame magnets.
  • Available for Door, Wall, Panel, Sash, Screen, and Single Pane Through Glass models.
  • Training flap option supports temporary acclimation for hesitant pets.
  • Custom sizing available for unique Hale installations.

Installation & Fit

  • Fits Hale Door, Wall, Panel, and Sash models when selecting the Outside Frame option for single flap configurations.
  • Fits Screen and Single Pane Through Glass models when selecting the Inside Frame option.
  • Attaches using the included magnets, strikes, and weather stripping designed for Hale frame systems.
  • Converts a single flap configuration to double flap when an Inside Frame flap is added.
  • Custom sizing is available for non-standard Hale installations through customer service coordination.

Best Suited For

Ideal for:

  • Homeowners maintaining a Hale pet door rather than replacing the full unit.
  • Households seeking to restore insulation performance and magnetic sealing.
  • Single or double flap configurations needing one or both flaps replaced.
  • Pets accustomed to the original Hale flap weight and flexibility.
  • Owners wanting factory-matched fit and finish rather than aftermarket alternatives.

    Not ideal for:
  • Non-Hale pet door systems that require brand-specific replacement parts.

Questions

What's in the box?

  • 7/64" drill bit
  • 1 or 2 flaps, depending upon kit ordered
  • Replacement magnets (number depends on flap size ordered)
  • Replacement screws
  • Replacement black nylon weather-stripping

Where can I find Hale Pet Door Reviews?

Find Hale Pet Doors for Walls Reviews here. You can click on the Review tab below the picture and read why this pet door for walls is rated 4.5 out of 5 stars!

How does the Hale Pet Door contribute to energy efficiency in a home?

The flap’s magnetic closures keep the flap closed against wind and rain. The weather stripping lining, as well as the option double flap configuration, adds extra insulation and prevents drafts.

Is the flap on the interior or exterior frame for single flap model?

The single flap model will feature a flap on the exterior frame of the pet door.

Explore all questions
Product Details

Product Details

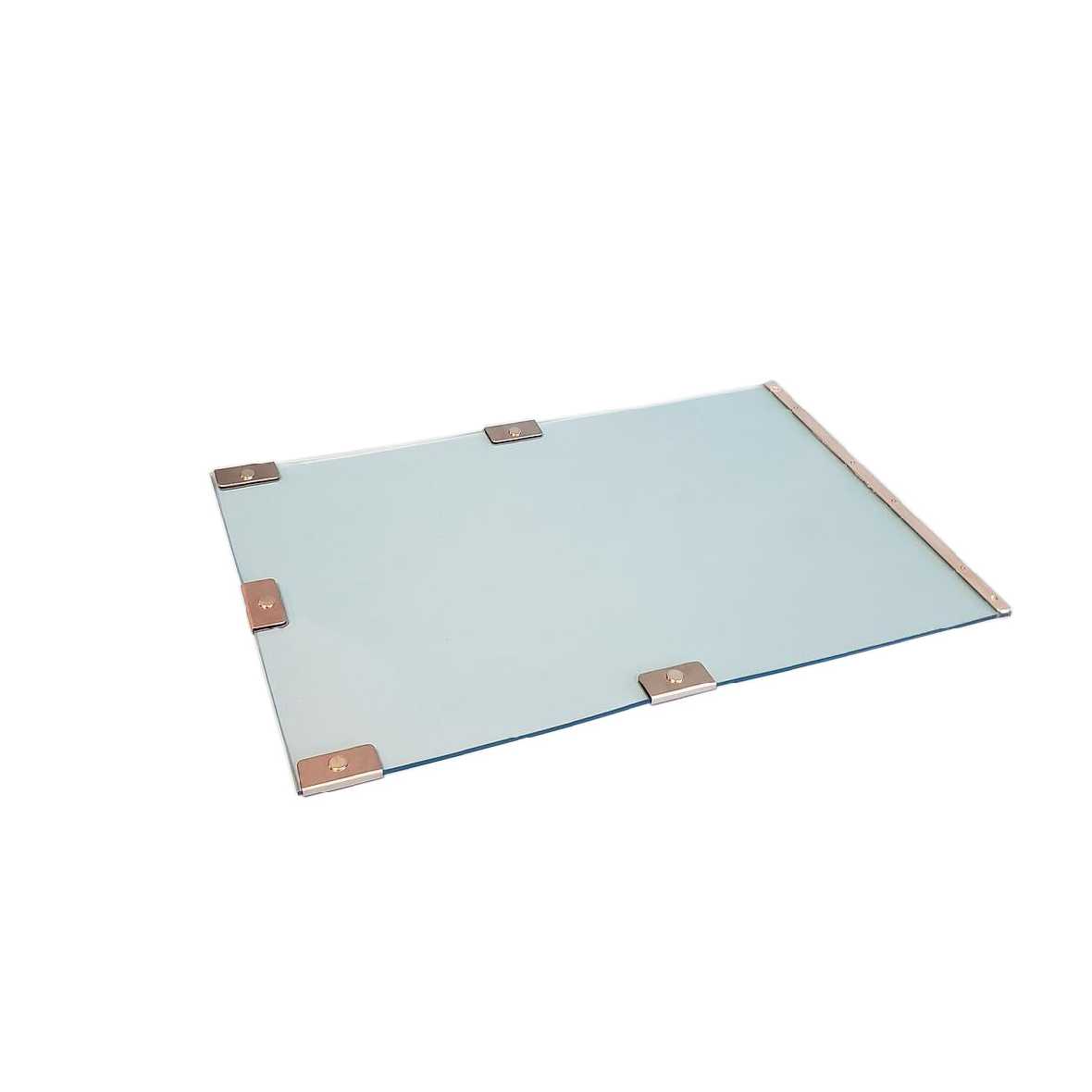

Keep your pet door in top condition with Hale Pet Door Replacement Flaps, designed to restore insulation and security without compromising ease of use. These high-quality flaps match the durability and flexibility of your original Hale pet door, ensuring your pet's access remains smooth while keeping drafts and outdoor elements at bay. The clear vinyl construction withstands frequent use, while pre-installed strikes, magnets, and weather stripping enhance the seal to maximize energy efficiency.

Available for single and double-flap models across multiple Hale pet door installations—including doors, walls, panels, sash windows, screens, and single-pane through-glass doors—these replacement flaps offer a straightforward upgrade.

For a single flap Door, Wall, Panel and Sash models: you will need to choose the outside mount version in the menu.

For double flap Door, Wall, Panel and Sash models: you can replace the inside and/or outside (or both), depending on which ones need replacing.

For Screen pet door models you will choose the inside mount.

For Single pane Through Glass models you will choose the inside mount.

If adding an extra flap to convert from a single flap to a double flap: you will need to order the inside mount.

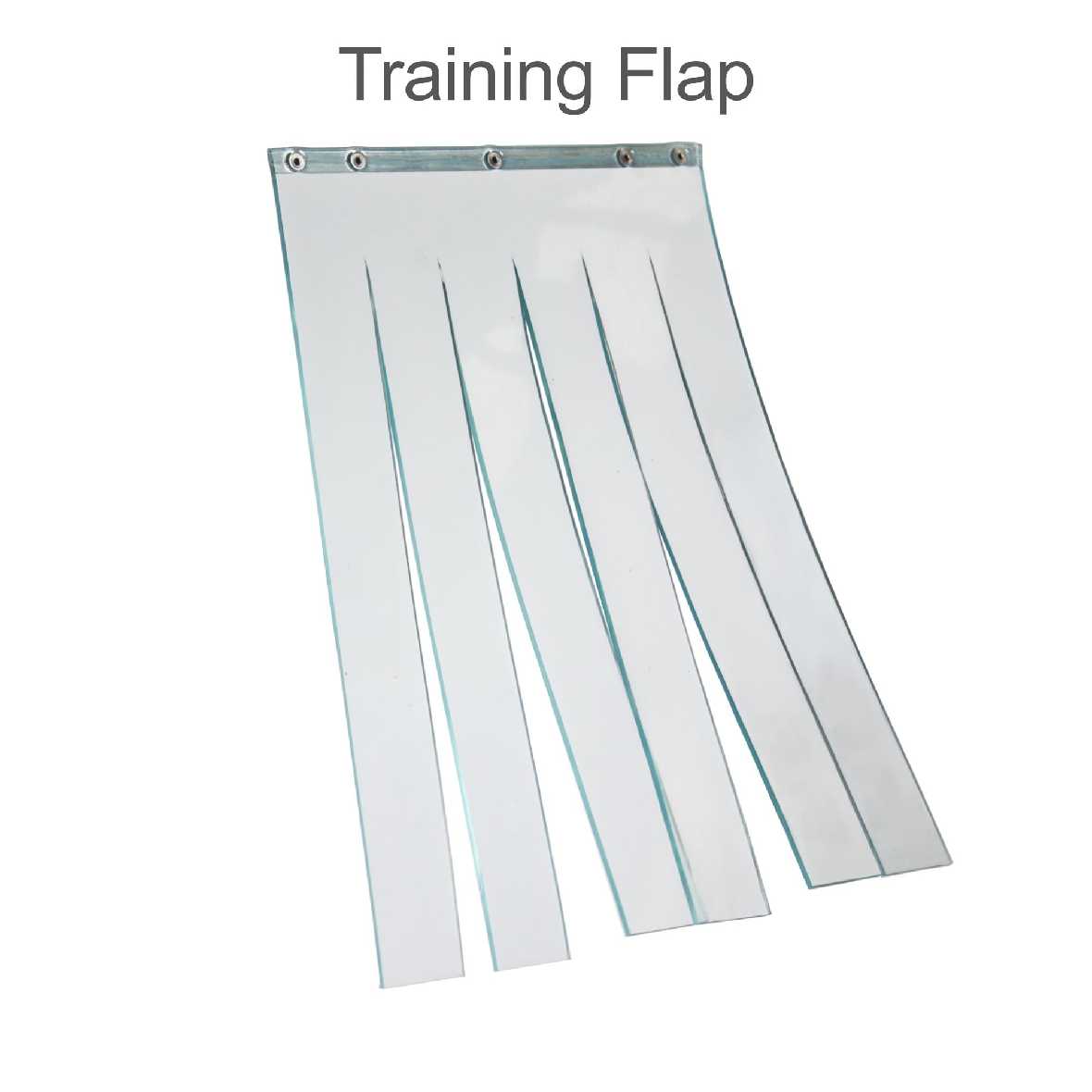

Training flaps are intended for temporary use while the pet is getting used to their new door. We recommend these flaps for more timid, reluctant pets. Each one consists of thin vinyl strips with no real sealing capability. They are easier to use but should be replaced with a standard flap for better insulation performance when training is complete. They do not include any of the extra hardware that comes with standard flaps.

Installation is simple, with all necessary hardware included. Measure your current flap's outside frame to confirm sizing, or contact customer service for a custom-fit option. Replacing a worn flap is an easy way to maintain your pet door’s performance while ensuring your home stays comfortable and secure.

Sizing & Fit

Size Chart

FLAP SIZE FLAP OPENING DIMENSION OUTSIDE FRAME DIMENSIONS FULL FLAP MEASUREMENT
Small 5 1⁄2" w x 7 1⁄2" h 8 3⁄8" w x 10 3⁄8" h 5 1⁄2"w x 7 13⁄16"h
Small Medium 6 1⁄2" w x 9 1⁄2" h 9 9⁄16" w x 12 9⁄16" h 6 1⁄2"w 10"h
Medium 8 1⁄2" w x 12 1⁄2" h 11 9⁄16" w x 15 3⁄8" h 8 1⁄2"w x 12 13⁄16"h
Tall Medium 8 1⁄2" w x 16" h 11 9⁄16" w x 19 1⁄16" h 8 1⁄2"w x 16 1⁄2"h
Large 11" w x 16" h 14 1⁄16" w x 19 1⁄16" h 11"w x 16 1⁄2"h
Tall Large 11" w x 19 1⁄2" h 14 1⁄16" w x 22 9⁄16" h 11"w x 20"h
Tall Large Plus 11" w x 23 1⁄2" h 14 1⁄16" w x 26 9⁄16" h 11"w x 24"h
Extra Tall Large 11" w x 27 1⁄2" h 14 1⁄16" w x 30 9⁄16" h 11"w x 28"h
Extra Large 14" w x 19 1⁄2" h 17 1⁄16" w x 22 9⁄16" h 14"w x 20"h
Extra Large Plus 14" w x 23 1⁄2" h 17 1⁄16" w x 26 9⁄16" h 14"w x 24"h
Giant 15 1⁄2" w x 27 1⁄2" h 18 9⁄16" w x 30 9⁄16" h 15 1⁄2"w x 28"h

Do not know which size to get? Here is a measurement guide to help you out

Installation Guide

Installation Information

Hale Flap Replacement Instruction

Installation icon Difficulty Easy
Installation icon Steps 6
Installation icon Time Required 1 hour

Parts

  • 7/64" drill bit
  • 1 or 2 flaps, depending upon kit ordered
  • Replacement magnets (number depends on flap size ordered)
  • Replacement screws
  • Replacement black nylon weather-stripping

Tools

  • Screwdriver
  • Mallet
  • Pliers
  • Drill

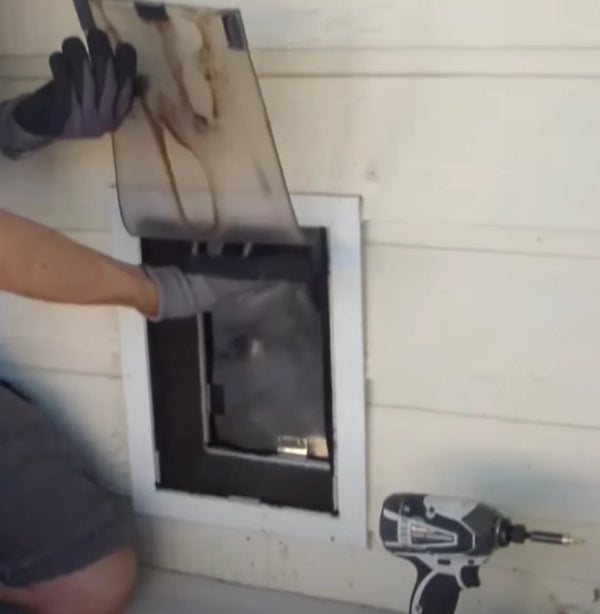

Step 1 Remove the old flap

Remove the old flap
  • Remove the screws at the top of the old flap and pull down on the flap to remove it from the frame.

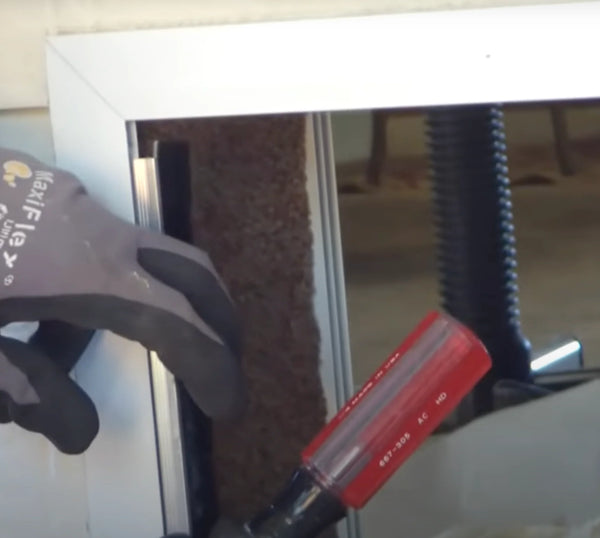

Step 2 Replace the Weatherstripping

Replace the Weatherstripping
  • While the flap is out, replace the black weather-stripping if needed. Grasp the old weather-stripping by the aluminum holder with a pair of pliers.
  • Wiggle the pliers a little to loosen the holder and pull it out.
  • Alternately, you can use a mallet and screwdriver to tap the weather-stripping out of the frame.
  • Place the new piece of weather-stripping in the channel and tap in with a screwdriver handle.

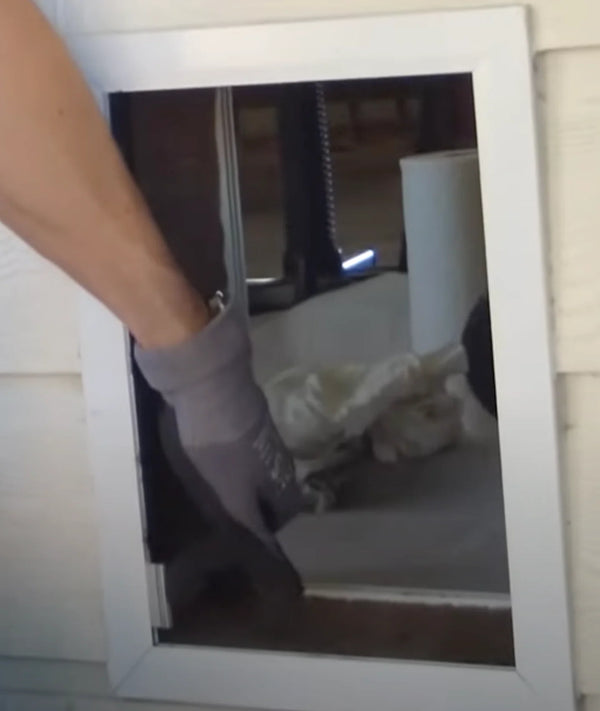

Step 3 Replace the Magnets

Replace the Magnets
  • The magnets are pressure fitted into the frame and can be replaced if necessary.
  • They are adjustable by prying out with a screwdriver or pliers or by tapping in with a standard screwdriver and mallet.
  • Replace magnets, if desired, and tap or twist into the proper position in relation to the flap.

Step 4 Insert the New Flap

Insert the New Flap

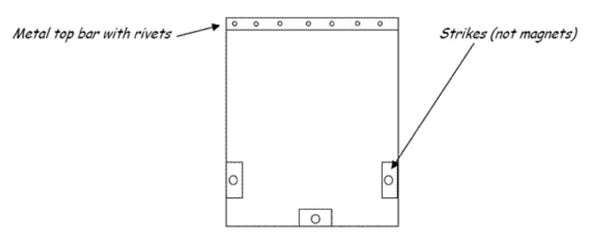

Step 5 Adjust Flap Alignment

Adjust Flap Alignment
  • Before drilling, adjust flap alignment so that the strikes align with the magnets and the flap is level and swings freely.

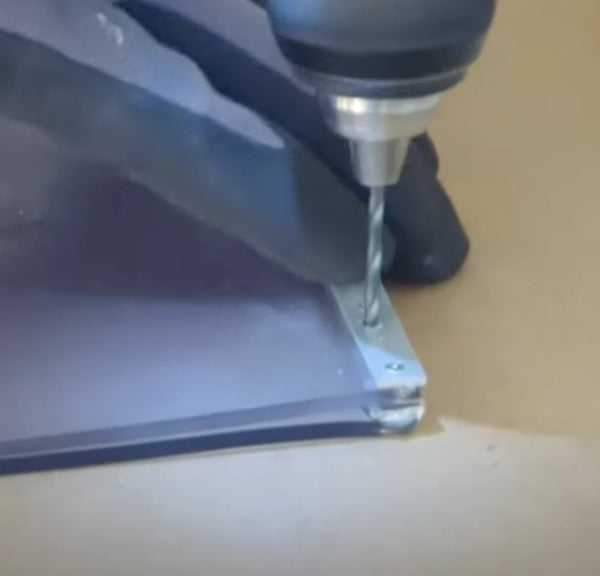

Step 6 Insert the Screws

Insert the Screws
  • Using the screw holes as a guide, drill a short distance into the metal bar on top of the new flap with the 7/64" drill bit.
  • Insert the new screws into the holes and tighten.
