Hale Through the Glass Pet Door for Glass Doors

Hale Through the Glass Pet Door for Glass Doors

Regular price
$434.00
Sale price
$434.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

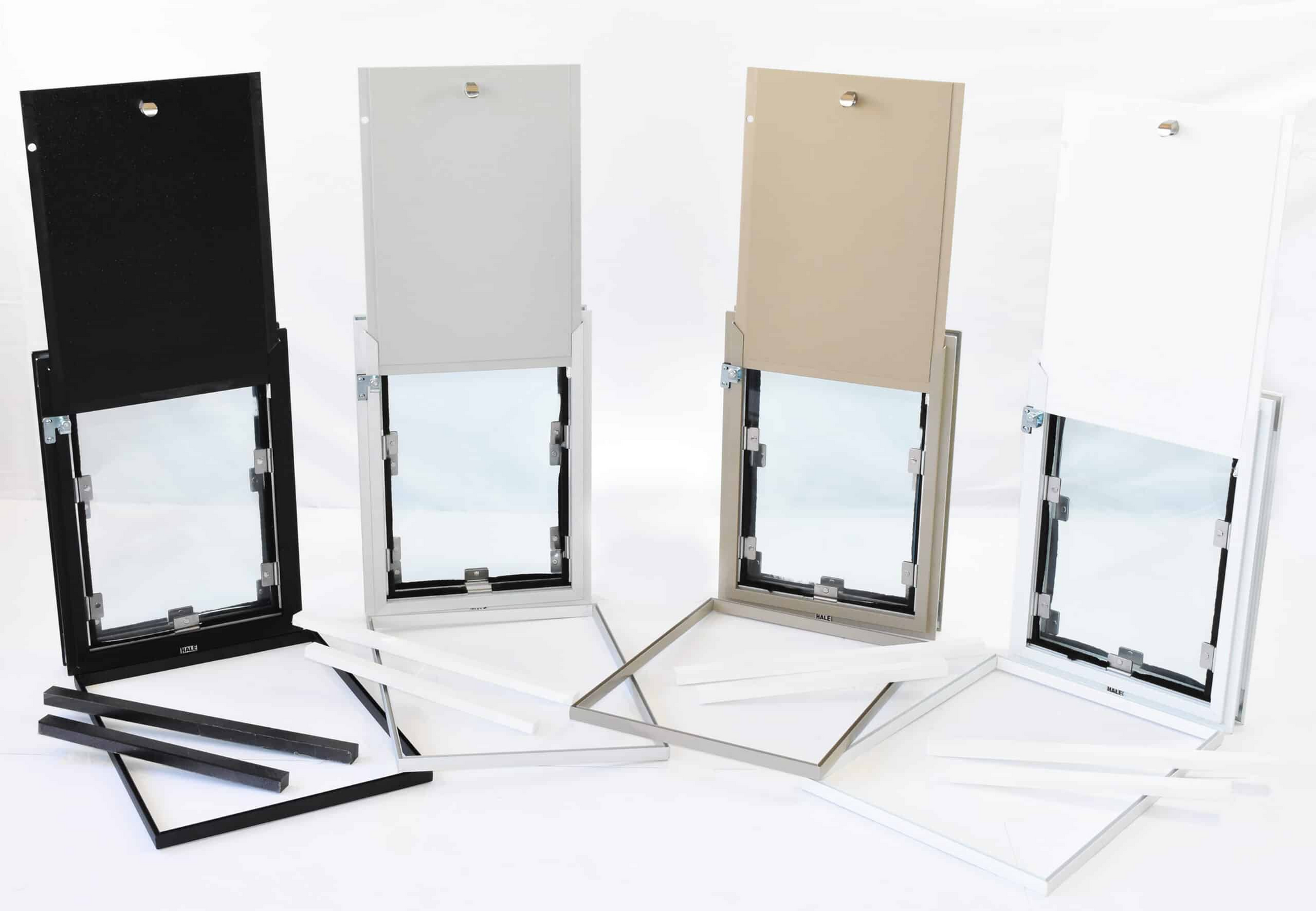

White
Brushed Aluminum
Tan
Black

  • Innovative pet door for installation in single-pane or double-pane glass doors
  • Professional glazier required for cutting new glass and installation
  • Single or double flap options available, depending on glass type

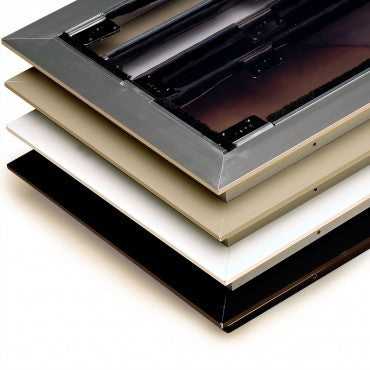

  • Extruded aluminum frame with steel-reinforced corners for stability
  • Eleven different pet door sizes to accommodate various pet breeds
  • We'll need more information to complete your order. In your order confirmation email, there is an orange button with "Finish Your Order." Click on it to enter to answer questions to finish your order.

Custom Order | Non-Returnable

Product Details

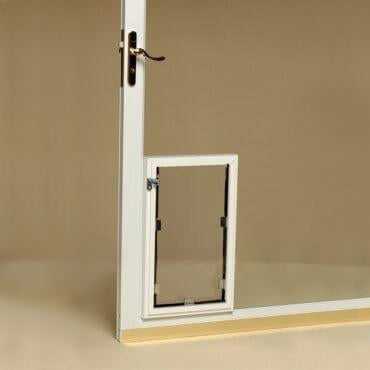

Designed for both single-pane and double-pane glass doors, this innovative pet door allows your furry friends to come and go as they please without compromising the space and functionality of your sliding glass door or hinged door.

The Hale pet door is specifically designed for glass doors, offering a space-saving alternative to traditional panel pet doors. With eleven different sizes available, this pet door accommodates pets of various breeds and sizes. The extruded aluminum frame and steel-reinforced corners provide exceptional stability, ensuring long-lasting durability and performance.

To Complete your order, you will fill out a short electronic survey (link on your order confirmation email) and need to  know the following before we can begin building your pet door:

  • Single pane glass must be no more than 3/16" thick and comes with only one flap
  • Double pane glass (single pane over 3/16" thick) has your choice of 1 or 2 flaps
  • Glass thickness is needed, should not be an estimate, because this will determine if your installation needs build outs or comp strips
  • Type of door being installed in (if sliding glass door, will need to know if the slider, slides inside or outside the fixed, non-operational panel)

Glazier Required for Installation: Because existing tempered glass cannot be cut, this application requires replacing the entire pane of glass. Glass cutting, tempering, and installing a dog door in a glass door require a glass professional. It is always best to have the pet door in hand before ordering the glass so that you have the exact dimensions needed.

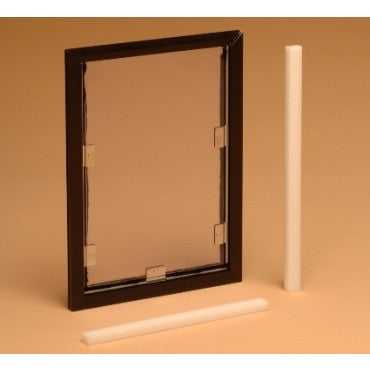

Single-Pane Model: Fits tempered safety glass up to 3/16" and comes with a single flap only. If you have single-pane glass over 3/16" thick, you will need to order the double-pane model. Includes Comp Strips.

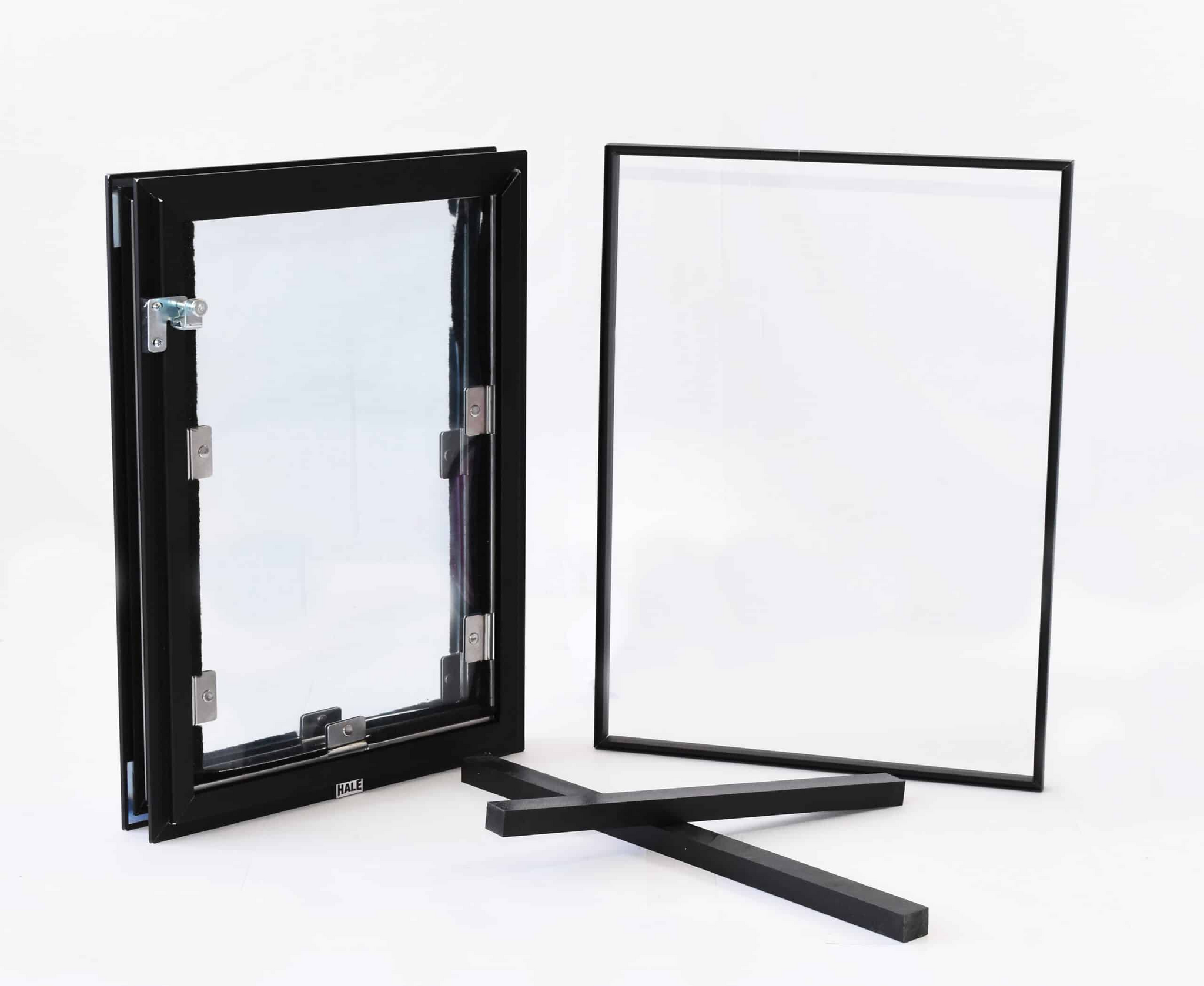

Double-Pane Model: Fits glass thickness from 1/4" to 1-3/8". Can be used in glass thicknesses 1-3/8 to 2" thick with a build-out that will be included in the order. The standard order of this model comes with double flaps and an interior security cover, but it can be ordered with a single flap. Includes Comp Strips and Buildout.

Please Note: For sliding glass doors that slide inside the fixed panel, the pet door should be placed on the slider. For sliding glass doors that slide outside the fixed panel, the pet door should be placed on the fixed panel. This is to ensure the slider is able to fully open and not blocked by the lock or potential build-out.

Warning: Thermo-Tru brand sliding glass doors require a specialized glazier for installation. Make sure you do not have a Therma-Tru pet door before purchasing.

Features:

  • Space-saving design eliminates the need for panels in sliding door tracks
  • Clear, lightweight, and flexible vinyl flaps for easy pet access
  • Magnets and weather stripping ensure a secure seal against wind gusts
  • King Starboard security cover provides impact resistance and protection
  • Offers freedom for pets to enter and exit, suitable for both dogs and cats
  • Single-pane model comes with a single flap. Double-pane model comes with a double flap.
  • 1/2" black nylon pile weather stripping for maximum insulation.

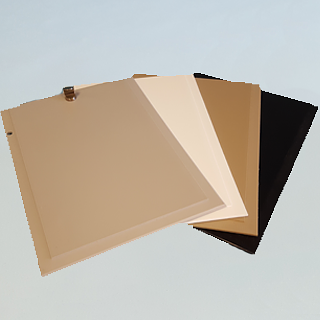

  • 3/16" King Starboard locking cover is extremely shock and impact resistant.
  • Pin lock on the interior side locks the security cover.
  • Single-pane model installs in safety tempered glass up to 3/16" thick.
  • Double-pane model installs in glass 1/4" to 1-3/8", or 1-3/8 to 2" thick with a provided build-out.

Benefits:

  • 11 different pet door sizes to accommodate the biggest and smallest of pets.
  • Lightweight flaps are easy for pets of varying sizes to share.
  • Grants pets the freedom to come and go as they please.
  • Both dogs and cats can use this pet door.
  • Doesn't take up space in sliding glass door tracks the way panel pet doors do.

Size Chart

Flap Dimensions:

6 1/2"w x 9 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

9 9/16"w x 12 9/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 9 1/8" w x 12 1/8" h

Double Pane: 9 3/4" w x 12 3/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

8 1/2"w x 12 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

11 9/16"w x 15 3/8"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 11 1/8" w x 15" h

Double Pane: 11 3/4" w x 15 1/2" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

8 1/2"w x 16"h

The entry way your dog goes through.

Outside Frame Dimensions

11 9/16"w x 19 1/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 11 1/8" w x 18 5/8" h

Double Pane: 11 3/4" w x 19 1/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

11"w x 16"h

The entry way your dog goes through.

Outside Frame Dimensions

14 1/16"w x 19 1/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 13 5/8" w x 18 5/8" h

Double Pane: 14 1/4" w x 19 1/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

11"w x 19 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

14 1/16"w x 22 9/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 13 5/8" w x 22 1/8" h

Double Pane: 14 1/4" w x 22 3/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

11"w x 23 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

14 1/16"w x 26 9/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 13 5/8" w x 26 1/8" h

Double Pane: 14 1/4" w x 26 3/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

11"w x 27 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

14 1/16"w x 30 9/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 13 5/8" w x 30 1/8" h

Double Pane: 14 1/4" w x 30 3/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

14"w x 19 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

17 1/16"w x 22 9/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 16 5/8" w x 26 1/8" h

Double Pane: 17 1/4" w x 22 3/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

14" w x 23 1/2" h

The entry way your dog goes through.

Outside Frame Dimensions

17 1/16" w x 26 9/16" h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 16 5/8" w x 22 1/8" h

Double Pane: 17 1/4" w x 26 3/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

14"w x 23 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

17 1/16"w x 26 9/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 16 5/8" w x 26 1/8" h

Double Pane: 17 1/4" w x 26 3/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

15 1/2"w x 27 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

18 9/16"w x 30 9/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 18 1/8" w x 30 1/8" h

Double Pane: 18 3/4" w x 30 3/4" h

The size of the hole needed to fit your pet door into your door.
Flap SizeFlap DimensionGlass TypeRough Cut OutOutside Frame DimensionsFlap TypeRecommended Pet Height
Small Medium6 1/2" w x 9 1/2" hSingle Pane9 1/8" w x 12 1/8" h 9 9/16" w x 12 9/16" hSingle5" - 14"
Double Pane9 3/4" w x 12 3/4" hDouble5" - 14"
Medium8 1/2" w x 12 1/2" hSingle Pane11 1/8" w x 15" h11 9/16" w x 15 3/8" hSingle5" - 19"
Double Pane11 3/4" w x 15 1/2" hDouble5" - 19"
Tall Medium8 1/2" w x 16" hSingle Pane11 1/8" w x 18 5/8" h 11 9/16" w x 19 1/16" hSingle5" - 23"
Double Pane11 3/4" w x 19 1/4" hDouble5" - 23"
Large11" w x 16" hSingle Pane13 5/8" w x 18 5/8" h14 1/16" w x 19 1/16" hSingle5" - 24"
Double Pane14 1/4" w x 19 1/4" hDouble5" - 24"
Tall Large11" w x 19 1/2" hSingle Pane13 5/8" w x 22 1/8" h14 1/16" w x 22 9/16" hSingle5" - 29"
Double Pane14 1/4" w x 22 3/4" hDouble5" - 29"
Tall Large Plus11" w x 23 1/2" hSingle Pane13 5/8" w x 26 1/8" h14 1/16" w x 26 9/16" hSingle5" - 34"
Double Pane14 1/4" w x 26 3/4" hDouble5" - 34"
Extra Tall Large11" w x 27 1/2" hSingle Pane13 5/8" w x 30 1/8" h14 1/16" w x 30 9/16" hSingle5" - 42"
Double Pane14 1/4" w x 30 3/4" hDouble5" - 42"
Extra Large14" w x 19 1/2" hSingle Pane16 5/8" w x 22 1/8" h17 1/16" w x 22 9/16" hSingle5" - 31"
Double Pane17 1/4" w x 22 3/4" hDouble5" - 31"
Extra Large Plus14" w x 23 1/2" hSingle Pane16 5/8" w x 26 1/8" h17 1/16" w x 26 9/16" hSingle5" - 36"
Double Pane17 1/4" w x 26 3/4" hDouble5" - 36"
Giant15 1/2" w x 27 1/2" hSingle Pane18 1/8" w x 30 1/8" h18 9/16" w x 30 9/16" hSingle5" - 44"
Double Pane18 3/4" w x 30 3/4" hDouble5" - 44"

Not sure if this is the correct flap size? Here is a measurement guide to help you out.

Find The Best Pet Door Size For My Pet

A

Pet Height: inches

B

Pet Width: inches

Please fill the above fields.

Additional Information

WEIGHT9.0000
MANUFACTURERHale Pet Door
YOUR MAXIMUM PET SIZECats, Large Cats, Small Dogs, Medium Dogs, Large Dogs, X-Large Dogs
CLIMATE SUITABILITYSevere-4 Season, Temperate-3 Season
SEALING VALUEHigh
WIND RESISTANCEAverage
FRAME MATERIALAluminum
INSULATION VALUEHigh
POSSIBLE TO ADD ADDITIONAL MAGNETS FOR GREATER WIND RESISTANCEYes
FLAP MATERIALVinyl
FLAP DESIGNSingle or Double
FLAP COLORSClear
LOCKING COVER MATERIALKing Starboard®
ABILITY TO LOCK FLAPSeparate Locking Cover-Loads from Front, Separate Locking Cover-Loads from Side, Separate Locking Cover-Loads from Top
CAN BE INSTALLED INSingle or Dual Pane Glass Sliding Glass Door, French Doors, Polycarbonate, Plywood or Other Thin Material, Sidelight, Sideways Sliding Windows
WARRANTY PERIOD5 years limited
RETURN PERIOD30 days
MANUFACTURER'S RESTOCKING FEE0

Installation Instructions

Please Note: This installation is to be done by a professional glazer. Please reference the full in the glass instructions here for more details.

installation video image
Installation icon Difficulty High
Installation icon Steps 10
Installation icon Time Required 3-4 hours
Installation icon Sections 01
Installation icon Flags 01

Parts

  • Hale Through the Glass Kit

Tools

  • WD-40
  • Drill and Bits
  • Large Drop Cloth
  • De-burring Tool
  • Caulk Gun
  • Phillips Screwdriver
  • 4 Short Pieces of 2x2
  • Rubber Mallet
  • Paper Towels
  • Clear Silicone Caulk

Step 1 Prepare for Installation

  • Always wear eye protection and gloves when appropriate.
  • Before installation, measure the glass to be sure the replacement glass you have is the right size.
  • Ask the customer if the pet door is to be installed in the sliding panel or the stationary panel. Take into consideration to which side any blinds or drapes pull and whether or not they will interfere with the pet door. If the sliding panel is on the inside and the stationary panel is on the outside. explain to the customer that the slider will only open up to the edge of the pet door, meaning that there will be a loss of door space equal to the width of the pet door.
  • Lay a large drop cloth down over the area in which you will be working. The larger the drop cloth the better. If the glass breaks while you are working a large drop cloth will catch most of it, making cleanup much quicker and easier. Put two pieces of 2 x 2 on the cloth so you can rest the door on them while you work.
  • Before starting work, test the door carefully. See how it slides, if the lock works, etc. If you notice anything wrong, bring it to the customer's attention before starting work!

Step 2 Take the Slider Out of the Track

  • Most Sliding glass doors have the slider on the inside. If the pet door is going to be installed in the slider, you will usually have to remove the stationary panel in order to remove the slider.
  • Before doing so, try to lift the slider out from inside the house. Occasionally one will lift out, saving installation time. If you do have to remove the stationary panel, remove any securing screws or brackets and slide the stationary panel over far enough to get a grip on both edges.
  • Lift it out of the track and set it somewhere out of the way. Lift the slider out of the track.

Step 3 Remove the Screws

  • Set the panel you are going to work on edgewise on the 2 x 2's.
  • There should be two screws on each edge, one at the top and one at the bottom, holding the frame together.
  • Remove the bottom screw from the corner opposite of where the pet door will go. Flip the panel over onto the other edge and remove the top screw.
  • Pull the frame loose from the glass.
  • Strike the end of the Side frame with your mallet to loosen the end frame from the glass.
  • You should now have half the frame off the glass in an "L" shape. Flip the panel over and repeat. Now you should have a sheet of glass with a rubber gasket around it.

Step 4 Set the Glass to the Side

  • Set glass off to the side on the second pair of 2 x 2'3. Save the gasket! You will re-use it on the new glass.

Step 5 Bring in the New Glass

  • Bring in the new glass. Set it on the 2 x 2'5 with the corner notch up.
  • Test fit the pet door onto the glass. Make sure you have the inside of the pet door on the inside surface of the glass.

Step 6 Apply Silicone

  • If everything fits, remove the pet door and put a head of silicone in the groove. Go all the way around the door.
  • The silicone will glue the pet door to the glass and form a cushion between the metal door and the glass.
  • If you do not apply silicone the pet door will rattle on the glass and possibly ca use the glass to break. Put the comp strips in the grooves and put the gasket around the glass.

Step 7 Apply WD-40

  • Spray some WD—40® on a folded paper towel and wipe the gasket thoroughly.
  • Wipe the doorframe where it fits over the gasket. This will make it much easier to put the frame on.

Step 8 Place Frame Back on Glass

  • Place the frame back on the glass.
  • Set it on as straight as you can and tap it onto the glass with the rubber mallet. Flip the panel over and repeat.
  • Put the screws back in.

Step 9 Put the Door back in the Track

  • Check the wheels. Do they roll well? Clean them up and lubricate them with WD—40®. Before re-assembling the door, vacuum out the wheel track and wipe it down with WD-40®.
  • Put the door back in the track. If it is the sliding panel, check to see how it rolls and locks.
  • Re—assemble the entire door. Put any screws or brackets back in place. Put the screen doors back on.

Step 10 Attach the Pin Lock

  • Attach the pin lock to the door. To avoid drilling into the patio door frame when installing the pin lock, study the illustration above. Place the security cover in the pet door.
  • Drill a 5/16“ hole in the fluting very close to the security cover. Drill into the security cover. Remove the security cover and finish drilling the hole. Enlarge the hole in the security cover with a 3/8" bit. Scrape the shavings and rough edges of the hole with the de-burring tool.
  • Put the security cover back in the pet door and hold up a pin lock to the door so the pin sticks through the fluting and into the security cover. Drill out two small holes for the small screws with a 7/64" drill bit. Use the slots in the pin lock for a template. Screw the pin lock into place. Test the lock and adjust it if needed. Clean the area around the glass and you are finsihed.

FAQ

Can I just cut my existing glass?

If you have dual pane or tempered glass you will need to have a local glass shop make a piece of glass with a notch, as you can't cut that without it shattering.

Can this door go into a slider?

It is possible, however, it will stick out so there may not be enough clearance for the sliding door to open all the way. We recommend that the doors be installed in swinging doors or sidelights.

Do I need to hire an installer?

Yes, we highly recommend having a professional do the installation.

Is the pet door clear?

The flap is a clear flexible vinyl with magnets and weather stripping to help seal it up. The more insulating double flap option is only available if you have dual pane glass.

Why do you need my exact glass thickness?

The manufacturer will include a build-out for anything other than 3/16" and they send the proper one out depending on the thickness.

My glass is single pane, but it is not 3/16"?

In that case, you must order the double-pane version and specify your exact thickness.

Does this come with a cover?

Yep, it will come with a cover to close off the dog door when not in use.

Can small and large pets share this door?

Yes, this is a great door for multiple size pets to use.

Are replacement parts available?

Yes, you can find them here.

Is there a warranty?

Hale offers a 5-year pro-rated warranty.

How much does shipping cost?

Shipping is calculated at checkout.

Warranty

Warranty: Lifetime Frame Warranty / 10-Year Parts Warranty Including Flaps

Duration: Lifetime for frame and 10 years for parts including flaps.

Coverage:

  • Hale Pet Door products and components are guaranteed to be free from defects in materials and workmanship from the date of purchase.

  • Flaps are made from the best vinyl imported from France using Hale's custom chemical recipe.

  • Coverage percentages for parts (excluding frame) decreases by 20% every two years over a ten year period.

  • Returns within 30 days due to dissatisfaction results in a full refund, but if the product is damaged upon return, only 50% credit is provided.

Exclusions:

  • Warranty does not include shipping to Hale Pet Door or field service labor.

  • Glass Breakage: 50% replacement cost in the first year if the glass breaks. No warranty on glass after the first year. Excludes in-glass models' glass.

  • Only 50% credit is provided towards the cost of a replacement Hale Pet Door if damaged due to no fault of Hale Pet Door (e.g., miscutting, mismeasuring) within 30 days of purchase.

View the full Hale Pet Doors warranty policy.



Customer Reviews

Hale Through the Glass Pet Door for Glass Doors

White / Small Medium / Single Pane Edit

Hale Through the Glass Pet Door for Glass Doors

Size Chart

Flap Dimensions:

6 1/2"w x 9 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

9 9/16"w x 12 9/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 9 1/8" w x 12 1/8" h

Double Pane: 9 3/4" w x 12 3/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

8 1/2"w x 12 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

11 9/16"w x 15 3/8"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 11 1/8" w x 15" h

Double Pane: 11 3/4" w x 15 1/2" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

8 1/2"w x 16"h

The entry way your dog goes through.

Outside Frame Dimensions

11 9/16"w x 19 1/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 11 1/8" w x 18 5/8" h

Double Pane: 11 3/4" w x 19 1/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

11"w x 16"h

The entry way your dog goes through.

Outside Frame Dimensions

14 1/16"w x 19 1/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 13 5/8" w x 18 5/8" h

Double Pane: 14 1/4" w x 19 1/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

11"w x 19 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

14 1/16"w x 22 9/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 13 5/8" w x 22 1/8" h

Double Pane: 14 1/4" w x 22 3/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

11"w x 23 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

14 1/16"w x 26 9/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 13 5/8" w x 26 1/8" h

Double Pane: 14 1/4" w x 26 3/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

11"w x 27 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

14 1/16"w x 30 9/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 13 5/8" w x 30 1/8" h

Double Pane: 14 1/4" w x 30 3/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

14"w x 19 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

17 1/16"w x 22 9/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 16 5/8" w x 26 1/8" h

Double Pane: 17 1/4" w x 22 3/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

14" w x 23 1/2" h

The entry way your dog goes through.

Outside Frame Dimensions

17 1/16" w x 26 9/16" h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 16 5/8" w x 22 1/8" h

Double Pane: 17 1/4" w x 26 3/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

14"w x 23 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

17 1/16"w x 26 9/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 16 5/8" w x 26 1/8" h

Double Pane: 17 1/4" w x 26 3/4" h

The size of the hole needed to fit your pet door into your door.

Flap Dimensions:

15 1/2"w x 27 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

18 9/16"w x 30 9/16"h

The outer edge of the pet door.
flap dimensions
frame dimensions
rough cutout dimensions

Rough Cut Out:

Single Pane: 18 1/8" w x 30 1/8" h

Double Pane: 18 3/4" w x 30 3/4" h

The size of the hole needed to fit your pet door into your door.
Flap SizeFlap DimensionGlass TypeRough Cut OutOutside Frame DimensionsFlap TypeRecommended Pet Height
Small Medium6 1/2" w x 9 1/2" hSingle Pane9 1/8" w x 12 1/8" h 9 9/16" w x 12 9/16" hSingle5" - 14"
Double Pane9 3/4" w x 12 3/4" hDouble5" - 14"
Medium8 1/2" w x 12 1/2" hSingle Pane11 1/8" w x 15" h11 9/16" w x 15 3/8" hSingle5" - 19"
Double Pane11 3/4" w x 15 1/2" hDouble5" - 19"
Tall Medium8 1/2" w x 16" hSingle Pane11 1/8" w x 18 5/8" h 11 9/16" w x 19 1/16" hSingle5" - 23"
Double Pane11 3/4" w x 19 1/4" hDouble5" - 23"
Large11" w x 16" hSingle Pane13 5/8" w x 18 5/8" h14 1/16" w x 19 1/16" hSingle5" - 24"
Double Pane14 1/4" w x 19 1/4" hDouble5" - 24"
Tall Large11" w x 19 1/2" hSingle Pane13 5/8" w x 22 1/8" h14 1/16" w x 22 9/16" hSingle5" - 29"
Double Pane14 1/4" w x 22 3/4" hDouble5" - 29"
Tall Large Plus11" w x 23 1/2" hSingle Pane13 5/8" w x 26 1/8" h14 1/16" w x 26 9/16" hSingle5" - 34"
Double Pane14 1/4" w x 26 3/4" hDouble5" - 34"
Extra Tall Large11" w x 27 1/2" hSingle Pane13 5/8" w x 30 1/8" h14 1/16" w x 30 9/16" hSingle5" - 42"
Double Pane14 1/4" w x 30 3/4" hDouble5" - 42"
Extra Large14" w x 19 1/2" hSingle Pane16 5/8" w x 22 1/8" h17 1/16" w x 22 9/16" hSingle5" - 31"
Double Pane17 1/4" w x 22 3/4" hDouble5" - 31"
Extra Large Plus14" w x 23 1/2" hSingle Pane16 5/8" w x 26 1/8" h17 1/16" w x 26 9/16" hSingle5" - 36"
Double Pane17 1/4" w x 26 3/4" hDouble5" - 36"
Giant15 1/2" w x 27 1/2" hSingle Pane18 1/8" w x 30 1/8" h18 9/16" w x 30 9/16" hSingle5" - 44"
Double Pane18 3/4" w x 30 3/4" hDouble5" - 44"

Not sure if this is the correct flap size? Here is a measurement guide to help you out.

Find The Best Pet Door Size For My Pet

A

Pet Height: inches

B

Pet Width: inches

Please fill the above fields.

WEIGHT9.0000
MANUFACTURERHale Pet Door
YOUR MAXIMUM PET SIZECats, Large Cats, Small Dogs, Medium Dogs, Large Dogs, X-Large Dogs
CLIMATE SUITABILITYSevere-4 Season, Temperate-3 Season
SEALING VALUEHigh
WIND RESISTANCEAverage
FRAME MATERIALAluminum
INSULATION VALUEHigh
POSSIBLE TO ADD ADDITIONAL MAGNETS FOR GREATER WIND RESISTANCEYes
FLAP MATERIALVinyl
FLAP DESIGNSingle or Double
FLAP COLORSClear
LOCKING COVER MATERIALKing Starboard®
ABILITY TO LOCK FLAPSeparate Locking Cover-Loads from Front, Separate Locking Cover-Loads from Side, Separate Locking Cover-Loads from Top
CAN BE INSTALLED INSingle or Dual Pane Glass Sliding Glass Door, French Doors, Polycarbonate, Plywood or Other Thin Material, Sidelight, Sideways Sliding Windows
WARRANTY PERIOD5 years limited
RETURN PERIOD30 days
MANUFACTURER'S RESTOCKING FEE0

Installation Instructions

Please Note: This installation is to be done by a professional glazer. Please reference the full in the glass instructions here for more details.

installation video image
Installation icon Difficulty High
Installation icon Steps 10
Installation icon Time Required 3-4 hours
Installation icon Sections 01
Installation icon Flags 01

Parts

  • Hale Through the Glass Kit

Tools

  • WD-40
  • Drill and Bits
  • Large Drop Cloth
  • De-burring Tool
  • Caulk Gun
  • Phillips Screwdriver
  • 4 Short Pieces of 2x2
  • Rubber Mallet
  • Paper Towels
  • Clear Silicone Caulk

Step 1 Prepare for Installation

  • Always wear eye protection and gloves when appropriate.
  • Before installation, measure the glass to be sure the replacement glass you have is the right size.
  • Ask the customer if the pet door is to be installed in the sliding panel or the stationary panel. Take into consideration to which side any blinds or drapes pull and whether or not they will interfere with the pet door. If the sliding panel is on the inside and the stationary panel is on the outside. explain to the customer that the slider will only open up to the edge of the pet door, meaning that there will be a loss of door space equal to the width of the pet door.
  • Lay a large drop cloth down over the area in which you will be working. The larger the drop cloth the better. If the glass breaks while you are working a large drop cloth will catch most of it, making cleanup much quicker and easier. Put two pieces of 2 x 2 on the cloth so you can rest the door on them while you work.
  • Before starting work, test the door carefully. See how it slides, if the lock works, etc. If you notice anything wrong, bring it to the customer's attention before starting work!

Step 2 Take the Slider Out of the Track

  • Most Sliding glass doors have the slider on the inside. If the pet door is going to be installed in the slider, you will usually have to remove the stationary panel in order to remove the slider.
  • Before doing so, try to lift the slider out from inside the house. Occasionally one will lift out, saving installation time. If you do have to remove the stationary panel, remove any securing screws or brackets and slide the stationary panel over far enough to get a grip on both edges.
  • Lift it out of the track and set it somewhere out of the way. Lift the slider out of the track.

Step 3 Remove the Screws

  • Set the panel you are going to work on edgewise on the 2 x 2's.
  • There should be two screws on each edge, one at the top and one at the bottom, holding the frame together.
  • Remove the bottom screw from the corner opposite of where the pet door will go. Flip the panel over onto the other edge and remove the top screw.
  • Pull the frame loose from the glass.
  • Strike the end of the Side frame with your mallet to loosen the end frame from the glass.
  • You should now have half the frame off the glass in an "L" shape. Flip the panel over and repeat. Now you should have a sheet of glass with a rubber gasket around it.

Step 4 Set the Glass to the Side

  • Set glass off to the side on the second pair of 2 x 2'3. Save the gasket! You will re-use it on the new glass.

Step 5 Bring in the New Glass

  • Bring in the new glass. Set it on the 2 x 2'5 with the corner notch up.
  • Test fit the pet door onto the glass. Make sure you have the inside of the pet door on the inside surface of the glass.

Step 6 Apply Silicone

  • If everything fits, remove the pet door and put a head of silicone in the groove. Go all the way around the door.
  • The silicone will glue the pet door to the glass and form a cushion between the metal door and the glass.
  • If you do not apply silicone the pet door will rattle on the glass and possibly ca use the glass to break. Put the comp strips in the grooves and put the gasket around the glass.

Step 7 Apply WD-40

  • Spray some WD—40® on a folded paper towel and wipe the gasket thoroughly.
  • Wipe the doorframe where it fits over the gasket. This will make it much easier to put the frame on.

Step 8 Place Frame Back on Glass

  • Place the frame back on the glass.
  • Set it on as straight as you can and tap it onto the glass with the rubber mallet. Flip the panel over and repeat.
  • Put the screws back in.

Step 9 Put the Door back in the Track

  • Check the wheels. Do they roll well? Clean them up and lubricate them with WD—40®. Before re-assembling the door, vacuum out the wheel track and wipe it down with WD-40®.
  • Put the door back in the track. If it is the sliding panel, check to see how it rolls and locks.
  • Re—assemble the entire door. Put any screws or brackets back in place. Put the screen doors back on.

Step 10 Attach the Pin Lock

  • Attach the pin lock to the door. To avoid drilling into the patio door frame when installing the pin lock, study the illustration above. Place the security cover in the pet door.
  • Drill a 5/16“ hole in the fluting very close to the security cover. Drill into the security cover. Remove the security cover and finish drilling the hole. Enlarge the hole in the security cover with a 3/8" bit. Scrape the shavings and rough edges of the hole with the de-burring tool.
  • Put the security cover back in the pet door and hold up a pin lock to the door so the pin sticks through the fluting and into the security cover. Drill out two small holes for the small screws with a 7/64" drill bit. Use the slots in the pin lock for a template. Screw the pin lock into place. Test the lock and adjust it if needed. Clean the area around the glass and you are finsihed.

FAQ

Can I just cut my existing glass?

If you have dual pane or tempered glass you will need to have a local glass shop make a piece of glass with a notch, as you can't cut that without it shattering.

Can this door go into a slider?

It is possible, however, it will stick out so there may not be enough clearance for the sliding door to open all the way. We recommend that the doors be installed in swinging doors or sidelights.

Do I need to hire an installer?

Yes, we highly recommend having a professional do the installation.

Is the pet door clear?

The flap is a clear flexible vinyl with magnets and weather stripping to help seal it up. The more insulating double flap option is only available if you have dual pane glass.

Why do you need my exact glass thickness?

The manufacturer will include a build-out for anything other than 3/16" and they send the proper one out depending on the thickness.

My glass is single pane, but it is not 3/16"?

In that case, you must order the double-pane version and specify your exact thickness.

Does this come with a cover?

Yep, it will come with a cover to close off the dog door when not in use.

Can small and large pets share this door?

Yes, this is a great door for multiple size pets to use.

Are replacement parts available?

Yes, you can find them here.

Is there a warranty?

Hale offers a 5-year pro-rated warranty.

How much does shipping cost?

Shipping is calculated at checkout.

Warranty

Warranty: Lifetime Frame Warranty / 10-Year Parts Warranty Including Flaps

Duration: Lifetime for frame and 10 years for parts including flaps.

Coverage:

  • Hale Pet Door products and components are guaranteed to be free from defects in materials and workmanship from the date of purchase.

  • Flaps are made from the best vinyl imported from France using Hale's custom chemical recipe.

  • Coverage percentages for parts (excluding frame) decreases by 20% every two years over a ten year period.

  • Returns within 30 days due to dissatisfaction results in a full refund, but if the product is damaged upon return, only 50% credit is provided.

Exclusions:

  • Warranty does not include shipping to Hale Pet Door or field service labor.

  • Glass Breakage: 50% replacement cost in the first year if the glass breaks. No warranty on glass after the first year. Excludes in-glass models' glass.

  • Only 50% credit is provided towards the cost of a replacement Hale Pet Door if damaged due to no fault of Hale Pet Door (e.g., miscutting, mismeasuring) within 30 days of purchase.

View the full Hale Pet Doors warranty policy.
