Hale Pet Doors for Thick Walls With Extra Long Tunnel

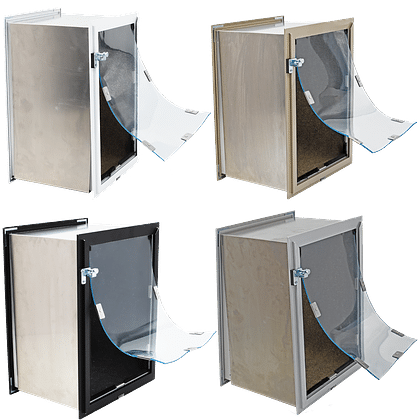

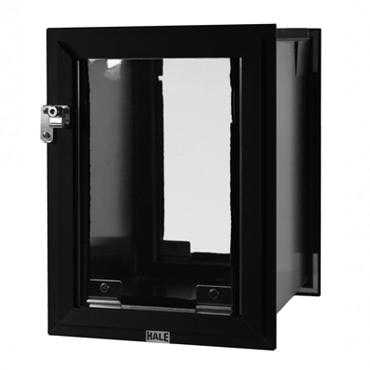

The Hale Pet Doors for Thick Walls with Extra-Long Tunnel is a premium solution for homes with walls up to 16” thick. Designed with a sleek aluminum frame, this pet door offers both durability and style. Choose from four frame colors — White, Arizona Beige, Bronze, or Brushed Aluminum — to match your home’s interior and exterior decor.
Tailor the door to your pet and climate with single or double flap options. The double flap design provides superior insulation, reducing drafts and energy loss, making it ideal for extreme climates. The clear vinyl flaps are designed for easy visibility and lightweight enough for pets of all sizes, with adjustable magnets ensuring a snug seal against wind and weather.

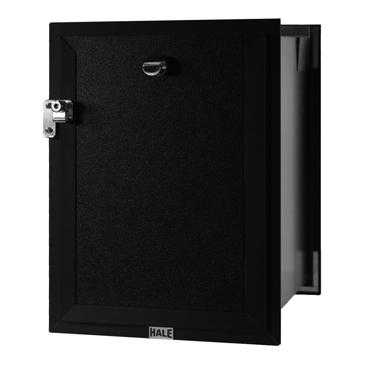

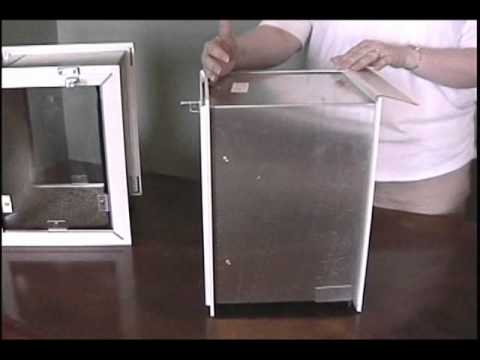

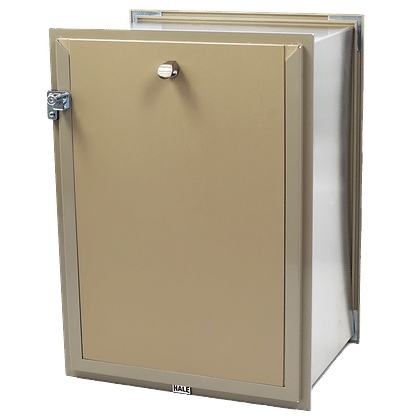

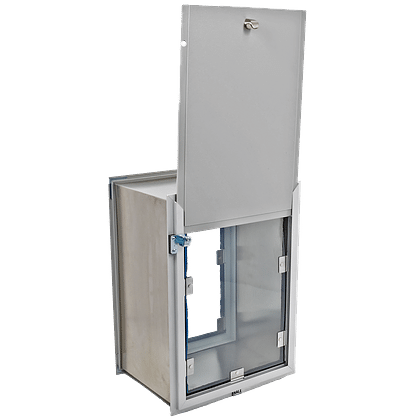

The tunnel arrives pre-assembled and can be trimmed to fit walls from 2" to 16" thick. A stain-resistant, mold-resistant medium-pile brown carpet lines the interior tunnel, providing traction and comfort for your pet while adding insulation. The secure locking cover, color-matched to the frame and reinforced with a steel pin lock, offers peace of mind when the door is not in use.

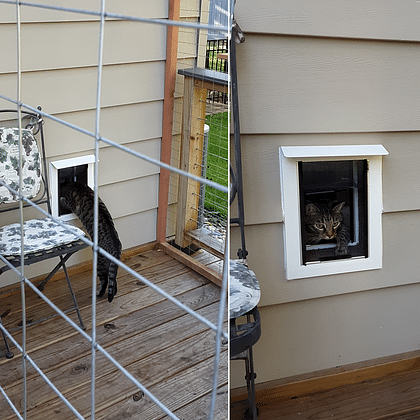

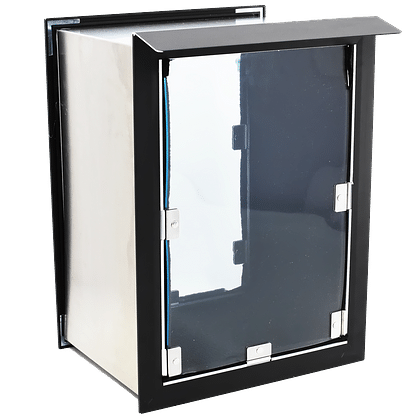

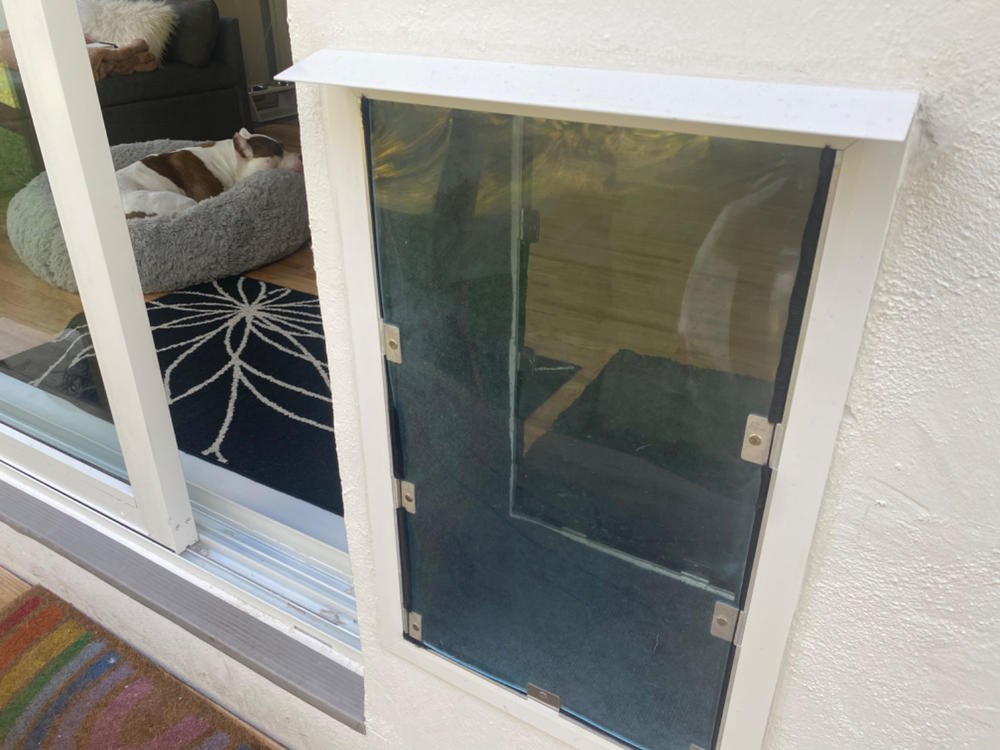

For added protection from rain and moisture, consider the optional rain cap, which fits snugly over the outer frame to prevent water intrusion. Every Hale Pet Door includes detailed installation instructions, empowering DIY enthusiasts to complete the installation with confidence.
Built with high-quality materials and designed for lasting performance, the Hale Pet Doors for Thick Walls offers a premium pet access solution that combines style, security, and durability. Give your pet the freedom they deserve while maintaining the comfort and safety of your home.
Sizing & Fit
6 1/2"w x 9 1/2"h
The entry way your dog goes through.
9 9/16"w x 12 9/16"h
The outer edge of the pet door.
8 1/2"w x 11 1/2"h
The size of the hole needed to fit your pet door into your wall.
8 1/2"w x 12 1/2"h
The entry way your dog goes through.
11 9/16"w x 15 3/8"h
The outer edge of the pet door.
10 1/2"w x 14 1/2"h
The size of the hole needed to fit your pet door into your wall.
8 1/2"w x 16"h
The entry way your dog goes through.
11 9/16"w x 19 1/16"h
The outer edge of the pet door.
10 1/2"w x 18"h
The size of the hole needed to fit your pet door into your wall.
11"w x 16"h
The entry way your dog goes through.
14 1/16"w x 19 1/16"h
The outer edge of the pet door.
13"w x 18"h
The size of the hole needed to fit your pet door into your wall.
11"w x 19 1/2"h
The entry way your dog goes through.
14 1/16"w x 22 9/16"h
The outer edge of the pet door.
13"w x 21 5/8"h
The size of the hole needed to fit your pet door into your wall.
11"w x 23 1/2"h
The entry way your dog goes through.
14 1/16"w x 26 9/16"h
The outer edge of the pet door.
13"w x 25 5/8"h
The size of the hole needed to fit your pet door into your wall.
11"w x 27 1/2"h
The entry way your dog goes through.
14 1/16"w x 30 9/16"h
The outer edge of the pet door.
13"w x 29 5/8"h
The size of the hole needed to fit your pet door into your wall.
14"w x 19 1/2"h
The entry way your dog goes through.
17 1/16"w x 22 9/16"h
The outer edge of the pet door.
16"w x 21 5/8"h
The size of the hole needed to fit your pet door into your wall.
14"w x 23 1/2"h
The entry way your dog goes through.
17 1/16"w x 26 9/16"h
The outer edge of the pet door.
16"w x 25 5/8"h
The size of the hole needed to fit your pet door into your wall.
15 1/2"w x 27 1/2"h
The entry way your dog goes through.
18 9/16"w x 30 9/16"h
The outer edge of the pet door.
17 5/8"w x 29 5/8"h
The size of the hole needed to fit your pet door into your wall.
| Flap Size | Flap Dimension | Rough Cut Out | Outside Frame Dimension | Recommended Pet Height |
|---|---|---|---|---|
| Small Medium | 6 1/2"w x 9 1/2"h | 8 1/2"w x 11 1/2"h | 9 9/16"w x 12 9/16"h | 5" - 14" |
| Medium | 8 1/2"w x 12 1/2"h | 10 1/2"w x 14 1/2"h | 11 9/16"w x 15 3/8"h | 5" - 19" |
| Tall Medium | 8 1/2"w x 16"h | 10 1/2"w x 18"h | 11 9/16"w x 19 1/16"h | 5" - 23" |
| Large | 11"w x 16"h | 13"w x 18"h | 14 1/16"w x 19 1/16"h | 5" - 24" |
| Tall Large | 11"w x 19 1/2"h | 13"w x 21 5/8"h | 14 1/16"w x 22 9/16"h | 5" - 29" |
| Tall Large Plus | 11"w x 23 1/2"h | 13"w x 25 5/8"h | 14 1/16"w x 26 9/16"h | 5" - 34" |
| Extra Tall Large | 11"w x 27 1/2"h | 13"w x 29 5/8"h | 14 1/16"w x 30 9/16"h | 5" - 42" |
| Extra Large | 14"w x 19 1/2"h | 16"w x 21 5/8"h | 17 1/16"w x 22 9/16"h | 5" - 31" |
| Extra Large Plus | 14"w x 23 1/2"h | 16"w x 25 5/8"h | 17 1/16"w x 26 9/16"h | 5" - 36" |
| Giant | 15 1/2"w x 27 1/2"h | 17 5/8"w x 29 5/8"h | 18 9/16"w x 30 9/16"h | 5" - 44" |
Do not know which size to get? Here is a measurement guide to help you out
Number of Flaps:
1 - Single Flap: On inside of wall (same side as locking cover)
2 - Double Flap: One on each side. The included dead-air-space and extra flap add significantly to the already considerable insulation and sealing values.
United StatesI received my notice that the door had a tracking number after a couple days. Then 3 days later it finally shipped. This is a nice door but not $880 nice. Maybe a $200 dollar door. Hale is making a killing on profit on these!! For example, the security door that comes with it is plastic and not metal. Why? I could easily push it in with my foot. If someone wanted to break into your home this would be an easy access. My security door loads from the top. I'm not sure why there is not a notch to keep the door in the track so you don't have to completely remove it. You have to take it out and set it someplace else. They include carpet to put inside the door but no adhesive so there is another expense to this thing. For the price I expected MUCH better. Incredibly overpriced. The most expensive is not always the best option so shop around. It is a nice door but has room for improvement.
United StatesDoor install was smooth. The indoor flap rolls up into the back flap causing both flaps to stay open. I hope problem will be solved soon upon contacting Pet doors.
United StatesAside from having to make a hole through a 12-inch thick, concrete wall, installation was easy. One doggy was in an out the first day, older doggy took a couple more days to get used to. Looks seamless, quality material and everyone is enjoying the freedom.
United StatesMy dogs love going in and out when they want. The double doors keep out flys!

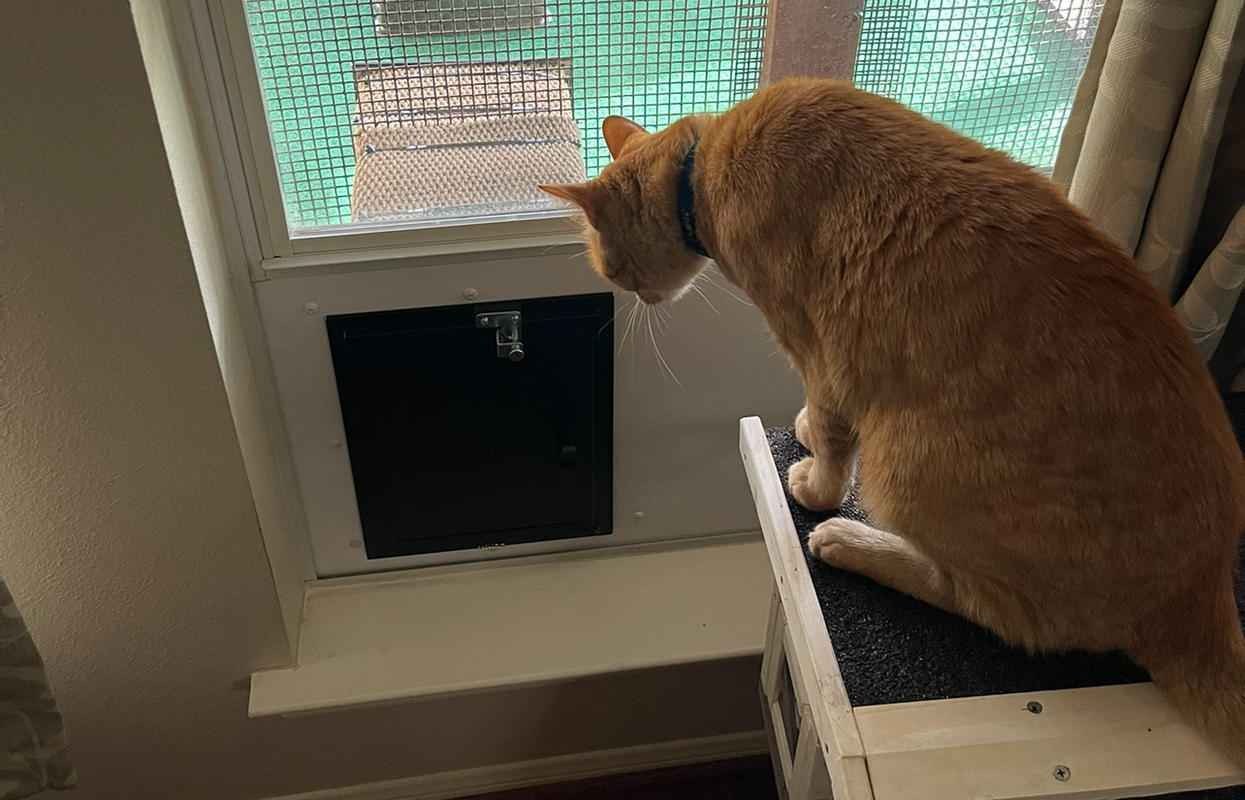

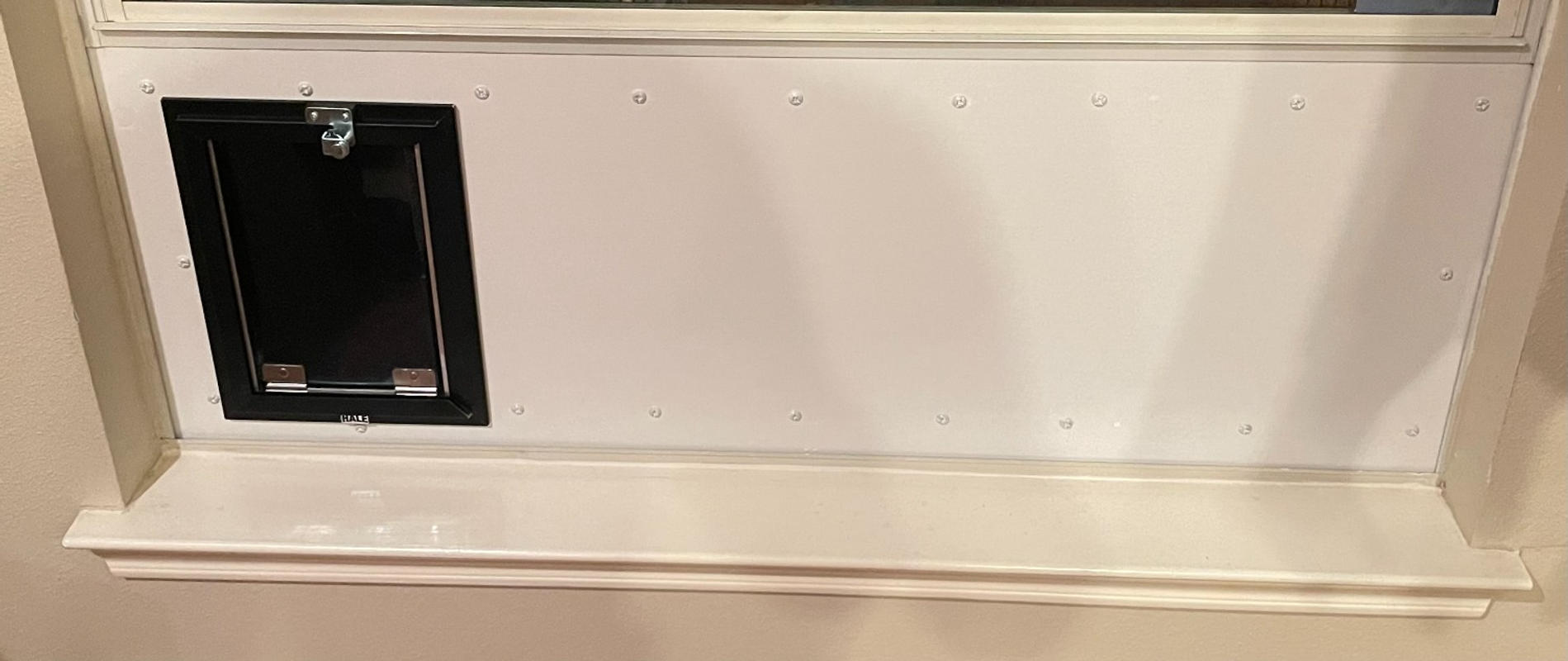

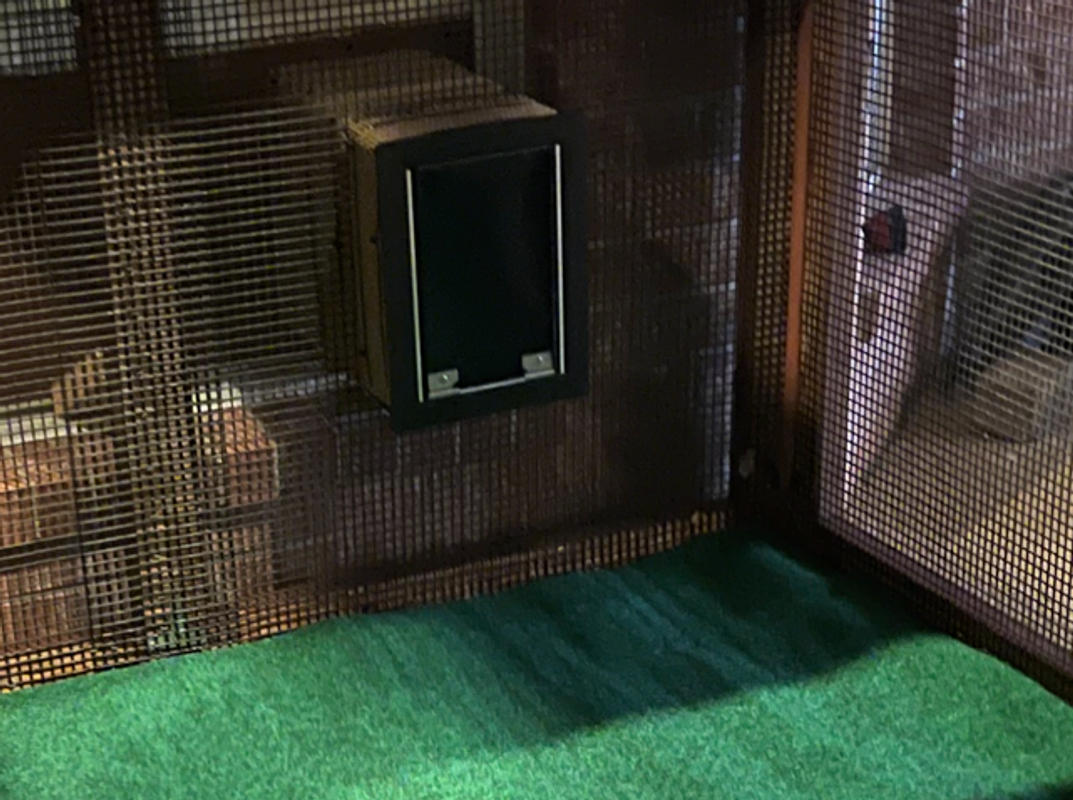

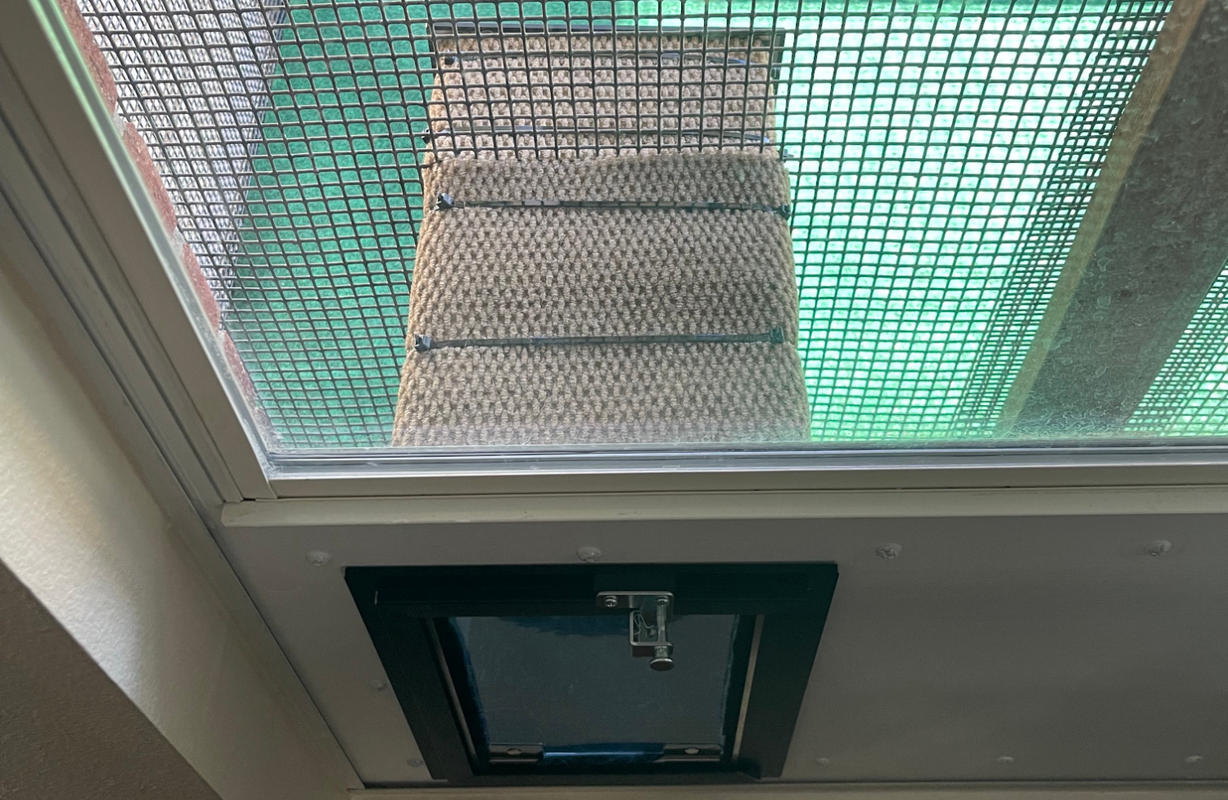

United StatesThe Pet Door i ordered was the Small - Medium Extra long Tunnel 16 inch version. I created a wood frame to fill the window gap and the Pet Door went from then Bedroom window into the Catio I built. I insulted the inside and outside of Pet Door with carpet. My Cats love it and I am very impressed with the quality and service from Hale and Pet Door.
