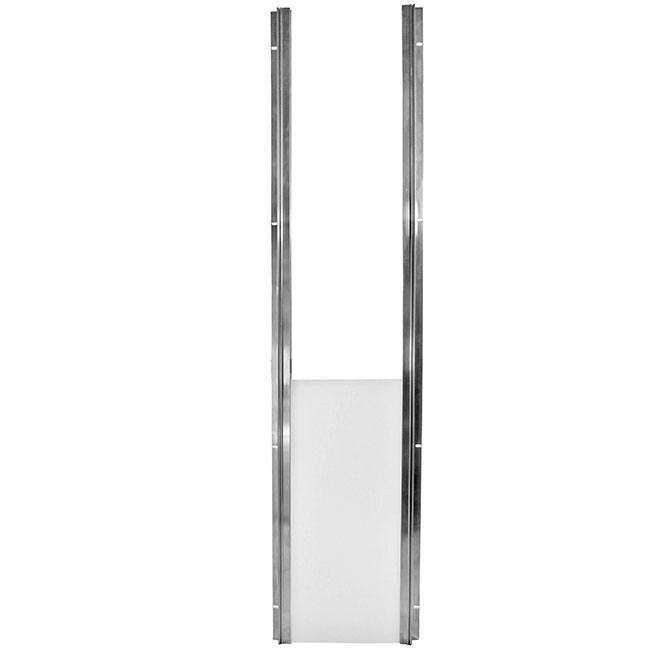

Mason Company Kennel Guillotine Doors
- Guillotine-style Mason Company kennel dog door
- Raising and lowering of locking cover is controlled by a pulley system
- Available in size regular, large, and extra-large
- Option to add a cable guard to prevent chewing
- All parts provided for installation (cable, pulleys, and necessary hardware)
- Built-to-order: 10-14 business day delay in shipping
Product Details
The Mason Company Pet Supplies' guillotine-style kennel door is designed with a raising and lowering locking cover controlled by a manual pulley system. The cable, pulleys, S hooks, pulleys, screw eyes, and necessary hardware are provided. The option to add an interior cable guard (at time of order) to prevent dogs from chewing the cable is available for an additional cost. The Guillotine Doors are a great option to use with the Mason Company Pickwick pet door because they do not come with locking covers.
Features:

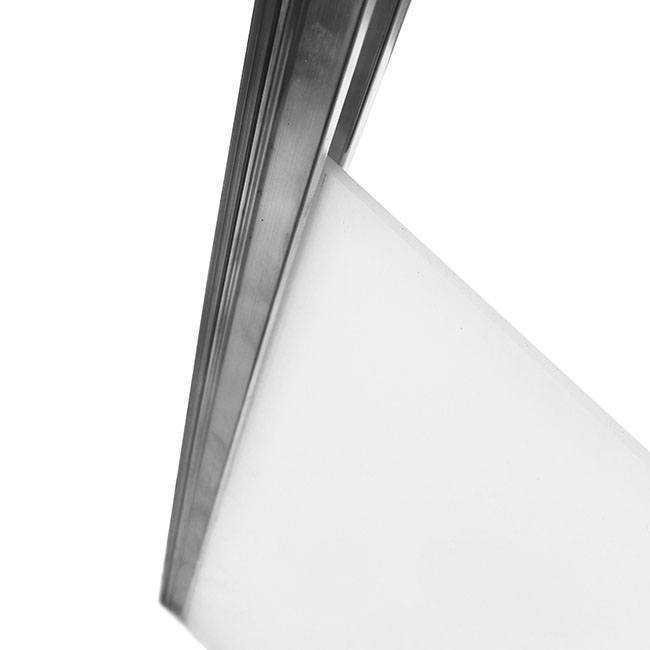

- Vertically-sliding doors are .015" thick aluminum on both sides with a .22" thick polypropylene core
- Channels made of solid extruded aluminum for a sturdiness
- 1/16" diameter aircraft cable has a vinyl coating, resulting in a 3/22" diameter. The cable runs from the front of the dog kennel all the way to the door
- Includes the S hooks, pulleys, screw eyes, and the necessary hardware for a simple installation
- Option of cable guard to prevent chewing
- Available in 2 sizes:
- Large: for openings up to 29 high and 17 wide
- Extra Large: for openings up to 34 high and 17 wide
Benefits:
- Large sizes allow for multiple pets to use
- Raising and lowering from doggie kennel exterior prevents manual removal of the locking cover
- Guillotine door can be used in conjunction with Pickwick pet doors
- Hardware provided will vary based on the material you are installing into and whether it is a door or wall installation
Size Chart
| Flap Size | Max Flap Dimension | Bite Guard |
|---|---|---|
| Medium (regular) | 12" w x 29" h max | No Guard |
| W/ Guard | ||
| Large | 17" w x 29" h max | No Guard |
| W/ Guard | ||
| Extra Large | 17" w x 34" h max | No Guard |
| W/ Guard |
Find The Best Pet Door Size For My Pet
A
Pet Height: inches
B
Pet Width: inches
Installation Instructions
Difficulty
Moderate
Steps
04
Time Required
1-2 hours
Sections
02
Flags
02
Parts
- S Hooks
- Pulleys
- Screw Eyes
- Hardware
Tools
- Drill
Step 1 Position the Door
- Place blank (1) between channels (2) and set in front of wall opening.
- Align so this assembly is centered in the opening.
- Allow 1/16" to 1/8" play between edges of door inside of channels.
Step 2 Attach First Channel
- Attach one channel at center by drilling 3/16" dia. hole 1-3/8" deep in masonry wall.
- Attach channel with 1/4" x 1-1/4" tap con screws (3).
- For wood walls drill a 1/8" dia. pilot hole, attach with # 12 x 1-1/16" sheet metal screws.
- Align channel vertically and attach at top and bottom.
- In some cases shimming may be necessary.
Step 3 Attach Second Channel
- Attach second channel in same manner.
- Place first screw eye and pulley (4) in ceiling directly above the kennel door.
- Place second screw eye and pulley (5) in ceiling in front of gate toward the hinge side.
- Exact location is not important. Just so it is in front of the gate and near the hinge side of the gate.
Step 4 Cable Option
- Loop the vinyl-coated wire rope (6) through the hole at the top of the kennel door and clamp the cable end to create a knot as shown in figure (1) using cable clamp (8) provided.
- Run the cable through the rear pulley above the door and through the front pulley.
- Cut to proper length and attach "S" hook (9) with the cable clamp (8) as shwon.
- To hold door in open position simply hook "S" hook in the chain link fabric.
Installing the Cable Guard
FAQ
|
On the Mason Guillotine Doors, what does it mean by "W/Guard" or "No Guard?" The "with guard" door includes an interior cable guard at an extra cost. This is a 0.100" aluminum panel that protects the cable from chewing. "No Guard" is the standard and lower-cost option. Having no guard would make it easier for the dog to chew on the cable holding up the door. |
|
Does this come with all the hardware? Yes! It will come with everything you need to hook up a pulley system for your dog house, animal hospital, pet resort, or dog boarding facility's boarding kennel system. |
|

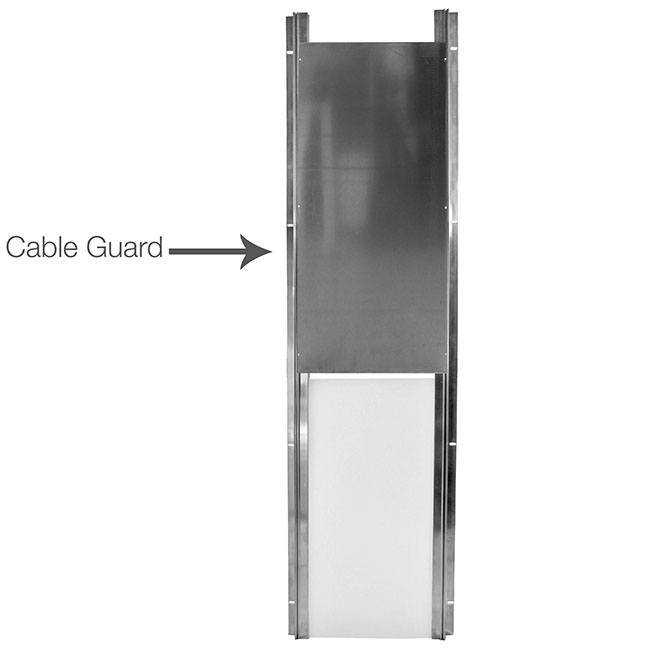

What is the cable guard? That is a sheet of metal installed above the opening. This blocks the cable that raises the panel so dogs can't chew it. |
|
Could I use this as a cover for another pet door? It is just a panel and channels, so you can use it really with any door. Most customers use them for a dog pen or kennel runs. |
|
I need a lot for my dog daycare. Are there quantity discounts? Depending on the amount, we can offer price breaks for multiple items. Give us a call or email us for a quote. |
|
Do the covers last? These doors are extremely durable and have a 3-year warranty. |
|
Could my opening be smaller than the flap dimension? Yep, as long as it is not larger, it should work. |
|
Does this go on the inside or outside? You can put this on the interior or exterior. |
|
Do you have to use the cable? No, it just makes it easier if you have multiple runs so you don't have to go inside the pen to let them out or lock them in. |
|
Can you hook this up to a motor? We have had customers set up the door with a motorized pulley system. You can even hook the doors up to a kennel design system that is remote control operated. |
|
Is the panel chew-proof? It is really tough, but it is not chew-proof. This door is chew resistant. |
|
How much does shipping cost? Shipping is calculated at checkout. |
Warranty
We sincerely believe that our modular animal enclosures are the world’s finest. Over 100 years of quality manufacturing and fair dealing stand behind every product sold by Mason Company.
Mason Company warrants that its products conform to specifications and that they are free from defects in materials and workmanship for a period of three years from date of purchase (with the exception of Mason stainless steel kennel gates, which are warranted for ten years), except that Mason Company makes no warranties as to items and components furnished and warranted by others. Also with the exception of Pickwick doors. Pickwick door hinges are not under warranty. Normal wear and tear excludes the hinges from warranty.
The sole obligation of Mason Company under this warranty shall be to repair or replace (Mason Company’s option) any products found by Mason Company to be defective or not in conformity, provided that Buyer shall have given written notice to Mason Company specifying said defects and/or nonconformities within 30 days after such conditions should have been discovered.
Mason Company’s obligations are strictly limited to the foregoing which is given in lieu of all other warranties, expressed, implied, or statutory, including warranties of merchantability, quality and fitness for intended purpose or use. Mason Company neither assumes nor authorizes any person to assume on its behalf, any other obligation for special or consequential damages, or for any delay in performance of this warranty beyond Mason Company’s control.
Mason Company reserves the right to inspect all materials alleged to be defective or in nonconformance, and Buyer shall hold and protect all products for which Buyer has given notice as stated above until Buyer is instructed to do otherwise by Mason Company. While such products are in Buyer’s possession, Buyer shall be liable for all damages to said products.
Customer Reviews
Size Chart
| Flap Size | Max Flap Dimension | Bite Guard |
|---|---|---|
| Medium (regular) | 12" w x 29" h max | No Guard |
| W/ Guard | ||
| Large | 17" w x 29" h max | No Guard |
| W/ Guard | ||
| Extra Large | 17" w x 34" h max | No Guard |
| W/ Guard |
Find The Best Pet Door Size For My Pet
A
Pet Height: inches
B
Pet Width: inches
Installation Instructions
Difficulty
Moderate
Steps
04
Time Required
1-2 hours
Sections
02
Flags
02
Parts
- S Hooks
- Pulleys
- Screw Eyes
- Hardware
Tools
- Drill
Step 1 Position the Door
- Place blank (1) between channels (2) and set in front of wall opening.
- Align so this assembly is centered in the opening.
- Allow 1/16" to 1/8" play between edges of door inside of channels.
Step 2 Attach First Channel
- Attach one channel at center by drilling 3/16" dia. hole 1-3/8" deep in masonry wall.
- Attach channel with 1/4" x 1-1/4" tap con screws (3).
- For wood walls drill a 1/8" dia. pilot hole, attach with # 12 x 1-1/16" sheet metal screws.
- Align channel vertically and attach at top and bottom.
- In some cases shimming may be necessary.
Step 3 Attach Second Channel
- Attach second channel in same manner.
- Place first screw eye and pulley (4) in ceiling directly above the kennel door.
- Place second screw eye and pulley (5) in ceiling in front of gate toward the hinge side.
- Exact location is not important. Just so it is in front of the gate and near the hinge side of the gate.
Step 4 Cable Option
- Loop the vinyl-coated wire rope (6) through the hole at the top of the kennel door and clamp the cable end to create a knot as shown in figure (1) using cable clamp (8) provided.
- Run the cable through the rear pulley above the door and through the front pulley.
- Cut to proper length and attach "S" hook (9) with the cable clamp (8) as shwon.
- To hold door in open position simply hook "S" hook in the chain link fabric.
Installing the Cable Guard
FAQ
|
On the Mason Guillotine Doors, what does it mean by "W/Guard" or "No Guard?" The "with guard" door includes an interior cable guard at an extra cost. This is a 0.100" aluminum panel that protects the cable from chewing. "No Guard" is the standard and lower-cost option. Having no guard would make it easier for the dog to chew on the cable holding up the door. |
|
Does this come with all the hardware? Yes! It will come with everything you need to hook up a pulley system for your dog house, animal hospital, pet resort, or dog boarding facility's boarding kennel system. |
|
What is the cable guard? That is a sheet of metal installed above the opening. This blocks the cable that raises the panel so dogs can't chew it. |
|
Could I use this as a cover for another pet door? It is just a panel and channels, so you can use it really with any door. Most customers use them for a dog pen or kennel runs. |
|
I need a lot for my dog daycare. Are there quantity discounts? Depending on the amount, we can offer price breaks for multiple items. Give us a call or email us for a quote. |
|
Do the covers last? These doors are extremely durable and have a 3-year warranty. |
|
Could my opening be smaller than the flap dimension? Yep, as long as it is not larger, it should work. |
|
Does this go on the inside or outside? You can put this on the interior or exterior. |
|
Do you have to use the cable? No, it just makes it easier if you have multiple runs so you don't have to go inside the pen to let them out or lock them in. |
|
Can you hook this up to a motor? We have had customers set up the door with a motorized pulley system. You can even hook the doors up to a kennel design system that is remote control operated. |
|
Is the panel chew-proof? It is really tough, but it is not chew-proof. This door is chew resistant. |
|
How much does shipping cost? Shipping is calculated at checkout. |
Warranty
We sincerely believe that our modular animal enclosures are the world’s finest. Over 100 years of quality manufacturing and fair dealing stand behind every product sold by Mason Company.
Mason Company warrants that its products conform to specifications and that they are free from defects in materials and workmanship for a period of three years from date of purchase (with the exception of Mason stainless steel kennel gates, which are warranted for ten years), except that Mason Company makes no warranties as to items and components furnished and warranted by others. Also with the exception of Pickwick doors. Pickwick door hinges are not under warranty. Normal wear and tear excludes the hinges from warranty.
The sole obligation of Mason Company under this warranty shall be to repair or replace (Mason Company’s option) any products found by Mason Company to be defective or not in conformity, provided that Buyer shall have given written notice to Mason Company specifying said defects and/or nonconformities within 30 days after such conditions should have been discovered.
Mason Company’s obligations are strictly limited to the foregoing which is given in lieu of all other warranties, expressed, implied, or statutory, including warranties of merchantability, quality and fitness for intended purpose or use. Mason Company neither assumes nor authorizes any person to assume on its behalf, any other obligation for special or consequential damages, or for any delay in performance of this warranty beyond Mason Company’s control.
Mason Company reserves the right to inspect all materials alleged to be defective or in nonconformance, and Buyer shall hold and protect all products for which Buyer has given notice as stated above until Buyer is instructed to do otherwise by Mason Company. While such products are in Buyer’s possession, Buyer shall be liable for all damages to said products.
- Reviews
- Questions
Works
Seems to work well for kennel use. It comes with the hardware to raise the cover.
Good door
Really nice that it comes with all the hardware, but would be perfect if there was a motor that allowed you to trigger it with a button.
Very durable and accommodates large dogs
Very durable - great for long term use in kennels. The extra large size can open up to 34" tall, which is usually more than enough height needed for even the tallest of dogs.
Very strong and love the remote capability
Glad to see this product and really feel the durability. The remote capability is a real life saver
Great quality
These Guillotine doors are the real deal, very industrial and high quality. The tracks come as complete units so installation wasn't difficult for my builder. The panel has a hole to attach a wire to, I definitely recommend the cable guard if even just for looks..it will look much cleaner.
