Endura Flap Dog Doors for Walls

189

$339.99

Shipping calculated at checkout.

Color: White

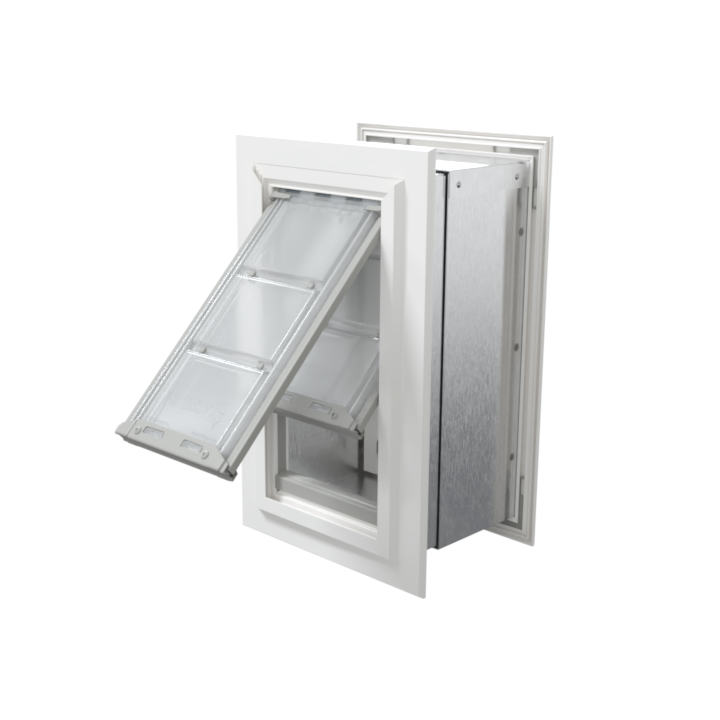

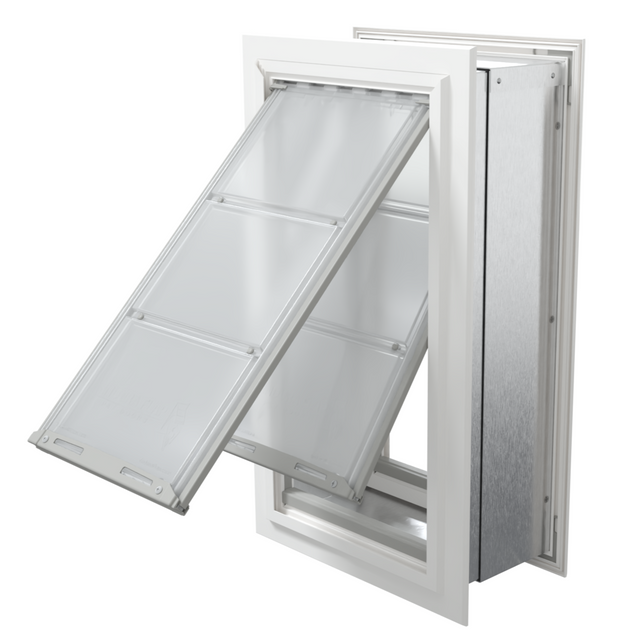

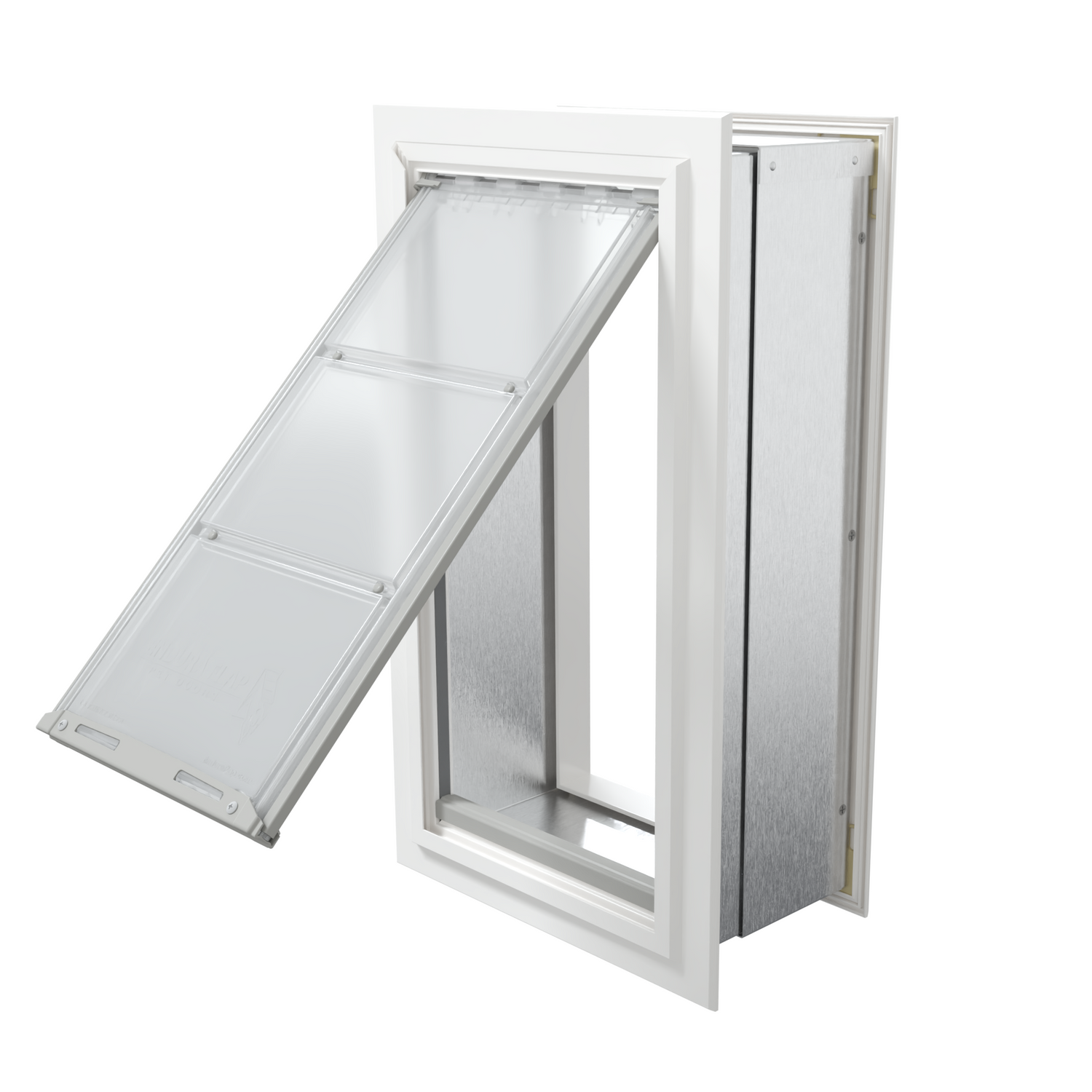

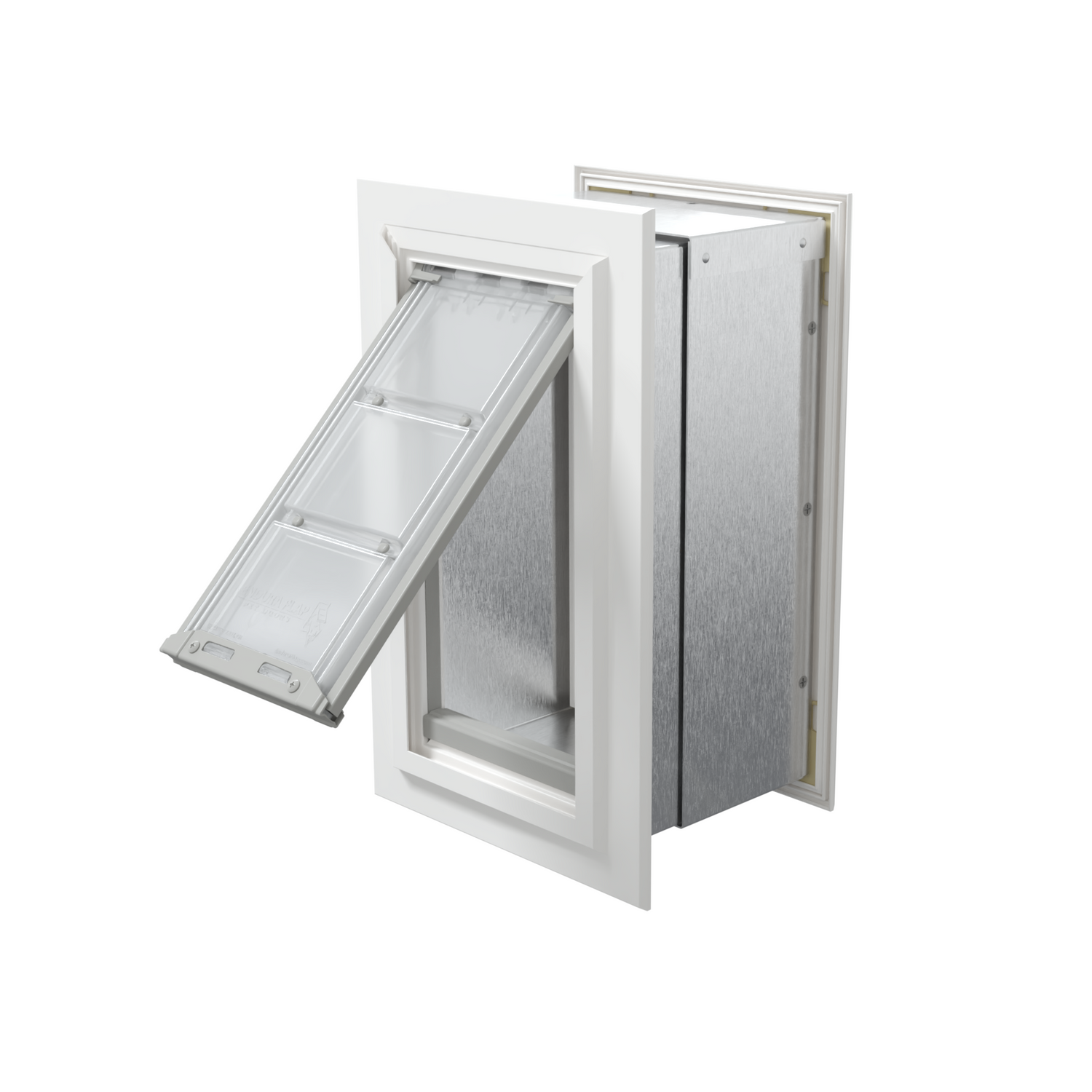

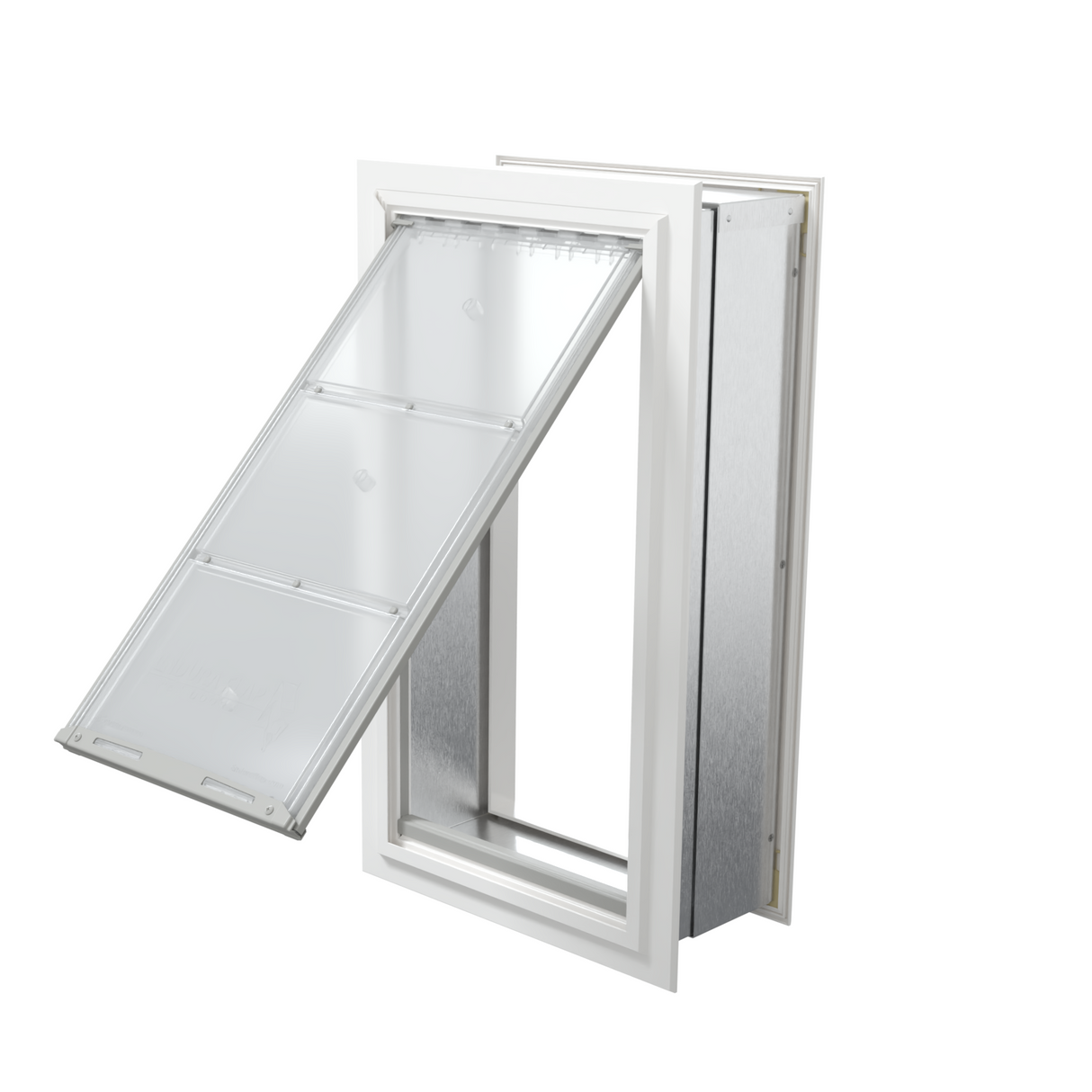

Angled view of an open, white Endura Flap single flap wall mount pet door. This durable dog door for wall allows easy access for your pet.

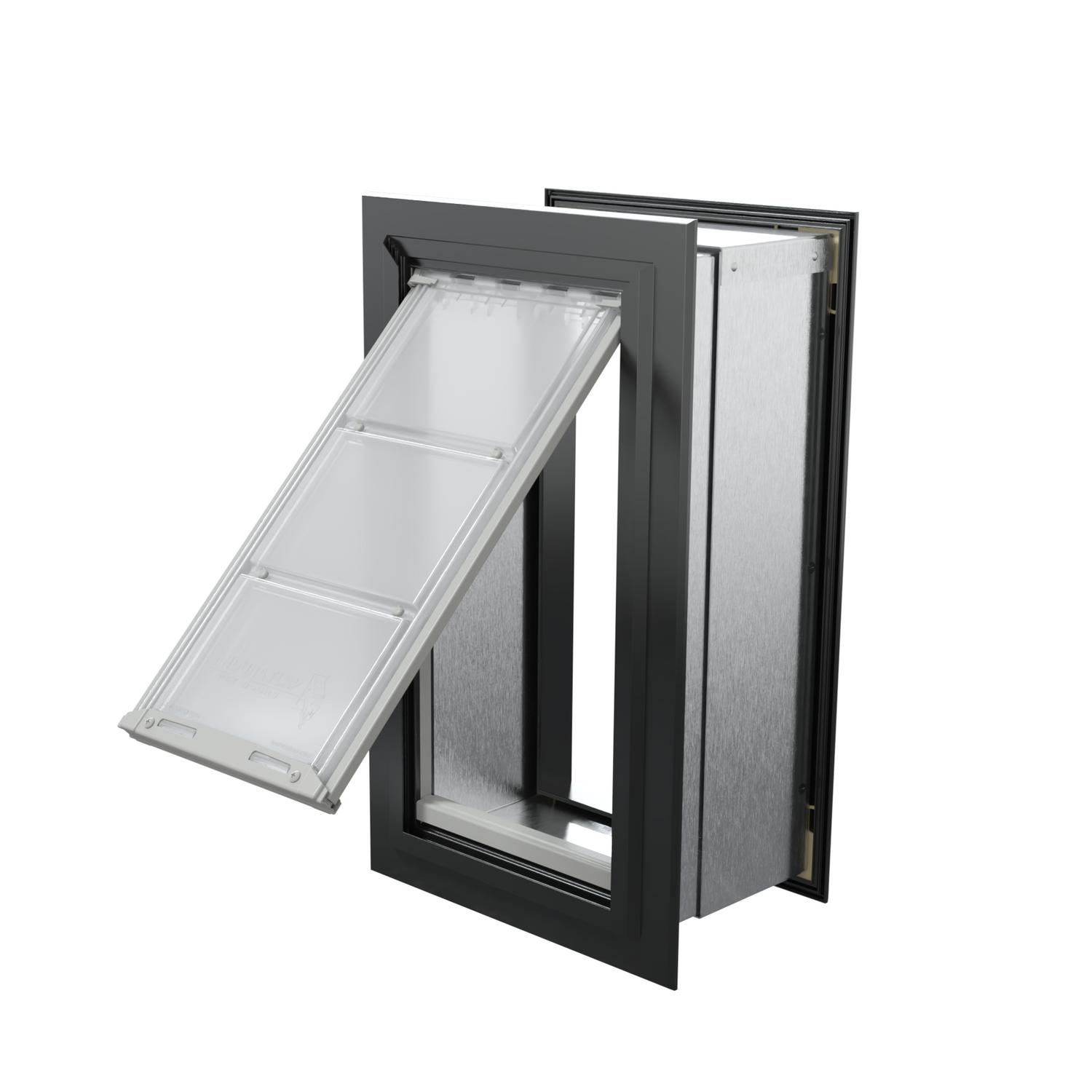

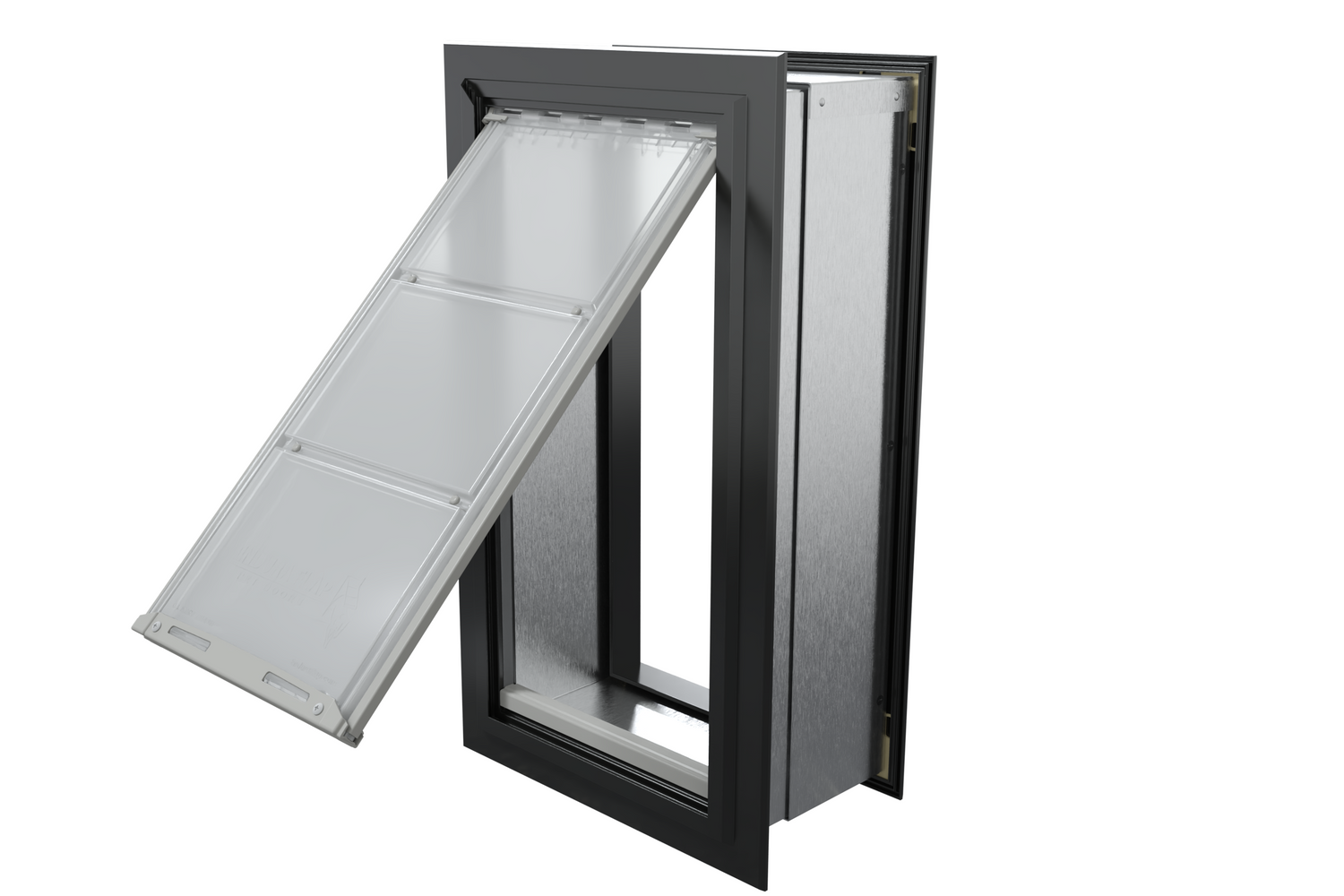

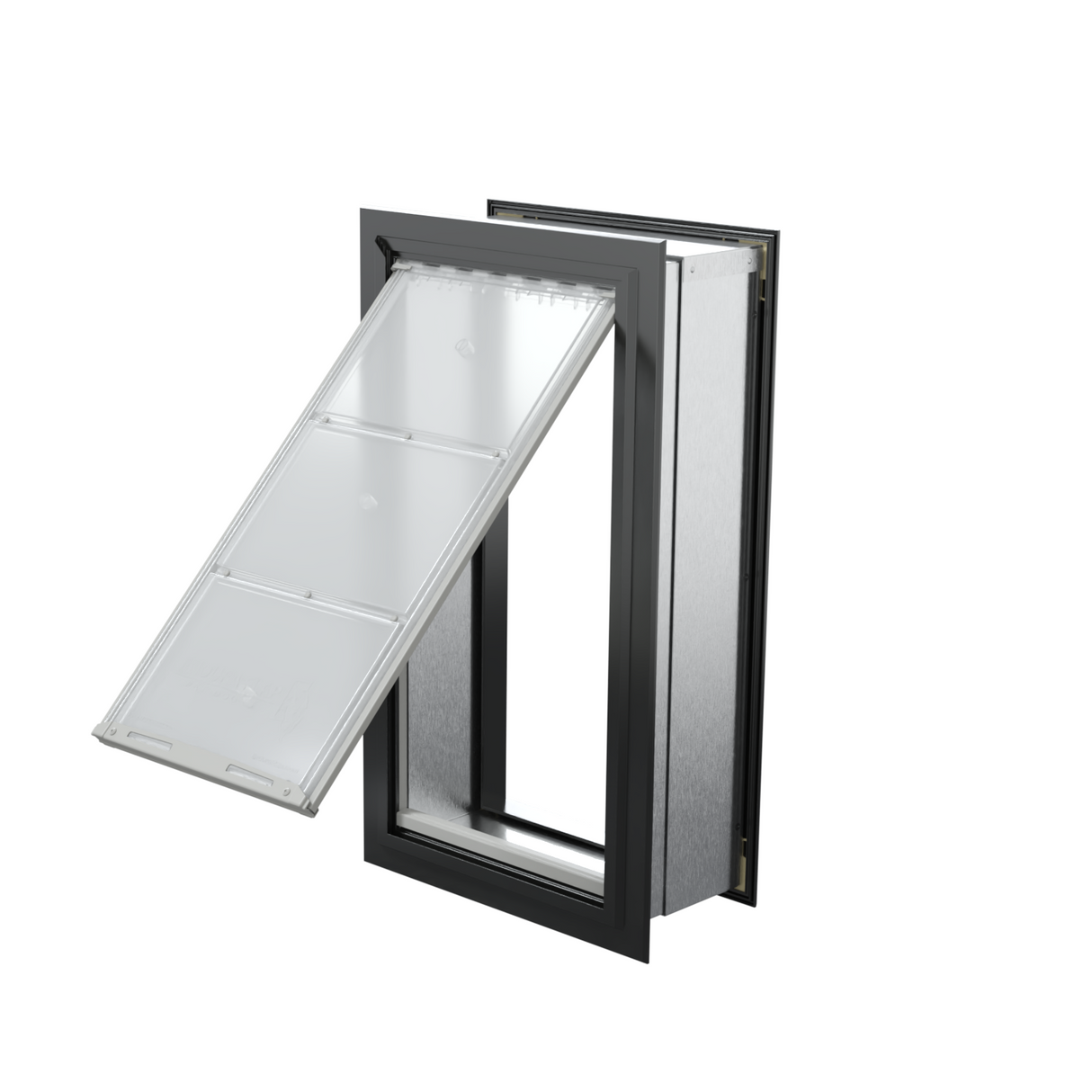

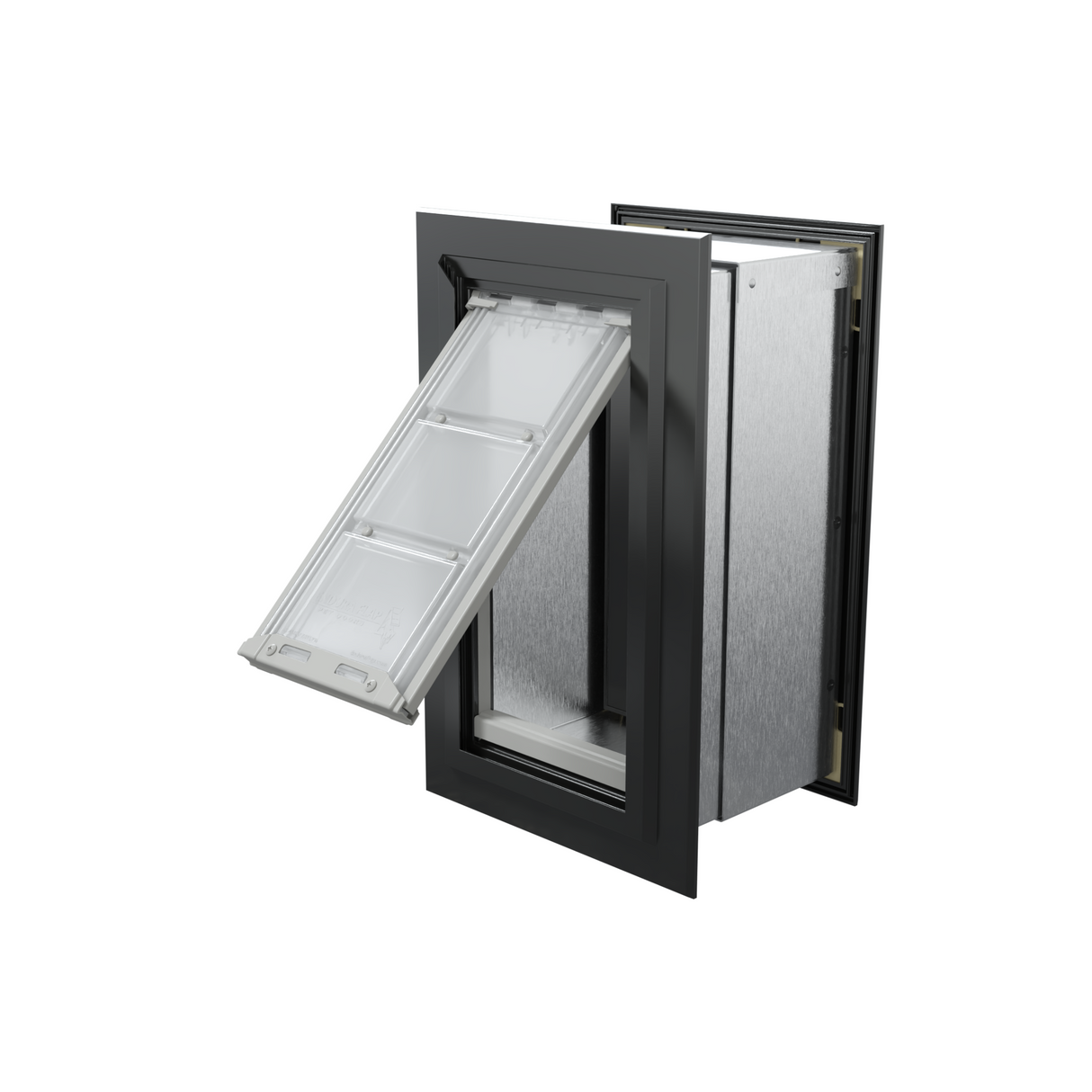

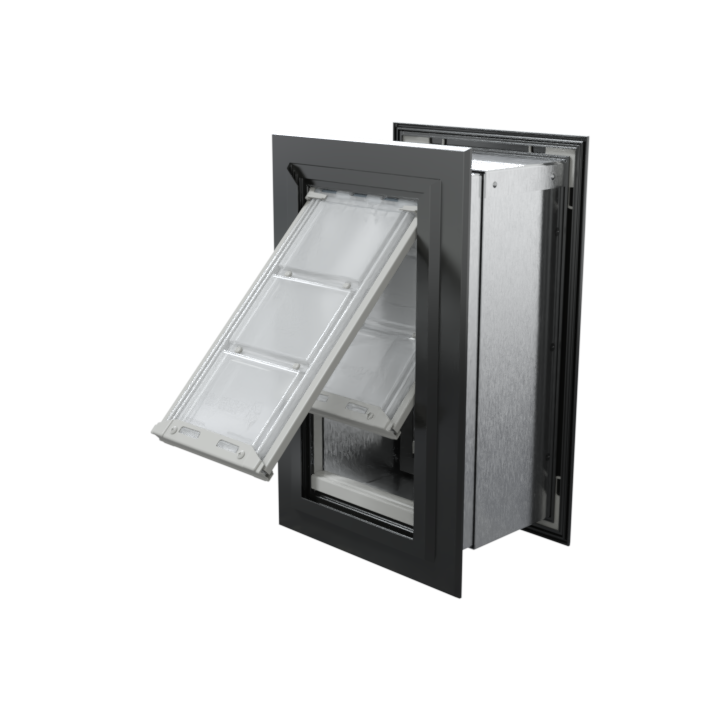

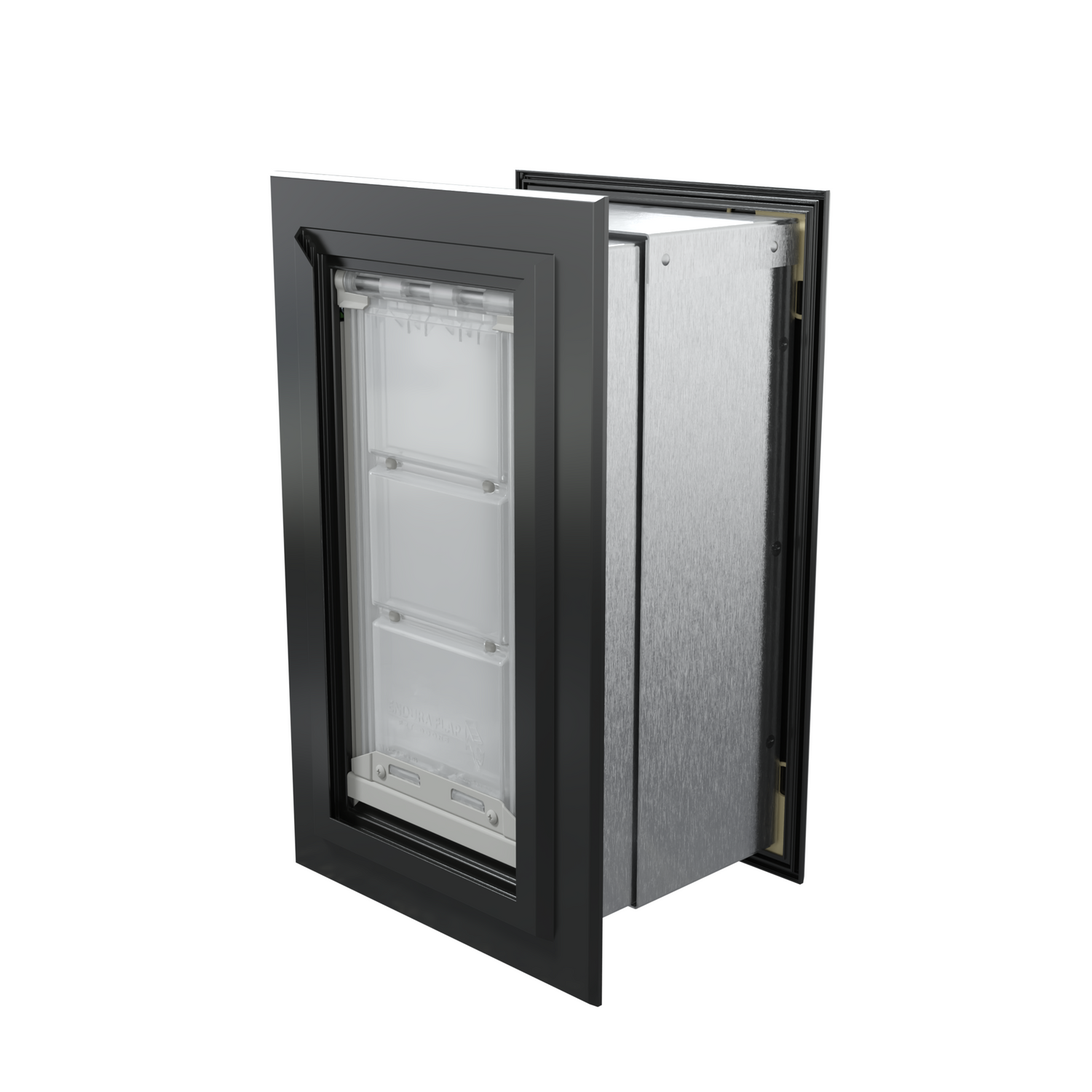

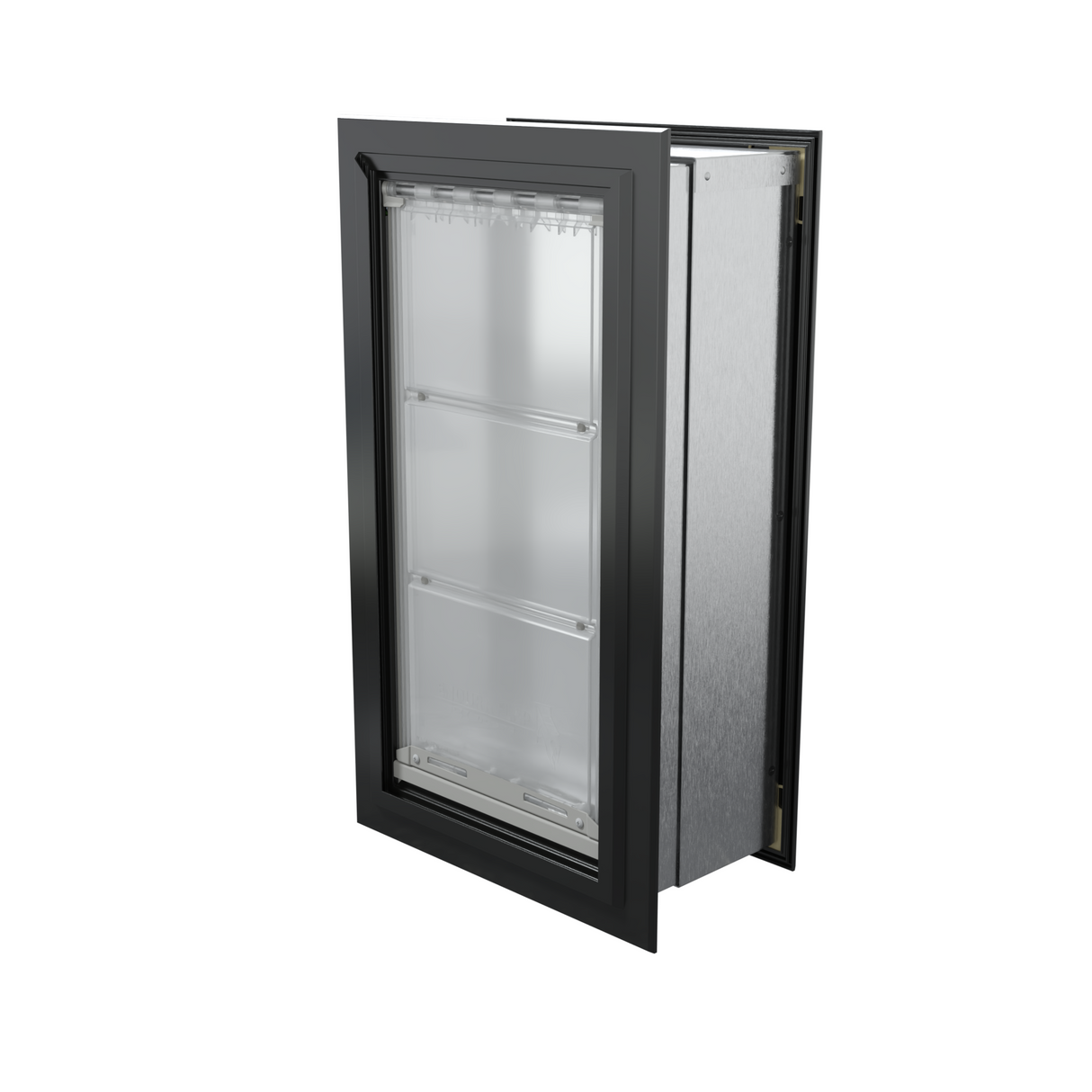

Angled view of an open, black Endura Flap single flap wall mount pet door. This in wall dog door offers a sleek design and easy pet access.

Flap Size

Small Medium Large XL XXL

Flap Type

Single Flap Double Flap

Your Sliding Glass Door's Track Height Please enter numbers only. No letters or special characters allowed. For panels 106" and over, please reach out to our customer support team for assistance at customerservice@petdoors.com, or 800-826-2871.

Product variants

Telescoping tunnel adjusts to walls 4 1/2" to 7 1/2" thick
Superior insulation with single or double flaps, flexible in -40°F and resistant to 50 mph winds.

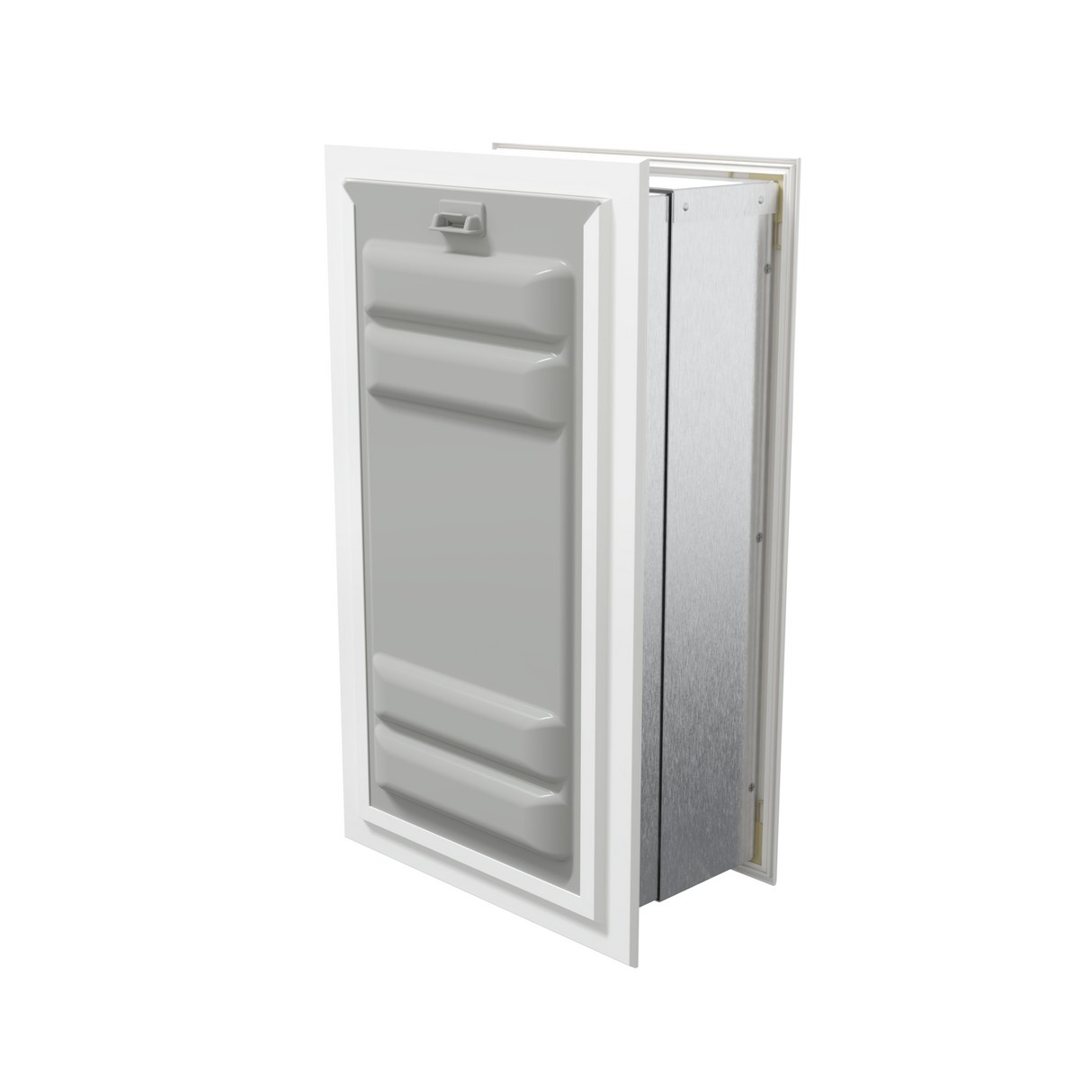

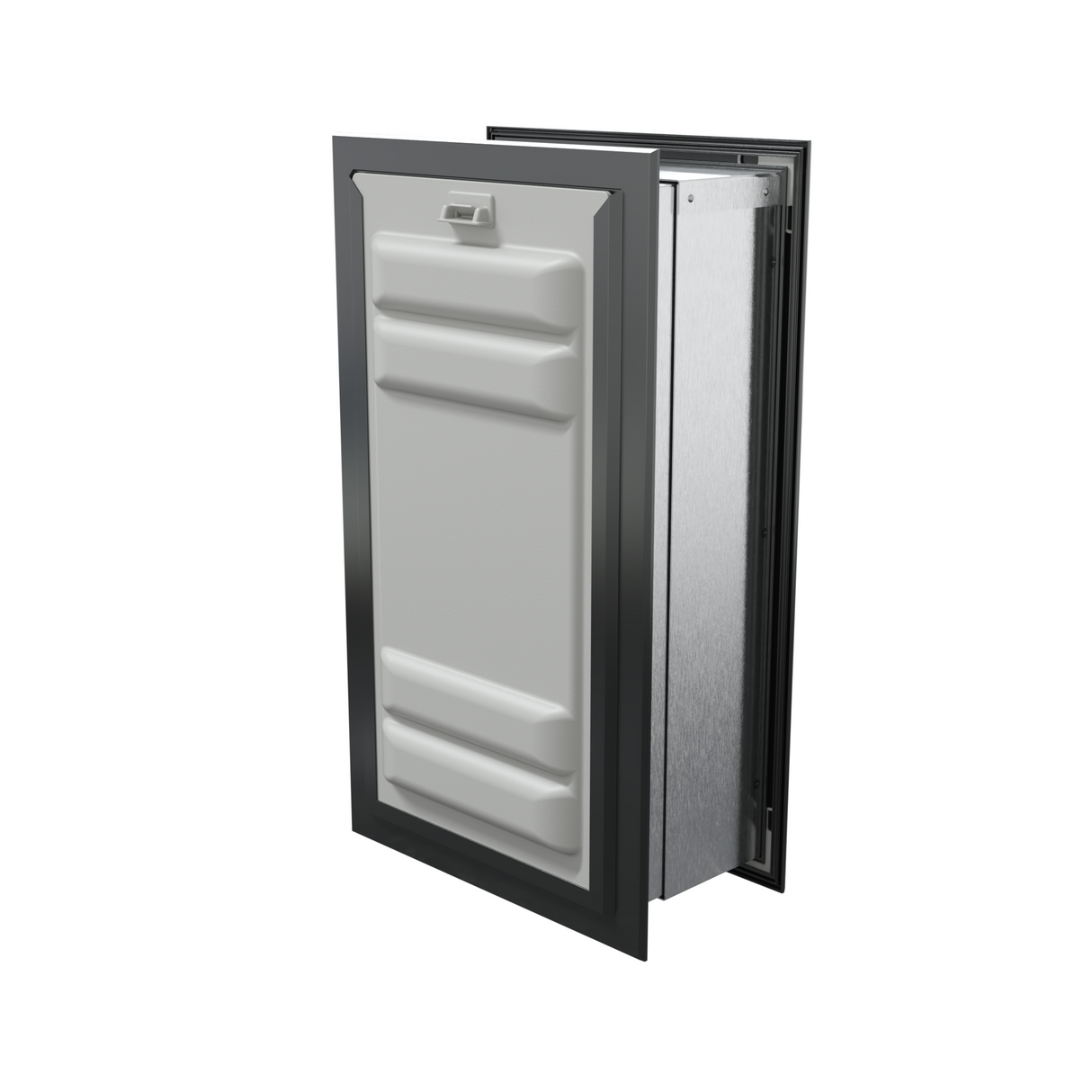

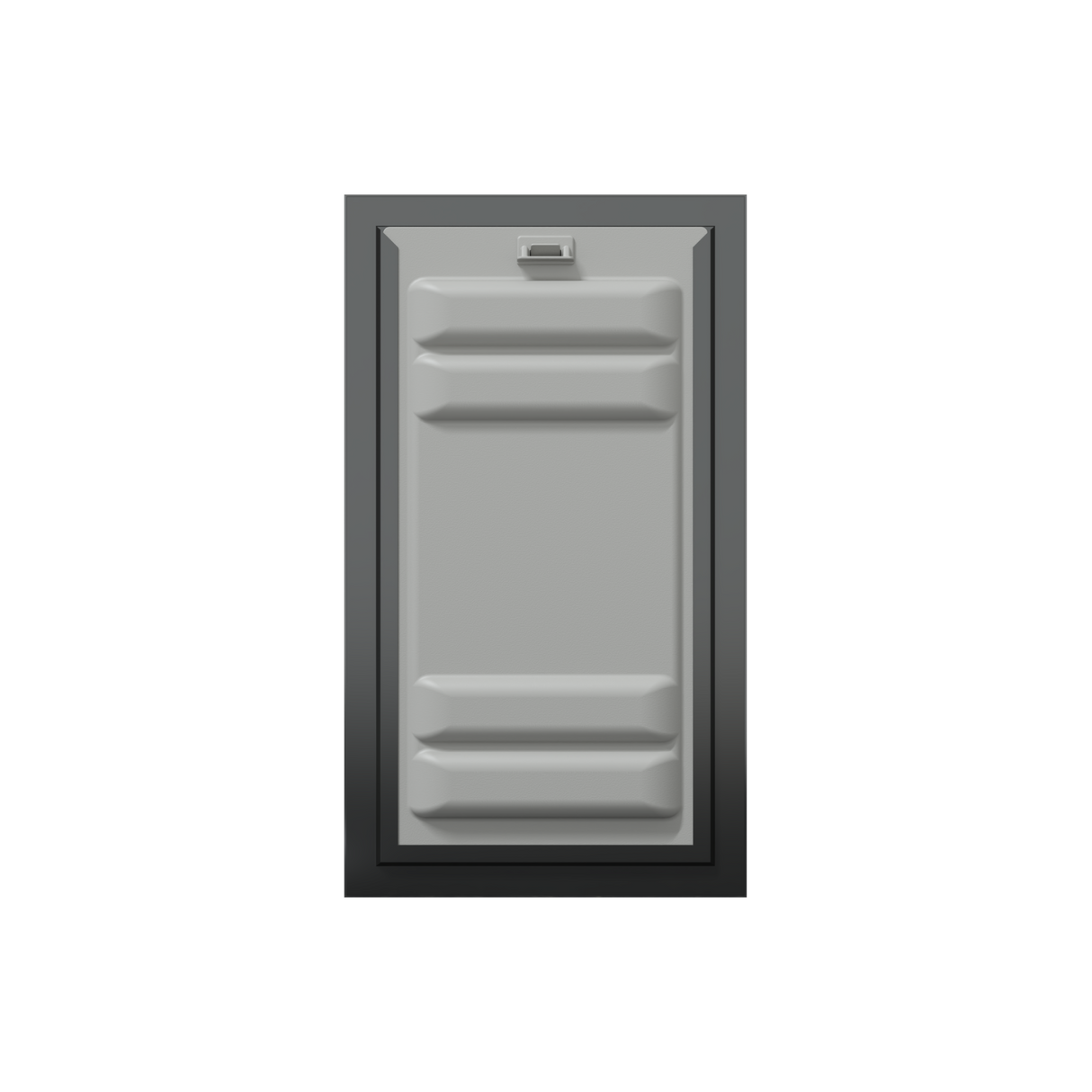

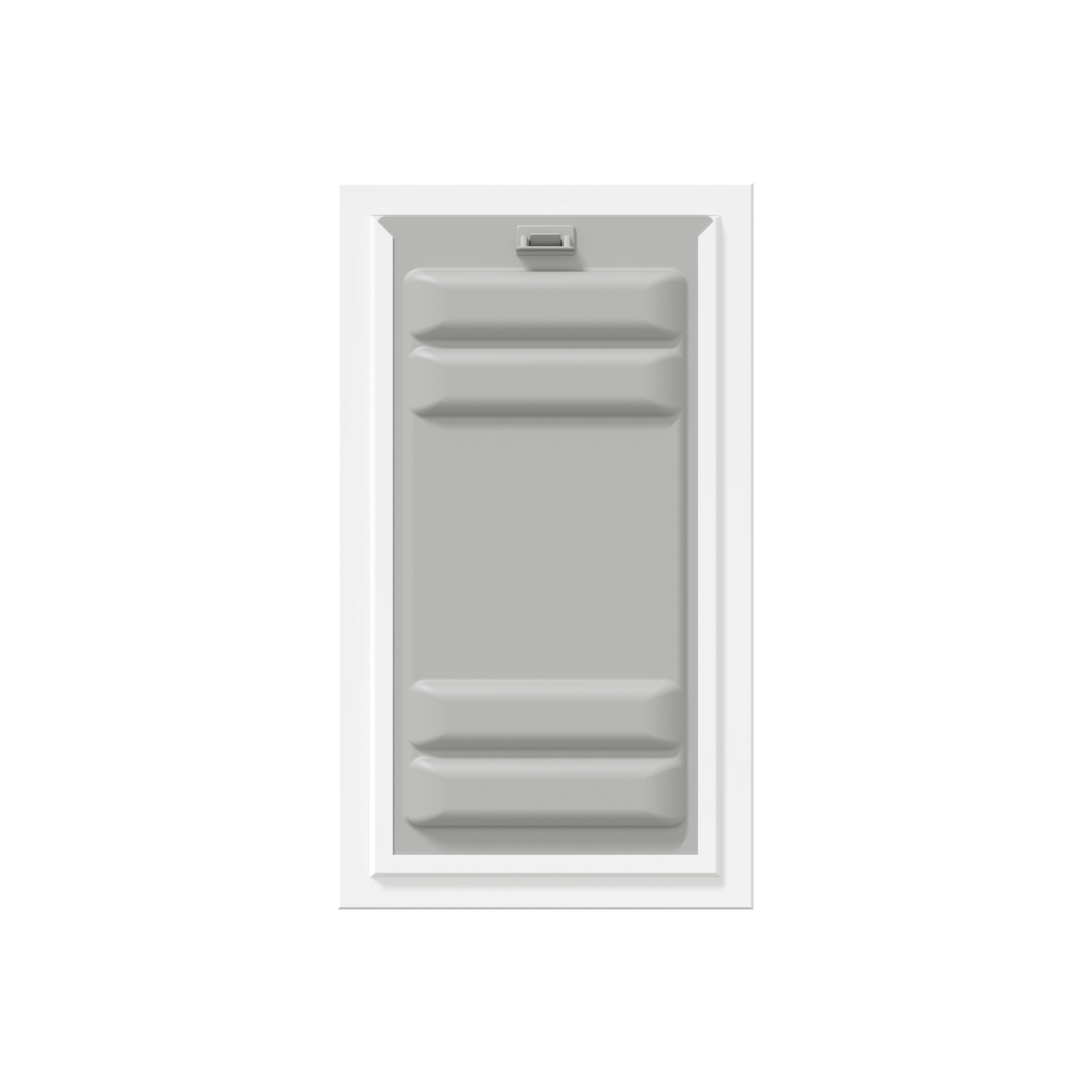

Durable ABS locking cover is as strong as 16-gauge steel and securely blocks access when needed (inside frame only).
Robust aluminum frame, available in white or black.
Tall, slim flap design accommodates a wide range of pet sizes.
Telescoping aluminum tunnel is secure, weather resistant, and easy-to-install.
Lifetime warranty and 100% designed, engineered, and manufactured in the U.S.

Endura Flap Dog Doors for Walls

White / Small / Single Flap Edit

Product Details

The Endura Flap Dog Doors for Walls with Wood Tunnel delivers premium performance and lasting durability. Engineered for walls 4 1/2" to 7/12" thick, with an option for deeper walls up to 13", these pet doors offer unmatched insulation and wind resistance.

Choose between single or double flaps, designed to stay flexible down to -40°F and remain sealed against 50 mph winds, thanks to strong magnets lining three sides.

The sleek aluminum frame, available in white or black, pairs with a rugged, all-metal telescoping tunnel that simplifies installation and provides a cleaner, more durable fit. The taller, slim flap design suits both large and small pets, and the included steel-strength ABS locking cover slides into place to block access when needed.

Built to last and backed by a lifetime warranty, this American-made pet door is a stylish, secure, and energy-efficient solution for your pet’s freedom. Plus, the easy-to-clean flap and provided installation videos and instructions make setup a breeze. Endura Flap isn’t just a pet door—it’s a long-term investment in your home’s comfort and your pet’s happiness.

Sizing & Fit

Size Chart

Small Single Flap: 6"w x 11"h Double Flap: 6"w x 10"h
Medium Single Flap: 8"w x 15"h Double Flap: 8"w x 14"h
Large Single Flap: 10"w x 19"h Double Flap: 10"w x 18"h
Extra Large Single Flap: 12"w x 23"h Double Flap: 12"w x 22"h
XX Large Single Flap: 14"w x 27"h Double Flap: 14"w x 26"h

Flap Size	Flap Dimension	Rough Cut Out	Outside Frame Dimension	Recommended Pet Height
Small	(Single) 6"w x 11"h	8 5/8"w x 15"h	10 1/8"w x 16 3/4"h	9" - 16"
Small	(Double) 6"w x 10"h	8 5/8"w x 15"h	10 1/8"w x 16 3/4"h	8" - 14"
Medium	(Single) 8"w x 15"h	10 3/8"w x 19"h	12 3/16"w x 20 3/4"h	9" - 22"
Medium	(Double) 8"w x 14"h	10 3/8"w x 19"h	12 3/16"w x 20 3/4"h	8" - 21"
Large	(Single) 10"w x 19"h	12 1/2"w x 23 1/16"h	14 3/16"w x 24 3/4"h	9" - 28"
Large	(Double) 10"w x 18"h	12 1/2"w x 23 1/16"h	14 3/16"w x 24 3/4"h	8" - 27"
Extra Large	(Single) 12"w x 23"h	14 11/16"w x 27 1/16"h	16 1/4"w x 28 7/8"h	9" - 36"
Extra Large	(Double) 12"w x 22"h	14 11/16"w x 27 1/16"h	16 1/4"w x 28 7/8"h	8" - 34"
XX Large	(Single) 14"w x 27"h	16 13/16"w x 31 3/16"h	18 1/4"w x 32 7/8"h	9" - 42"
XX Large	(Double) 14"w x 26"h	16 13/16"w x 31 3/16"h	18 1/4"w x 32 7/8"h	8" - 41"

Do not know which size to get? Here is a measurement guide to help you out

Number of Flaps:

1 - Single Flap: On inside of wall (same side as locking cover)
2 - Double Flap: One on each side. The included dead-air-space and extra flap add significantly to the already considerable insulation and sealing values.

Product Specs

Additional Information

Frame Material

Architectural Extruded Aluminum

Flap Colors

Frosted

Flap Thickness

7/8"

Flap Warranty (if separate)

Lifetime

Warranty Period

Lifetime

Return Period

90 days (except for custom height ranges)

Locking Cover Material

Molded ABS Plastic

Your Maximum Pet Size

Cats, Large Cats, Small Dogs, Medium Dogs, Large Dogs, X-Large Dogs

Climate Suitability

Severe-4 Season

Flap Design

Single, Double, Flexible, Insulated Flap

Ability to Lock Flap

Separate Locking Cover-Loads from Top

Can Be Installed In

Walls, Brick Walls, Concrete Walls, Kennel Walls

Award Winning Design

Yes

Sealing Value

Very High

Wind Resistance

Very High

Replacement Flaps Available

Yes

Insulation Value

High, Very High

Wall Thickness Range

4.5" - 8"

Installation Guide

Installation Information

Single Flap Wall Mount Double Flap Wall Mount

Single Flap Wall Mount

Printable Version

Difficulty High

Steps 11

Time Required 2 hours

Parts

Inner frame with tunnel
Locking cover
Caulking
Outer wall transfer template with level and pencil
Outer frame with tunnel
Inner wall template
Sheet metal screws

Tools

Measuring tape
Electric drill/driver (philips head and drill bit for outer wall)
Safety gear
Stud finder
Drywall knife (or other tool for cutting the inside wall)
Saw (for the outside wall, pick one that works with your wall material)
Caulking gun
Clamp (or an extra set of hands!)

Take a few minutes to read these instructions from start to finish— it’s worth it! If the thought of cutting a hole in your house makes your palms sweaty, no shame in bringing in a pro to handle it!

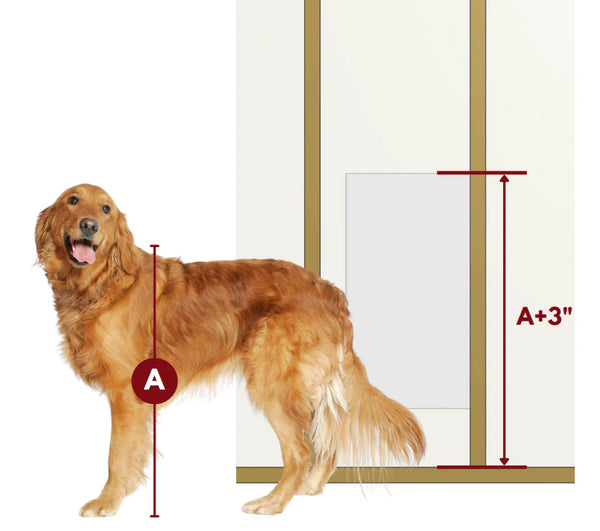

Step 1 Measure Your Pet

First up, measure your pet and mark the wall 3 inches above their height—it’s the sweet spot for lining up the template.
Don’t want to cut into the baseboards? If needed, adjust the height of the pet door so you don’t have to cut them. Short-legged or mobility-limited pets may need a step added if you have taller baseboards. Consider how high your pet will need to step from both inside and outside the pet door, while still allowing clearance above their back.

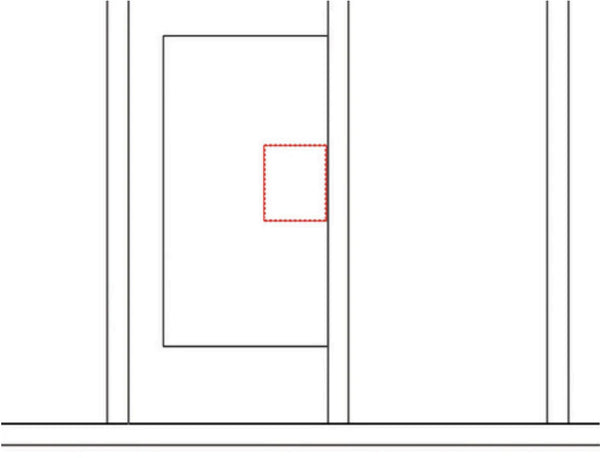

Step 2 Prepare Wall for Installation

Find a wall spot with a stud on one side and nothing scary like pipes or wires lurking behind it.
Once you’ve tracked down the stud, cut a little peek-a-boo hole and check things out with your hands—better safe than sorry!

Step 3 Make the Rough Cutout

Line up the template with the stud, level as needed, and tape it down so it doesn’t go anywhere.
Trace the outline of the template. Once you’ve got your full template traced, remove it and finish cutting along the lines.
If you find insulation inside the wall, pull it out where necessary, but don’t toss it! You’ll need it to fill in any open areas later.
Recommended (but optional): Before moving on, add a bottom support stud between the wall studs to help secure the pet door. Pick a piece of lumber that fits your wall thickness, cut it to slide snugly between the studs (usually 14.5"), and lock it down with long screws driven in at an angle

Step 4 MARK DRILL POINTS FOR THE OUTER WALL

Take the included Outer Wall marking Template and place it on the bottom left corner of the tunnel on the outside frame, where it will gently touch the inside of the outer wall. The outside trim frame has the larger tunnel, and no flap!
From inside the house, slide the outside frame partway into the wall opening until the Outer Wall Template reaches the exterior wall.
Using the small hole in the template and the provided pencil, mark the drill point.
Repeat this process for the top right corner: position the outer wall marking template, align it properly, and mark the spot.

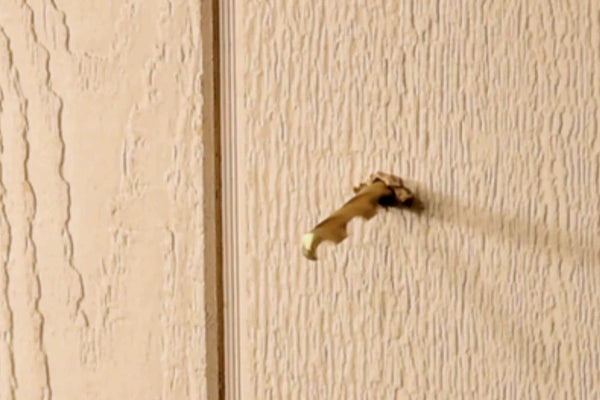

Step 5 DRILL THROUGH THE OUTER WALL

Once both points are marked, drill straight through the wall at each location. These holes will guide you when installing the outer frame in the next step.
If you use a 1/4" drill bit, the next step will be easier but any drill bit will work.

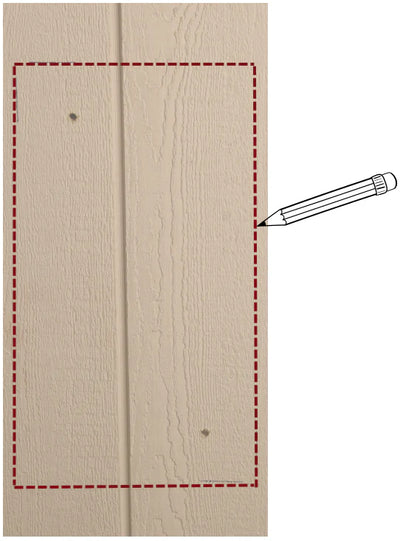

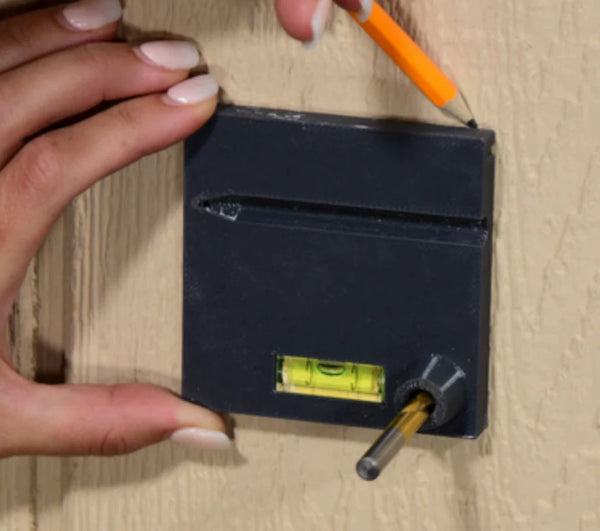

Step 6 MARK WHERE TO CUT THE OUTER WALL

Head outside and line up the outer wall marking template with the holes you drilled earlier. Level the jig, then mark its corners on your wall.
If you need a little extra help lining things up, stick the drill bit in the hole to use as a pin. This works best with a ¼ " drill bit.
After marking your two corners, grab the cardboard template and line it up with the corners you marked to trace out the cut lines.
Then, remove the template and get your saw ready for the next step.

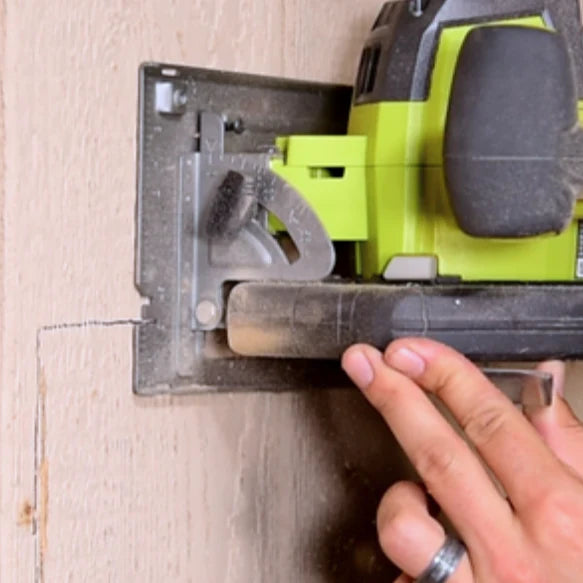

Step 7 CUT OUTER WALL OPENING

Cut the outer wall opening using the appropriate tool for your wall type (e.g., stucco, siding, etc.).
Take your time cutting along the lines—it’s all about accuracy here!

Step 8 INSERT PET DOOR FRAMES

Slide both frames (inside and outside) into the wall opening and telescope them together until snug against both walls. It is easier to insert the outside trim frame first, and this step is where an extra set of hands can be super helpful!

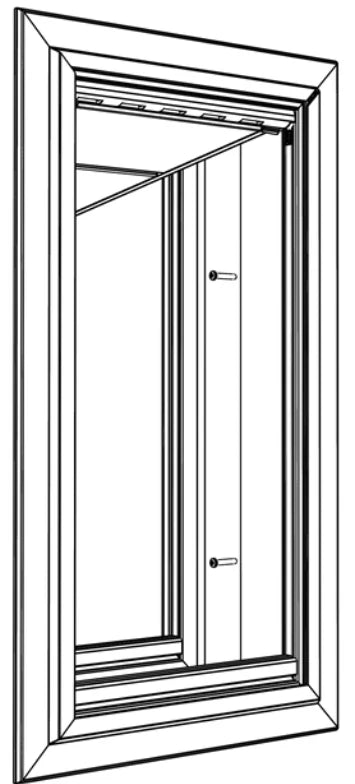

Step 9 SECURE THE FRAMES TO THE STUD

Get the frames leveled and aligned, then grab a helper to gently squeeze them together from both sides of the wall. Or use a large clamp, which can also hold open the flap for you.
While maintaining this pressure, drive two screws through the tunnels into the stud side—position one screw about one-third from the top and the other about one-third from the bottom. This ensures a snug and secure fit.
Repeat on the other side, even if there’s no stud—it will still hold securely.

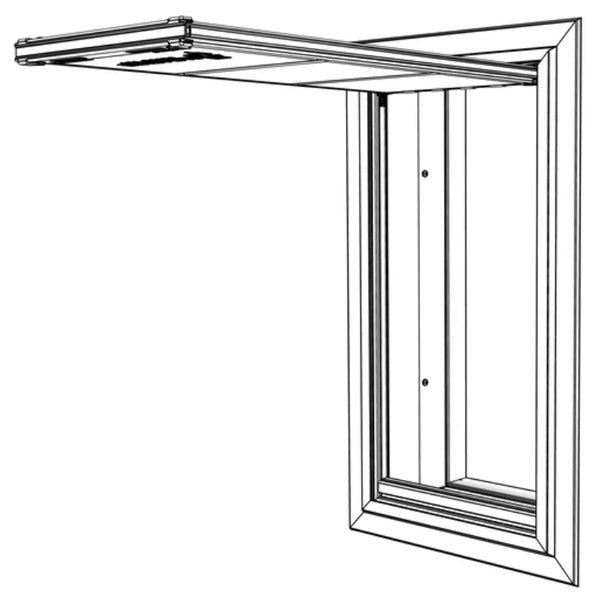

Step 10 TEST YOUR WORK

Test the flap to ensure smooth operation. It should swing freely in both directions. If the flap catches at all, make adjustments before sealing the frame in the next step.

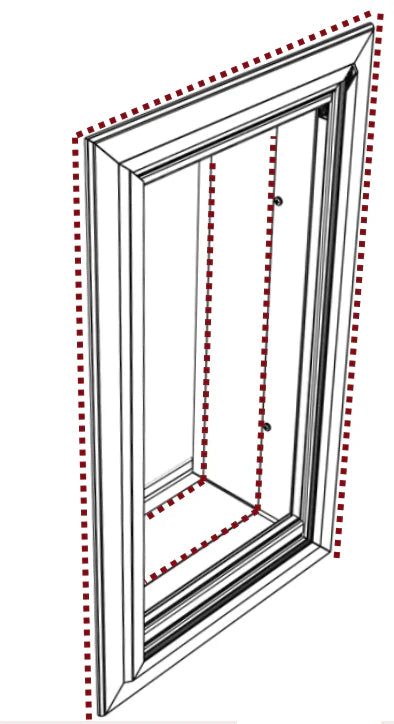

Step 11 SEAL THE FRAME

To ensure your pet door is weather-tight and energy-efficient, follow these sealing steps:
Seal the Interior Frame: Apply a bead of silicone caulk between the interior frame and the metal tunnel.
Seal the Tunnel Seams: Apply a bead of caulk along the seams where the two telescoping metal tunnel sections meet. This will prevent air or water infiltration.
Seal the Exterior Frame: On the outside of your home, apply caulk between the exterior frame and the wall. Be sure to seal the top and both sides, but not the bottom. You want that open for water to drain out.
Seriously - don’t seal the bottom, that’s your drainage zone!
Now, stand back, let your pet strut through their new door, and take all the credit. Well done!

Double Flap Wall Mount

Printable Version

Difficulty High

Steps 11

Time Required 2 hours

Parts

Inner frame with tunnel
Locking cover
Caulking
Outer wall transfer template with level and pencil
Outer frame with tunnel
Inner wall template
Sheet metal screws

Tools

Measuring tape
Electric drill/driver (philips head and drill bit for outer wall)
Safety gear
Stud finder
Drywall knife (or other tool for cutting the inside wall)
Saw (for the outside wall, pick one that works with your wall material)
Caulking gun
Clamp (or an extra set of hands!)

Step 1 Measure Your Pet

First up, measure your pet and mark the wall 3 inches above their height—it’s the sweet spot for lining up the template.
Don’t want to cut into the baseboards? If needed, adjust the height of the pet door so you don’t have to cut them. Short-legged or mobility-limited pets may need a step added if you have taller baseboards. Consider how high your pet will need to step from both inside and outside the pet door, while still allowing clearance above their back.

Step 2 Prepare Wall for Installation

Find a wall spot with a stud on one side and nothing scary like pipes or wires lurking behind it.
Once you’ve tracked down the stud, cut a little peek-a-boo hole and check things out with your hands—better safe than sorry!

Step 3 Make the Rough Cutout

Line up the template with the stud, level as needed, and tape it down so it doesn’t go anywhere.
Trace the outline of the template. Once you’ve got your full template traced, remove it and finish cutting along the lines.
If you find insulation inside the wall, pull it out where necessary, but don’t toss it! You’ll need it to fill in any open areas later.
Recommended (but optional): Before moving on, add a bottom support stud between the wall studs to help secure the pet door. Pick a piece of lumber that fits your wall thickness, cut it to slide snugly between the studs (usually 14.5"), and lock it down with long screws driven in at an angle

Step 4 MARK DRILL POINTS FOR THE OUTER WALL

Take the included Outer Wall marking Template and place it on the bottom left corner of the tunnel on the outside frame, where it will gently touch the inside of the outer wall. The outside frame has the larger tunnel, and will not have the locking cover in it!
From inside the house, slide the outside frame partway into the wall opening until the Outer Wall Template reaches the exterior wall.
Using the small hole in the template and the provided pencil, mark the drill point.
Repeat this process for the top right corner: position the outer wall marking template, align it properly, and mark the spot.

Step 5 DRILL THROUGH THE OUTER WALL

Once both points are marked, drill straight through the wall at each location. These holes will guide you when installing the outer frame in the next step.
If you use a 1/4" drill bit, the next step will be easier but any drill bit will work.

Step 6 MARK WHERE TO CUT THE OUTER WALL

Head outside and line up the outer wall marking template with the holes you drilled earlier. Level the jig, then mark its corners on your wall.
If you need a little extra help lining things up, stick the drill bit in the hole to use as a pin. This works best with a ¼ " drill bit.
After marking your two corners, grab the cardboard template and line it up with the corners you marked to trace out the cut lines.
Then, remove the template and get your saw ready for the next step.

Step 7 CUT OUTER WALL OPENING

Cut the outer wall opening using the appropriate tool for your wall type (e.g., stucco, siding, etc.).
Take your time cutting along the lines—it’s all about accuracy here!

Step 8 INSERT PET DOOR FRAMES

Slide both frames (inside and outside) into the wall opening and telescope them together until snug against both walls. It is easier to insert the outside trim frame first, and this step is where an extra set of hands can be super helpful!

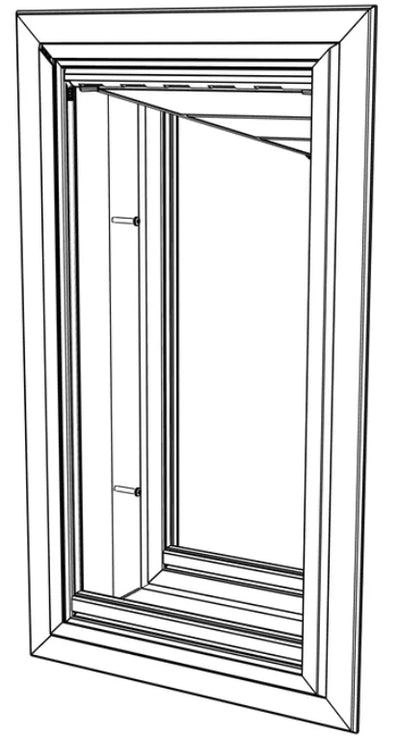

Step 9 SECURE THE FRAMES TO THE STUD

Get the frames leveled and aligned, then grab a helper to gently squeeze them together from both sides of the wall. Or use a large clamp, which can also hold open the flap for you.
While maintaining this pressure, drive two screws through the tunnels into the stud side—position one screw about one-third from the top and the other about one-third from the bottom. This ensures a snug and secure fit.
Repeat on the other side, even if there’s no stud—it will still hold securely.

Step 10 TEST YOUR WORK

Test the flap to ensure smooth operation. It should swing freely in both directions. If the flap catches at all, make adjustments before sealing the frame in the next step.

Step 11 SEAL THE FRAME

To ensure your pet door is weather-tight and energy-efficient, follow these sealing steps:
Seal the Interior Frame: Apply a bead of silicone caulk between the interior frame and the metal tunnel.
Seal the Tunnel Seams: Apply a bead of caulk along the seams where the two telescoping metal tunnel sections meet. This will prevent air or water infiltration.
Seal the Exterior Frame: On the outside of your home, apply caulk between the exterior frame and the wall. Be sure to seal the top and both sides, but not the bottom. You want that open for water to drain out.
Seriously - don’t seal the bottom, that’s your drainage zone!
Now, stand back, let your pet strut through their new door, and take all the credit. Well done!

Videos

The Endura Flap Pet Door

Design of the Endura Flap

Removing Side Magnets

Adjusting Your Endura Flap® Magnet Strength

The Leaf Blower Test

FAQs

FAQ

Are the panels/flaps flexible? Seems like it would trap a dog if it backed up. The Endura Flap is slightly more rigid than other economy style flaps, but it is a safe, soft, flexible flap. It remains flexible in temperatures as low as -40°F.
Can a large dog & cat use the same double flap door flaps? We recommend cats use the Endura Flap Cat Doors for Walls. Our Endura Flap wall mount pet door has a strong magnetic seal which may be too strong for a cat. However, if you have cats and dogs sharing a door, you can decrease the magnetic resistance of the threshold on large and extra large sizes making it easier for a cat to use. For small or medium pet doors you can offset the magnets slightly which can also decrease the magnetic strength.
Can I get this pet door with a clear flap? The Endura Flap is only available with a translucent flap, but if you want a similar high quality, aluminum frame pet door that has a clear flap, we highly recommend the Liberty Pet Door for Walls.
Can I just get the Endura wall kit? We do have those, but you will need to reach out to our customer service team. For other Endura replacement pet products, see Endura replacement flaps and parts.
Does the door sound very loud when the dog goes in or out? When the flap gets to its resting place there is a snapping sound when the magnets employ. This sound let's you know the door is doing its job sealing out the elements and keeping your heated or cooled air inside.
How do I know what size is best for my dog? When installing the Endura Flap wall door you want it to clear the top of your dog's back by 1-2 inches, minimum. You also want the step over to be comfortable. Lastly you want the width to allow your pet to go through without touching the sides. Here's a measurement guide with tips on how to determine the correct size.
How much does shipping cost? Shipping is calculated at checkout.
I do not have to contend with wind or rain. If I buy the single flap version of the wall dog door is it possible to add the second flap in the future? It is possible. Please reach out to Customer Service to order an exterior frame and flap. Note, you cannot change an Endura Flap Door Mount to a Wall Mount.
I have a small and large dog sharing this door. Will my small dog be able to open the flaps on the extra large double flap dog door? It depends on the tenacity of your small dog. With the Endura flap door for walls you can decrease the magnetic resistance of the threshold on large and extra large sizes making it easier for your small dog to use. You will also want to make sure the door is mounted low enough for the small dog to walk through and high enough to clear the large dog's back. This may mean purchasing a larger flap.
Is the Endura Door for Walls easy to install? Ease of installation is very subjective, and it depends on skill set or access to certain tools that might be needed. The installation of a pet door into a door is easier than installing it through a wall; however installing it into a door is more complicated than putting a pet door into a sliding door track. We recommend a contractor for installations that involve cutting into drywall.
Are replacement flaps available? Yes, we carry Endura Replacement Flaps. They will work for all Endura models (wall mounts, doggy door mounts, kennel doors, window sashes, and sliding glass door patio pet doors).

Are the panels/flaps flexible? Seems like it would trap a dog if it backed up.

The Endura Flap is slightly more rigid than other economy style flaps, but it is a safe, soft, flexible flap. It remains flexible in temperatures as low as -40°F.

Can a large dog & cat use the same double flap door flaps?

We recommend cats use the Endura Flap Cat Doors for Walls. Our Endura Flap wall mount pet door has a strong magnetic seal which may be too strong for a cat. However, if you have cats and dogs sharing a door, you can decrease the magnetic resistance of the threshold on large and extra large sizes making it easier for a cat to use. For small or medium pet doors you can offset the magnets slightly which can also decrease the magnetic strength.

Can I get this pet door with a clear flap?

The Endura Flap is only available with a translucent flap, but if you want a similar high quality, aluminum frame pet door that has a clear flap, we highly recommend the Liberty Pet Door for Walls.

Can I just get the Endura wall kit?

We do have those, but you will need to reach out to our customer service team. For other Endura replacement pet products, see Endura replacement flaps and parts.

Does the door sound very loud when the dog goes in or out?

When the flap gets to its resting place there is a snapping sound when the magnets employ. This sound let's you know the door is doing its job sealing out the elements and keeping your heated or cooled air inside.

How do I know what size is best for my dog?

When installing the Endura Flap wall door you want it to clear the top of your dog's back by 1-2 inches, minimum. You also want the step over to be comfortable. Lastly you want the width to allow your pet to go through without touching the sides. Here's a measurement guide with tips on how to determine the correct size.

How much does shipping cost?

Shipping is calculated at checkout.

I do not have to contend with wind or rain. If I buy the single flap version of the wall dog door is it possible to add the second flap in the future?

It is possible. Please reach out to Customer Service to order an exterior frame and flap. Note, you cannot change an Endura Flap Door Mount to a Wall Mount.

I have a small and large dog sharing this door. Will my small dog be able to open the flaps on the extra large double flap dog door?

It depends on the tenacity of your small dog. With the Endura flap door for walls you can decrease the magnetic resistance of the threshold on large and extra large sizes making it easier for your small dog to use. You will also want to make sure the door is mounted low enough for the small dog to walk through and high enough to clear the large dog's back. This may mean purchasing a larger flap.

Is the Endura Door for Walls easy to install?

Ease of installation is very subjective, and it depends on skill set or access to certain tools that might be needed. The installation of a pet door into a door is easier than installing it through a wall; however installing it into a door is more complicated than putting a pet door into a sliding door track. We recommend a contractor for installations that involve cutting into drywall.

Are replacement flaps available?

Yes, we carry Endura Replacement Flaps. They will work for all Endura models (wall mounts, doggy door mounts, kennel doors, window sashes, and sliding glass door patio pet doors).

Customer Reviews

4.8 Based on 189 Reviews

5 ★

88%

167

4 ★

3 ★

2 ★

1 ★

Customer Photos

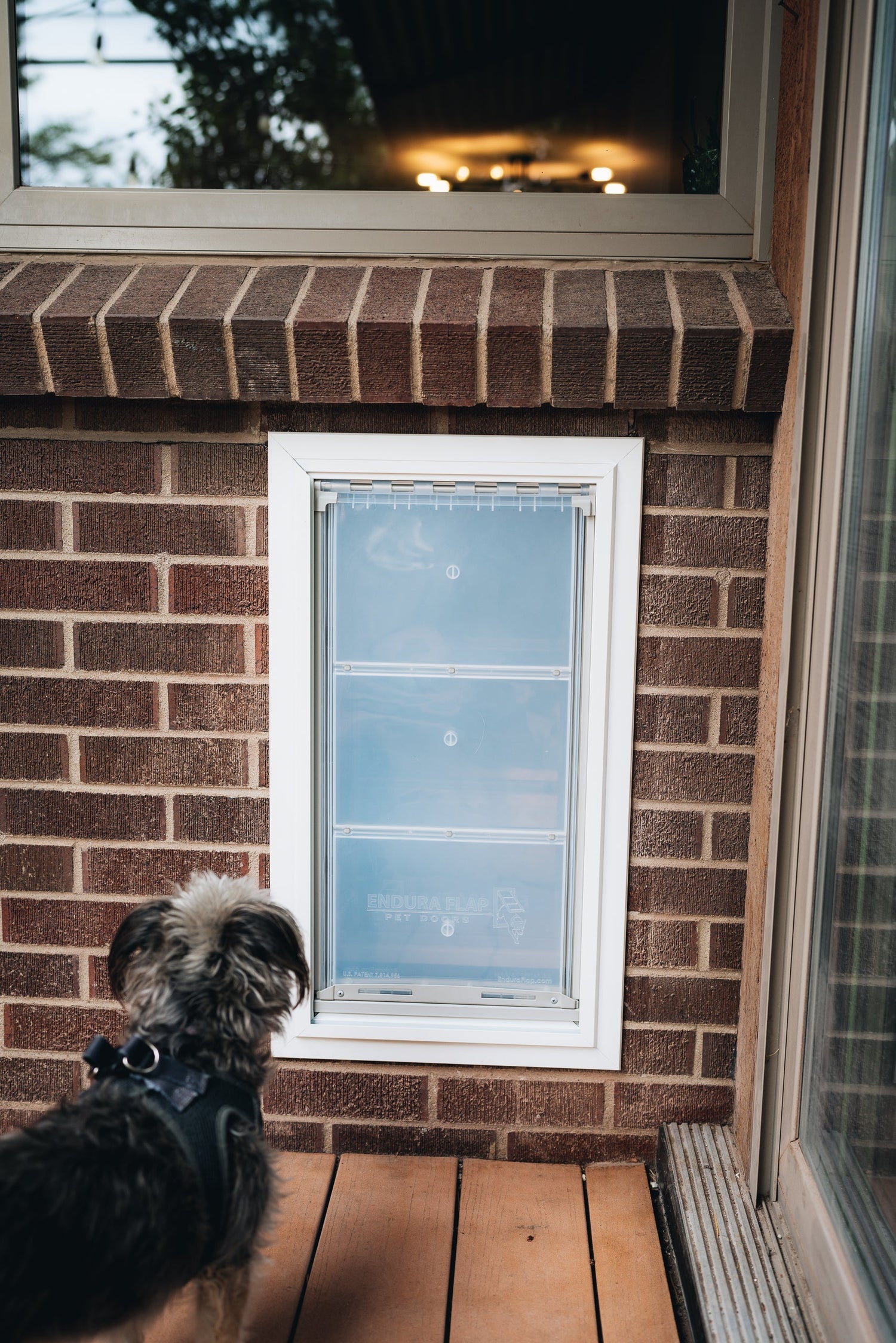

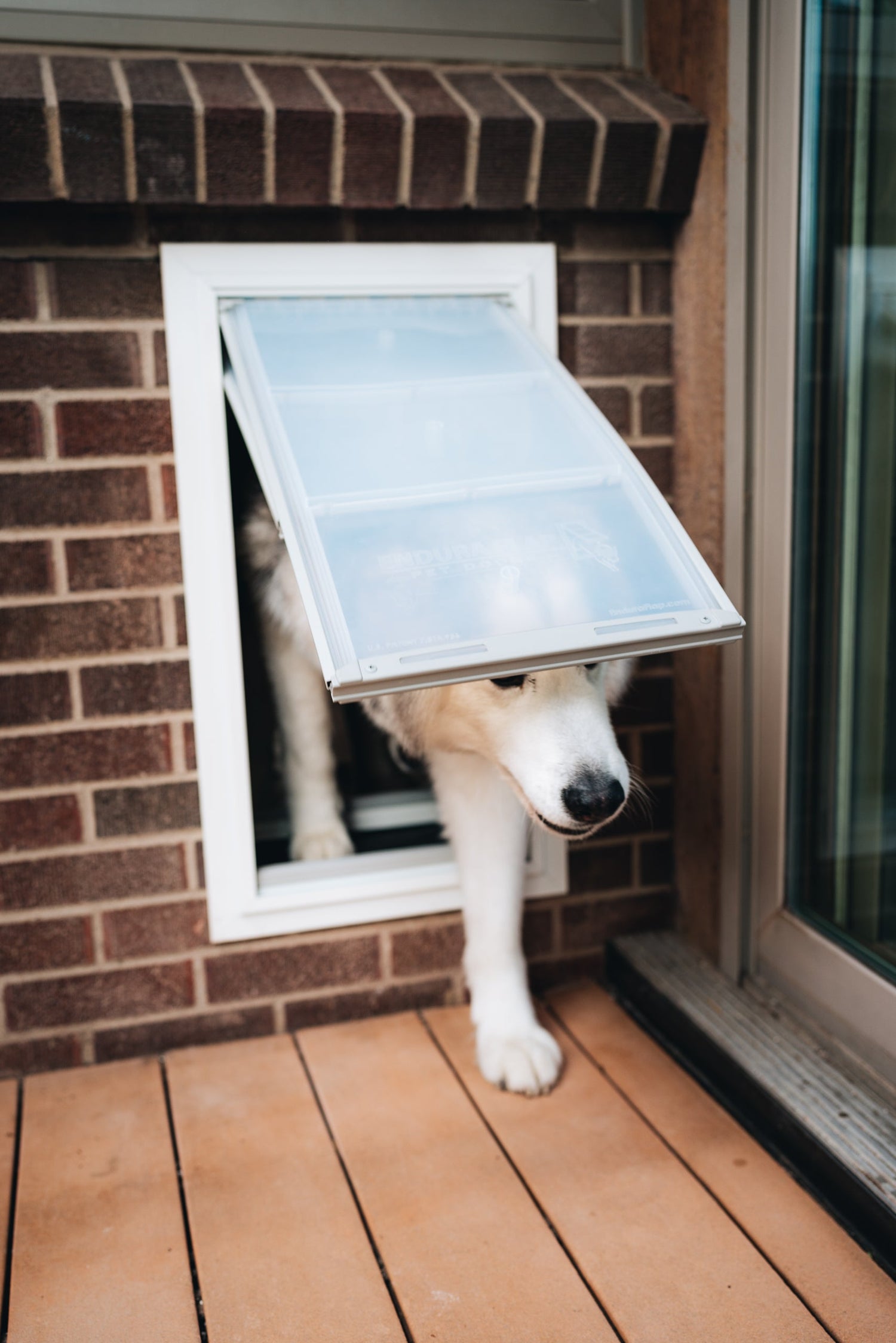

Endura Flap E2 Dog Doors for Walls - Customer Photo From Joelle Spencer

Write a Review Ask a Question

Reviews
Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

01/10/2025

Debbie SVG verified by SHOP

United States

It is a great door

12/25/2024

Michael W.

United States

Very sturdy but dogs won’t use it

Very sturdy product and definitely stands up to wind and rain! Unfortunately it’s so sturdy my dog, who has used a doggie door for 9 years, won’t use it. We’re still trying to train him after 2 weeks but it’s not looking good. Beware before spending big money on a double flap like I did.

07/13/2024

Jeffrey C.

United States

High quality

This is an upgrade from a cheap PetSafe door. It is clear the seal and insulation of this door far surpasses that of the Petsafe door. My pets are panels were warping and not sealing at all after just 1 year of use. Looking forward to see how these hold up.

12/12/2023

Daniel C.

United States

Would recommend

Installation was easy. Took my time to make sure everything is sealed properly. Had literally everything needed to install. One tube of caulk wasn’t sufficient for my install. This is the third through wall dog door and seems to be the most promising. Allows access to the outside yard all day while we are at work. Seals out drafts functionally energy efficient. We live in the north east where it has already been 16 degrees overnight and haven’t noticed a draft at all.

08/16/2023

Margaret J.

United States

Big project

It was hard to cut the hole in wood frame, mortar, chicken wire and stucco. I had to get more wood to do the installation. The extra large Enduro double flap doors should have included two locking covers. One for the inside and one for the outside to use for bad weather and security. Quality of product looks good. Very expensive
