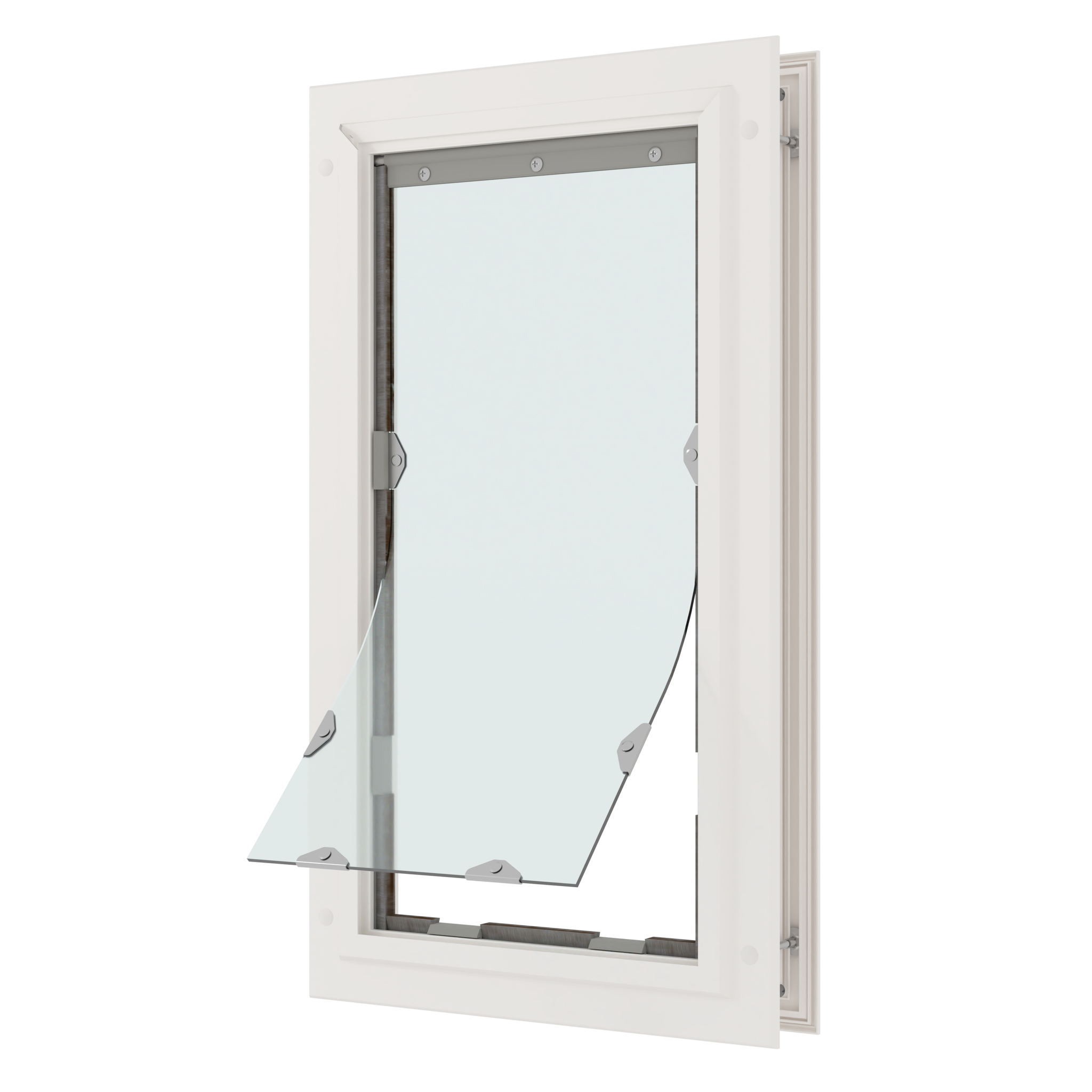

Liberty Pet Door For Doors (Single Flap) - Installation Instructions

Installation Instructions

Single Flap Door Mount Instructions

Difficulty High

Steps 14

Time Required 2-3 hours

Sections 06

Flags 03

Parts

1 Installation Template
Short Screws (2")
Long Screws (2-1/4")
4 Screw Covers
1 Installation Magnet
1 Flap Frame
1 Trim Frame
1 Tube of Silicone
1 Locking Cover

Tools

Pencil
Drill with 3/8" (9,5 mm) drill bit
Level
Measuring Tape
Jigsaw or Reciprocating Saw

Please read instructions & notes thoroughly before installation.

Single Flap Door Mount

Step 1 Prep Your Door

If you have not yet measured your pet, review this guide to ensure the pet door will work.
If possible, remove the door from its hinges using a screwdriver and hammer to tap out the hinge pins. Lay the door flap for installation. Tape the provided template to the door. The top edge of the cut-out line should be at least 3” (7,6 cm) above the pet's shoulders.
Be careful not to cut too close to the bottom of the door as you may reduce the door's strength. Level the top edge of the cut-out line.

Step 2 Drill the Holes

Once you are certain the pet door will work with your door, make sure the template is level, and mark the outline with a pencil. Remove the template and drill holes through the corners just inside of the lines using a ⅜” (9,5 mm) drill bit.
Make sure your drill is kept level and drills all the way through the door.

Step 3 Saw An Opening

Using a jigsaw, cut along the marked lines, making sure to cut straight.
We recommend applying masking tape along the outside of the lines to protect your door from scratch marks as you cut with the jigsaw.

Step 4 Check Weatherstripping

Ensure the weatherstripping is firmly pressed in the groove on both frames. Weatherstripping indicated in red.

Step 5 Position the Frames

Place the trim frame on the outside of the door and the flap frame on the inside.

Step 6 Position Screws

Select appropriate screws and insert them into the pet door from the inside.
Do not fully tighten screws until all four screws are inserted and the pet door is leveled.
Use the included installation magnet to help align the screws.

Door Width	Screw Length
1-⅜” (3.5 cm)	Short Screws (1-¾”)
1-¾” (4.4 cm)	Long Screws (2-¼”)

Step 7 Screw Door Into Place

Once the pet door is leveled, tighten the screws so that the weatherstripping compresses.
Do not overtighten.

Step 8 Attach Screw Covers

Push the four screw covers in by hand to cover the screws.
If you need help, you can use the wooden end of a hammer rubber, or other non-metal tool to tap in the hole plugs. You can also place a wood block on the hole plug and tap the block with a hammer.

Step 9 Seal With Silicone

Apply silicone where the two frames meet. Also apply silicone where the outside frame meets the door.

PANELED DOORS

The best way to install the pet door is to have it straddle the recessed area of one of the panels. Have the pet door sit on the flat area in the middle, side, and below the recessed panel. The frame will cross the recessed area on the top, so you will be left with a gap. The easiest way to fill this gap is to get battens or shims from a local hardware store, and cut them to fit.

When that gap is mostly filled, caulk the remaining areas to seal the doggy door to the surface of the people door. If the space is very irregular you can also use a squishy foam weather stripping, which will compress down for a tight fit. When finished, use caulking to seal the door.
