Cat Mate 305 Wall Framing Kit and RFID Collar Key Bundle

Cat Mate 305 Wall Framing Kit and RFID Collar Key Bundle
Cat Mate 305 Wall Framing Kit and RFID Collar Key Bundle
Cat Mate 305 Wall Framing Kit and RFID Collar Key Bundle
Cat Mate 305 Wall Framing Kit and RFID Collar Key Bundle
Cat Mate 305 Wall Framing Kit and RFID Collar Key Bundle
Cat Mate 305 Wall Framing Kit and RFID Collar Key Bundle

Cat Mate 305 Wall Framing Kit and RFID Collar Key Bundle

$249.99
$249.99
Sold out
Info
Shipping calculated at checkout.
White

This field is required.

  • Bundle includes Cat Mate 305 Elite Super Selective Electronic Cat Door, wall liners, and RFID collar key
  • Tailor your order to your wall thickness for the appropriate number of wall liners, framing an additional 2" each
  • Provides a clean and sleek cut-out appearance for seamless installation
  • Prevents raccoons and strays from entering with RFID collar keys
  • Available exclusively in white
Cat Mate 305 Wall Framing Kit and RFID Collar Key Bundle
White / Extra RFID Collar Key / 2"-4" Edit
Cat Mate 305 Wall Framing Kit and RFID Collar Key Bundle

Product Details

Upgrade your home's pet access with the Cat Mate 305 Wall Framing Kit and RFID Collar Key Bundle, providing a secure and convenient solution for your feline companions. This bundle includes the Cat Mate 305 Elite Super Selective Electronic Cat Door, the appropriate number of wall liners based on your wall thickness, and an RFID collar key for controlled entry and exit.

The Cat Mate 305 cat door ensures a clean and sleek appearance when installed, while the wall liners frame an additional 2" each, creating a tunnel for your cat to pass through. Be sure to measure your wall thickness accurately before purchasing, so the correct number of wall liners can be provided.

Equipped with RFID technology, this cat door prevents raccoons and strays from entering your home, allowing access only to cats wearing the provided collar keys. The door can accommodate up to 9 cats, with individualized schedules thanks to the timer function. The LCD screen on the inside frame displays essential information such as the current time, your cats' locations, entrance and exit times, and lock status.

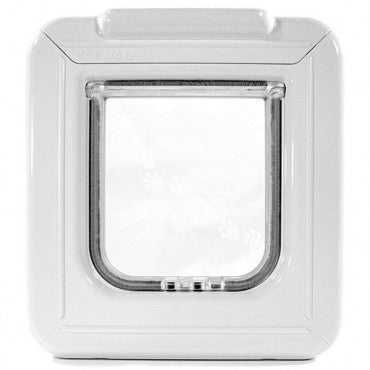

The Cat Mate 305 Elite Electronic Cat Door offers a quiet and efficient solution for your cats' varying schedules, allowing them to come and go as they please. With a rigid acrylic flap lined with brush weatherstripping, this cat door prevents drafts from entering your home.

Invest in the Cat Mate 305 Wall Framing Kit and RFID Collar Key Bundle for a secure, sleek, and convenient pet access solution that caters to your cats' needs while providing peace of mind.

Please Note: This door does not work for microchips. The RFID collar keys are necessary for the door to function.

Features:

    • Electronic cat door with RFID technology for controlled access
    • Accommodates up to 9 cats, each with their own I.D. disc on their collar
    • Timer function allows customization of individual cat schedules
    • Rigid acrylic flap with brush weatherstripping to prevent drafts

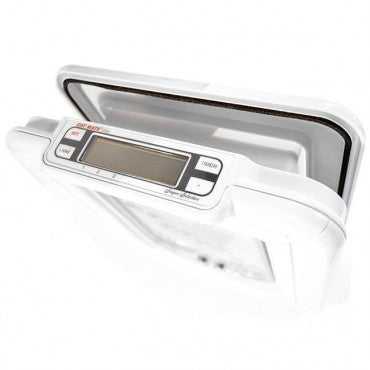

    • LCD screen on the top of the inside frame shows the current time, the location of up to 3 cat's locations, the time of their entrance and exit, and lock status
    • Four-way locking device if you choose to disable the timer, which means the door can be set to completely locked or unlocked, in only or out only
    • Requires 4 x AA batteries (not included) for about 12 months operation

Benefits:

    • Clean door design looks good in the house
    • Solves any problems with raccoons or stray pets
    • Great for small to medium-sized cats
    • Accommodates your cats' varying schedules

Size Chart

  • Model 3056"w x 6"h

Flap Dimensions:

6"w x 6"h

The entry way your dog goes through.
flap dimensions
rought cut out

Rough Cut Out:

7 1/16"w x 8 1/16"h

The size of the hole needed to fit your pet door into your door.
ModelFlap DimensionRough Cut OutOutside Frame DimensionRecommended Pet Height
3056" w x 6" h    7 1/16 " w x 8 1/16" h9 3/4" x 10 3/8"    4" - 9"




Not sure if this is the correct flap size? Here is a measurement guide to help you out.

Find The Best Pet Door Size For My Pet

A

Pet Height: inches

B

Pet Width: inches

Please fill the above fields.

Additional Information

Frame Material

Plastic

Flap Material

Acrylic

Flap Colors

Clear

Flap Thickness

1/8

Warranty Period

3 years

Return Period

30 days

Door Open Type

Unlocks for the key signal and pet pushes open

Your Maximum Pet Size

Cats

Controls Access

From Inside and Outside

Operates On

Battery

Flap Opens

Pet Must Push

Flap Design

Single, One Part, Rigid, Thin Flap

Can Be Installed In

Kennel Wall, Walls

Additional Lock

4-Way Lock

Number Pets

8

Activated By

RFID

Wall Thickness Range

2" - 8

Installation Instructions

installation video image
Installation icon Difficulty High
Installation icon Steps 04
Installation icon Time Required 2-3 hours
Installation icon Sections 01
Installation icon Flags 01

Parts

  • Cat Mate Elite Wall Liners
  • Interior Frame
  • Exterior Frame
  • Screws and Screw Covers
  • RFID Collar Keys

Tools

  • Tape Measure
  • Drill
  • Level
  • Pencil
  • Tools for cutting wall
  • Drill
  • Tape
  • Plastic Sheeting
  • Pliers
  • Screwdriver

Step 1 Prepare for Rough Cut Out

  • Make sure that you measure the thickness of your wall and have the correct number of wall liners needed before making any rough openings in your wall.
  • For the bottom of the cut-out, make sure that it is level with your pet’s belly to ensure comfort when in use.
  • Next you will have to make a rectangular cut out in the wall that is 7” wide by 8” high. Using a level and pencil, mark the outside lines of your cut-out on the wall. Then check one more time that the line is straight and level.
  • It is very important that you do not cut into any wall framing, electrical, pipes, etc., so double check when picking a location for the pet door.

Step 2 Make the Rough Cutout

  • Now you will want to cut the hole out, by first cutting the interior wall and then removing any insulation.
  • Next, drill holes from the inside through the exterior wall and use those as pilot holes for the outside cut. Be sure to remeasure on the outside for accuracy.
  • Tape up the inside hole with plastic sheeting before cutting the outside wall. This will make clean up much easier.
  • Cut out the exterior wall.

Step 3 Prepare the Frames

  • Take the pet door and remove the battery cover.
  • Remove the interior frame cover entirely by taking out the two screws on the backside of the frame. Then remove the two screws that are under the battery cover.
  • Remove the metal screw clips on the back using pliers.
  • Take the wall liners and fit them onto the flap frame whose cover you previously removed.
  • The manufacturer recommends pushing them together firmly, but glue can be used if you feel it would be more secure.

Step 4 Secure the Frames

  • The screw holes should be visible about halfway down the left and right side of the frame. You will need to put a washer under each screw.
  • Take the frame and screw it to the wall, putting the liners through the cut-out.
  • Put the inside frame cover back on using the screws you removed and replace the battery cover. Make sure that you do not trap any of the electrical wires.
  • Finally, fit the exterior frame on using two of the 1” screws. Then fit the hole covers and you are finished.

Warranty

Cat Mate/ Dog Mate/ Ani Mate 3 Year Limited Warranty

Guarantees your purchase for a period of three years from the date of original purchase against any defect arising due to faulty materials or manufacture. Accordingly, any defective item will be repaired free of charge or replaced at the manufacturer’s option provided that the defect has not been caused by neglect, misuse, or normal wear and tear and proof of purchase date is supplied. Your statutory rights are not affected.
