- Sturdy panel insert with built-in pet door for side-sliding windows
- Two-piece flap design seals off pet door opening for improved energy efficiency
- Spring-loaded design for quick, tool-free installation
- Adjustable height ranges to fit most sliding windows
- Tough, weather-resistant flap

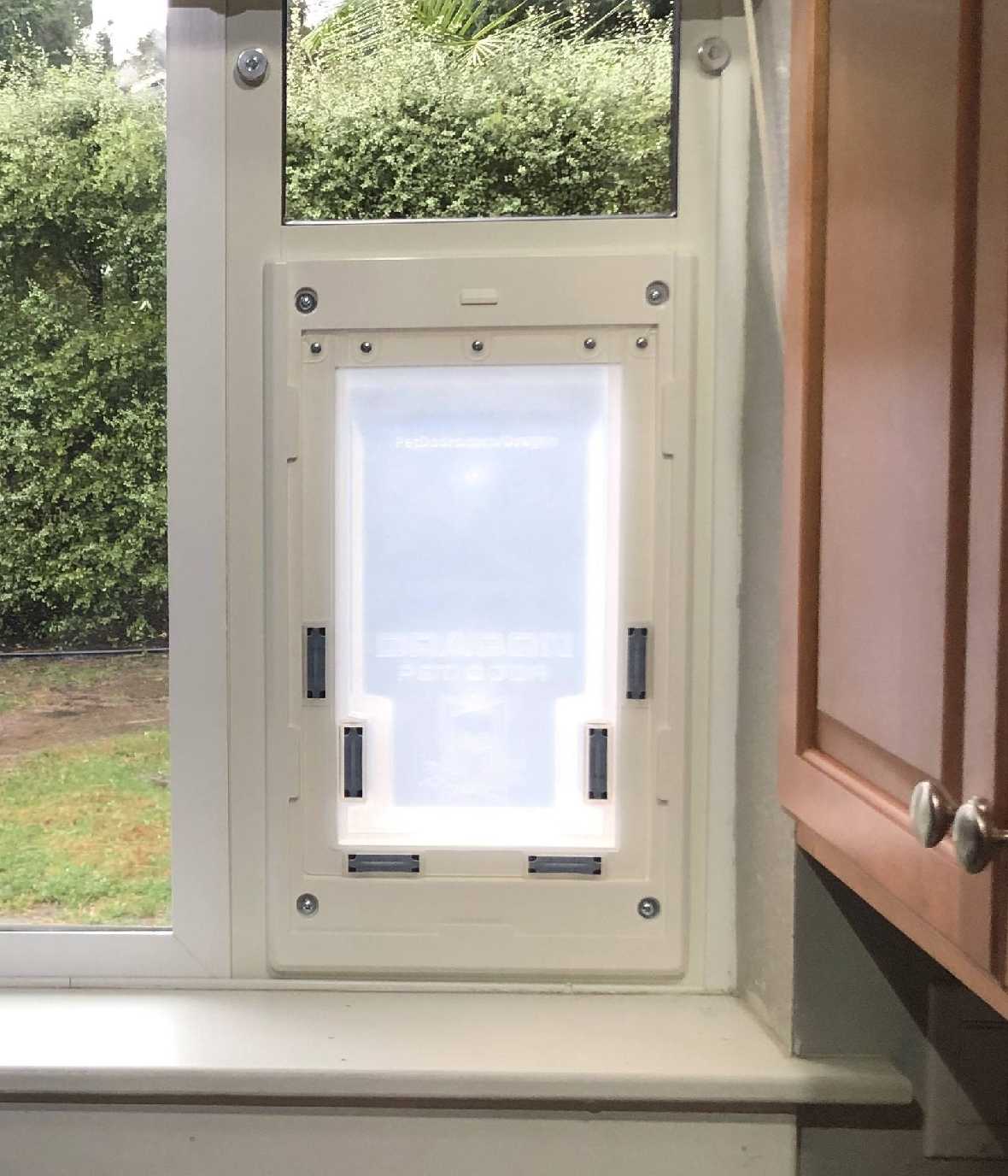

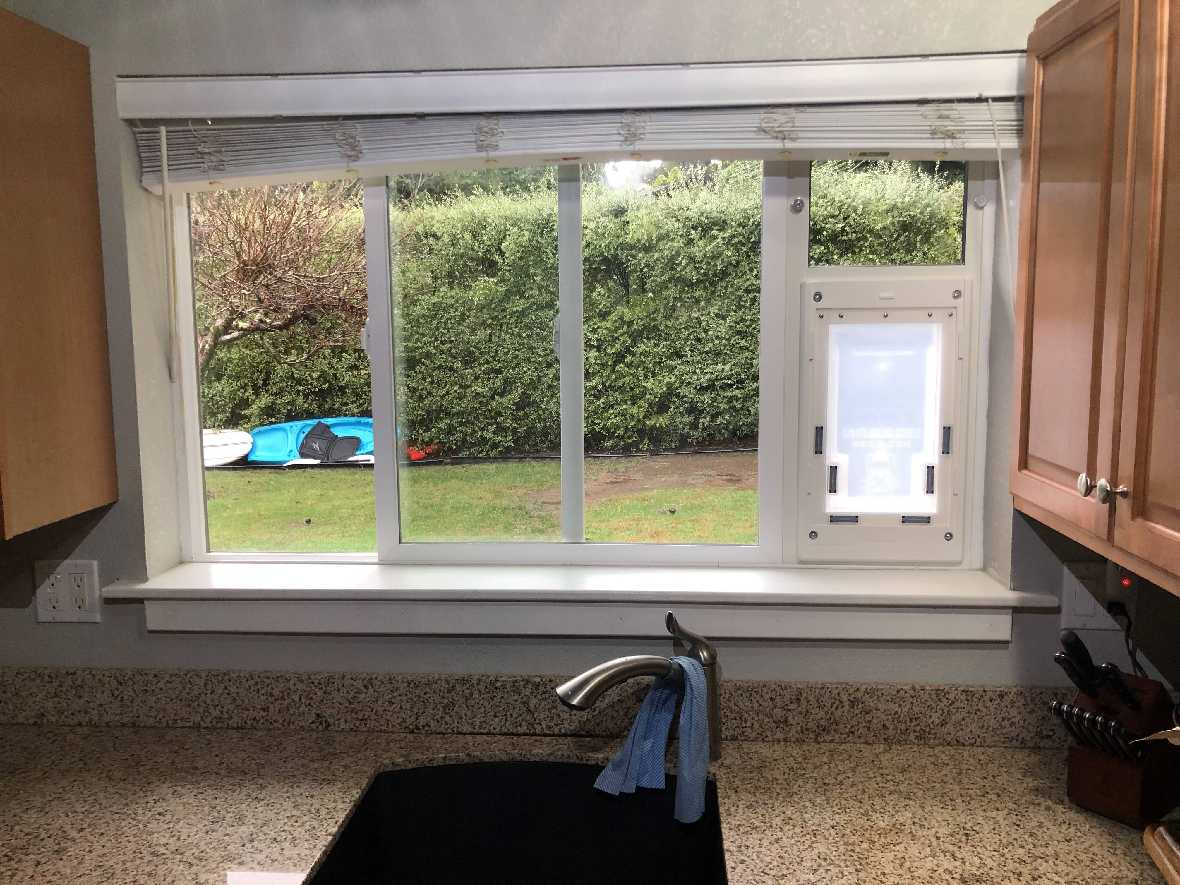

The Dragon Pet Door for Windows also comes in a double flap version. This pet door is an economically friendly window panel insert for sideways-sliding windows. It features an efficient two-piece Dragon pet flap for excellent sealing value. Available in three height adjustment ranges, the Dragon Window Pet Door fits window tracks of all sizes. These window panels install with a simple spring-loaded adjustment method, allowing you to quickly take them in and out of your window track—no drilling or cutting required. There are many other installation types for the Dragon Pet Door. Already have a Dragon pet door? See which replacement flap fits your door.
- Two-piece flap design covers the entire pet door opening for improved sealing (for double flap option, see the Double Flap Dragon Window Pet Door)
- Flexible polyolefin elastomer flap is easy for pets of all sizes to use
- UV-resistant additives in the pet door flap and frame protect against weather damage
- Weather-resistant single flap keeps your home insulated
- Single-pane, tempered glass optimal for moderate climates
- Sturdy aluminum frame designed to fit into window tracks at least 1” thick
- Spring-loaded mechanism installs tool-free into the window track
- Available in two track-height adjustment ranges to fit windows 34"–37" or 46"–49" tall
- Magnets keep flap shut when not in use
- Comes with a tough locking cover to block access when needed
- Allows your pets the freedom to come and go without a costly install in a door or wall
- Quick and easy installation, easily removable—perfect for renters or vacation homes
- Low impact installation method, no drilling or cutting required
- Ability to upgrade from single flap to double flap using an Additional Dragon Flap
|Flap Size||Flap Dimensions||Step Over||Overall Panel Width||Recommended Pet Height*||Stock No|
|Small||Coming soon!||Coming soon!||Coming soon!||Coming soon!||01DF-A10SS|
|Medium||7.0" x 13.1"||4.4"||13.7"||12" - 16"||01DF-A20MM|
|Large||9.4" x 16.6"||4.4"||Coming soon!||12" - 19"||01DF-A30LL|
*measured from the ground to the tallest point of their back.
Don't know which size to get? Here is a measurement guide to help you out.
Wondering how to measure your track? Review our Track Measuring Guide.
Your Track Height Adjustment range is based on the measurement of your door height from the lowest point of your track to the highest point.Each Dragon patio panel has a 3" adjustment range with your window track height approximately in the middle. The following adjustment ranges are available:
- Short (Size F): 34" – 37"
- Regular (Size J): 46" – 49"
CAUTION: If your measured track height is near the bottom of the adjustment range then you should review A Note of Caution.
What's the difference between the single flap and the double flap?
The double flap option provides increased insulation against the cold. Both options have magnets on the flap to keep the door sealed in wind.
I want to get the large pet door for my dog, but I am concerned about a person fitting through it.
All Dragon Pet Doors come with a locking cover. This cover can be used to keep you doggy in. It also can be used to keep intruders from entering your home. It slides into the interior frame.
How do I know what size is best for my dog?
When installing the pet door you want it to clear the top of your dog's back by 1-2 inches, minimum. To give your pet the most comfortable pet door possible, make sure the step-over is less than 1/3 of your dog's height. Lastly you want the width of the door to be big enough to allow your pet to go through without touching the sides. Here's a guide on how to measure your pet with tips on how to determine the correct size.
Are replacement flaps available?
Yes, you can buy Dragon replacement flaps.
Where can I install the Dragon Pet Door?
The Dragon Pet Door has multiple Installation options. You can install it in Regular Doors, as a Wall mount, Aluminum Sliding Doors, Vinyl Sliding Doors, Sash Windows, Vinyl Windows, and Horizontal Windows.
Can my small and large dog share this pet door?
Yes, but make sure to follow standard Measuring Guidelines. Make sure the size of the door is based off your tallest pet, but installed low enough for your smallest pet.
1 Window Insert with a Pre-Installed Single Flap Dragon Pet Door
1 Foam Weather Strip Seal
1 Locking Cover
INSTALLING THE PANEL
Step 1: Loosen the thumb screws at the end of the pet door insert. This allows the spring mechanism to move freely up and down. Watch out, it might jump at you the first time!
Step 2: Insert the panel into the top track of your framing. Push the panel into the spring mechanism and swing the bottom of the panel up and over the threshold into the rail at the bottom. If you can’t quite clear the track, try swinging in from the outside as the outside track wall may be shorter.
If the panel still doesn't fit, see the FAQ for guidance.
Step 3: Once you have confirmed the panel fits, remove the panel from the track and lay it on its side. Apply the foam weather-stripping by peeling back the paper and exposing the adhesive. Unroll it along the edge of the panel, pressing to ensure it adheres. Use scissors to trim the strip to fit the length of your panel.
Flip the panel around to apply on the other edge.
Step 4: Place the panel back into the window, then tighten the thumbs screws to lock it in place. Installation complete!
LOCKING YOUR WINDOW
Since you likely can no longer use your window’s original lock, we have provided you with an alternative locking method to keep your home secure.
Installing the track clamp:
This clamp has a thumb screw which tightens by hand to prevent the sliding window pane from moving beyond the clamp’s placement. For windows manufactured with the slider on the inside track, the lock can usually be installed on the raised track.
If you aren’t able to use the lock that comes with the panel:
A great alternative to locking your window is a charley bar or dowel in the track. Both work off the same concept - they block the slider from opening. When engaged you cannot pull the sliding pane away from the pet door panel. If there is 15” or more of space for the sliding pane to move, a charley bar will work. If there’s less, a dowel is necessary.
FREQUENTLY ASKED QUESTIONS
What if my panel is slightly too tall?
You can trim up to 34” off the spring- loaded adjustment piece at the top. This can be done by removing the adjustment pieces with a #2 Phillips head screwdriver and cutting down the flanges. Be careful not to cut too low or you will not be able to put the top back on.
The dark area marks where you can trim:
What if my panel is slightly too short?
We offer height extensions that will add 34” to the top of the panel that you slide into the channel at the top. These are made from the same aluminum as the panel so you can match the color.
You can also make your own extension out of nominal 1” wood (which is 34” thick), such as a 1x3, if you need more than %" in height. Cut it to the same width as the panel and slide it into the channel at the top. Paint the wood to match your frame color. If the extension makes the panel feel unstable, you can secure it with screws.
What if the panel is wobbling slightly back and forth?
If your track is wider than 1” you can use small wooden shims or extra weather-stripping to fill in the gap inside the top and bottom tracks. By placing the material inside the tracks you won't be able to see it, but it will stabilize the panel.
