- Turn your current Pride Pet Door into a screen dog door for pets
- Screen door dog door adapter supports pet door on 2 sides for stability
- Sturdy installation accommodates large, active pets
- Use in screen frames up to 1/2" thick
- Does not include the Pride Pet Door
Product Details
Wondering how to add a doggie door or cat door to a screen door? These screen mounted pet door adapters enable the Pride Pet Doors to be installed in a screen frame patio panel up to a ½†in thickness. This does not include the pet door or cat flap—you must purchase the Pride Pet Door separately if you have not done so already. Available in all pet door sizes, this pet door adapter is the sturdiest way to support a screen door for larger, more active dogs. It is supported by the screen framing on two sides, ensuring stability.
Please Note:
- The Pride pet adapter is intended to fit in a screen frame no thicker than 1/2". If your screen frame is thicker than this, you will need to carve the U-shape with a table saw into an L-shape, permitting installation.
- Prior to installing a pet door screen door adapter, check the clearance needed to open the screen. The Pride Pet Door locking cover frame will protrude about ½" from the front of the interior frame. If the screen is next to the door, that track could potentially interfere with fully opening the screen. If the locking cover does interfere with opening the screen door all the way, the locking cover tracks can be removed by drilling out the rivets that hold it.
Size Chart
| Flap Size | Flap Dimension |
|---|---|
| Small | 4 3/4" w x 7" h |
| Medium | 8 1/2 " w x 12 1/2" h |
| Large | 11 1/2" w x 17" h |
| Extra Large | 14 1/2" w x 19 1/2 " h |
See our selection of Pride Pet Doors

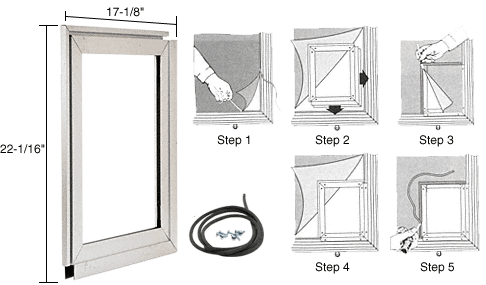

Installation Instructions
Step 1: Remove the entire screen assembly and lay it on the floor. Then remove the screen spline from the lower corner as shown.
Step 2: Fit the screen adapter frame into the lower corner of the screen frame. Note that the adapter is sized to fit framing up to a maximum of ½" thick.
Please Note: If your screen frame is thicker than that, the alternative is to cut away the appropriate wall of the adapter frame to turn the U-shape into an L-shape which will allow for screen framing of any thickness. The best tool for this would be a table saw set to a shallow cut.
Step 3: Fasten the adapter frame in place with sheet metal screws across the bottom and up the sides.
Step 4: With a sharp knife, cut away the screen, leaving about ½” to overlap the new spline channel.
Step 5: Using the old screen spline, re-spline the screen into the new channels with the edge of a screwdriver. When finished, install the Pride Pet Door into the frame with sheet metal screws or pop-rivets.
FAQ
|
Do I need to purchase anything else for a screen doggie door? Yes, you will also need to purchase the Pride Pet Door. |
|
What colors does the pride adaptor come in? It comes in adobe, black, bronze, silver, tan, and white. |
|
Is this easy to install? It depends on how handy you are; you van visit the 'Installation Instructions' tab for more detailed information. |
|
Does this attach to the frame? Yes. |
|
How thick of a screen can this accommodate? It can accomodate screens frames up to 1/2" thick. |
|
Why is the flap black? Because it is made out of recycled tires. |
|
Is this a sturdy pet door? Yes, it is perfect for large or active pets. |
|
Can I use this without purchasing the Pride Pet Door? No, this will not work without the Pride Pet Door |
|
Can I use this to make a pet door of another brand into a screen mount? No, this will only work with Pride Pet Doors |
|
How to I get into contact with the Manufacturer? You can give them a call at 323-245-5185 |
|
What is the pride adaptor used for? It is used to transform a Pride Pet Door for Doors into a screen mounted pet door. |
Warranty
Pride Pet Door Limited Warranty
To the original purchaser, Z Industries warrants this product and its component parts to be free of defects on materials and workmanship for a period of one year from the date of purchase. Damage caused by accident, improper installation, or abuse, including damage caused by pets, is specifically excluded from this warranty. The manufacturer’s liability on any claim shall not exceed the cost of the product. In no instance shall the manufacturer be responsible for consequential damage resulting from the use of this product.
For a period of one year from the date of purchase, any defective product or part may be sent, freight prepaid, to Z Industries for replacement or repair at no charge. Proof of purchase date must accompany any returned item. This warranty replaces any and all previous warranties, either written, oral, or implied, and is the only warranty made by this company. This warranty gives you specific legal rights. You may have other rights which vary from state to state. Save this document and proof of purchase.
Customer Reviews
Size Chart
| Flap Size | Flap Dimension |
|---|---|
| Small | 4 3/4" w x 7" h |
| Medium | 8 1/2 " w x 12 1/2" h |
| Large | 11 1/2" w x 17" h |
| Extra Large | 14 1/2" w x 19 1/2 " h |
See our selection of Pride Pet Doors
Installation Instructions
Step 1: Remove the entire screen assembly and lay it on the floor. Then remove the screen spline from the lower corner as shown.
Step 2: Fit the screen adapter frame into the lower corner of the screen frame. Note that the adapter is sized to fit framing up to a maximum of ½" thick.
Please Note: If your screen frame is thicker than that, the alternative is to cut away the appropriate wall of the adapter frame to turn the U-shape into an L-shape which will allow for screen framing of any thickness. The best tool for this would be a table saw set to a shallow cut.
Step 3: Fasten the adapter frame in place with sheet metal screws across the bottom and up the sides.
Step 4: With a sharp knife, cut away the screen, leaving about ½” to overlap the new spline channel.
Step 5: Using the old screen spline, re-spline the screen into the new channels with the edge of a screwdriver. When finished, install the Pride Pet Door into the frame with sheet metal screws or pop-rivets.
FAQ
|
Do I need to purchase anything else for a screen doggie door? Yes, you will also need to purchase the Pride Pet Door. |
|
What colors does the pride adaptor come in? It comes in adobe, black, bronze, silver, tan, and white. |
|
Is this easy to install? It depends on how handy you are; you van visit the 'Installation Instructions' tab for more detailed information. |
|
Does this attach to the frame? Yes. |
|
How thick of a screen can this accommodate? It can accomodate screens frames up to 1/2" thick. |
|
Why is the flap black? Because it is made out of recycled tires. |
|
Is this a sturdy pet door? Yes, it is perfect for large or active pets. |
|
Can I use this without purchasing the Pride Pet Door? No, this will not work without the Pride Pet Door |
|
Can I use this to make a pet door of another brand into a screen mount? No, this will only work with Pride Pet Doors |
|
How to I get into contact with the Manufacturer? You can give them a call at 323-245-5185 |
|
What is the pride adaptor used for? It is used to transform a Pride Pet Door for Doors into a screen mounted pet door. |
Warranty
Pride Pet Door Limited Warranty
To the original purchaser, Z Industries warrants this product and its component parts to be free of defects on materials and workmanship for a period of one year from the date of purchase. Damage caused by accident, improper installation, or abuse, including damage caused by pets, is specifically excluded from this warranty. The manufacturer’s liability on any claim shall not exceed the cost of the product. In no instance shall the manufacturer be responsible for consequential damage resulting from the use of this product.
For a period of one year from the date of purchase, any defective product or part may be sent, freight prepaid, to Z Industries for replacement or repair at no charge. Proof of purchase date must accompany any returned item. This warranty replaces any and all previous warranties, either written, oral, or implied, and is the only warranty made by this company. This warranty gives you specific legal rights. You may have other rights which vary from state to state. Save this document and proof of purchase.
The screen adapter instructions tells you to refer to the pet door instructions for installing the pet door. The pet door instructions tells you to follow the screen adapter instructions. The YouTube from the founder is horrible and he never completes the assembly. He just rambles on about the history of the product.
This is only the adapter frame to fit your screen door frame. You do have to purchase the pet door separately. I have a screened in patio so I had to cut off one wing of the ****** and screw it directly into the frame of the frame. It's good option to have for larger size pets and it is held in place on two sides by the frame and the two sides by the screen.
I got this because I wanted to move my pet door to the screen. It fits well and was a relatively easy installation.
Bought this and the door, but the door flaps are a thick black and weren't easy for the dogs to get used to at first. Eventually they did get the hang of it.
Pretty sturdy for the most part. I moved to a new house and wanted to put my old pride door in a screen instead, so this saved me from having to buy a whole new door. FYI you don't need this if you already bought the Screen Mount version of the Pride door.
