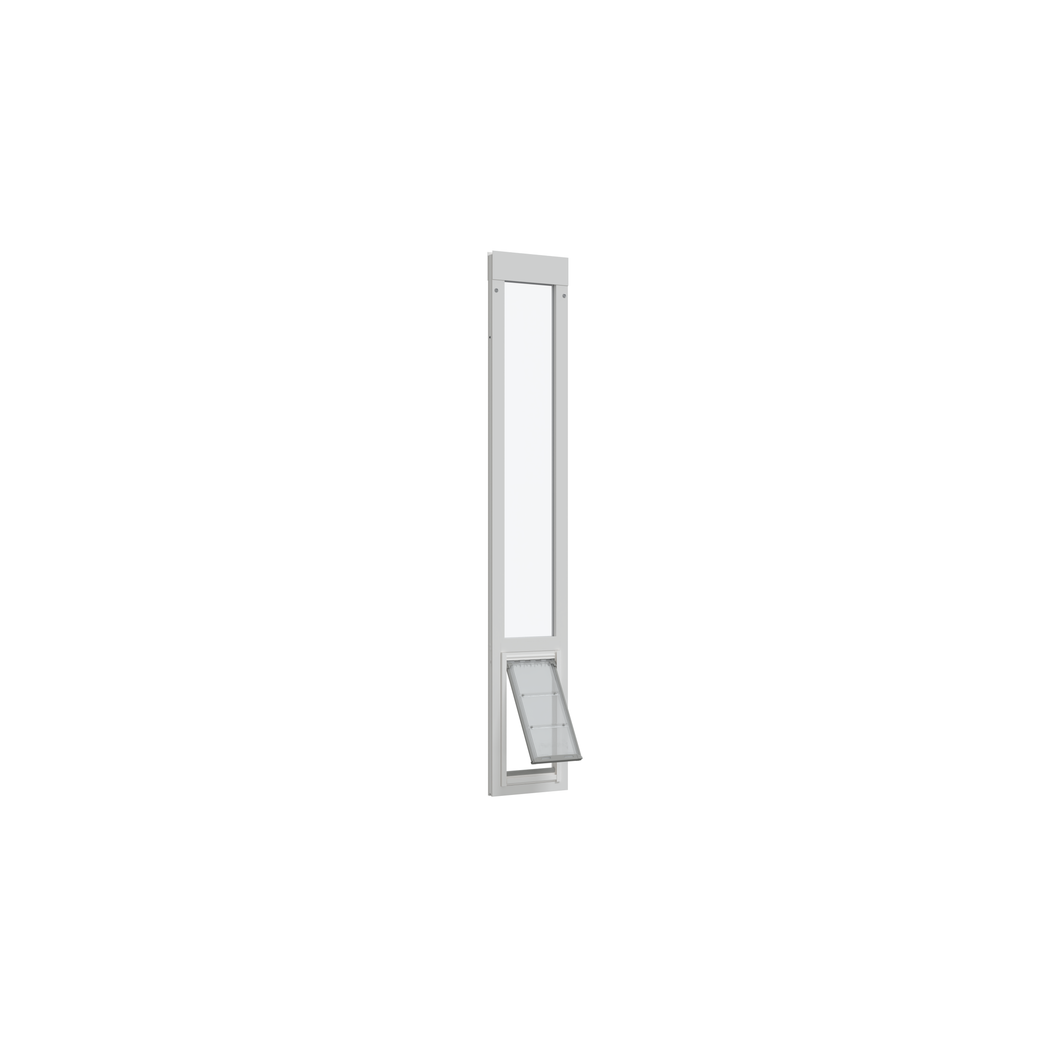

Endura Flap Custom Vinyl Sliding Glass Dog Door
- Custom height pet door for vinyl sliding glass doors
- Insulating flap withstands 50 mph winds and -40°F temperatures
- Low-E glass reduces UV rays and infrared light
- Designed for tracks 1-1/2" to 1-3/4" thick
- Custom orders are made to your specifications and are non-returnable
- Approximately three weeks to build your custom panel pet door
Product Details
The Custom Endura Flap Vinyl Sliding Glass Dog Door is a high-quality pet door designed specifically for vinyl sliding glass doors. With its customizable height and easy installation, this dog door will seamlessly integrate into your home, providing your furry friend with the freedom to come and go as they please.
This custom pet door features an insulating flap that can withstand 50 mph winds and temperatures as low as -40°F. Its Low-E glass not only helps reduce UV rays but also minimizes infrared light, making it perfect for energy-conscious homeowners. The door is designed to fit sliding door tracks that are 1-1/2" to 1-3/4" thick, ensuring a secure and snug fit for your home.
The spring-loaded top piece makes installation a breeze, and the customizable height ensures a perfect fit for your vinyl sliding door. The insulating flap comes with an option for a double flap for added insulation, keeping your home comfortable in any weather condition. The pet door also features foam weatherstripping and a center post draft stopper to reduce drafts.
To ensure your home's security, this pet door comes with a secure locking cover and a c-clamp lock. The vinyl panel framing is designed to match vinyl-framed sliding glass doors, giving your home a cohesive look.
Not seeing the size you need? See the standard Endura Flap Vinyl Sliding Glass Dog Door for more sizing options.
Features:
- Customizable height for a perfect fit in sliding door tracks under 74.75" tall
- Spring-loaded top piece allows for easy installation and removal
- Insulating flap protects against harsh weather, with double flap option for added insulation
- Low-E glass for maximum insulation and reduced UV exposure
- Secure locking cover and c-clamp lock included for added security
Benefits:
- Vinyl frame seamlessly matches vinyl-framed sliding glass doors
- Simple installation in a matter of minutes, great for renters
- Allows dogs the freedom to come and go as they please
Size Chart
- Small 6"w x 10"h
- Medium 8"w x 14"h
- Large 10"w x 18"h
- Extra Large 12"w x 22"h
Flap Dimensions:
6"w x 10"h
The entry way your dog goes through.Overall Panel Width
10 3/8"
How wide your panel is.
Step-Over Height
4”
The distance from the bottom of the panel to the bottom of your flap.Flap Dimensions:
8"w x 14"h
The entry way your dog goes through.Overall Panel Width
12 1/2"
How wide your panel is. Step-Over Height
4”
The distance from the bottom of the panel to the bottom of your flap.Flap Dimensions:
10"w x 18"h
The entry way your dog goes through.Overall Panel Width
14 1/2"
How wide your panel is.
Step-Over Height
4”
The distance from the bottom of the panel to the bottom of your flap.Flap Dimensions:
12"w x 22"h
The entry way your dog goes through.Overall Panel Width
16 5/8"
How wide your panel is. Step-Over Height
4”
The distance from the bottom of the panel to the bottom of your flap.| Flap Size | Flap Dimension | Step Over Height | Overall Panel Width | Recommended Pet Height |
|---|---|---|---|---|
| Small | 6" w x 10" h | 4" | 10 3/8" | 8" - 14" |
| Medium | 8" w x 14" h | 4" | 12 1/2" | 8" - 21" |
| Large | 10" w x 18" h | 4" | 14 1/2" | 8" - 27" |
| Extra Large | 12" w x 22" h | 4" | 16 5/8" | 8" - 34" |
Find The Best Pet Door Size For My Pet
A
Pet Height: inches
B
Pet Width: inches
Installation Instructions
Difficulty
Easy
Steps
08
Time Required
0.5 hours
Sections
01
Flags
01
Parts
- 1 Vinyl Panel Pet Door
- 1 Weatherstrip Seal
- 1 Center Post Weather Seal Draft Stopper
Tools
- Flathead screwdriver
- #2 Philips head screwdriver
- Non-metal hammer
- Scissors
Please read instructions & notes thoroughly before installation. If you need to adjust the step-over height, complete steps A-C before installing the panel in your track.
Step 1 Loosen Height Adjustment Locks
- Loosen the height adjustment locks at the top of the panel. This allows the spring mechanism to move freely up and down.
Step 2 Insert Panel Into Track
- Insert the panel into the upper track of your door frame, push the panel into the spring mechanism, then swing the bottom of the panel up and over the threshold into the lower track rail.
Step 3 Apply Weatherstrip
- Once you are confident that the panel fits, remove the panel from the track and lay it on its side on the ground.
- Apply the foam weatherstrip seal by peeling back the paper and exposing the adhesive. Unroll it along the edge of the panel, pressing to ensure it adheres. Install on both sides and trim to fit with scissors.
Step 4 Place Panel In Track
- Place the panel back into the sliding glass door, then tighten the height adjustment locks to lock it in place.
Step 5 Install the Draft Stopper
- The center post weather seal strip (draft stopper) should be installed on the inside of the home.
- Trim with scissors as needed. Clean the edge of your patio door with rubbing alcohol before installing to assure a good seal.
- Repeat step two to install the panel in your track.
Difficulty
Easy
Steps
08
Time Required
0.5 hours
Sections
01
Flags
01
Parts
- 1 Vinyl Panel Pet Door
- 1 Weatherstrip Seal
- 1 Center Post Weather Seal Draft Stopper
Tools
- Flathead screwdriver
- #2 Philips head screwdriver
- Non-metal hammer
- Scissors
Please read instructions & notes thoroughly before installation. If you need to adjust the step-over height, complete steps A-C before installing the panel in your track.
Step 1 Assemble the Panel
- Align the aluminum connectors extending from the bottom flap panel section with the top glass panel section.
- Press the aluminum connectors into the holes at the bottom of the top glass panel section.
- Ensure locking cover & height adjustment locks are on the same side!
- Fasten the two panels together using the four flathead screws found in the panel packaging.
Step 2 Loosen Height Adjustment Locks
- Loosen the height adjustment locks at the top of the panel. This allows the spring mechanism to move freely up and down.
Step 3 Insert Panel Into Track
- Insert the panel into the upper track of your door frame, push the panel into the spring mechanism, then swing the bottom of the panel up and over the threshold into the lower track rail.
Step 4 Apply Weatherstrip
- Once you are confident that the panel fits, remove the panel from the track and lay it on its side on the ground.
- Apply the foam weatherstrip seal by peeling back the paper and exposing the adhesive. Unroll it along the edge of the panel, pressing to ensure it adheres. Install on both sides and trim to fit with scissors.
Step 5 Place Panel In Track
- Place the panel back into the sliding glass door, then tighten the height adjustment locks to lock it in place.
Step 6 Install the Draft Stopper
- The center post weather seal strip (draft stopper) should be installed on the inside of the home.
- Trim with scissors as needed. Clean the edge of your patio door with rubbing alcohol before installing to assure a good seal.
- Repeat step two to install the panel in your track.
FAQ
What if my panel is slightly too tall?
You can trim up to 5/16" off the spring-loaded adjustment piece at the top. Remove the adjustment piece with a #2 Philips head screwdriver and use scissors to cut down the flanges. Be careful not to cut too low.
What if my panel is slightly too short?
We ofer height extensions that will add 1 1/2" to the top of the panel that you slide into the channel at the top. These are made from the same vinyl as the panel so the color will match exactly. If the extension makes the panel feel unstable, you can secure it with screws.
What if the panel is wobbling slightly back and forth?
If your track is wider than 1 1/2", you can use small wooden shims or extra weather-stripping to fill the gap inside the top and bottom tracks. By placing the material inside the tracks you won't be able to see it, but it will stabilize the panel.
Locking Your Door
Since you cannot lock your sliding glass door to the panel, we have provided you with a sliding door clamp lock to secure your home.
Installing the sliding door clamp:
This clamp as a screw that tightens by hand to prevent the sliding door from moving beyond the clamp's placement. For doors manufactured with the glass slider on the inside track, the lock can usually be installed on the door's raised track.
If you aren't able to use the lock that comes with the panel:
A great alternative to locking your sliding glass door is a Charley bar or dowel. Both block the slider from opening. When engaged, you cannot pull the sliding door away from the pet door panel.
FAQ
|
Will this fit all vinyl doors? This will work in doors that have a recessed track at least 1 1/2" wide, with a rail in the bottom that is about the size of a pencil. The panel is made with a small channel that will case over that little rail. |
|
Does it lock? We do include a c-clamp lock. It is not designed to mate with your existing sliding door lock. You can also use a Charley-Bar or dowel in the track. |
|
Can I install it myself? It is meant to easily be put in and removed. You just have to loosen the screws at the top, fit it into the track, and then tighten them. Then to remove it you simply loosen them again and pop it out. |
|
If you can remove it what prevents intruders from taking it out? The thumb screws are on the inside of the house so you can't loosen them from the outside. |
|
Can you lock the pet door? It comes with a closing cover, and you slide that in on the inside of the house. It is a very secure ABS plastic material that is as strong as a 1/16" sheet of steel. |
|
Does this insulate well? This door has superior insulating capabilities. The heavy-duty flap has magnets that seal all the way around, and will stay closed in wind gusts up to 50mph. The Low-e glass also compliments the insulating value of your vinyl door. |
|
How to I measure for it? You will want to measure from the deepest part (down past the little metal rail) in the bottom, then all the way up to the deepest part inside the top track. |
|
Does it come in any color other than white? No, but the you can paint the vinyl to match. |
|
What if my track is wider than 1 1/2"? It can still work if your track is wider, but if the channel in the bottom, top, or side measures less than that you will not be able to fit it into place properly. |
|
Does your door have to be vinyl? No, not as long as the track height and width meet the panel specs. |
|
Does it come in a height for 96" sliding doors? At this time it is not offered in the taller height ranges, but we're working on it! |
|
What are some breeds of dogs these will fit? Small would be Chihuahuas, Yorkies, and cats. Medium would be good for Corgis, Jack Russell Terriers, and French Bulldogs. Large would fit most Labs, Goldens, and Pit Bulls. Extra Large would be good for most Rottweilers, German Shepherds on the large side, and English Labs. |
|
Is the flap flexible? It is flexible, but since it is two pieces sandwiched together it is a little stiffer and heavier than the more economical vinyl flaps. |
|
Is the flap clear? It is a little foggy, but it is see through. |
|
Will this form condensation like the aluminum panels? Nope! That is one of the great things about the vinyl framing is you won't have the the condensation on the inside of the house. |
|
My sliding door track has a triangular guide rail. Will this pet door still work? Some sliding glass door tracks have a triangle-shaped guide rail instead of a cylindrical pencil rail running along the middle. This pet door panel has an arch along the bottom that is designed to sit on top of a cylindrical pencil rail. Pencil rails are shorter in height than triangular guide rails, which means that the pet door panel would wobble on top of it rather than sitting flush with the rest of the track. To accommodate the pet door panel you will need to build up the sides of the triangular guide rail so that the tip is less than ¼” tall. Please reach out to customer service if you have any questions about this process. |
|
Will this panel work if my sliding glass door has a buried track? Some sliding glass doors have buried tracks. Since this panel has an arch along the bottom that is designed to sit on top of a pencil rail, it will not be secure in a slider with a buried track without modifications. We recommend securing the panel to the track wall with L brackets or toenailing it to the track wall. Toenailing is the process of fastening the panel to the track by driving a nail at roughly a 45-degree angle into the panel and through the track wall. Please note that these modifications result in a semi-permanent installation. If you needed to remove the panel in the future you would first have to remove the L brackets or nails. Additionally, please note that this process would leave holes in the pet door panel and it would no longer be returnable. Please reach out to customer service to further discuss your options for a buried track. |
|
I have a hurricane patio door. Will this pet door work for me? Hurricane door track styles vary widely, so they are case-by-case. Please reach out to customer service to discuss your pet door options for your sliding door. |
|
Will this pet door work with Anderson and Pella sliding doors? Anderson and Pella sliding glass doors have an inner track wall but no outer track wall. Additionally, the pencil rail is on the outer edge of the track rather than in the middle. Since this pet door panel is designed to sit between two track walls and on top of a centered pencil rail, it cannot be installed in Anderson or Pella doors without modifications. We recommend building out your track and using L brackets or toenailing to secure the bottom of the panel to the inner track wall. Building out the track means adding a piece of wood or vinyl that is the same height as the pencil rail to the space next to the pencil rail. This creates a flat surface for the pet door panel to sit on. Next, you will need to secure the panel to the track wall. To do this, you can use L brackets or you can toenail the panel into the track wall. Toenailing is the process of fastening the panel to the track by driving a nail at roughly a 45-degree angle into the panel and through the track wall. Please note that these modifications result in a semi-permanent installation. If you needed to remove the panel in the future you would first have to remove the L brackets or nails. Additionally, please note that this process would leave holes in the pet door panel and it would no longer be returnable. Please reach out to customer service to further discuss this process or different options for an Anderson or Pella sliding door. |
|
How much does shipping cost? Shipping is calculated at checkout. |
Warranty
Endura Flap products have a lifetime warranty against defects in materials and workmanship under standard regular use. Damage caused by not using the product as intended, improper installation, and chewing is not covered under this warranty.Customer Reviews
