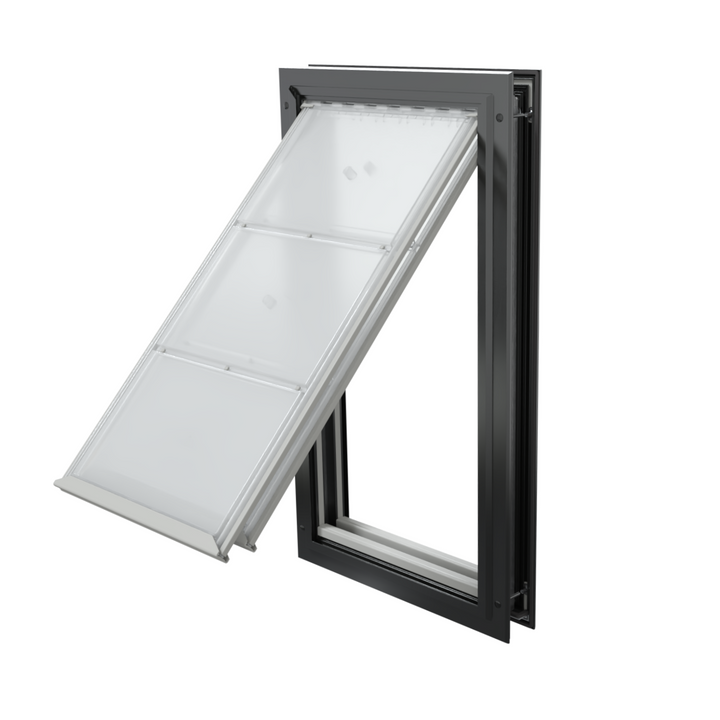

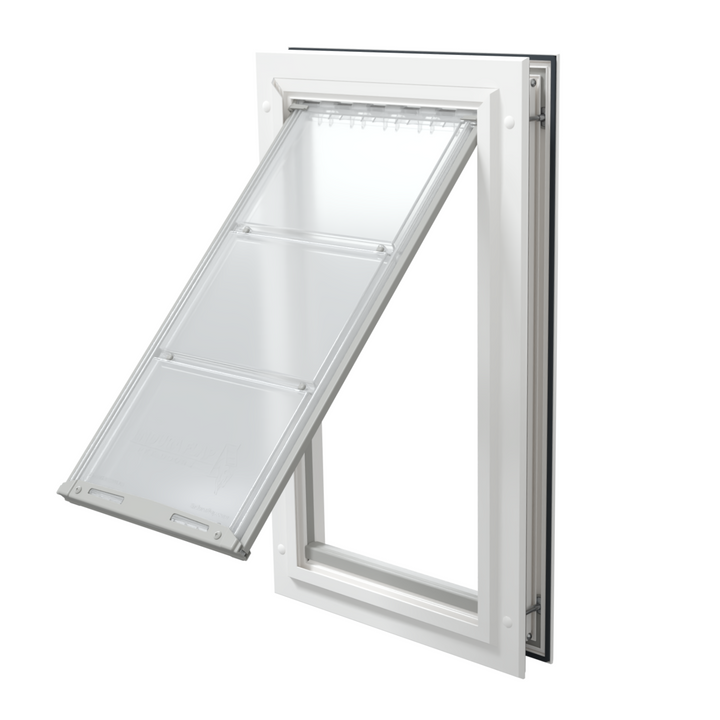

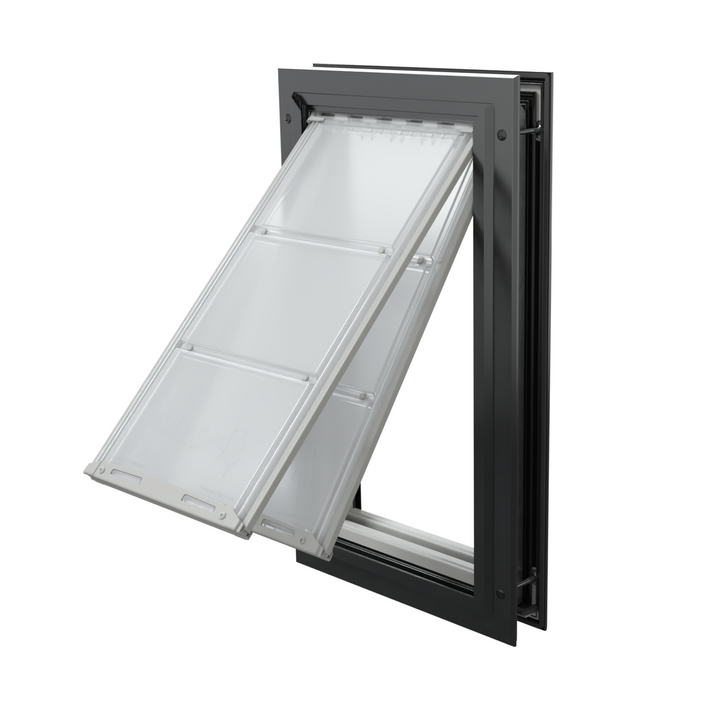

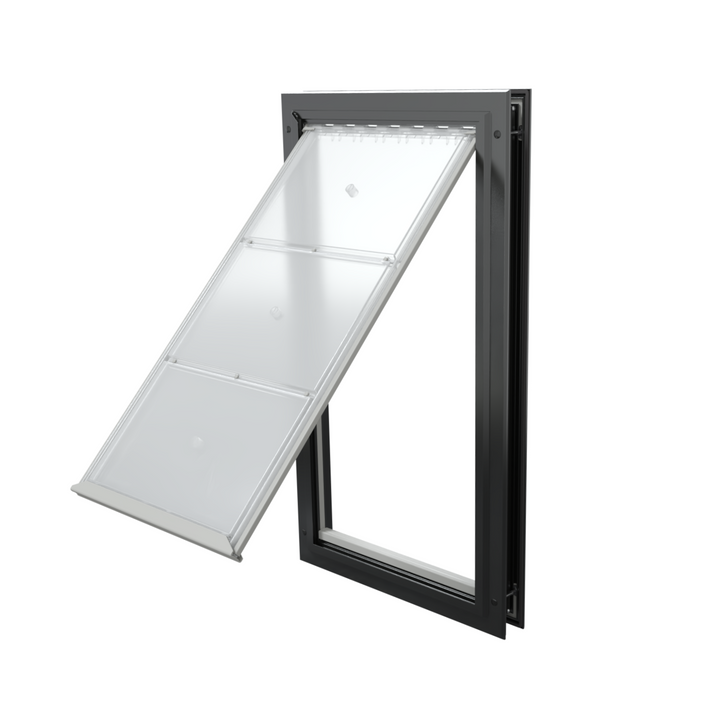

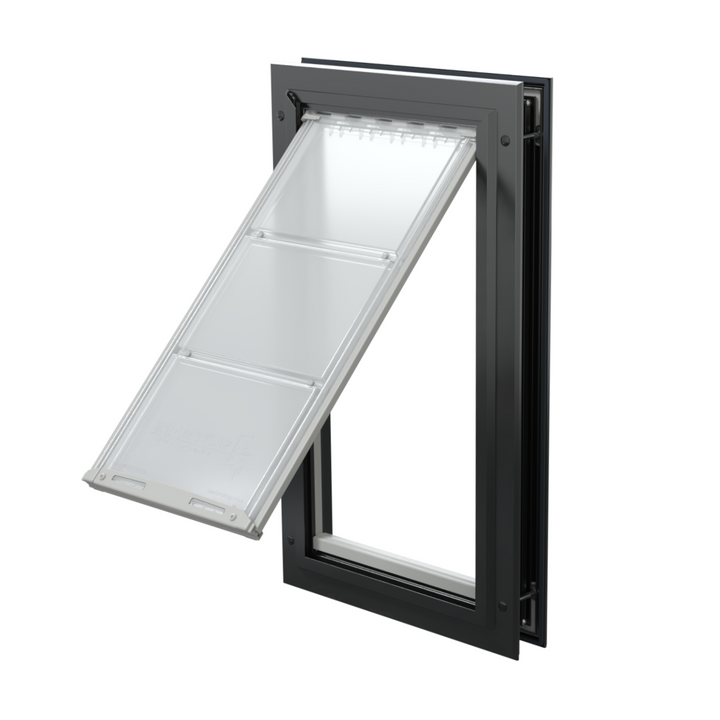

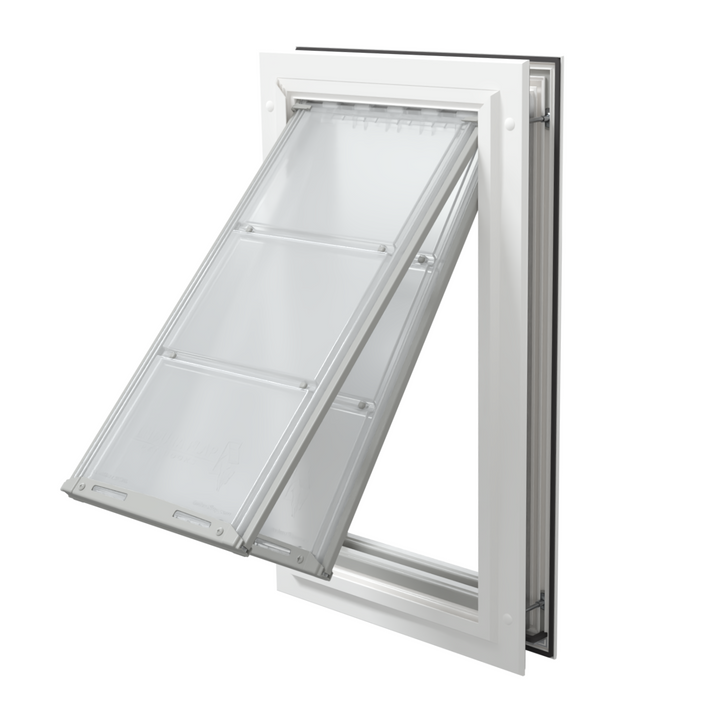

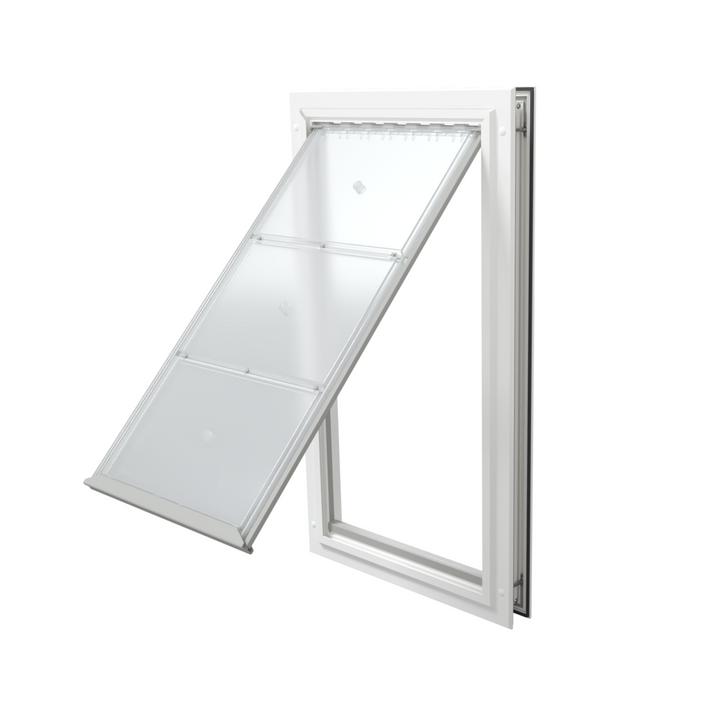

Endura Flap E2 Pet Door For Doors

Endura Flap E2 Pet Door For Doors

Regular price
$289.99
Sale price
$289.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.
White
Black
Tan

  • Compatible with interior and exterior doors 1 1/8" to 2 1/4" thick for single flap models or 1-5/8" to 2-3/8" thick for double flap models.
  • Magnetic sealing on three sides for insulation and wind resistance up to 50 mph
  • Flexible flap withstands temperatures as low as -40°F, making it ideal for extreme climates

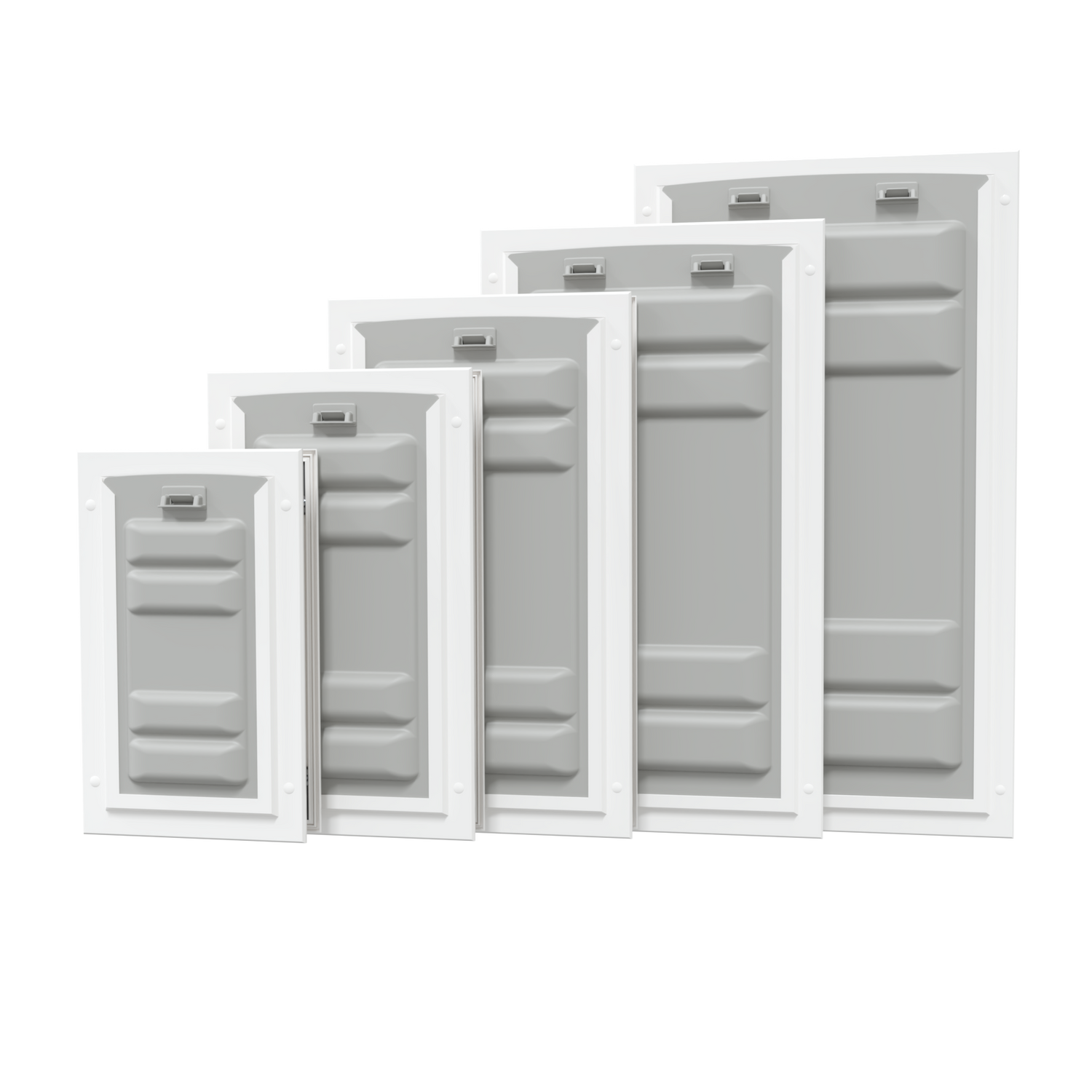

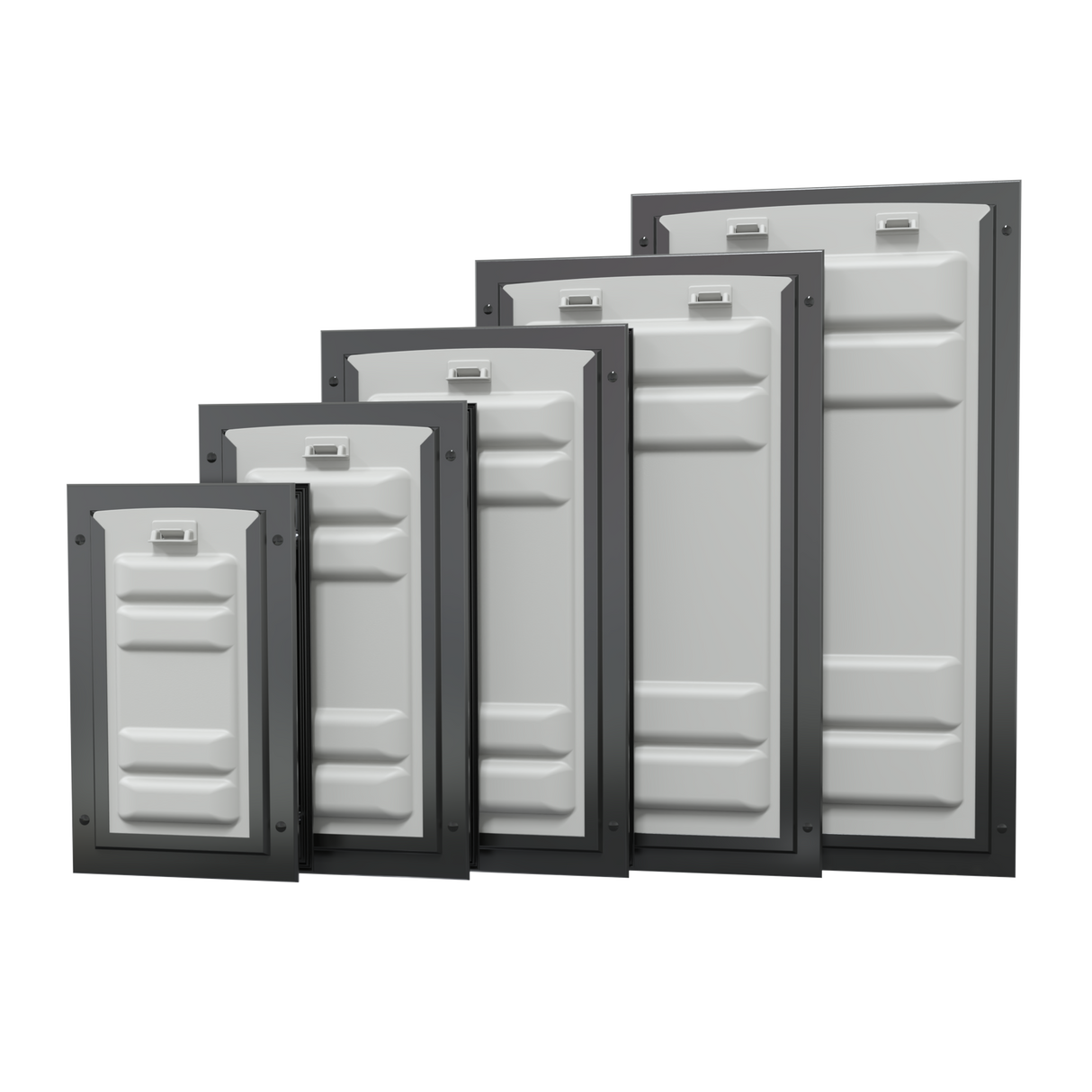

  • Durable aluminum frame available in white, black (bronze), or tan to suit your home's aesthetic
  • Backed by a Lifetime Warranty and Easy 90-Day Returns for peace of mind

Product Details


The Endura Flap Pet Door for Doors is a premium solution for pet owners seeking top upgrade to a high-quality, weather-resistant pet door. Designed to fit interior and exterior doors up to 2 1/4" thick for single flap models or  1-5/8" to 2-3/8" thick for double flap models. The durable aluminum frame comes in white, black (bronze), or tan to complement your home's aesthetic.

This pet door features a flexible polyolefin polymer flap that remains functional in temperatures as low as -40°F and does not warp from sun exposure. The magnetic sealing on three sides of the flap ensures excellent insulation and wind resistance up to 50 mph, making it ideal for extreme climates.

The taller and narrower flap design is perfect for households with multiple pets of varying sizes, allowing them all to share the door comfortably. The flap's magnetic sealing can be customized for pet training purposes, and a sturdy locking cover is included for added security when the pet door is not in use.

 Even in the coldest of climates, the Endura Flap Pet Door has exceeded expectations, keeping drafts and cold air out, while remaining easy to clean and able to withstand active pets running through at full speed.

Made in the USA and backed by a Lifetime Warranty and Easy 90-Day Returns, the Endura Flap Pet Door for Doors is a top choice for those seeking a long-lasting, high-quality pet door that can withstand the test of time and the elements.

Experience the superior performance and sleek design of the Endura Flap Pet Door for yourself and provide your beloved pets with the freedom and convenience they deserve.

For doors less than 1-1/8" thick, check out the Endura Flap Pet Door for Thin Doors.

Not the pet door you're looking for? There are plenty of other Endura Flap Dog Doors to choose from. Check out our full selection of pet doors and our list of recommended cold weather pet doors.

Features:

  • Choice of small to extra-large flap sizes for various pet needs, with single or double flap options for insulation
  • Taller and narrower flap design accommodates pets of different sizes sharing the door
  • Polyolefin polymer flap remains flexible in harsh weather conditions and does not warp from sun exposure
  • Flap's magnetic sealing provides excellent insulation and wind resistance, customizable for pet training purposes
  • Sturdy locking cover with strength equal to 16 gauge steel included for enhanced security when not in use


Benefits:

  • Sleek design and variety of frame colors made to complement your house
  • Flexible flap is easy to clean
  • Holds up for active dogs that run through the door at full speed
  • Made in the USA


Please Note: If the magnets seem too strong for your pet, you can remove some of them to better suit their needs. On some sizes, they may need to be replaced for proper insulation. Refer to the video called Removing Side Magnets in the Videos section.

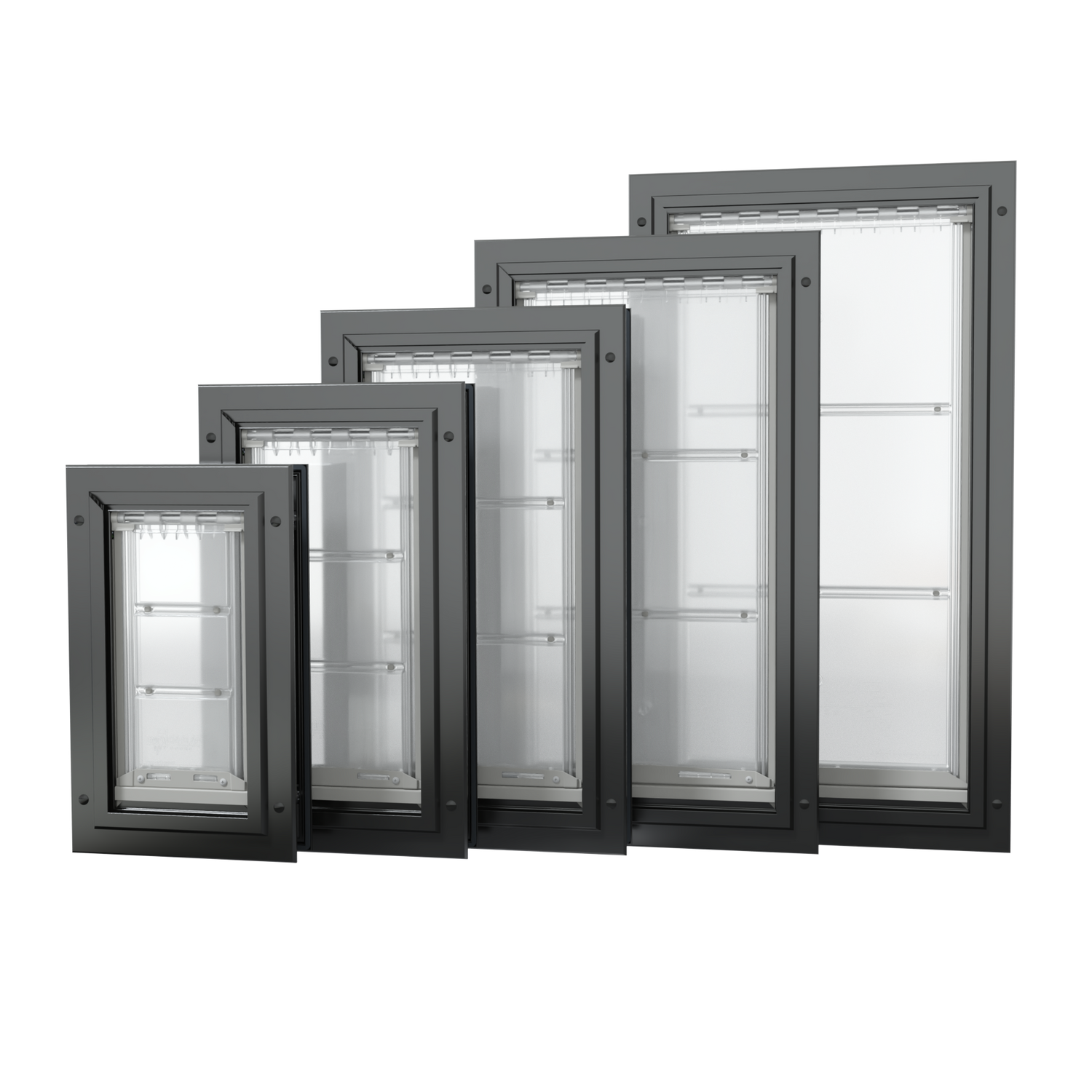

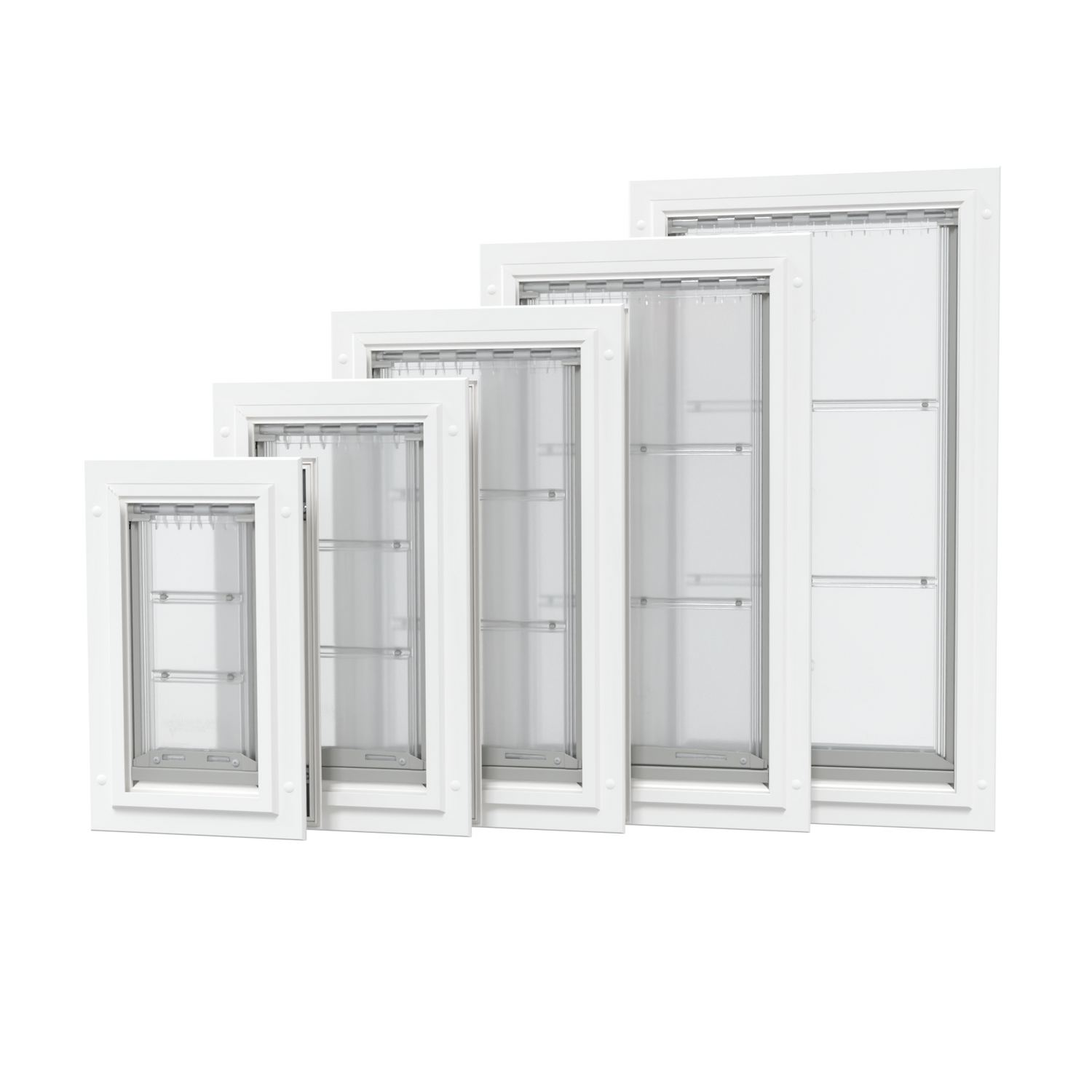

Size Chart

Flap Dimensions:

Single Flap: 6"w x 11"h

Double Flap: 6"w x 10"h

The entry way your dog goes through.

Outside Frame Dimensions

10 1/8"w x 16 3/4"h

The outer edge of the pet door.
edura small
edura frame
edura roughcut

Rough Cut Out:

9 1/4" w x 15 1/8" h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

Single Flap: 8"w x 15"h

Double Flap: 8"w x 14"h

The entry way your dog goes through.

Outside Frame Dimensions

12 1/8" w x 20 13/16" h

The outer edge of the pet door.
edura small
edura frame
edura roughcut

Rough Cut Out:

11 5/16" w x 19 3/16" h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

Single Flap: 10"w x 19"h

Double Flap: 10"w x 18"h

The entry way your dog goes through.

Outside Frame Dimensions

14 3/16" w x 24 13/16"

The outer edge of the pet door.
edura small
edura frame
edura roughcut

Rough Cut Out:

14 3/16" w x 24 13/16"

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

Single Flap: 12"w x 23"h

Double Flap: 12"w x 22"h

The entry way your dog goes through.

Outside Frame Dimensions

16 1/4"w x 28 7/8"h

The outer edge of the pet door.
edura small
edura frame
edura roughcut

Rough Cut Out:

16 1/4" w x 28 7/8" h

The size of the hole needed to fit your pet door into your wall.
Flap SizeFlap DimensionRough Cut OutOutside Frame Dimension Recommended Pet Height
Small(Single) 6" w x 11" h 9 1/4" w x 15 1/8" h10 1/8" w x 16 3/4" h9" - 16"
 (Double) 6" w x 10" h8" - 14"
Medium(Single) 8" w x 15" h11 5/16" w x 19 3/16" h12 1/8" w x 20 13/16" h9" - 22"
(Double) 8" w x 14" h8" - 21"
Large(Single) 10" w x 19" h 13 3/8" w x 23 3/16" h14 3/16" w x 24 13/16"9" - 28"
(Double) 10" w x 18" h8" - 27"
Extra Large(Single) 12" w x 23" h15 1/2" w x 27 3/16"16 1/4" w x 28 7/8" h9" - 36"
(Double) 12" w x 22" h8" - 34"

Number of Flaps:

  • 1 - Single Flap: Flap on the inside of the wall (same side as locking cover).
  • 2 - Double Flap: One flap on each side. The included dead-air-space and extra flap add significantly to the already considerable insulation and sealing values.

Find The Best Pet Door Size For My Pet

A

Pet Height: inches

B

Pet Width: inches

Please fill the above fields.

Additional Information

Frame Material

Architectural Extruded Aluminum

Flap Colors

Translucent

Flap Thickness

7/8"

Flap Warranty (if separate)

Lifetime

Warranty Period

Lifetime

Return Period

90 days (except for custom height ranges)

Locking Cover Material

Heavy-Duty Molded ABS

Your Maximum Pet Size

Cats, Large Cats, Small Dogs, Medium Dogs, Large Dogs, X-Large Dogs

Climate Suitability

Severe-4 Season

Flap Design

Single, Double, One Part, Flexible, Insulated Flap

Ability to Lock Flap

Separate Locking Cover-Loads from Top

Can Be Installed In

Aluminum Door, Hollow Core Door, Metal Door, Solid Core Door, Steel Door

Award Winning Design

Yes

Sealing Value

Very High

Wind Resistance

Very High

Self Framing

Yes

Replacement Flaps Available

Yes

Insulation Value

High, Very High

Installation Instructions

Single Flap Door Mount Instructions

Installation icon Difficulty High
Installation icon Steps 14
Installation icon Time Required 2-3 hours
Installation icon Sections 06
Installation icon Flags 03

Parts

  • 1 Installation Template
  • Short Screws (2")
  • Long Screws (2-1/4")
  • 4 Screw Covers
  • 1 Installation Magnet
  • 1 Flap Frame
  • 1 Trim Frame
  • 1 Tube of Silicone
  • 1 Locking Cover

Tools

  • Pencil
  • Drill with 3/8" (9,5 mm) drill bit
  • Level
  • Measuring Tape
  • Jigsaw or Reciprocating Saw

Please read instructions & notes thoroughly before installation.

Single Flap Door Mount

Step 1 Prep Your Door

  • If you have not yet measured your pet, watch this video to ensure the pet door will work.
  • If possible, remove the door from its hinges using a screwdriver and hammer to tap out the hinge pins. Lay the door flap for installation. Tape the provided template to the door. The top edge of the cut-out line should be at least 3” (7,6 cm) above the pet's shoulders.
  • Be careful not to cut too close to the bottom of the door as you may reduce the door's strength. Level the top edge of the cut-out line.

Step 2 Drill the Holes

  • Once you are certain the pet door will work with your door, make sure the template is level, and mark the outline with a pencil. Remove the template and drill holes through the corners just inside of the lines using a ⅜” (9,5 mm) drill bit.
  • Make sure your drill is kept level and drills all the way through the door.

Step 3 Saw An Opening

  • Using a jigsaw, cut along the marked lines, making sure to cut straight.
  • We recommend applying masking tape along the outside of the lines to protect your door from scratch marks as you cut with the jigsaw.

Step 4 Check Weatherstripping

  • Ensure the weatherstripping is firmly pressed in the groove on both frames. Weatherstripping indicated in red.

Step 5 Position the Frames

  • Place the trim frame on the outside of the door and the flap frame on the inside.

Step 6 Position Screws

  • Select appropriate screws and insert them into the pet door from the inside.
  • Do not fully tighten screws until all four screws are inserted and the pet door is leveled.
  • Use the included installation magnet to help align the screws.

Door Thickness Screw Length
1-⅜” (3.5 cm) Short Screws (1-¾”)
1-¾” (4.4 cm) Long Screws (2-¼”)

Step 7 Screw Door Into Place

  • Once the pet door is leveled, tighten the screws so that the weatherstripping compresses.
  • Do not overtighten.

Step 8 Attach Screw Covers

  • Push the four screw covers in by hand to cover the screws.
  • If you need help, you can use the wooden end of a hammer rubber, or other non-metal tool to tap in the hole plugs. You can also place a wood block on the hole plug and tap the block with a hammer.

Step 9 Seal With Silicone

  • Apply silicone where the two frames meet. Also apply silicone where the outside frame meets the door.

Double Flap Door Mount Instructions

Installation icon Difficulty High
Installation icon Steps 11
Installation icon Time Required 2-3 hours
Installation icon Sections 06
Installation icon Flags 03

Parts

  • 1 Installation Template
  • Short Screws (2-1/4")
  • Long Screws (2-3/4")
  • 4 Screw Covers
  • 1 Installation Magnet
  • Outside & Inside Flap Frames
  • 1 Sill Plate
  • 1 Tube of Silicone
  • 1 Locking Cover

Tools

  • Pencil
  • Drill with 3/8" (9,5 mm) drill bit
  • Level
  • Measuring Tape
  • Jigsaw or Reciprocating Saw

Please read instructions & notes thoroughly before installation.

If you recieved an E2 frame, use the installation instructions found here. To tell if you have an E2 frame, check your inside flap frame. It will have an inner, U-shaped tunnel.

Double Flap Door Mount

Step 1 Prep Your Door

  • If you have not yet measured your pet, watch this video to ensure the pet door will work.
  • If possible, remove the door from its hinges using a screwdriver and hammer to tap out the hinge pins. Lay the door flap for installation. Tape the provided template to the door. The top edge of the cut-out line should be at least 3” (7,6 cm) above the pet's shoulders.
  • Be careful not to cut too close to the bottom of the door as you may reduce the door's strength. Level the top edge of the cut-out line.

Step 2 Drill the Holes

  • Once you are certain the pet door will work with your door, make sure the template is level, and mark the outline with a pencil. Remove the template and drill holes through the corners just inside of the lines using a ⅜” (9,5 mm) drill bit.
  • Make sure your drill is kept level and drills all the way through the door.

Step 3 Saw An Opening

  • Using a jigsaw, cut along the marked lines, making sure to cut straight.
  • We recommend applying masking tape along the outside of the lines to protect your door from scratch marks as you cut with the jigsaw.

Step 4 Place Sill Plate

  • Ensure the weather-stripping is firmly pressed in the groove on both frames. Weather-stripping indicated in red.
  • Depending on your door model, you may have a sill plate. Rest the sill plate at the bottom of the cutout with the weather stripping facing up and the outer leg on the outside of the door.

Step 5 Caulk U Shape Tunnel

  • Apply caulking to seal the tunnel to the inside frame.

Step 6 Check Weatherstripping

  • Ensure the weatherstripping is firmly pressed in the groove on both frames. Weatherstripping ends on the side for the inside frame, while the outside frame has an open area at the bottom to allow water to flow outside down the sill plate. Weatherstripping is indicated in red.

Step 7 Position the Frames

  • Place the inside frame with the tunnel on the inside of the door just resting on top of the sill plate weatherstripping. Take the exterior frame and place it on the outside of the door fitting inside the tunnel.

Step 8 Position Screws

  • Select appropriate screws and insert them into the pet door from the inside.
  • Do not fully tighten screws until all four screws are inserted and the pet door is leveled.
  • Use the included installation magnet to help align the screws.

Door Thickness Screw Length
1-⅜” (3.5 cm) Short Screws (1-¾”)
1-¾” (4.4 cm) Long Screws (2-¼”)

Step 9 Screw Door Into Place

  • Once the pet door is leveled, tighten the screws so that the weatherstripping compresses.
  • Do not overtighten.

Step 10 Attach Screw Covers

  • Push the four screw covers in by hand to cover the screws.
  • If need be, use the wooden end of a hammer rubber, or other non-metal tool to tap in the hole plugs. You can also place a wood block on the hole plug and tap the block with a hammer.

Step11 Seal With Silicone

  • Apply silicone where the two frames meet. Also apply silicone where the outside frame meets the door.

PANELED DOORS

The best way to install the pet door is to have it straddle the recessed area of one of the panels. Have the pet door sit on the flat area in the middle, side, and below the recessed panel. The frame will cross the recessed area on the top, so you will be left with a gap. The easiest way to fill this gap is to get battens or shims from a local hardware store, and cut them to fit. When that gap is mostly filled, caulk the remaining areas to seal the doggy door to the surface of the people door. If the space is very irregular you can also use a squishy foam weather stripping, which will compress down for a tight fit. When finished, use caulking to seal the door.

Videos

The Endura Flap Pet Door





Removing Side Magnets





Adjusting Your Endura Flap Magnet Strength





The Leaf Blower Test





FAQ

Which flap size should I get?

Don't know which size to get? Here is a measurement guide to help you out.

I want to get the large pet door for my dog, but I am concerned about a person fitting through it.

All Endura Flap Pet Doors come with a locking cover. This cover can be used to keep you doggy in. It also can be used to keep intruders from entering your home. It is made from a special polymer that is as strong as 16 gauge steel. The door only comes with one locking cover, but you can purchase an additional one for the other side as long as you have purchased the double flap door mount.Security consultants agree that dogs are a good burglar deterrent, especially one that barks. If you want to leave your pet door open make sure the gate to access your yard is locked and you post a Beware of Dog sign.

Can a large dog & cat use the same double flap door?

Our doors have a strong magnetic seal which may be too strong for a cat. However, if you have cats and dogs sharing a door, you can decrease the magnetic resistance of the threshold on large and extra large sizes making it easier for a cat to use. For small or medium pet doors you can also offset the magnets on the Endura once flap has been installed.

I have a small and large dog sharing this door. Will my small dog be able to open the flaps on the extra large double flap dog door?

It depends on the tenacity of your small dog. You can decrease the magnetic resistance of the threshold on large and extra large sizes making it easier for your small dog to use. You will also want to make sure the door is mounted low enough for the small dog to walk through and high enough to clear the large dog's back.

How do I know what size is best for my dog?

When installing the pet door you want it to clear the top of your dog's back by 1-2 inches, minimum. You also want the step over to be comfortable. Lastly you want the width to allow your pet to go through without touching the sides. Here's a measurement guide with tips on how to determine the correct size.Make sure you get the right size for your pet. If you have a smaller dog or cat, you can check out doggy doors for small dogs that are better sized for them.

Are the panels/flaps flexible? Seems like it would trap a dog if it backed up.

The Endura Flap is slightly more rigid than other economy style flaps, but it is a safe, soft, flexible flap. It remains flexible in temperatures as low as -40°F.

Is a single flap enough for winter weather?

A single Endura Flap is extremely energy-efficient and capable of withstanding winds up to 50 mph. It is the only door which allows you to increase the magnetic strength for increased wind resistance. It is recommended for timid pets. The double flap increases the energy-efficiency further.

Does the door sound very loud when the dog goes in or out?

When the flap gets to its resting place there is a snapping sound when the magnets employ. This sound let's you know the door is doing its job sealing out the elements and keeping your heated or cooled air inside.

I do not have to contend with wind or rain, if I buy the single flap version of the wall dog door is it possible to add the second flap in the future?

It is possible, but it not simple and can be quite costly. You will need to purchase a new inner or outer frame with the flap as single flap and double flap frames are built differently.

Where can I find a video that shows the installation of the pet door?

You can find the installation video in the section at the bottom of this page.

What side does the locking cover slide in?

All locking covers slide in from the top. If you purchase a double flap model, the locking cover can be used on the inside or outside frame. If you purchase a single flap, the locking cover is on the interior frame.

Other brands of pet doors with plastic flaps always warp and thus let in air. How do these flaps hold up over time?

The Endura Flap is made with a special polymer called polyolefin. It remains safe, soft and flexible in temperatures as low as -40°F. It does not yellow nor harden in the sun. The patented magnetic design ensures the door door seals well for years. In fact, the pet door and flap are backed by a Lifetime warranty. To contact Endura Flap for door warranty email a photo to our customer service team, and we can take a look and let you know.

Are replacement flaps available?

Yes, you can buy Endura Flap replacement flaps.

Are there color options other than white?

Yes, they are available in Tan and very Dark Bronze.

I have a dog that I want to let out, but I want to prevent our cats from using it. Can the door be weighted to keep them from using it?

You can increase the magnetic strength of the door with purchasing additional magnets here. Some people have found success doing this and keeping their cats inside.

I have a concrete block wall. I believe the block itself is 8" so adding the furring strip, drywall and stucco it is 10-11". Will this door fit?

For all installation locations more than 2" thick, you will need the wall mount version.

Does this door seal tightly against the frame so air and mosquitoes can't pass through. If so, does the guarantee cover that lasting, as well?

The double flap door mounts come with a tube of silicone that can be used to seal the edges around the frame. NOTE: single flap door mounts do NOT come with silicone. The warranty does not cover any accidents or damage made by improper installation.

Why is there a difference in pet door flap size for the single versus the double flap models?

Since each flap is dual walled making them 7⁄8" thick as the pet pushes through the first flap will actually hit the second flap. This makes it so that there is a loss of about 1" of space a the top of the endura double flap pet doors as they enter or exit.

Is this a good dog door for garage door installations?

You can install this in pretty much any door application, however most doors from the house to the garage have a fire rating so you need to check your local code to see it installing it is allowed.

I see part # 03PP10 2 on the website, what size is that?

That is Endura Flap Pet Door for Doors-Large-Double Flap and 03PP10 1 is the Endura Flap Pet Door for Doors-Large-Single Flap.

I have stock code 03PP12 1, is that single or double flap?

That is Endura Dog Doors for Doors-Extra Large-Single Flap.

If I get 03PP12 2, can I just take a flap off if my cat has trouble with it?

You would have to uninstall the Endura For Doors, as you have to be able to remove the endura flap rod that holds it in the frame. It would be easier to adjust the magnets or just use a single flap not the double.

Is the Endura Flap for door mounting the same as the wall mount?

Yes! The flap and frames are identical, the only difference would be the hardware that is included for installation.

My door is 1 3⁄4" thick. Should I buy an Endura Flap Pet Doors double or Endura Flap Pet Doors single flap?

You can order either. The double flap installs in doors 1-3/4" to 2-1/4" thick and the single flap installs in doors 1-1/8" to 1-3/4" thick.

What is the Endura Flap 03PP?

It is the Endura Dog Doors for Doors.

What is your most popular Endura Flap Pet Door for Doors?

It is the Single Flap, Large size (10"w x 19"h) with a White Frame

On the Endura Flap Size Chart I see two different heights for each size, why?

The actual flap size is the same, but with the double flap model, when the two flaps reach 90° they touch and reduce the height of the opening for the pet.

What double flap pet doors should I look at if I'm looking for a long-lasting, insulated dog door?

The Endura Door for Doors are available in two models. Double Flap for the most extreme climates or Single Flap for most US climates. Both are very energy-efficient and backed by a lifetime warranty.

I'm looking for Doggie Doors for Dachshunds in a very cold climate - What do you recommend?

The Endura Flap pet door is a great option. It seals shut against the weather and wind.

Is the Eudora Flap the same as the Endura Dog Door for Doors?

Yes, we believe it is. The Eudora is misspelled. the correct spelling is Endura Flap.

I like this pet door due to it having two flaps, but want to install in a wall - do you make one for walls?

Yes! You can visit this page Endura Dog Doors for Walls-Extra Large-Double Flap.

Can I install this into my screen door?

This door is too thick to be installed into your screen. Check out RCR Screen Doors if you would like a pet door solution that can.

How much does shipping cost?

Shipping is calculated at checkout.

Warranty

Warranty Type: Lifetime

Duration: Lifetime of the product.

Coverage: Defects in materials and workmanship under standard regular use.

Exclusions:

  • Damage caused by misuse or not using the product as intended.

  • Improper installation.

  • Damage caused by chewing.

View the full Endura Flap warranty policy.



Customer Reviews

Endura Flap E2 Pet Door For Doors

White / Small / Single Flap Edit

Endura Flap E2 Pet Door For Doors

Size Chart

Flap Dimensions:

Single Flap: 6"w x 11"h

Double Flap: 6"w x 10"h

The entry way your dog goes through.

Outside Frame Dimensions

10 1/8"w x 16 3/4"h

The outer edge of the pet door.
edura small
edura frame
edura roughcut

Rough Cut Out:

9 1/4" w x 15 1/8" h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

Single Flap: 8"w x 15"h

Double Flap: 8"w x 14"h

The entry way your dog goes through.

Outside Frame Dimensions

12 1/8" w x 20 13/16" h

The outer edge of the pet door.
edura small
edura frame
edura roughcut

Rough Cut Out:

11 5/16" w x 19 3/16" h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

Single Flap: 10"w x 19"h

Double Flap: 10"w x 18"h

The entry way your dog goes through.

Outside Frame Dimensions

14 3/16" w x 24 13/16"

The outer edge of the pet door.
edura small
edura frame
edura roughcut

Rough Cut Out:

14 3/16" w x 24 13/16"

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

Single Flap: 12"w x 23"h

Double Flap: 12"w x 22"h

The entry way your dog goes through.

Outside Frame Dimensions

16 1/4"w x 28 7/8"h

The outer edge of the pet door.
edura small
edura frame
edura roughcut

Rough Cut Out:

16 1/4" w x 28 7/8" h

The size of the hole needed to fit your pet door into your wall.
Flap SizeFlap DimensionRough Cut OutOutside Frame Dimension Recommended Pet Height
Small(Single) 6" w x 11" h 9 1/4" w x 15 1/8" h10 1/8" w x 16 3/4" h9" - 16"
 (Double) 6" w x 10" h8" - 14"
Medium(Single) 8" w x 15" h11 5/16" w x 19 3/16" h12 1/8" w x 20 13/16" h9" - 22"
(Double) 8" w x 14" h8" - 21"
Large(Single) 10" w x 19" h 13 3/8" w x 23 3/16" h14 3/16" w x 24 13/16"9" - 28"
(Double) 10" w x 18" h8" - 27"
Extra Large(Single) 12" w x 23" h15 1/2" w x 27 3/16"16 1/4" w x 28 7/8" h9" - 36"
(Double) 12" w x 22" h8" - 34"

Number of Flaps:

  • 1 - Single Flap: Flap on the inside of the wall (same side as locking cover).
  • 2 - Double Flap: One flap on each side. The included dead-air-space and extra flap add significantly to the already considerable insulation and sealing values.

Find The Best Pet Door Size For My Pet

A

Pet Height: inches

B

Pet Width: inches

Please fill the above fields.

Frame Material

Architectural Extruded Aluminum

Flap Colors

Translucent

Flap Thickness

7/8"

Flap Warranty (if separate)

Lifetime

Warranty Period

Lifetime

Return Period

90 days (except for custom height ranges)

Locking Cover Material

Heavy-Duty Molded ABS

Your Maximum Pet Size

Cats, Large Cats, Small Dogs, Medium Dogs, Large Dogs, X-Large Dogs

Climate Suitability

Severe-4 Season

Flap Design

Single, Double, One Part, Flexible, Insulated Flap

Ability to Lock Flap

Separate Locking Cover-Loads from Top

Can Be Installed In

Aluminum Door, Hollow Core Door, Metal Door, Solid Core Door, Steel Door

Award Winning Design

Yes

Sealing Value

Very High

Wind Resistance

Very High

Self Framing

Yes

Replacement Flaps Available

Yes

Insulation Value

High, Very High

Installation Instructions

Single Flap Door Mount Instructions

Installation icon Difficulty High
Installation icon Steps 14
Installation icon Time Required 2-3 hours
Installation icon Sections 06
Installation icon Flags 03

Parts

  • 1 Installation Template
  • Short Screws (2")
  • Long Screws (2-1/4")
  • 4 Screw Covers
  • 1 Installation Magnet
  • 1 Flap Frame
  • 1 Trim Frame
  • 1 Tube of Silicone
  • 1 Locking Cover

Tools

  • Pencil
  • Drill with 3/8" (9,5 mm) drill bit
  • Level
  • Measuring Tape
  • Jigsaw or Reciprocating Saw

Please read instructions & notes thoroughly before installation.

Single Flap Door Mount

Step 1 Prep Your Door

  • If you have not yet measured your pet, watch this video to ensure the pet door will work.
  • If possible, remove the door from its hinges using a screwdriver and hammer to tap out the hinge pins. Lay the door flap for installation. Tape the provided template to the door. The top edge of the cut-out line should be at least 3” (7,6 cm) above the pet's shoulders.
  • Be careful not to cut too close to the bottom of the door as you may reduce the door's strength. Level the top edge of the cut-out line.

Step 2 Drill the Holes

  • Once you are certain the pet door will work with your door, make sure the template is level, and mark the outline with a pencil. Remove the template and drill holes through the corners just inside of the lines using a ⅜” (9,5 mm) drill bit.
  • Make sure your drill is kept level and drills all the way through the door.

Step 3 Saw An Opening

  • Using a jigsaw, cut along the marked lines, making sure to cut straight.
  • We recommend applying masking tape along the outside of the lines to protect your door from scratch marks as you cut with the jigsaw.

Step 4 Check Weatherstripping

  • Ensure the weatherstripping is firmly pressed in the groove on both frames. Weatherstripping indicated in red.

Step 5 Position the Frames

  • Place the trim frame on the outside of the door and the flap frame on the inside.

Step 6 Position Screws

  • Select appropriate screws and insert them into the pet door from the inside.
  • Do not fully tighten screws until all four screws are inserted and the pet door is leveled.
  • Use the included installation magnet to help align the screws.

Door Thickness Screw Length
1-⅜” (3.5 cm) Short Screws (1-¾”)
1-¾” (4.4 cm) Long Screws (2-¼”)

Step 7 Screw Door Into Place

  • Once the pet door is leveled, tighten the screws so that the weatherstripping compresses.
  • Do not overtighten.

Step 8 Attach Screw Covers

  • Push the four screw covers in by hand to cover the screws.
  • If you need help, you can use the wooden end of a hammer rubber, or other non-metal tool to tap in the hole plugs. You can also place a wood block on the hole plug and tap the block with a hammer.

Step 9 Seal With Silicone

  • Apply silicone where the two frames meet. Also apply silicone where the outside frame meets the door.

Double Flap Door Mount Instructions

Installation icon Difficulty High
Installation icon Steps 11
Installation icon Time Required 2-3 hours
Installation icon Sections 06
Installation icon Flags 03

Parts

  • 1 Installation Template
  • Short Screws (2-1/4")
  • Long Screws (2-3/4")
  • 4 Screw Covers
  • 1 Installation Magnet
  • Outside & Inside Flap Frames
  • 1 Sill Plate
  • 1 Tube of Silicone
  • 1 Locking Cover

Tools

  • Pencil
  • Drill with 3/8" (9,5 mm) drill bit
  • Level
  • Measuring Tape
  • Jigsaw or Reciprocating Saw

Please read instructions & notes thoroughly before installation.

If you recieved an E2 frame, use the installation instructions found here. To tell if you have an E2 frame, check your inside flap frame. It will have an inner, U-shaped tunnel.

Double Flap Door Mount

Step 1 Prep Your Door

  • If you have not yet measured your pet, watch this video to ensure the pet door will work.
  • If possible, remove the door from its hinges using a screwdriver and hammer to tap out the hinge pins. Lay the door flap for installation. Tape the provided template to the door. The top edge of the cut-out line should be at least 3” (7,6 cm) above the pet's shoulders.
  • Be careful not to cut too close to the bottom of the door as you may reduce the door's strength. Level the top edge of the cut-out line.

Step 2 Drill the Holes

  • Once you are certain the pet door will work with your door, make sure the template is level, and mark the outline with a pencil. Remove the template and drill holes through the corners just inside of the lines using a ⅜” (9,5 mm) drill bit.
  • Make sure your drill is kept level and drills all the way through the door.

Step 3 Saw An Opening

  • Using a jigsaw, cut along the marked lines, making sure to cut straight.
  • We recommend applying masking tape along the outside of the lines to protect your door from scratch marks as you cut with the jigsaw.

Step 4 Place Sill Plate

  • Ensure the weather-stripping is firmly pressed in the groove on both frames. Weather-stripping indicated in red.
  • Depending on your door model, you may have a sill plate. Rest the sill plate at the bottom of the cutout with the weather stripping facing up and the outer leg on the outside of the door.

Step 5 Caulk U Shape Tunnel

  • Apply caulking to seal the tunnel to the inside frame.

Step 6 Check Weatherstripping

  • Ensure the weatherstripping is firmly pressed in the groove on both frames. Weatherstripping ends on the side for the inside frame, while the outside frame has an open area at the bottom to allow water to flow outside down the sill plate. Weatherstripping is indicated in red.

Step 7 Position the Frames

  • Place the inside frame with the tunnel on the inside of the door just resting on top of the sill plate weatherstripping. Take the exterior frame and place it on the outside of the door fitting inside the tunnel.

Step 8 Position Screws

  • Select appropriate screws and insert them into the pet door from the inside.
  • Do not fully tighten screws until all four screws are inserted and the pet door is leveled.
  • Use the included installation magnet to help align the screws.

Door Thickness Screw Length
1-⅜” (3.5 cm) Short Screws (1-¾”)
1-¾” (4.4 cm) Long Screws (2-¼”)

Step 9 Screw Door Into Place

  • Once the pet door is leveled, tighten the screws so that the weatherstripping compresses.
  • Do not overtighten.

Step 10 Attach Screw Covers

  • Push the four screw covers in by hand to cover the screws.
  • If need be, use the wooden end of a hammer rubber, or other non-metal tool to tap in the hole plugs. You can also place a wood block on the hole plug and tap the block with a hammer.

Step11 Seal With Silicone

  • Apply silicone where the two frames meet. Also apply silicone where the outside frame meets the door.

PANELED DOORS

The best way to install the pet door is to have it straddle the recessed area of one of the panels. Have the pet door sit on the flat area in the middle, side, and below the recessed panel. The frame will cross the recessed area on the top, so you will be left with a gap. The easiest way to fill this gap is to get battens or shims from a local hardware store, and cut them to fit. When that gap is mostly filled, caulk the remaining areas to seal the doggy door to the surface of the people door. If the space is very irregular you can also use a squishy foam weather stripping, which will compress down for a tight fit. When finished, use caulking to seal the door.

Videos

The Endura Flap Pet Door





Removing Side Magnets





Adjusting Your Endura Flap Magnet Strength





The Leaf Blower Test





FAQ

Which flap size should I get?

Don't know which size to get? Here is a measurement guide to help you out.

I want to get the large pet door for my dog, but I am concerned about a person fitting through it.

All Endura Flap Pet Doors come with a locking cover. This cover can be used to keep you doggy in. It also can be used to keep intruders from entering your home. It is made from a special polymer that is as strong as 16 gauge steel. The door only comes with one locking cover, but you can purchase an additional one for the other side as long as you have purchased the double flap door mount.Security consultants agree that dogs are a good burglar deterrent, especially one that barks. If you want to leave your pet door open make sure the gate to access your yard is locked and you post a Beware of Dog sign.

Can a large dog & cat use the same double flap door?

Our doors have a strong magnetic seal which may be too strong for a cat. However, if you have cats and dogs sharing a door, you can decrease the magnetic resistance of the threshold on large and extra large sizes making it easier for a cat to use. For small or medium pet doors you can also offset the magnets on the Endura once flap has been installed.

I have a small and large dog sharing this door. Will my small dog be able to open the flaps on the extra large double flap dog door?

It depends on the tenacity of your small dog. You can decrease the magnetic resistance of the threshold on large and extra large sizes making it easier for your small dog to use. You will also want to make sure the door is mounted low enough for the small dog to walk through and high enough to clear the large dog's back.

How do I know what size is best for my dog?

When installing the pet door you want it to clear the top of your dog's back by 1-2 inches, minimum. You also want the step over to be comfortable. Lastly you want the width to allow your pet to go through without touching the sides. Here's a measurement guide with tips on how to determine the correct size.Make sure you get the right size for your pet. If you have a smaller dog or cat, you can check out doggy doors for small dogs that are better sized for them.

Are the panels/flaps flexible? Seems like it would trap a dog if it backed up.

The Endura Flap is slightly more rigid than other economy style flaps, but it is a safe, soft, flexible flap. It remains flexible in temperatures as low as -40°F.

Is a single flap enough for winter weather?

A single Endura Flap is extremely energy-efficient and capable of withstanding winds up to 50 mph. It is the only door which allows you to increase the magnetic strength for increased wind resistance. It is recommended for timid pets. The double flap increases the energy-efficiency further.

Does the door sound very loud when the dog goes in or out?

When the flap gets to its resting place there is a snapping sound when the magnets employ. This sound let's you know the door is doing its job sealing out the elements and keeping your heated or cooled air inside.

I do not have to contend with wind or rain, if I buy the single flap version of the wall dog door is it possible to add the second flap in the future?

It is possible, but it not simple and can be quite costly. You will need to purchase a new inner or outer frame with the flap as single flap and double flap frames are built differently.

Where can I find a video that shows the installation of the pet door?

You can find the installation video in the section at the bottom of this page.

What side does the locking cover slide in?

All locking covers slide in from the top. If you purchase a double flap model, the locking cover can be used on the inside or outside frame. If you purchase a single flap, the locking cover is on the interior frame.

Other brands of pet doors with plastic flaps always warp and thus let in air. How do these flaps hold up over time?

The Endura Flap is made with a special polymer called polyolefin. It remains safe, soft and flexible in temperatures as low as -40°F. It does not yellow nor harden in the sun. The patented magnetic design ensures the door door seals well for years. In fact, the pet door and flap are backed by a Lifetime warranty. To contact Endura Flap for door warranty email a photo to our customer service team, and we can take a look and let you know.

Are replacement flaps available?

Yes, you can buy Endura Flap replacement flaps.

Are there color options other than white?

Yes, they are available in Tan and very Dark Bronze.

I have a dog that I want to let out, but I want to prevent our cats from using it. Can the door be weighted to keep them from using it?

You can increase the magnetic strength of the door with purchasing additional magnets here. Some people have found success doing this and keeping their cats inside.

I have a concrete block wall. I believe the block itself is 8" so adding the furring strip, drywall and stucco it is 10-11". Will this door fit?

For all installation locations more than 2" thick, you will need the wall mount version.

Does this door seal tightly against the frame so air and mosquitoes can't pass through. If so, does the guarantee cover that lasting, as well?

The double flap door mounts come with a tube of silicone that can be used to seal the edges around the frame. NOTE: single flap door mounts do NOT come with silicone. The warranty does not cover any accidents or damage made by improper installation.

Why is there a difference in pet door flap size for the single versus the double flap models?

Since each flap is dual walled making them 7⁄8" thick as the pet pushes through the first flap will actually hit the second flap. This makes it so that there is a loss of about 1" of space a the top of the endura double flap pet doors as they enter or exit.

Is this a good dog door for garage door installations?

You can install this in pretty much any door application, however most doors from the house to the garage have a fire rating so you need to check your local code to see it installing it is allowed.

I see part # 03PP10 2 on the website, what size is that?

That is Endura Flap Pet Door for Doors-Large-Double Flap and 03PP10 1 is the Endura Flap Pet Door for Doors-Large-Single Flap.

I have stock code 03PP12 1, is that single or double flap?

That is Endura Dog Doors for Doors-Extra Large-Single Flap.

If I get 03PP12 2, can I just take a flap off if my cat has trouble with it?

You would have to uninstall the Endura For Doors, as you have to be able to remove the endura flap rod that holds it in the frame. It would be easier to adjust the magnets or just use a single flap not the double.

Is the Endura Flap for door mounting the same as the wall mount?

Yes! The flap and frames are identical, the only difference would be the hardware that is included for installation.

My door is 1 3⁄4" thick. Should I buy an Endura Flap Pet Doors double or Endura Flap Pet Doors single flap?

You can order either. The double flap installs in doors 1-3/4" to 2-1/4" thick and the single flap installs in doors 1-1/8" to 1-3/4" thick.

What is the Endura Flap 03PP?

It is the Endura Dog Doors for Doors.

What is your most popular Endura Flap Pet Door for Doors?

It is the Single Flap, Large size (10"w x 19"h) with a White Frame

On the Endura Flap Size Chart I see two different heights for each size, why?

The actual flap size is the same, but with the double flap model, when the two flaps reach 90° they touch and reduce the height of the opening for the pet.

What double flap pet doors should I look at if I'm looking for a long-lasting, insulated dog door?

The Endura Door for Doors are available in two models. Double Flap for the most extreme climates or Single Flap for most US climates. Both are very energy-efficient and backed by a lifetime warranty.

I'm looking for Doggie Doors for Dachshunds in a very cold climate - What do you recommend?

The Endura Flap pet door is a great option. It seals shut against the weather and wind.

Is the Eudora Flap the same as the Endura Dog Door for Doors?

Yes, we believe it is. The Eudora is misspelled. the correct spelling is Endura Flap.

I like this pet door due to it having two flaps, but want to install in a wall - do you make one for walls?

Yes! You can visit this page Endura Dog Doors for Walls-Extra Large-Double Flap.

Can I install this into my screen door?

This door is too thick to be installed into your screen. Check out RCR Screen Doors if you would like a pet door solution that can.

How much does shipping cost?

Shipping is calculated at checkout.

Warranty

Warranty Type: Lifetime

Duration: Lifetime of the product.

Coverage: Defects in materials and workmanship under standard regular use.

Exclusions:

  • Damage caused by misuse or not using the product as intended.

  • Improper installation.

  • Damage caused by chewing.

View the full Endura Flap warranty policy.
