• Built from premium extruded aluminum with a self framing self supporting design for long term wall mounted durability
  • Extends compatibility for deeper wall profiles with a self framing extra long tunnel that trims to fit wall depths up to 16"

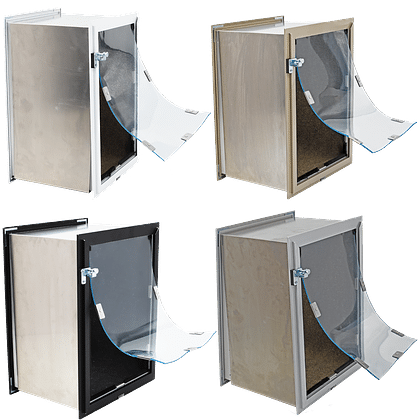

  • Lets you choose the comfort level that fits your climate with single flap and double flap configurations for everyday energy efficiency
  • Gives pets an easier more natural path in and out with frosted lightweight flaps that open smoothly and close with a magnetic seal

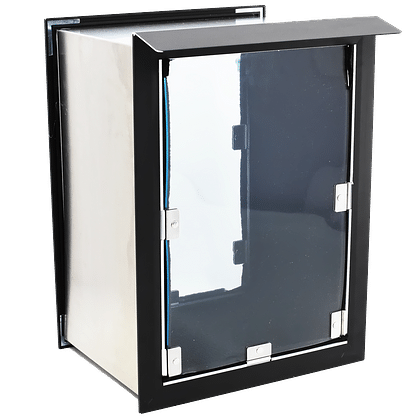

  • Included rain cap offers extra protection against water intrusion

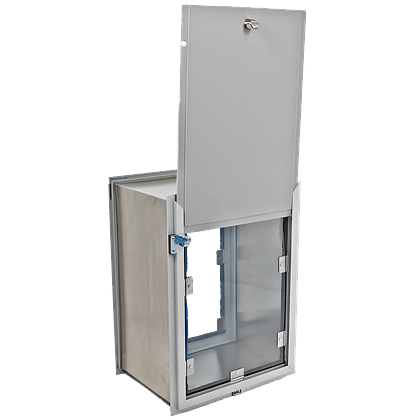

  • Color-matching locking cover included for added security, with a side-loading cover option available (see add-on options)

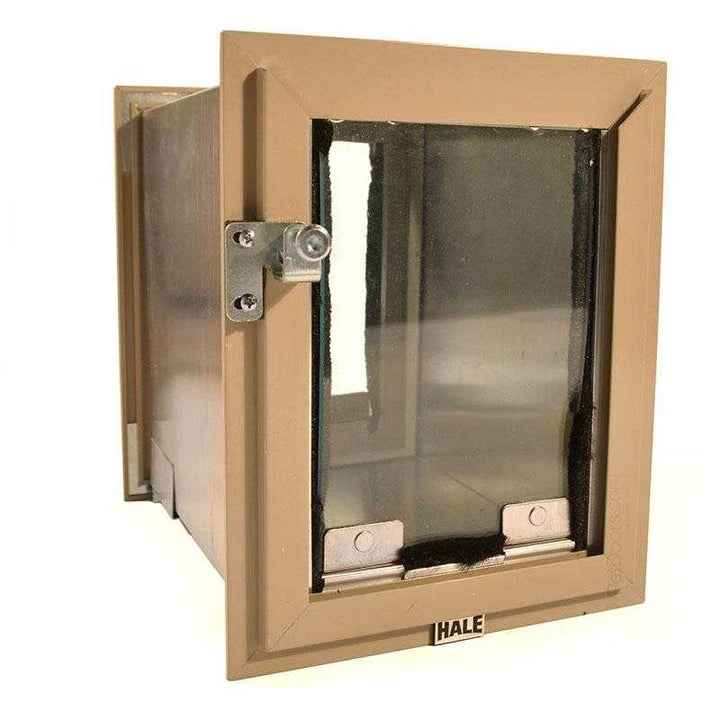

Hale Pet Doors for Thick Walls With Extra Long Tunnel

Flexible Freedom and Universal Compatibility

10 Reviews
Made in the USA USA flag icon
Regular price $429.99

Fast & Free Shipping in the USA.

Satisfaction Guarantee -

10 Year Warranty

Color: White
Flap Size
Flap Type


A premium wall pet door for homes with deeper wall profiles that preserves a self framing installation design while offering flexible flap options and customizable finishes for everyday comfort and a polished look.

  • Built from premium extruded aluminum with a self framing self supporting design for long term wall mounted durability
  • Extends compatibility for deeper wall profiles with a self framing extra long tunnel that trims to fit wall depths up to 16"
  • Lets you choose the comfort level that fits your climate with single flap and double flap configurations for everyday energy efficiency
  • Gives pets an easier more natural path in and out with frosted lightweight flaps that open smoothly and close with a magnetic seal
  • Included rain cap offers extra protection against water intrusion
  • Color-matching locking cover included for added security, with a side-loading cover option available (see add-on options)

Installation & Fit

  • Mounts as a self framing and self supporting wall unit so the pet door structure supports the opening without a separate tunnel buildout
  • Secures with an aluminum tunnel and frame assembly that is cut to length and fastened together during installation

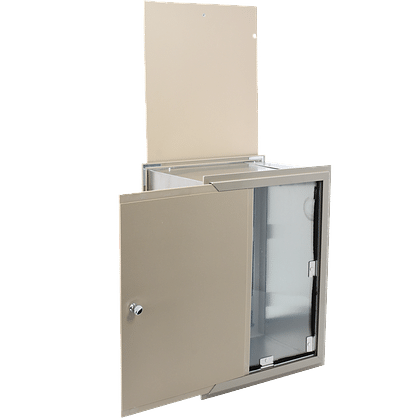

  • Locking cover can be top-loaded or side-loaded to best fit your desired installation location as needed (see add-on's for the side-loading option)
  • Works with standard wall surfaces, stucco, block, masonry and more
  • If your walls are 10" thick or less, you can use the standard Hale Pet Doors for Walls model
  • We recommend consulting with a contractor if you are not fully comfortable cutting into the wall of your home

Best Suited For

Ideal For

  • Installation into deep wall construction up to 16" thick, whether in a home, business or kennel, as the self-framing design will work with a variety of wall types
  • Dogs and cats that do better with a lightweight flap they can push through easily
  • Families with a new puppy who will grow to be a large adult size: buy the larger size door you'll need for the future knowing your pet can still push through the flap while they are young
  • Homeowners who desire flexible options, including mix and match frame colors, and a choice of top-load or side-load locking cover

Not Ideal For

Questions

How does the Hale Pet Door contribute to energy efficiency in a home?

The flap’s magnetic closures keep the flap closed against wind and rain. The weather stripping lining, as well as the option double flap configuration, adds extra insulation and prevents drafts.

Can my cats use a double flap?

Cats should be able to push through a Hale Pet Door double flap mount. It helps there will be a tunnel, since the two flaps will not be back to back so your cat will only go through one flap at a time. If it is difficult, you can also remove some magnets to lessen the resistance.

I want to get the large pet door for my dog, but I am concerned about a person fitting through an x-large door.

All Hale Pet Doors come with a locking cover. This cover can be used to keep your pet inside by blocking access to the doggie door. It also can be used to keep intruders from entering your home.

We do have a product called the Watchdog Steel Security Pet Door Cover that provides maximum security for any pet door, complete with a combination lock. The cover comes in sizes large enough to fit even the XL dog doors for wall mount. Security consultants agree that dogs are a good burglar deterrent, especially one that barks. If you want to leave your pet door open make sure the gate to access your yard is locked and you post a “Beware of Dog” sign.

Explore all questions
Product Details

Product Details


Hale Pet Doors for Thick Walls with Extra Long Tunnel is a strong choice for homeowners who want wall mounted pet access to look intentional and feel like a lasting part of the home. It keeps the clean built in appearance people like about the standard wall model, but extends the tunnel range for thicker wall construction where standard depth options can fall short.

Built for More Pets and More Households
This model works well for households with different pet sizes because the flap design stays lightweight and flexible, making daily use easier for both smaller and larger pets. Single flap and double flap configurations also give buyers a practical way to choose the setup that fits their climate and comfort preferences without changing the overall look of the installation.

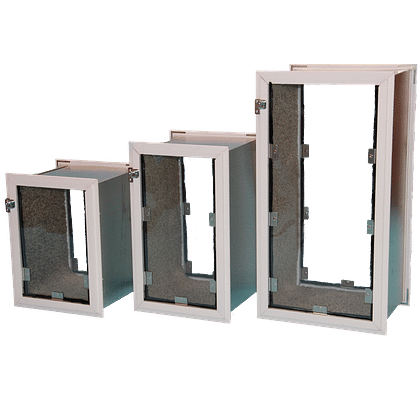

Hale pet door flaps are available in 10 standard configurations to fit any size pet. If you need something to fit a specific space, custom sizes are available too!

Options to Match Your Home
For homes where interior and exterior finishes do not match, the frame color options and mix and match color combinations add more control over the final appearance, which is especially useful on wall installations that are visible from both living spaces.

When the wall location is more exposed, the optional rain cap adds a helpful layer of protection by redirecting water away from the flap area. A side loading cover option is also available for installations where that cover format is a better fit for the surrounding space.

Crafted for Pets, Built for Thick Wall Installations
Made in the USA and backed by a 10 year limited warranty, this model is a reassuring choice for buyers who want a wall pet door built for daily use in deeper wall construction. It is a strong fit for homeowners who want dependable pet access without giving up a clean finished look.

Sizing & Fit

Size Chart

Flap Dimensions:

6 1/2"w x 9 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

9 9/16"w x 12 9/16"h

The outer edge of the pet door.

Small Medium flap
Small Medium frame
Small Medium rough cut

Rough Cut Out:

8 1/2"w x 11 1/2"h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

8 1/2"w x 12 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

11 9/16"w x 15 3/8"h

The outer edge of the pet door.

Medium flap
Medium frame
Medium rough cut

Rough Cut Out:

10 1/2"w x 14 1/2"h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

8 1/2"w x 16"h

The entry way your dog goes through.

Outside Frame Dimensions

11 9/16"w x 19 1/16"h

The outer edge of the pet door.

Tall Medium flap
Tall Medium frame
Tall Medium rough cut

Rough Cut Out:

10 1/2"w x 18"h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

11"w x 16"h

The entry way your dog goes through.

Outside Frame Dimensions

14 1/16"w x 19 1/16"h

The outer edge of the pet door.

Large flap
Large frame
Large rough cut

Rough Cut Out:

13"w x 18"h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

11"w x 19 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

14 1/16"w x 22 9/16"h

The outer edge of the pet door.

Tall Large flap
Tall Large frame
Tall Large rough cut

Rough Cut Out:

13"w x 21 5/8"h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

11"w x 23 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

14 1/16"w x 26 9/16"h

The outer edge of the pet door.

Tall Large Plus flap
Tall Large Plus frame
Tall Large Plus rough cut

Rough Cut Out:

13"w x 25 5/8"h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

11"w x 27 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

14 1/16"w x 30 9/16"h

The outer edge of the pet door.

Extra Tall Large flap
Extra Tall Large frame
Extra Tall Large rough cut

Rough Cut Out:

13"w x 29 5/8"h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

14"w x 19 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

17 1/16"w x 22 9/16"h

The outer edge of the pet door.

Extra Large flap
Extra Large frame
Extra Large rough cut

Rough Cut Out:

16"w x 21 5/8"h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

14"w x 23 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

17 1/16"w x 26 9/16"h

The outer edge of the pet door.

Extra Large Plus flap
Extra Large Plus frame
Extra Large Plus rough cut

Rough Cut Out:

16"w x 25 5/8"h

The size of the hole needed to fit your pet door into your wall.

Flap Dimensions:

15 1/2"w x 27 1/2"h

The entry way your dog goes through.

Outside Frame Dimensions

18 9/16"w x 30 9/16"h

The outer edge of the pet door.

Giant flap
Giant frame
Giant rough cut

Rough Cut Out:

17 5/8"w x 29 5/8"h

The size of the hole needed to fit your pet door into your wall.

Flap Size Flap Dimension Rough Cut Out Outside Frame Dimension Recommended Pet Height
Small Medium 6 1/2"w x 9 1/2"h 8 1/2"w x 11 1/2"h 9 9/16"w x 12 9/16"h 5" - 14"
Medium 8 1/2"w x 12 1/2"h 10 1/2"w x 14 1/2"h 11 9/16"w x 15 3/8"h 5" - 19"
Tall Medium 8 1/2"w x 16"h 10 1/2"w x 18"h 11 9/16"w x 19 1/16"h 5" - 23"
Large 11"w x 16"h 13"w x 18"h 14 1/16"w x 19 1/16"h 5" - 24"
Tall Large 11"w x 19 1/2"h 13"w x 21 5/8"h 14 1/16"w x 22 9/16"h 5" - 29"
Tall Large Plus 11"w x 23 1/2"h 13"w x 25 5/8"h 14 1/16"w x 26 9/16"h 5" - 34"
Extra Tall Large 11"w x 27 1/2"h 13"w x 29 5/8"h 14 1/16"w x 30 9/16"h 5" - 42"
Extra Large 14"w x 19 1/2"h 16"w x 21 5/8"h 17 1/16"w x 22 9/16"h 5" - 31"
Extra Large Plus 14"w x 23 1/2"h 16"w x 25 5/8"h 17 1/16"w x 26 9/16"h 5" - 36"
Giant 15 1/2"w x 27 1/2"h 17 5/8"w x 29 5/8"h 18 9/16"w x 30 9/16"h 5" - 44"

Do not know which size to get? Here is a measurement guide to help you out
