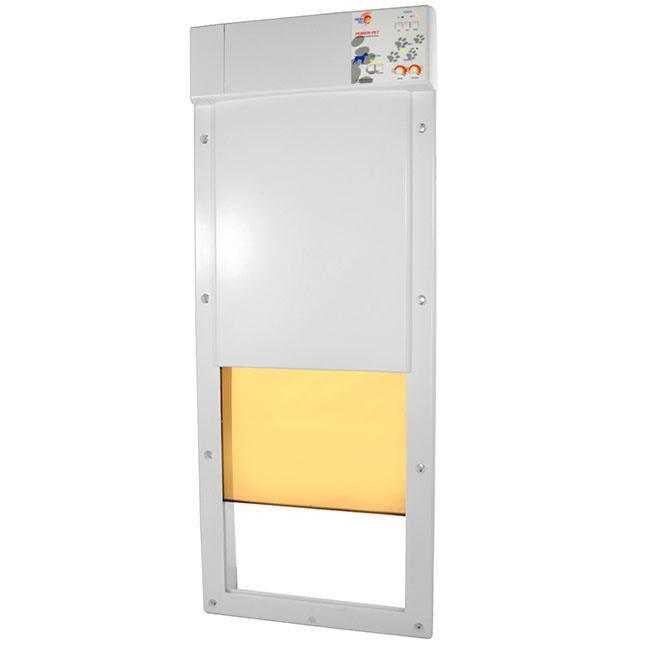

High Tech Power Pet Automatic Dog Door with Wall Mount
- Wall-mounted, automatic pet door for walls 4"-6" thick (up to 12" with wall adapters)
- Collar-activated with ultrasonic keys, one water-resistant MS-4 collar key included
- Medium and large sizes available, accommodating various pet heights
- Choice of electrical or battery operation, ensuring continuous functionality

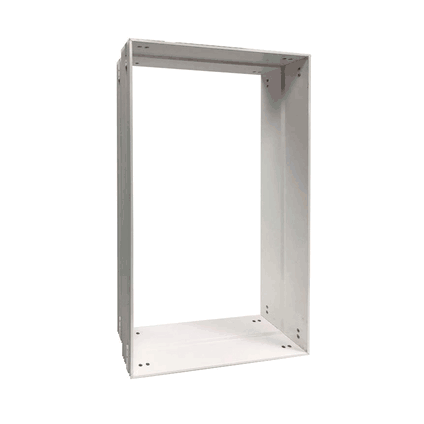

- Heavy-duty aluminum wall tunnel adapter for added durability and security

Product Details
The High Tech Power Pet Automatic Dog Door with Wall Mount is designed to provide your pets with the freedom to come and go while ensuring security and convenience for you. This wall-mounted, automatic pet door is perfect for walls 4"-6" thick and can be extended up to 12" with optional wall adapters.
Our collar-activated dog door utilizes ultrasonic keys, ensuring that only your pets have access to your home, keeping unwanted animals at bay. One water-resistant MS-4 collar key is included, and additional collar keys are available for households with multiple pets.
Available in medium and large sizes, the High Tech Power Pet Automatic Dog Door accommodates various pet heights, making it a versatile choice for pet owners. The heavy-duty aluminum wall tunnel adapter adds durability and security to your pet door installation.
Choose between electrical or battery operation to ensure continuous functionality for your pet door. The door can be powered by an outlet, with an option for battery backup, or fully battery-operated for homes without a nearby outlet. This flexibility ensures your pet's access remains uninterrupted, providing you with peace of mind.
Safety is paramount with the automatic safety retract feature, which reopens the door if it encounters an obstruction during closure, preventing injury to your pet. The deadbolt locking system automatically engages once the door is closed, prohibiting unwanted animals from entering your home.
Looking for something else? Take a look at our full selection to find your electronic doggy door.
Features:
- 3 Options available for powering the pet door:
- Outlet: comes with a UL-approved AC adapter that has a 5 feet long cord. Plug the adapter into a nearby wall outlet for continuous operation. The pet door accepts the plug-in on either side.
- Outlet with Battery Backup: option of purchasing a rechargeable battery for use along with your AC adapter (5' long cord). In the case that the electricity fails, the door will automatically switch over to battery operation. When power is restored, the AC adapter will automatically recharge the battery.
- Fully Battery Operation: If an AC outlet isn't located nearby, you can operate the door on battery only. Please note that you will need to recharge the battery periodically. For this type of operation, the battery charger kit and spare battery is recommended.
- Exclusively opens for pets wearing ultrasonic collar keys, keeping unwanted animals out
- Easy-to-install in walls 4"-6" thick, with optional adapters for thicker walls
- Adaptable to your home's power source, with electrical or battery operation options
- Automatic safety retract feature prevents injury to pets during door closure
- Deadbolt locking system ensures secure closure once pets have passed through
- Since the door panel weighs less than 2 lbs. and closes smoothly by gravity (not motor), it will not cause any injury to your pet. But for your peace of mind, this pet door comes with a unique Automatic Safety Retract feature that reopens the door if it encounters an obstruction during closure.
- Deadbolt locking system automatically enables as soon as the door is completely closed, prohibiting raccoons, strays, and other unwelcome animals from using the door.
- Dual sensors can be programmed for distance for each pet.
- 4-way locking system included as an option for additional control over your pet's access to and from the door.

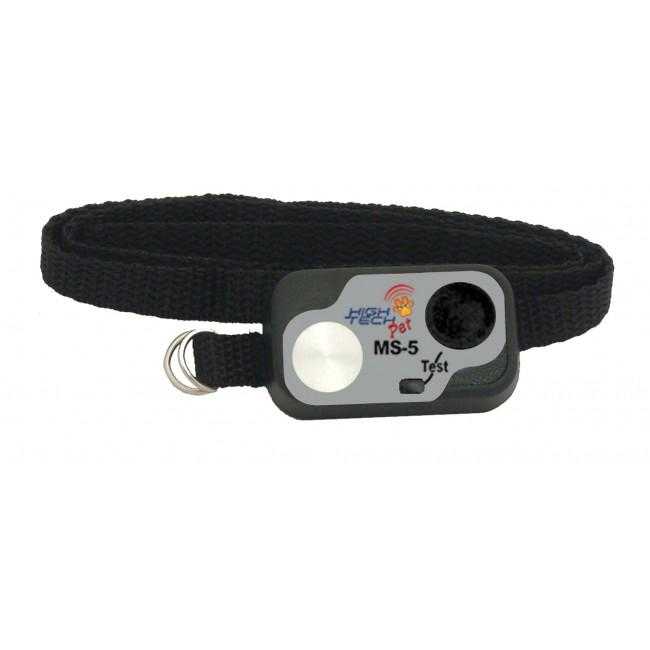

- One waterproof MS-4 collar key included. Additional collar keys including MS-5 waterproof keys are available for those with multiple pets.

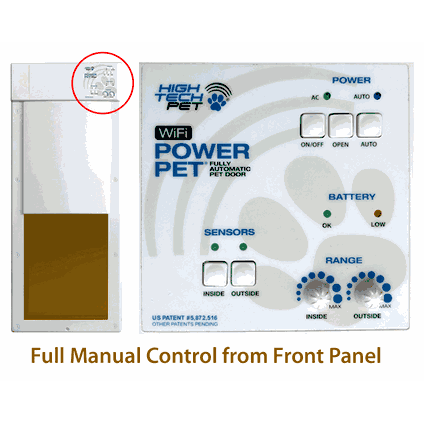

- The collar keys can be programmed to work at a range from 1 ft to 10 ft from the door (inside and outside distance can be adjusted independently). Just push the SENSORS button then turn the RANGE knob to the desired range.
Benefits:
- Power Pet is a large electronic dog door for breeds of dogs unable to use smaller doors
- Medium and large flap sizes allow dogs and cats to share the automatic doggie door.
- Automatic lifting eliminates the need to push through the flap, ensuring comfortable use for pets.
- Wall outlet adaptor ensures that battery life is not an issue.
- Keeps out pesky critters.

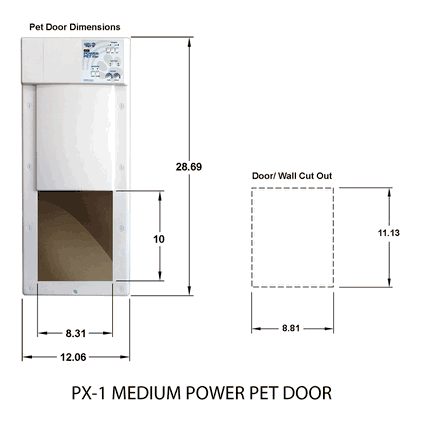

Size Chart
- PXC 1 w/ MS-5 Collar Key 8 1/4"w x 10"h
- PX-2 w/ MS-5 Collar Key 12 1/4"w x 16"h
Flap Dimensions:
8 1/4"w x 10"h
The entry way your dog goes through.Outside Frame Dimension:
Interior Frame:12"w x 28 5/8"h
Exterior Frame: 11 3/8"w x 13 3/4"h
The outer edge of the pet door.


Rough Cut Out::
8.88"w x 11.25"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
12 1/4"w x 16"h
The entry way your dog goes through.Outside Frame Dimensions:
Interior Frame: 16"w x 40 5/8"h
Exterior Frame: 15 1/4"w x 19 7/8"h
The outer edge of the pet door.


Rough Cut Out:
12.88"w x 17.25"h
The size of the hole needed to fit your pet door into your door.Flap Size | Mfr Model | Flap Dimension | Rough Cut Out Dimension | Interior Outside Frame Dimension | Exterior Outside Frame Dimension | Recommended Pet Height |
---|---|---|---|---|---|---|
Medium | PX-1 w/ MS-5 Collar Key | 8 1/4" w x 10" h | 8.88" w x 11.25" h | 12" w x 28 5/8" h | 11 3/8" w x 13 3/4" | 8" - 15" |
Large | PX-2 w/ MS-5 Collar Key | 12 1/4" w x 16" h | 12.88" w x 17.25" h | 16" w x 40 5/8" h | 15 1/4" w 19 7/8" h | 8" - 24" |
MS-5 Collar key is waterproof and recommended for dogs that swim or are more active.

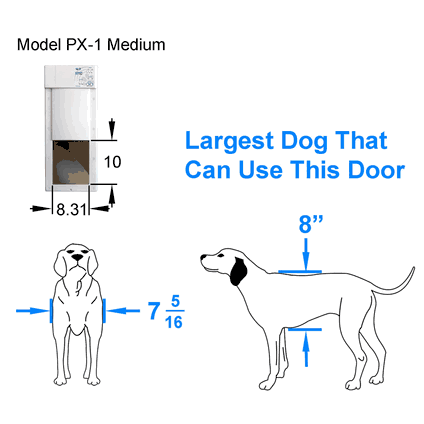

Find The Best Pet Door Size For My Pet

A
Pet Height: inches
B
Pet Width: inches
Installation Instructions

Parts
- Interior Frame
- Exterior Frame
- Wall Tunnel
- Mounting Screws
- Screw Covers
Tools
- Measuring Tape
- Safety Gear
- Stud Finder
- Drywall Knife (or other for cutting inner wall)
- Saw for Cutting Outer Wall (compatible with your wall material)
- Philips Screwdriver
Step 1 Make the Rough Cutout




- Cut the hole in your wall according to the diagrams.
Step 2 Attach the Frames

- Install the attached inner frame.
- Fit the adapter tunnel into the opening.
- Install the outer frame.
- Install the mounting screws.
- Screw covers are provided with your door to cover the screw holes. To remove these after installation, twist clockwise with a coin or flathead screwdriver. Do not twist counter-clockwise, as this may result in breakage.
Step 3 Initial Power Up

- Plug the AC adaptor into a 110 VAC wall outlet.
- Plug the adaptor cord into one of the Power Input Jacks on the inside frame.
- Press the front panel ON button to power up the door. Make sure the AC light turns on.
- Press the OPEN button and check that the dog/cat door panel opens/closes.
Videos

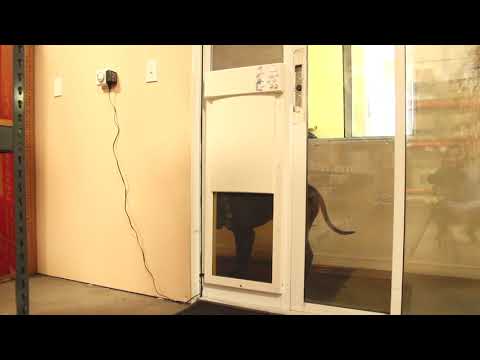

High Tech Power Pet Door Demo
Warranty
High Tech Pet Products Warranty:
All of our products carry a full one year warranty (with the exception of replacement collar key batteries. If your product fails to operate at any time, for any reason, within one year of the original delivery date we will repair or replace it at our expense, no questions asked. If it doesn't work, send it back, get another one. It's that quick and easy.
Guidelines:
Your product must be returned to High Tech Pet Products and must be clean and free of pet hair, dust and dander. Items that are dirty or containing pet hair and requiring cleaning will be subject to a charge equal to 25% of the original purchase price. We will ship the repaired or replaced product back to you via FedEx Ground or USPS priority mail, at our expense however, you are responsible for the cost of shipping the defective product to us.
In no case will High Tech Pet Products arrange or pay for the shipping of the defective product from your location to ours. Should you request the product to be sent out via air service, we will be happy to accommodate your request however, you will be required to pay the entire cost of the expedited service. ALL products, including pet doors, must be returned to us before we send out a replacement unit.
We must receive and examine the defective unit before the repaired or replaced unit is shipped out to you. There are no exceptions to this policy. When returning a product for repair or replacement, you must allow at least 1 – 2 weeks for replacement plus shipping time each way. In some cases, especially for special order items, the replacement time may be longer.
