• Creates a clean built in pet entry for the wall so your home keeps a more finished look than temporary or shared door access options
  • Lets you choose the comfort level that fits your climate with single flap and double flap configurations for everyday energy efficiency
  • Gives pets an easier more natural path in and out with clear lightweight flaps that open smoothly and close with a magnetic seal
  • Included rain cap offers extra protection against water intrusion
  • Built from premium extruded aluminum for long term durability in a wall mounted installation
  • Color-matching locking cover included for added security, with a side-loading cover option available (see add-on options)

Hale Pet Doors for Walls

Flexible Freedom and Stylish Design

133 Reviews
Made in the USA USA flag icon
Regular price $349.99

Fast & Free Shipping in the USA.

Satisfaction Guarantee -

10 Year Warranty

Color: White
Flap Size
Flap Type


A premium wall mounted pet door with a self framing aluminum build that delivers a cleaner permanent installation, flexible flap options, customizable finishes, and secure daily use for a wide range of pets.

    Hale Pet Doors for Walls are designed for homeowners who want more than a basic add-on. The all-aluminum frame and wall-specific construction create a clean, finished opening that feels like a natural part of your home. With a trim-to-fit tunnel, installation adapts smoothly to a range of wall depths for a polished, built-in result.

    Flexibility in the Flaps
    The textured frosted flaps are soft, durable, and easy for pets to push through, while adjustable magnets allow you to fine-tune the seal based on your pet’s size and your climate needs. Every detail is designed to support daily use without sacrificing performance.

    Hale pet door flaps are available in 10 standard sizes to accommodate pets of all shapes and sizes. Need something more specific? Custom sizing is available to ensure the perfect fit.

    Options to Match Your Home
    Color choices and mix and match interior and exterior frame combinations give more flexibility when the inside and outside surfaces do not match, which is often the case on wall installations.

    The locking cover and optional side loading cover configuration add practical control without changing how the pet uses the door day to day. For exposed exterior walls, the  rain cap adds another layer of water management when the opening is not protected by an overhang.

    Crafted for Pets, Built for Your Home
    With a 10-year limited warranty it’s built to last for years of daily use. Whether you have a small cat or a large dog, there is a size to fit their needs. Experience why Hale Pet Doors for Walls is considered one of the best wall-mounted dog doors you can buy.

    Installation & Fit

    • Mounts as a self framing wall unit with an inside frame and outer frame that secure against the wall surfaces
    • Fits standard wall thicknesses from 2" to 10" with the included trim to fit tunnel
    • For very thick walls over 10" thick, see the Hale Pet Door with Extra Long Tunnel
    • Locking cover can be top-loaded or side-loaded to best fit your desired installation location as needed (see add-on's for the side-loading option)
    • We recommend consulting with a contractor if you are not fully comfortable cutting into the wall of your home

    Best Suited For

    Ideal For

    • Homeowners who desire a dedicated pet entry in a wall instead of using a door panel or replacing an existing door
    • Dogs and cats who do better with a lightweight flap they can push easily
    • Installation locations that benefit from more configuration flexibility, including mix and match frame colors and a choice of locking cover style to better suit the space

    Not Ideal For

    Questions

    What's in the box?

    • Olefin nylon carpet
    • Flashing
    • 5/8" #6 Phillips Head Screws
    • King Starboard® or Lexan® Security Cover
    • Rain cap
    • Hale Pet Door wall model (includes inner frame with attached tunnel and outer frame)

    Can I add additional magnets?

    Yes! You can attach and remove magnets. Removing magnets makes it easier for smaller pets to push through. With a screwdriver head, you can push the magnets off the flap. Adding magnets is a great way to increase your insulation value to combat outside weather as well. You can purchase additional magnets and strikes.This can add energy efficiency to your pet door.

    What if my wall is thicker than 8"?

    Hale manufactures two great options for your thick wall home. If you need a custom size flap opening, you'll need to purchase both the Hale Custom Dimension Dog Doors for Walls, as well as the extended tunnel section. For standard flap sizes (there are 10 of them!) the Hale Pet Doors for Thick Walls With Extra Long Tunnel is suitable for walls up to 16" thick, right out of the box.

    Are the panels/flaps flexible? Seems like it would trap a dog if it backed up.

    The Hale Pet Door flaps are comfortably flexible and suited for a wide variety of pets. Your cat or dog should have no problem backing up and won't run a risk of getting pinched.

    Explore all questions
    Product Details

    Product Details

      Hale Pet Doors for Walls are designed for homeowners who want more than a basic add-on. The all-aluminum frame and wall-specific construction create a clean, finished opening that feels like a natural part of your home. With a trim-to-fit tunnel, installation adapts smoothly to a range of wall depths for a polished, built-in result.

      Flexibility in the Flaps
      The textured frosted flaps are soft, durable, and easy for pets to push through, while adjustable magnets allow you to fine-tune the seal based on your pet’s size and your climate needs. Every detail is designed to support daily use without sacrificing performance.

      Hale pet door flaps are available in 10 standard sizes to accommodate pets of all shapes and sizes. Need something more specific? Custom sizing is available to ensure the perfect fit.

      Options to Match Your Home
      Color choices and mix and match interior and exterior frame combinations give more flexibility when the inside and outside surfaces do not match, which is often the case on wall installations.

      The locking cover and optional side loading cover configuration add practical control without changing how the pet uses the door day to day. For exposed exterior walls, the  rain cap adds another layer of water management when the opening is not protected by an overhang.

      Crafted for Pets, Built for Your Home
      With a 10-year limited warranty it’s built to last for years of daily use. Whether you have a small cat or a large dog, there is a size to fit their needs. Experience why Hale Pet Doors for Walls is considered one of the best wall-mounted dog doors you can buy.

      Sizing & Fit

      Size Chart

      Flap Dimensions:

      6 1/2"w x 9 1/2"h

      The entry way your dog goes through.

      Outside Frame Dimensions

      9 9/16"w x 12 9/16"h

      The outer edge of the pet door.

      Small Medium flap
      Small Medium frame
      Small Medium rough cut

      Rough Cut Out:

      8 1/2"w x 11 1/2"h

      The size of the hole needed to fit your pet door into your wall.

      Flap Dimensions:

      8 1/2"w x 12 1/2"h

      The entry way your dog goes through.

      Outside Frame Dimensions

      11 9/16"w x 15 3/8"h

      The outer edge of the pet door.

      Medium flap
      Medium frame
      Medium rough cut

      Rough Cut Out:

      10 1/2"w x 14 1/2"h

      The size of the hole needed to fit your pet door into your wall.

      Flap Dimensions:

      8 1/2"w x 16"h

      The entry way your dog goes through.

      Outside Frame Dimensions

      11 9/16"w x 19 1/16"h

      The outer edge of the pet door.

      Tall Medium flap
      Tall Medium frame
      Tall Medium rough cut

      Rough Cut Out:

      10 1/2"w x 18"h

      The size of the hole needed to fit your pet door into your wall.

      Flap Dimensions:

      11"w x 16"h

      The entry way your dog goes through.

      Outside Frame Dimensions

      14 1/16"w x 19 1/16"h

      The outer edge of the pet door.

      Large flap
      Large frame
      Large rough cut

      Rough Cut Out:

      13"w x 18"h

      The size of the hole needed to fit your pet door into your wall.

      Flap Dimensions:

      11"w x 19 1/2"h

      The entry way your dog goes through.

      Outside Frame Dimensions

      14 1/16"w x 22 9/16"h

      The outer edge of the pet door.

      Tall Large flap
      Tall Large frame
      Tall Large rough cut

      Rough Cut Out:

      13"w x 21 5/8"h

      The size of the hole needed to fit your pet door into your wall.

      Flap Dimensions:

      11"w x 23 1/2"h

      The entry way your dog goes through.

      Outside Frame Dimensions

      14 1/16"w x 26 9/16"h

      The outer edge of the pet door.

      Tall Large Plus flap
      Tall Large Plus frame
      Tall Large Plus rough cut

      Rough Cut Out:

      13"w x 25 5/8"h

      The size of the hole needed to fit your pet door into your wall.

      Flap Dimensions:

      11"w x 27 1/2"h

      The entry way your dog goes through.

      Outside Frame Dimensions

      14 1/16"w x 30 9/16"h

      The outer edge of the pet door.

      Extra Tall Large flap
      Extra Tall Large frame
      Extra Tall Large rough cut

      Rough Cut Out:

      13"w x 29 5/8"h

      The size of the hole needed to fit your pet door into your wall.

      Flap Dimensions:

      14"w x 19 1/2"h

      The entry way your dog goes through.

      Outside Frame Dimensions

      17 1/16"w x 22 9/16"h

      The outer edge of the pet door.

      Extra Large flap
      Extra Large frame
      Extra Large rough cut

      Rough Cut Out:

      16"w x 21 5/8"h

      The size of the hole needed to fit your pet door into your wall.

      Flap Dimensions:

      14"w x 23 1/2"h

      The entry way your dog goes through.

      Outside Frame Dimensions

      17 1/16"w x 26 9/16"h

      The outer edge of the pet door.

      Extra Large Plus flap
      Extra Large Plus frame
      Extra Large Plus rough cut

      Rough Cut Out:

      16"w x 25 5/8"h

      The size of the hole needed to fit your pet door into your wall.

      Flap Dimensions:

      15 1/2"w x 27 1/2"h

      The entry way your dog goes through.

      Outside Frame Dimensions

      18 9/16"w x 30 9/16"h

      The outer edge of the pet door.

      Giant flap
      Giant frame
      Giant rough cut

      Rough Cut Out:

      17 5/8"w x 29 5/8"h

      The size of the hole needed to fit your pet door into your wall.

      Flap Size Flap Dimension Rough Cut Out Outside Frame Dimension Recommended Pet Height
      Small Medium 6 1/2"w x 9 1/2"h 8 1/2"w x 11 1/2"h 9 9/16"w x 12 9/16"h 5" - 14"
      Medium 8 1/2"w x 12 1/2"h 10 1/2"w x 14 1/2"h 11 9/16"w x 15 3/8"h 5" - 19"
      Tall Medium 8 1/2"w x 16"h 10 1/2"w x 18"h 11 9/16"w x 19 1/16"h 5" - 23"
      Large 11"w x 16"h 13"w x 18"h 14 1/16"w x 19 1/16"h 5" - 24"
      Tall Large 11"w x 19 1/2"h 13"w x 21 5/8"h 14 1/16"w x 22 9/16"h 5" - 29"
      Tall Large Plus 11"w x 23 1/2"h 13"w x 25 5/8"h 14 1/16"w x 26 9/16"h 5" - 34"
      Extra Tall Large 11"w x 27 1/2"h 13"w x 29 5/8"h 14 1/16"w x 30 9/16"h 5" - 42"
      Extra Large 14"w x 19 1/2"h 16"w x 21 5/8"h 17 1/16"w x 22 9/16"h 5" - 31"
      Extra Large Plus 14"w x 23 1/2"h 16"w x 25 5/8"h 17 1/16"w x 26 9/16"h 5" - 36"
      Giant 15 1/2"w x 27 1/2"h 17 5/8"w x 29 5/8"h 18 9/16"w x 30 9/16"h 5" - 44"

      Do not know which size to get? Here is a measurement guide to help you out

      Installation Guide

      Installation Information

      Hale Wall Mount Installation Instructions

      Installation icon Difficulty Moderate
      Installation icon Steps 21
      Installation icon Time Required 2 hours

      Parts

      • Olefin nylon carpet
      • Flashing
      • 5/8" #6 Phillips Head Screws
      • King Starboard® or Lexan® Security Cover
      • Rain cap
      • Hale Pet Door wall model (includes inner frame with attached tunnel and outer frame)

      Tools

      • Drop Cloths
      • Caulking
      • Circular saw with wood or masonry blade
      • Caulk gun
      • Drywall saw
      • Tin snips
      • Electric drill
      • 24" Level
      • Tape measure
      • Blue masking tape
      • Reciprocating saw
      • Circular saw with wood or masonry blade
      • 7/64" drill bit

      Please read instructions & notes thoroughly before installation.

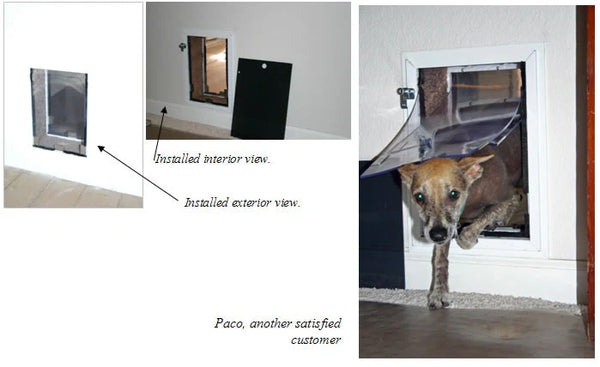

      Step 1 Measure your Pet

      Measure your Pet
      • Before installation, be sure that you have the proper size pet door for your pet. If in doubt, larger is better.
      • It may be harmful for your pet to use a pet door that is too small. A good general rule is to install the pet door so that the distance from the floor to the top of the passage opening is even or above the shoulder of your largest pet.
      • Remember that there will be a short tunnel for your pet to navigate. You don't want them to have to crawl through or hunch over as this can hurt an animal's hips.

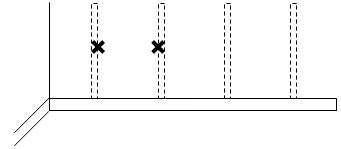

      Step 2 Mark Installation Location

      Mark Installation Location
      Mark Installation Location
      Mark Installation Location
      • Check the package you received to make sure that it contains all the necessary parts.
      • Find a suitable area for your wall model. Most wall models have a vertical lifting security cover (side loaded cover models are available as needed). Make sure the area has no obstructions to hinder the removal of this cover.
      • For installation in a framed wall, try to place the pet door between studs; a stud finder makes finding stud locations easy. Mark the stud locations and if possible, center the pet door between the studs. Look at the preferred location from both the inside and outside of the wall for signs that wiring, cable or plumbing may be inside the wall. Keep in mind upstairs bathrooms may have plumbing in the lower level walls.
      • Studs in an exterior wall should be 16" on center, giving you 14" of room between studs.
      • Cutting a power line leading to an outlet or light switch or hitting a plumbing pipe with power tools can result in severe injury or death. If you have any doubts about installation placement or about your skill level in tackling this project, please call us or contact a professional in your area.

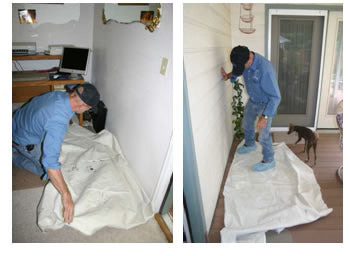

      Step 3 Prep Area Around Wall

      Prep Area Around Wall
      • Lay down drop cloths on both sides of the wall where you will be installing your pet door to make for easier cleanup after installation.
      • You may also wish to tape the interior drop cloth to the baseboard with blue masking tape. This will help prevent any debris from falling into the crack between the drop cloth and the carpet.
      • Putting down drop cloths before you start makes cleanup easier.

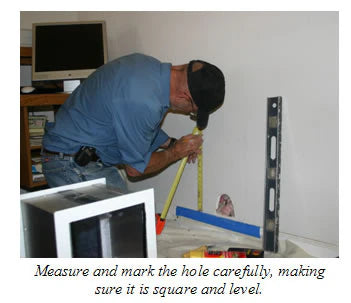

      Step 4 Draw Rough Cut

      Draw Rough Cut
      • Using a pencil, draw a pattern on the inside wall based on your pet door size. Wall openings are listed below according to pet door size. For special size pet doors the opening may be determined by measuring the tunnel. Make sure your opening is square and level.

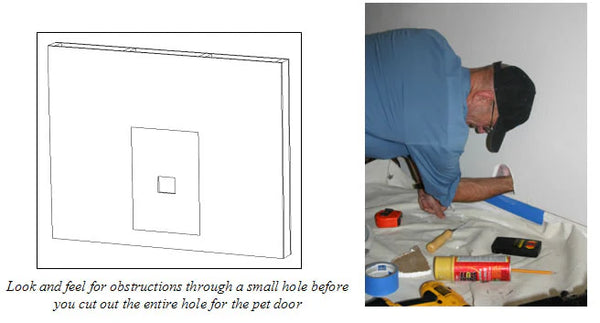

      Step 5 Check For Obstructions

      Check For Obstructions
      • Open a small hole somewhere near the center of the drawn pattern on the inside wall as shown below in the drawing or at the bottom of the area as shown in the picture. Shine a flashlight through the opening and look for obstructions within the wall. The small opening is much easier to patch should obstructions be found.
      • If nothing is seen or if the insulation is blocking your view, you may reach inside the wall and feel for obstructions that may not have been seen.

      Step 6 Cut Interior Wall

      Cut Interior Wall
      • If the wall area is clear then you may proceed to cut the inside wall within the drawn pattern; a drywall saw is most generally used on the inside. Push the insulation up into the wall above and/or beside the rough opening.
      • You may wish to replace the cut out piece of sheetrock back into the rough opening temporarily and lean the pet door against it to hold it in place. This will help prevent dust being blown into the house when you cut the exterior wall.

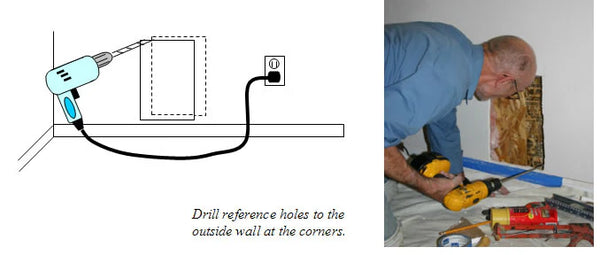

      Step 7 Cut Through to Exterior Wall

      Cut Through to Exterior Wall
      Cut Through to Exterior Wall
      Cut Through to Exterior Wall
      • Proceed with the wall cutout by drilling completely through the outer wall from the inside at each corner of the cutout pattern. A long drill bit may be required to do this. (A 12" long drill bit can usually be purchased for $4-$8 to help with this.) Be sure the drill is held straight so that the inner and outer holes are drilled in-line.
      • If you have exterior brick or stucco walls, be sure to use a masonry bit rather than the same bit you used on the interior wall.

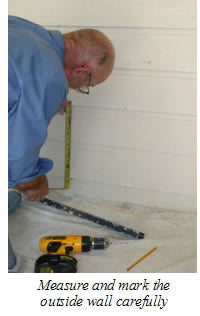

      • On the outside wall, find the reference holes you drilled and draw your square on the wall. Again, measure carefully and make sure the exterior opening is both square and level and in line with the interior opening you previously cut.

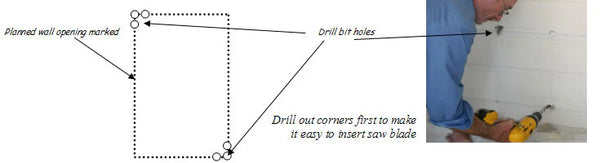

      Step 8 Drill Exterior Wall

      Drill Exterior Wall
      • Drill out two corners diagonal from each other (top left and bottom right OR top right and bottom left). Depending on the construction of the wall you may want to use a 7/8" flat blade boring bit (for wood surfaces) or a 5/16" regular bit. If you use a 5/16" bit, drill three holes close together (shown below) then wiggle the bit until you have connected the three holes. This will allow you enough room to get a reciprocating saw blade into the holes.
      • You can also drill the holes on all four corners if desired, to make it easier to cut down and across with the reciprocating saw rather than sawing upwards.

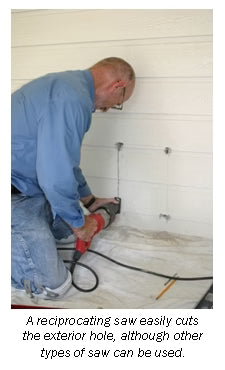

      Step 9 Cut Exterior Wall

      Cut Exterior Wall
      • After the holes are connected, use a reciprocating saw to cut out the rough opening along the marked lines.
      • If you do not have a reciprocating saw, you can use a key saw or circular saw to start the hole and a hand saw to cut out the entire rough opening. If you are cautious, a circular saw can be used on the outside wall. Use the appropriate blade for your circular saw, depending on the type of exterior wall material.
      • There is no need, nor is it advisable, to frame the inside of the wall cutout. The Hale Pet Door Wall Model is completely self-framing.
      • After the opening is cut from the outside, remove the interior piece of sheetrock from the inside hole.

      Step 10 Mark Tunnel Length

      Mark Tunnel Length
      • Place the inside frame with attached tunnel through the wall cutout. From the outside, reach through the opening and hold the inside frame tight against the wall. Mark the tunnel with a pencil along the outside wall on all sides as shown.
      • Hold pet door tightly against interior wall and mark with pencil from exterior to get correct tunnel depth.

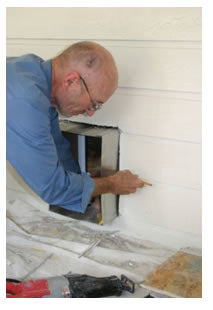

      Step 11 Trim Tunnel

      Trim Tunnel
      Trim Tunnel
      Trim Tunnel
      • Remove the interior pet door frame and tunnel from the hole. Carefully cut the tunnel along the pencil mark with metal snips to make the tunnel the correct depth for your wall. Be cautious when cutting metal so you don't accidentally cut yourself on the removed piece. Discard the metal strip that you have cut off the tunnel.
      • Use tin snips to cut the tunnel to the correct depth.

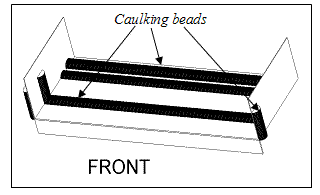

      Step 12 Caulk Flashing

      Caulk Flashing
      Caulk Flashing
      Caulk Flashing
      • The flashing is a thin piece of aluminum with three flanges.
      • Caulk the flashing with a latex caulking by applying two large beads on the bottom approximately ½" from the rear and another generous bead on the bottom and sides approximately 1" from the front. Apply a bead on the outside of both vertical flanges at the front. The bottom pre-drilled holes of the outer frame should sit directly above the bottom front bead of caulking when it is installed.

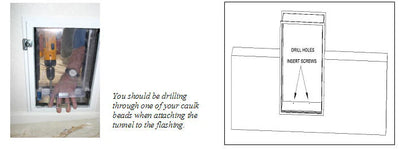

      • You should be drilling through the bead of caulk when the door is installed.

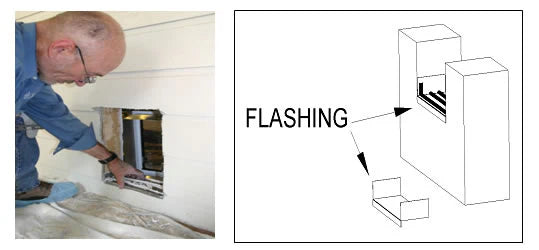

      Step 13 Place the Flashing

      Place the Flashing
      • Place the flashing into the bottom of the wall opening. The flashing should have the two side flanges pointing upward and the outside flange downward and against the outside wall as shown

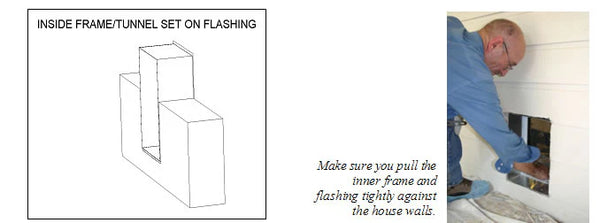

      Step 14 Insert Frame

      Insert Frame
      • Insert the inside frame and tunnel back into the opening. From the outside, pull the inside door frame tightly against the inside wall and push the flashing snug against the outside wall.

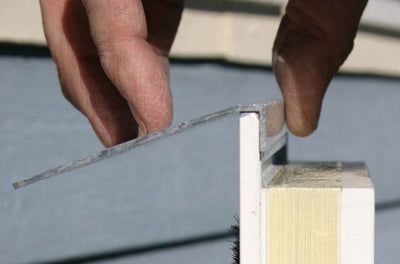

      Step 15 Attach Raincap (Optional)

      Attach Raincap (Optional)
      Attach Raincap (Optional)
      Attach Raincap (Optional)
      • The raincap attachment is a Hale exclusive design to aid in water containment and diversion. If your pet door is being installed in a protected area (i.e. indoors between two rooms, under a covered porch, etc.) you may omit this step.
      • The raincap is designed to keep water out of the pet door itself and is not required for installation. If you choose to use the raincap for your wall installation, attach it as shown in the graphic and picture to the left. It should simply hook onto the top of the outer frame.
      • The rain cap must be purchased separately.

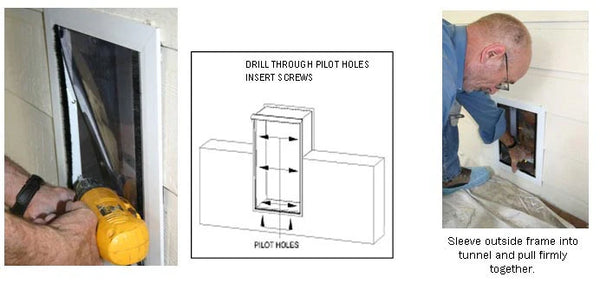

      Step 16 Drill Holes Into Tunnel Sides and Flashing

      Drill Holes Into Tunnel Sides and Flashing
      • Sleeve the outside frame into the tunnel. With both pet door frames firmly pulled against their respective walls, drill two more holes through the tunnel and bottom flashing using a 7/64" drill bit and the existing pre-drilled holes (in the outer frame) as guides. Insert supplied screws into the drilled holes.
      • Next, drill holes in the sides of the tunnel again using the pre-drill holes (in the outer frame) as a guide. The number of side screws varies with the size of pet door.

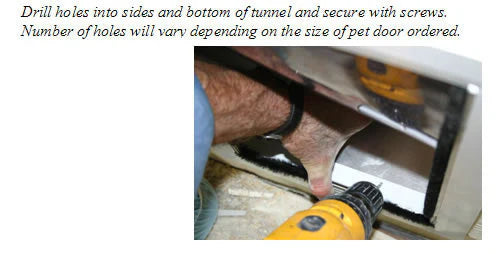

      Step 17 Drill Holes Into Tunnel Bottom and Attach Flashing

      Drill Holes Into Tunnel Bottom and Attach Flashing
      Drill Holes Into Tunnel Bottom and Attach Flashing
      Drill Holes Into Tunnel Bottom and Attach Flashing
      • Drill two holes through the bottom of the tunnel evenly spaced and approximately 2" to 2 ½" back from the inside of the outer frame using a 7/64" drill bit. Insert the 5/8" #6 screws provided and tighten to attach the flashing to the tunnel.

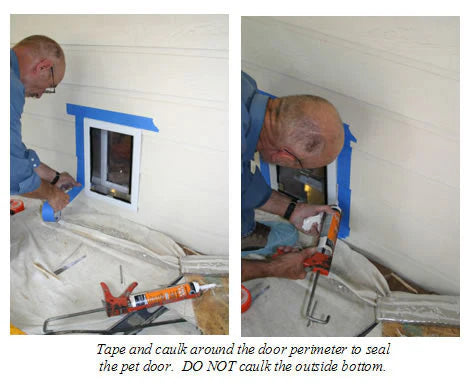

      Step 18 Seal With Caulking

      Seal With Caulking
      • Use a caulking sealer between the outside frame and the outside wall at the top and both sides.
      • DO NOT CAULK AT THE BOTTOM OF THE OUTSIDE FRAME. This will restrict the drainage of moisture should any accumulate inside the pet door.
      • You may also caulk around the whole perimeter of the inner frame, if desired, although this is not required. You may wish to outline the door with blue masking tape before you caulk to make a cleaner caulk line and to make cleanup easier. If you do decide to use the tape, allow the caulk to dry for a few minutes before you remove the tape.

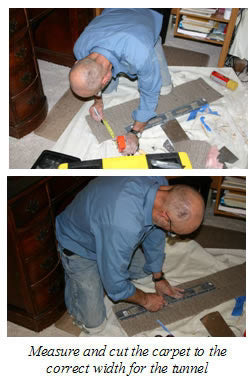

      Step 19 Add Inner Carpet

      Add Inner Carpet
      Add Inner Carpet
      Add Inner Carpet
      • Measure the width of the tunnel between the door frames and mark this measurement on the back of the carpet. Trim the included carpet to the correct width to cover the distance between the door frames. You may wish to dry fit the carpet into the tunnel to verify the width before using adhesive.
      • The carpet length has been precut for each size of door so you should not have to trim the length. After making sure the carpet is cut correctly, install it into the tunnel using a common construction glue to keep the carpet in place.
      • DO NOT use silicone to attach the carpet as the odor will not dissipate as it is trapped between the flaps.

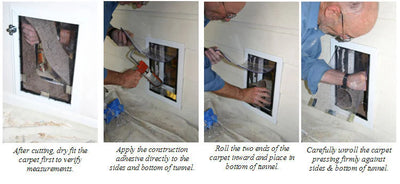

      • To make it easier to install the carpet in the tunnel when the adhesive has been applied, use a caulk gun to apply the adhesive directly to the sides and bottom of the tunnel. Roll the two ends of the carpet inwards and set into the bottom of the tunnel. Carefully unroll one side of the carpet and press firmly to the side of the tunnel and the adhesive. Press the carpet tightly into the bottom corner of the tunnel. Push the carpet against the bottom of the tunnel and work it into the other bottom corner. Finally, unroll the second side of the carpet and press it firmly against the other side of the tunnel.

      Step 20 Install Security Cover

      Install Security Cover
      • If you ordered a translucent gray Lexan® security cover for your pet door, peel the protective covering from the cover and let it sit for a few hours before installing into the front frame. A drying period will prevent the inner flap from sticking to the newly uncovered Lexan®.
      • If you ordered any color of the King Starboard® security cover, there will be no protective covering over it but you still may wish to let your door sit without the security cover in place for a few hours to avoid any sticking. The cover will slide easily into place in the built in frame and can be easily locked and unlocked with the positive action pin bolt lock.
      • Installing the standard top loading security cover. It can also be ordered side-loading.

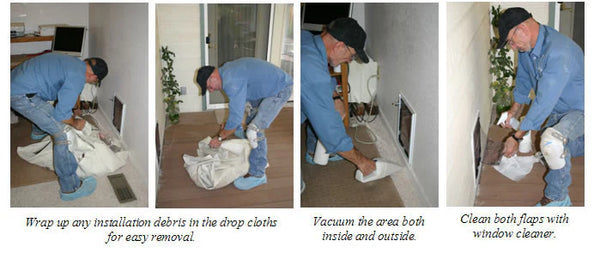

      Step 21 Clean-up Space

      Clean-up Space
      • If desired, you can place the wall pieces you removed in the pet door box to keep them in good condition for possible future use. They can usually be used to patch the wall if you ever need to remove the pet door.
      • Remove the drop cloths and clean up the area. You may use any standard window cleaner to wipe down the flaps and remove any fingerprints or residue from the installation.
      Videos

      Videos

      Hale Pet Door For Walls


      FAQs

      FAQ

      Reviews

      Customer Reviews

      Request Freight Quote

      Track heights exceeding 106 inches (107" or higher) may require additional shipping charges. Please provide your contact information for a custom freight quote, and our team will follow up during normal business hours.
