Hale Pet Doors for Doors

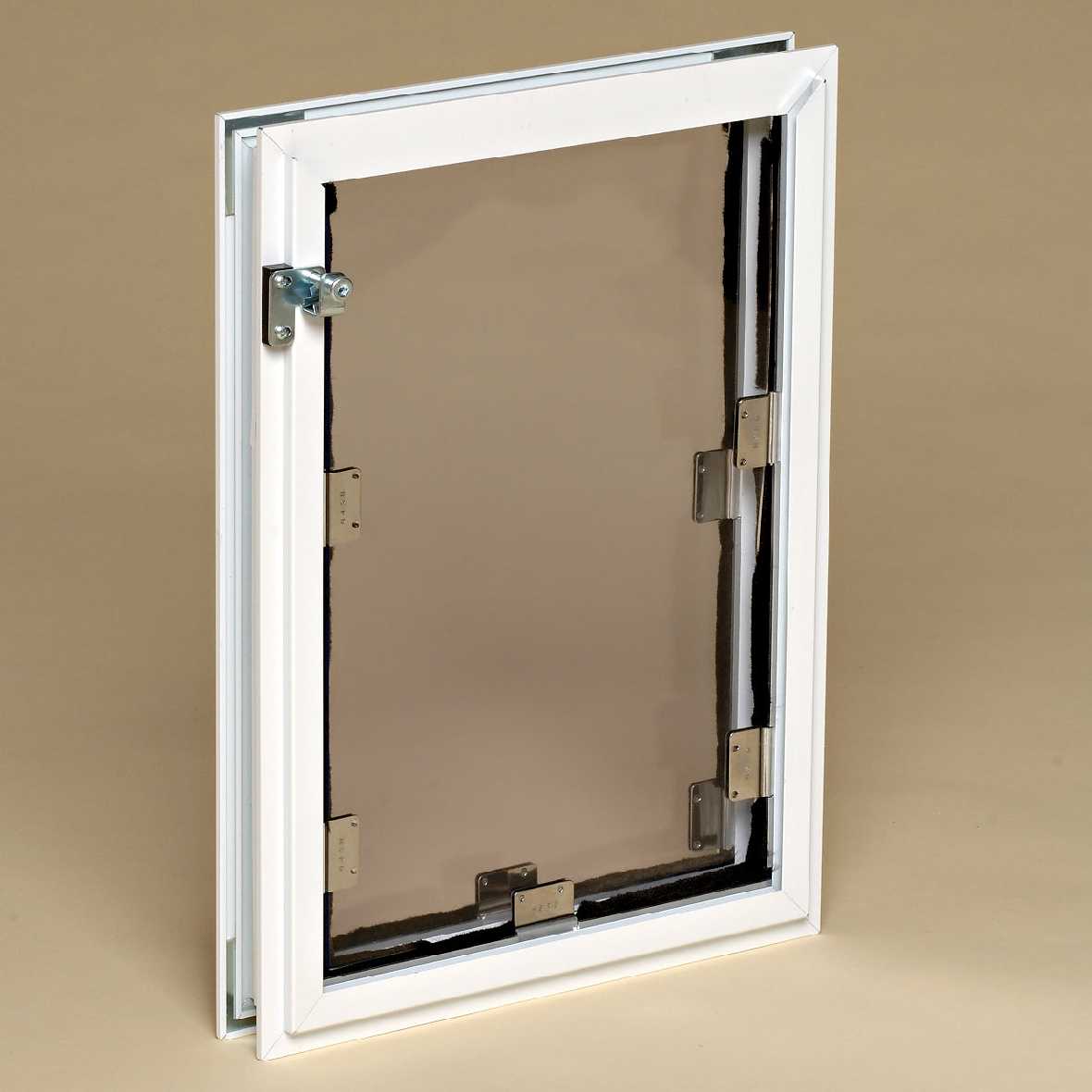

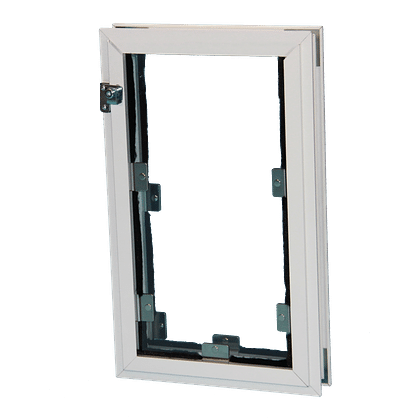

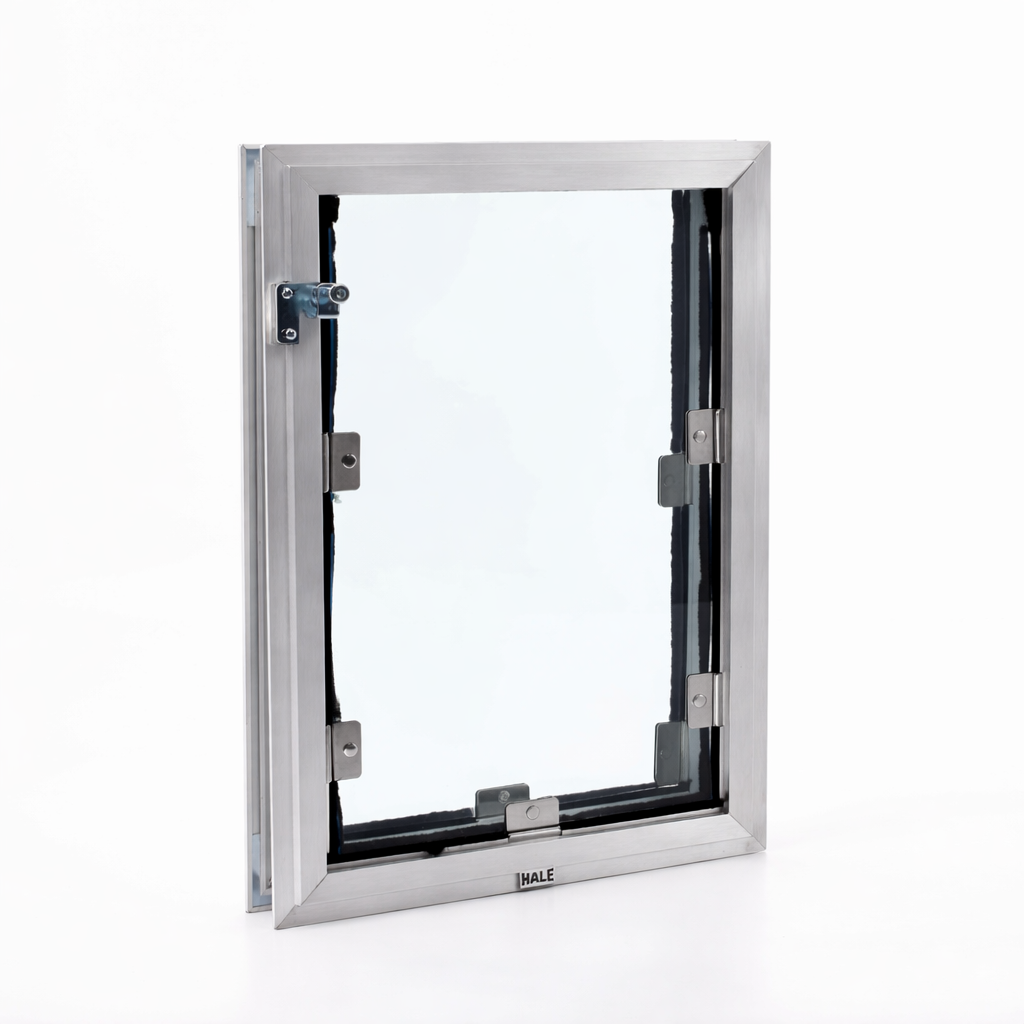

- Sleek, aluminum-framed Hale Pet Doors available in 4 colors: White, Arizona Beige, Black (Dark Bronze), and Brushed Aluminum
- Fits standard door thickness of 1 3/8" - 2" thick (for doors 3/4-1 1/4" thick, please contact Customer Service)
- Choice of single or double flap to suit all climates and enhance energy efficiency
- Ideal for various pet sizes, with adjustable magnet strength and lightweight flap(s)
- Durable and weather-resistant design, ensuring longevity and insulation
Product Details
Sizing & Fit
Installation Guide
FAQs
ReviewsProduct Details
Discover the perfect solution for your pets' freedom without compromising your home's insulation with the Hale Pet Doors for Doors. These exceptional, long-lasting doors are designed to cater to pets of all sizes, thanks to their lightweight flaps and adjustable magnet strength.
Available in four elegant colors, the sleek aluminum frame will effortlessly match your home's decor. Choose between single or double flap options to accommodate moderate or extreme climates while maximizing energy efficiency. Each flap is lined with fuzzy, nylon weather stripping and magnets, ensuring a proper seal and protection against the elements. The flap is lightweight, making it easy for small or timid pets to push open.
Not only is this pet door versatile and easy to use, but it is also compatible with a variety of door materials, including aluminum, hollow core, metal, solid core, and steel doors. The Hale Pet Door provides a high insulation value and excellent wind resistance, making it the ideal choice for those seeking a durable and weather-resistant solution.
Installation is a breeze, and with the option to mix and match frame colors, you can accurately match both the inside and outside of your home without the need for painting. The pet door comes with a sturdy polycarbonate locking cover and steel pin lock, ensuring your home remains secure when needed.
Upgrade your home and make life easier for both you and your pets with the Hale Pet Doors for Doors – a pet door that truly stands out for its performance, design, and versatility.
Not the pet door you're looking for? Check out our full selection of Hale dog doors.
Features:
- Compatible with various door materials, including aluminum, hollow core, metal, solid core, and steel doors
- Clear, flexible vinyl flaps with single or double flap options for moderate and extreme climates
- Fuzzy, nylon weather stripping and magnets for optimal insulation and sealing

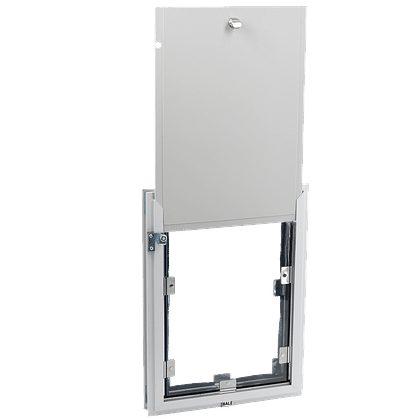

- Sturdy polycarbonate locking cover and steel pin lock for enhanced security
- Standard size fits doors 1 3/8" - 2" thick, but a custom build-out for thinner doors down to ¾" is available, please contact Customer Service
- Magnets on the flap maintain a tight seal and their strength can be increased for additional wind resistance.

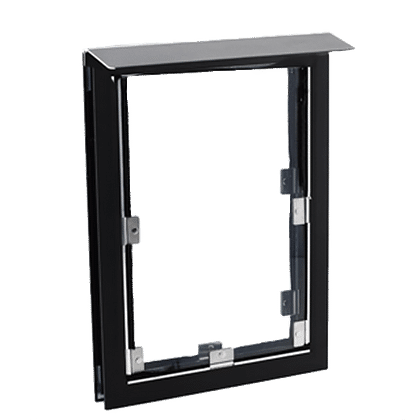

- An optional rain cap that hooks to the top edge of the outside frame and helps protect against water intrusion can be added to your door by purchasing one a checkout with your Hale Pet Door (if choosing secondary exterior security cover and rain cap, you must choose a side loading security cover)
- The aluminum frame comes in four different colors with the option to mix and match the interior and exterior frame colors to accurately match the inside and outside of your home. You can purchase a different Inside Frame Color here .
Benefits:
- Appropriate magnet strength allows pets of varying sizes to share a larger door.
- Mix and match frame color option prevents you from having to paint one side or the other.
- Double flap improves weather resistance.
- Clear flaps are easy for pets to use and see-through.
- Long-lasting flaps will prevent you from replacing flaps as often as other pet doors on the market require.

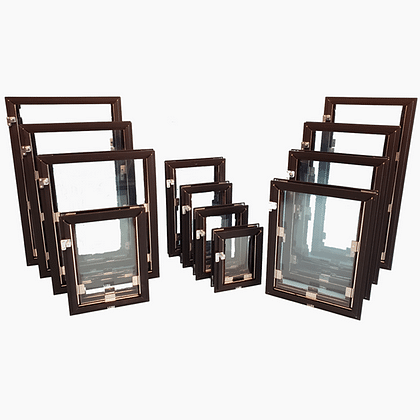

Size Chart
- Small Medium 6 1/2"w x 9 1/2"h
- Medium 8 1/2"w x 12 1/2"h
- Tall Medium 8 1/2"w x 16"h
- Large 11"w x 16"h
- Tall Large 11"w x 19 1/2"h
- Tall Large Plus 11"w x 23 1/2"h
- Extra Tall Large 11"w x 27 1/2"h
- Extra Large 14"w x 19 1/2"h
- Extra Large Plus 14"w x 23 1/2"h
- Giant 15 1/2"w x 27 1/2"h
Flap Dimensions:
6 1/2"w x 9 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
9 9/16"w x 12 9/16"h
The outer edge of the pet door.
Rough Cut Out:
8 1/2"w x 12 1/2"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
8 1/2"w x 12 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
11 9/16"w x 15 3/8"h
The outer edge of the pet door.
Rough Cut Out:
10 1/2"w x 14 1/2"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
8 1/2"w x 16"h
The entry way your dog goes through.Outside Frame Dimensions
11 9/16"w x 19 1/16"h
The outer edge of the pet door. Rough Cut Out:
10 1/2"w x 18"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
11"w x 16"h
The entry way your dog goes through.Outside Frame Dimensions
14 1/16"w x 19 1/16"h
The outer edge of the pet door.
Rough Cut Out:
13"w x 18"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
11"w x 19 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
14 1/16"w x 22 9/16"h
The outer edge of the pet door. Rough Cut Out:
13"w x 21 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
11"w x 23 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
14 1/16"w x 26 9/16"h
The outer edge of the pet door. Rough Cut Out:
13"w x 25 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
11"w x 27 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
14 1/16"w x 30 6/16"h
The outer edge of the pet door. Rough Cut Out:
13"w x 29 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
14"w x 19 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
17 1/16"w x 22 9/16"h
The outer edge of the pet door.
Rough Cut Out:
16"w x 21 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
14"w x 19 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
17 1/16"w x 22 9/16"h
The outer edge of the pet door. Rough Cut Out:
16"w x 21 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
14"w x 23 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
17 1/16"w x 26 9/16"h
The outer edge of the pet door. Rough Cut Out:
16"w x 25 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
15 1/2"w x 27 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
18 9/16"w x 30 9/16"h
The outer edge of the pet door. Rough Cut Out:
17 5/8"w x 29 5/8"h
The size of the hole needed to fit your pet door into your door.| Flap Size | Flap Dimension | Rough Cut Out | Outside Frame Dimension | Flap Type | Recommended Pet Height |
|---|---|---|---|---|---|
| Small Medium | 6 1/2" w x 9 1/2" h | 8 1/2" w x 11 1/2" h | 9 9/16" w x 12 9/16" h | Single | 5" - 14" |
| Double | 5" - 14" | ||||
| Medium | 8 1/2" w x 12 1/2" h | 10 1/2" w x 14 1/2" h | 11 9/16" w x 15 3/8" h | Single | 5" - 19" |
| Double | 5" - 19" | ||||
| Tall Medium | 8 1/2" w x 16" h | 10 1/2" w x 18" h | 11 9/16" w x 19 1/16" h | Single | 5" - 23" |
| Double | 5" - 23" | ||||
| Large | 11" w x 16" h | 13" w x 18" h | 14 1/16" w x 19 1/16" h | Single | 5" - 24" |
| Double | 5" - 24" | ||||
| Tall Large | 11" w x 19 1/2" h | 13" w x 21 5/8" h | 14 1/16" w x 22 9/16" h | Single | 5"- 29" |
| Double | 5"- 29" | ||||
| Tall Large Plus | 11" w x 23 1/2" h | 13" w x 25 5/8" h | 14 1/16" w x 26 9/16" h | Single | 5" - 34" |
| Double | 5" - 34" | ||||
| Extra Tall Large | 11" w x 27 1/2" h | 13" w x 29 5/8" h | 14 1/16" w x 30 9/16" h | Single | 5" - 42" |
| Double | 5" - 42" | ||||
| Extra Large | 14" w x 19 1/2" h | 16" w x 21 5/8" h | 17 1/16" w x 22 9/16" h | Single | 5" - 31" |
| Double | 5" - 31" | ||||
| Extra Large Plus | 14" w x 23 1/2" h | 16" w x 25 5/8" h | 17 1/16" w x 26 9/16" h | Single | 5" - 36" |
| Double | 5" - 36" | ||||
| Giant | 15 1/2" w x 27 1/2" h | 17 5/8" w x 29 5/8" h | 18 9/16" w x 30 9/16" h | Single | 5" - 44" |
| Double | 5" - 44" |
Do not know which flap size to get? Here is a measurement guide to help you out
Options
After you make the basic pet door choices--flap size, single vs double flap and frame color--you will have an opportunity to make other product selections. These are custom and can be made through the following pages:

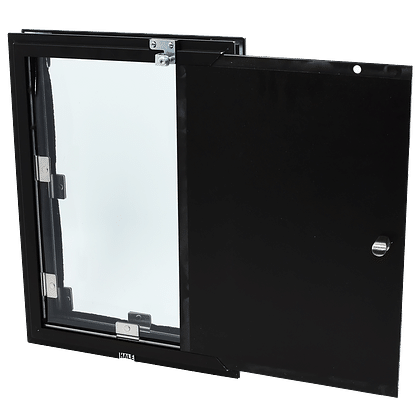

Locking Cover Load Direction (to accommodate obstructions)
Separate Inside Frame Color Choice (to match the inside of your home)
Also, these same pet doors are available in custom dimensions at Hale Custom Dimension for Doors.
Find The Best Pet Door Size For My Pet
A
Pet Height: inches
B
Pet Width: inches
Installation Instructions
Difficulty
Difficult
Steps
10
Time Required
1 - 2 hours
Sections
03
Flags
05
Parts
- Hale pet door frame
- 1 Instructions and Warranty for Hale Pet Door
- 1 Locking cover 5/8”
- 5/8” #6 Phillips head screws
- 4 2-1/4" (5,7cm) screws
- 1 raincap (optional; must be purchased separately)
Tools
- Blue tape
- Drill
- Jigsaw or Reciprocating Saw
- 7/64” drill bit
- Measuring Tape
Please read instructions & notes thoroughly before installation.
Wood Door Installation Instructions
Step 1
Pre-Installation Prep
- Review the large illustration of the pet door at the end of the instructions and familiarize yourself with the various components.
Step 2
Decide Where to Install Door
- Decide where to place your pet door. A good idea is to make sure that there are no knobs or other obstructions above the pet door that could interfere with the security cover.
- Second, be sure that the rough opening will be at least four inches from the bottom and from the side of the 'people' door. This will maintain the integrity of the door. (This measurement may vary depending on the size and type of door being used.)
Step 3
Makes Marks On Door
- Mary the installation area using a level for accuracy. Use masking tape to record the placement before drilling.
- Measure and mark all four sides before sawing. Use masking tape to mark the rectangle. Use the following dimensions to get the correct size rough opening for your size door:
Pet Door Size
Rough Opening
Width x Height
Small
7 3/8" x 9 3/8"
Small Medium
8 1/2" x 11 1/2"
Medium
10 1/2" x 14 1/2"
Tall Medium
10 1/2" x 18"
Large
13" x 18"
Tall Large
13" x 21 5/8"
Tall Large Plus
13" x 25 5/8"
Extra Tall Large
13" x 29 5/8"
Extra Large
16" x 21 5/8"
Extra Large Plus
16" x 25 5/8"
Giant
17 5/8" x 29 5/8"
Step 4
Cut Hole Out Of Door
- After the holes are connected, use a reciprocating saw, scroll saw or jig saw to cut out the opening along the lines you've marked.
Optional Step
Attach Rain Cap
- If you elected to use the rain cap for your petdoor installation, attach it to the outer frame as shown. It will simply hook onto the top of the outer frame
Step 5
Place Frame In Door
- Place the inside frame of the pet door into the opening in the door. Place the outside frame of the pet door into the other side of the door and let the pet door frame telescope together. Squeeze the two sides of the pet doors frame together tightly. You may hold them together with carpenter's clamps as you proceed.
Step 6
Screw Door Into Place
- Using the pre-drilled pilot holes in the pet door frame and a 7/64” bit, drill one hole through the inside edge of the outside frame at the bottom. Insert and loosely tighten one screw. Make sure the door is level and adjust if needed.
- When door is level, tighten the inserted screw and repeat drilling and inserting the rest of the screws in the pet door frame. Also, retighten the screws that hold the pin bolt lock in place.
Step 7
Seal Gaps With Caulk
- Once the pet door is installed you can fill any gaps or seal the edges with caulking if desired.
- After you apply the caulking and smooth it, you can remove the tape for a clean edge and no mess on your people door.
Step 8
Slide Locking Cover On
- The Starboard® cover will slide easily into place in the built in frame and can be easily locked and unlocked with the positive action pin bolt lock.
Step 10
Clean-Up Door
- Remove the drop cloths and clean up the area. We recommend cleaning the frame and flaps of the pet door also. Use soap and water or glass cleaner without ammonia.
Step 1 Pre-Installation Prep
- Review the large illustration of the pet door at the end of the instructions and familiarize yourself with the various components.
Step 2 Decide Where to Install Door
- Decide where to place your pet door. A good idea is to make sure that there are no knobs or other obstructions above the pet door that could interfere with the security cover.
- Second, be sure that the rough opening will be at least four inches from the bottom and from the side of the 'people' door. This will maintain the integrity of the door. (This measurement may vary depending on the size and type of door being used.)
Step 3 Makes Marks On Door
- Mary the installation area using a level for accuracy. Use masking tape to record the placement before drilling.
- Measure and mark all four sides before sawing. Use masking tape to mark the rectangle. Use the following dimensions to get the correct size rough opening for your size door:
| Pet Door Size | Rough Opening Width x Height |
| Small | 7 3/8" x 9 3/8" |
| Small Medium | 8 1/2" x 11 1/2" |
| Medium | 10 1/2" x 14 1/2" |
| Tall Medium | 10 1/2" x 18" |
| Large | 13" x 18" |
| Tall Large | 13" x 21 5/8" |
| Tall Large Plus | 13" x 25 5/8" |
| Extra Tall Large | 13" x 29 5/8" |
| Extra Large | 16" x 21 5/8" |
| Extra Large Plus | 16" x 25 5/8" |
| Giant | 17 5/8" x 29 5/8" |
Step 4 Cut Hole Out Of Door
- After the holes are connected, use a reciprocating saw, scroll saw or jig saw to cut out the opening along the lines you've marked.
Optional Step Attach Rain Cap
- If you elected to use the rain cap for your petdoor installation, attach it to the outer frame as shown. It will simply hook onto the top of the outer frame
Step 5 Place Frame In Door
- Place the inside frame of the pet door into the opening in the door. Place the outside frame of the pet door into the other side of the door and let the pet door frame telescope together. Squeeze the two sides of the pet doors frame together tightly. You may hold them together with carpenter's clamps as you proceed.
Step 6 Screw Door Into Place
- Using the pre-drilled pilot holes in the pet door frame and a 7/64” bit, drill one hole through the inside edge of the outside frame at the bottom. Insert and loosely tighten one screw. Make sure the door is level and adjust if needed.
- When door is level, tighten the inserted screw and repeat drilling and inserting the rest of the screws in the pet door frame. Also, retighten the screws that hold the pin bolt lock in place.
Step 7 Seal Gaps With Caulk
- Once the pet door is installed you can fill any gaps or seal the edges with caulking if desired.
- After you apply the caulking and smooth it, you can remove the tape for a clean edge and no mess on your people door.
Step 8 Slide Locking Cover On
- The Starboard® cover will slide easily into place in the built in frame and can be easily locked and unlocked with the positive action pin bolt lock.
Step 10 Clean-Up Door
- Remove the drop cloths and clean up the area. We recommend cleaning the frame and flaps of the pet door also. Use soap and water or glass cleaner without ammonia.
Difficulty
Difficult
Steps
10
Time Required
1 - 2 hours
Sections
03
Flags
05
Parts
- Hale pet door frame
- 1 Instructions and Warranty for Hale Pet Door
- 1 Locking cover 5/8”
- 5/8” #6 Phillips head screws
- 4 2-1/4" (5,7cm) screws
- 1 raincap (optional; must be purchased separately)
Tools
- Blue tape
- Drill
- Jigsaw or Reciprocating Saw
- Measuring Tape
- 7/64” drill bit
Please read instructions & notes thoroughly before installation.
Metal Door Installation Instructions
Step 1 Pre-Installation Prep
- Review the large illustration of the pet door at the end of the instructions and familiarize yourself with the various components.
Step 2 Decide Where to Install Door
- Decide where to place your pet door. A good idea is to make sure that there are no knobs or other obstructions above the pet door that could interfere with the security cover.
- Second, be sure that the rough opening will be at least four inches from the bottom and from the side of the 'people' door. This will maintain the integrity of the door. (This measurement may vary depending on the size and type of door being used.)
Step 3 Makes Marks On Door
- Mary the installation area using a level for accuracy. Use masking tape to record the placement before drilling.
- Measure and mark all four sides before sawing. Use masking tape to mark the rectangle. Use the following dimensions to get the correct size rough opening for your size door:
| Pet Door Size | Rough Opening Width x Height |
| Small | 7 3/8" x 9 3/8" |
| Small Medium | 8 1/2" x 11 1/2" |
| Medium | 10 1/2" x 14 1/2" |
| Tall Medium | 10 1/2" x 18" |
| Large | 13" x 18" |
| Tall Large | 13" x 21 5/8" |
| Tall Large Plus | 13" x 25 5/8" |
| Extra Tall Large | 13" x 29 5/8" |
| Extra Large | 16" x 21 5/8" |
| Extra Large Plus | 16" x 25 5/8" |
| Giant | 17 5/8" x 29 5/8" |
Step 4 Cut Hole Out Of Door
- After the holes are connected, use a reciprocating saw with a 14 tooth/inch blade to cut out the opening along the lines you've marked.
- Be careful that the saw blade does not dent the other side of the door while you cut. The Hale Pet Door™ “door” model is completely self-framing so there is no need to 'frame out' the inside of the door.
Optional Step Attach Rain Cap
- If you elected to use the rain cap for your petdoor installation, attach it to the outer frame as shown. It will simply hook onto the top of the outer frame
Step 5 Place Frame In Door
- Place the inside frame of the pet door into the opening in the door. Place the outside frame of the pet door into the other side of the door and let the pet door frame telescope together. Squeeze the two sides of the pet doors frame together tightly. You may hold them together with carpenter's clamps as you proceed.
Step 6 Screw Door Into Place
- Using the pre-drilled pilot holes in the pet door frame and a 7/64” drill bit, drill one hole through the inside edge of the outside frame at the bottom. Insert and loosely tighten one screw. Make sure the door is level and adjust if needed.
- When door is level, tighten the inserted screw and repeat drilling and inserting the rest of the screws in the pet door frame. Also, retighten the screws that hold the pin bolt lock in place.
Step 7 Seal Gaps With Caulk
- Once the pet door is installed you can fill any gaps or seal the edges with caulking if desired.
- After you apply the caulking and smooth it, you can remove the tape for a clean edge and no mess on your people door.
Step 8 Slide Locking Cover On
- The Starboard® cover will slide easily into place in the built in frame and can be easily locked and unlocked with the positive action pin bolt lock.
Step 10 Clean-Up Door
- Remove the drop cloths and clean up the area. We recommend cleaning the frame and flaps of the pet door also. Use soap and water or glass cleaner without ammonia.
How to Adjust Magnets
You may also adjust the magnets in the frame if necessary. They can either be raised or lowered so the flaps seal but swing freely.
Adjust Upward
- Adjust the magnets upward by twisting a flat headed screwdriver below the magnet between the magnet and the frame.
Adjust Downward
- Adjust the magnets downward by tapping lightly with the handle of your screwdriver.
Note:
- NEVER hit a magnet hard with a hammer as this may bend the legs of the magnet and cause it to eventually fall out of the door track.
Notes for Various Types of Doors
Raised Panel Doors
Two types of raised panel door are illustrated above. A true raised panel door will be built of solid wood, and the panels will be separate pieces of wood contained in the body of the door. This type of door is common on older homes, but in newer homes you are more likely to find doors whose surfaces have been molded to look like a raised panel door.
Carefully consider placement of your pet door before cutting the rough opening. Ideally, the pet door should be either centered on the door or centered on a panel. If the door is a true raised panel door, centering the pet door on the people door is not a good idea. Cutting out the vertical support will structurally weaken the door.
Once you have determined where to place the door, cut out the rough opening and install the pet door as described above. There should be gaps that need to be filled between the pet door and the door where the grooves from the raised panel are. Put blue masking tape on the door so that the bottom of the tape is even with the top of the pet door. Fill the gaps with "caulking backer rod". Make sure your filler does not come up to the edge of the pet door frame.
Fill the gap with caulk of an appropriate type and color. Smooth the caulk with a putty knife or a razor blade. Remove the blue tape carefully. Clean up and you are finished.
Cross Hatch Doors
To drill starter holes through a solid wood door, use a 7/8" paddle bit and drill almost all the way through the door. Go to the other side of the door and finish the hole. This will prevent splintering wood.
A crosshatch door, also called a farmhouse door, usually has a window in the upper half. The lower half is constructed very much like a raised panel door, but the panels are usually sunken in compared to the rest of the door. These doors are almost always solid wood. Be very careful when drilling your starter holes in wood. If you push too hard the wood may splinter.
Installation of the pet door is about the same as with any other door. The difficulty is filling in the gaps. Depending on how deep the gap is, there are several different ways to approach this. If the gap is not very deep, caulking backer rod and caulk will work nicely. If the gap is deep you may want to consider filling with pieces of wood. This will require a hacksaw, miter box, and careful measuring.
Hollow Core Doors
If you are installing in a hollow core door, don’t cut your rough opening with a reciprocating saw if you can avoid it. It tends to shake the door surface violently, sometimes separating it from the interior “honeycomb”. Use a circular saw and diamond blade. It makes a clean, easy cut.
Fiberglass Doors
Fiberglass doors can be cut with a reciprocating saw or a circular saw with a diamond blade but be sure to wear a good dust mask! You do not want to be inhaling fiberglass.
Wood Doors
Cut wood doors with a reciprocating saw. Do not try to use the circular saw. The diamond blade will simply scorch the wood, barely cutting it, and a wood blade will grab the wood and take off, which will be dangerously hard to control.
Steel Skin Doors
Steel skin doors are made of a foam core covered with thin steel skin. If the pet door you are installing is small, (medium or smaller), you can cut the rough opening with a diamond blade and clean up the corners with a reciprocating saw. If the pet door is larger than a medium, sink the diamond blade into the door in one spot on all four sides of the rough opening. This creates four grooves you can get a reciprocating saw blade into. Use a fine blade on the reciprocating saw. (18-tooth per inch at a minimum.)
Videos
FAQ
|
What is the main difference between this weather proof and others? The Hale pet door offers a flexible, vinyl flap while other weatherproof models choose harder flap material, such as the freedom pet pass pet door with a canvas flap. These vinyl flaps are thicker than standard, offering a greater resistance to extreme weather. |
|
Can I add additional magnets? Yes! You can attach and remove magnets. Removing magnets makes it easier for smaller pets to push through. With a screwdriver head, you can push the magnets off the flap. Adding magnets is a great way to combat outside weather as well. You can also purchase additional magnets and strikes . |
|
Why would I need a left or right locking load? Hale gives you options on how your locking cover opens based on the unique locations your door will be in. These options are included in case there is a lip above your frame that would stop your locking cover from sliding up. You can open your cover left or right depending on other obstructions on either side of the installation location. |
|
Where do you buy replacement flaps? Hale Replacement Flaps can be bought on our site. These flaps do not have logos on them, so it would be best to measure the flaps to make sure the correct size is ordered. |
|
What is the difference between single and double flap? Double flap mounts increase resistance to extreme weather. These are great options for blazing summer and snowy winters. While a Hale single flap can do the job of some double flap models, the additional vinyl can safeguard from wind and single digit temperatures. |
|
Does this door come in other colors? Yes; it comes in Satin, Arizona Beige (Tan), White, and Bronze. See pictures above for color samples. |
|
What is meant by Different Interior Frame Color? Hale can make a pet door with two different color frames. So you can get the door to match your interior and exterior decor. |
|
Can I attach a locking cover on both sides of the unit? If you want a locking cover on both sides, that would be a special order. Please let us know beforehand if you want to make that happen. Once you have the door in your home, an additional locking cover cannot be added the other side. The exterior locking cover can also only be manufactured to open from the left or right. |
|
Can my cats use a double flap? Cats should be able to push through a double flap mount, even if it is a doggy door for big dogs. It helps there will be a tunnel, since the two flaps will not be back to back so your cat will only go through one flap at a time. If it is difficult, you can also remove some magnets to lessen the resistance. |
|
If I get a single flap can I add another one later? Yes! All you would have to do is purchase a replacement flap kit, which comes with everything you need. |
|
Can you use this on a dutch door? Yes, this is a really good choice for that because if there is anything (like a sill above it sticking out) then you can choose one of the side load locking cover options. |
|
Is this the same as the maxseal? No, that is made by a different manufacturer and parts and dimensions are not the same. |
|
How much does shipping cost? Shipping is calculated at checkout. |
Warranty
Warranty: Lifetime Frame Warranty / 10-Year Parts Warranty Including Flaps
Duration: Lifetime for frame and 10 years for parts including flaps.
Coverage:
Hale Pet Door products and components are guaranteed to be free from defects in materials and workmanship from the date of purchase.
Flaps are made from the best vinyl imported from France using Hale's custom chemical recipe.
Coverage percentages for parts (excluding frame) decreases by 20% every two years over a ten year period.
Returns within 30 days due to dissatisfaction results in a full refund, but if the product is damaged upon return, only 50% credit is provided.
Exclusions:
Warranty does not include shipping to Hale Pet Door or field service labor.
Glass Breakage: 50% replacement cost in the first year if the glass breaks. No warranty on glass after the first year. Excludes in-glass models' glass.
Only 50% credit is provided towards the cost of a replacement Hale Pet Door if damaged due to no fault of Hale Pet Door (e.g., miscutting, mismeasuring) within 30 days of purchase.
Customer Reviews
Size Chart
- Small Medium 6 1/2"w x 9 1/2"h
- Medium 8 1/2"w x 12 1/2"h
- Tall Medium 8 1/2"w x 16"h
- Large 11"w x 16"h
- Tall Large 11"w x 19 1/2"h
- Tall Large Plus 11"w x 23 1/2"h
- Extra Tall Large 11"w x 27 1/2"h
- Extra Large 14"w x 19 1/2"h
- Extra Large Plus 14"w x 23 1/2"h
- Giant 15 1/2"w x 27 1/2"h
Flap Dimensions:
6 1/2"w x 9 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
9 9/16"w x 12 9/16"h
The outer edge of the pet door. Rough Cut Out:
8 1/2"w x 12 1/2"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
8 1/2"w x 12 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
11 9/16"w x 15 3/8"h
The outer edge of the pet door. Rough Cut Out:
10 1/2"w x 14 1/2"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
8 1/2"w x 16"h
The entry way your dog goes through.Outside Frame Dimensions
11 9/16"w x 19 1/16"h
The outer edge of the pet door. Rough Cut Out:
10 1/2"w x 18"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
11"w x 16"h
The entry way your dog goes through.Outside Frame Dimensions
14 1/16"w x 19 1/16"h
The outer edge of the pet door. Rough Cut Out:
13"w x 18"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
11"w x 19 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
14 1/16"w x 22 9/16"h
The outer edge of the pet door. Rough Cut Out:
13"w x 21 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
11"w x 23 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
14 1/16"w x 26 9/16"h
The outer edge of the pet door. Rough Cut Out:
13"w x 25 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
11"w x 27 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
14 1/16"w x 30 6/16"h
The outer edge of the pet door. Rough Cut Out:
13"w x 29 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
14"w x 19 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
17 1/16"w x 22 9/16"h
The outer edge of the pet door. Rough Cut Out:
16"w x 21 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
14"w x 19 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
17 1/16"w x 22 9/16"h
The outer edge of the pet door. Rough Cut Out:
16"w x 21 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
14"w x 23 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
17 1/16"w x 26 9/16"h
The outer edge of the pet door. Rough Cut Out:
16"w x 25 5/8"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
15 1/2"w x 27 1/2"h
The entry way your dog goes through.Outside Frame Dimensions
18 9/16"w x 30 9/16"h
The outer edge of the pet door. Rough Cut Out:
17 5/8"w x 29 5/8"h
The size of the hole needed to fit your pet door into your door.| Flap Size | Flap Dimension | Rough Cut Out | Outside Frame Dimension | Flap Type | Recommended Pet Height |
|---|---|---|---|---|---|
| Small Medium | 6 1/2" w x 9 1/2" h | 8 1/2" w x 11 1/2" h | 9 9/16" w x 12 9/16" h | Single | 5" - 14" |
| Double | 5" - 14" | ||||
| Medium | 8 1/2" w x 12 1/2" h | 10 1/2" w x 14 1/2" h | 11 9/16" w x 15 3/8" h | Single | 5" - 19" |
| Double | 5" - 19" | ||||
| Tall Medium | 8 1/2" w x 16" h | 10 1/2" w x 18" h | 11 9/16" w x 19 1/16" h | Single | 5" - 23" |
| Double | 5" - 23" | ||||
| Large | 11" w x 16" h | 13" w x 18" h | 14 1/16" w x 19 1/16" h | Single | 5" - 24" |
| Double | 5" - 24" | ||||
| Tall Large | 11" w x 19 1/2" h | 13" w x 21 5/8" h | 14 1/16" w x 22 9/16" h | Single | 5"- 29" |
| Double | 5"- 29" | ||||
| Tall Large Plus | 11" w x 23 1/2" h | 13" w x 25 5/8" h | 14 1/16" w x 26 9/16" h | Single | 5" - 34" |
| Double | 5" - 34" | ||||
| Extra Tall Large | 11" w x 27 1/2" h | 13" w x 29 5/8" h | 14 1/16" w x 30 9/16" h | Single | 5" - 42" |
| Double | 5" - 42" | ||||
| Extra Large | 14" w x 19 1/2" h | 16" w x 21 5/8" h | 17 1/16" w x 22 9/16" h | Single | 5" - 31" |
| Double | 5" - 31" | ||||
| Extra Large Plus | 14" w x 23 1/2" h | 16" w x 25 5/8" h | 17 1/16" w x 26 9/16" h | Single | 5" - 36" |
| Double | 5" - 36" | ||||
| Giant | 15 1/2" w x 27 1/2" h | 17 5/8" w x 29 5/8" h | 18 9/16" w x 30 9/16" h | Single | 5" - 44" |
| Double | 5" - 44" |
Do not know which flap size to get? Here is a measurement guide to help you out
Options
After you make the basic pet door choices--flap size, single vs double flap and frame color--you will have an opportunity to make other product selections. These are custom and can be made through the following pages:
Locking Cover Load Direction (to accommodate obstructions)
Separate Inside Frame Color Choice (to match the inside of your home)
Also, these same pet doors are available in custom dimensions at Hale Custom Dimension for Doors.
Find The Best Pet Door Size For My Pet
A
Pet Height: inches
B
Pet Width: inches
Installation Instructions
Difficulty
Difficult
Steps
10
Time Required
1 - 2 hours
Sections
03
Flags
05
Parts
- Hale pet door frame
- 1 Instructions and Warranty for Hale Pet Door
- 1 Locking cover 5/8”
- 5/8” #6 Phillips head screws
- 4 2-1/4" (5,7cm) screws
- 1 raincap (optional; must be purchased separately)
Tools
- Blue tape
- Drill
- Jigsaw or Reciprocating Saw
- 7/64” drill bit
- Measuring Tape
Please read instructions & notes thoroughly before installation.
Wood Door Installation Instructions
Step 1
Pre-Installation Prep
- Review the large illustration of the pet door at the end of the instructions and familiarize yourself with the various components.
Step 2
Decide Where to Install Door
- Decide where to place your pet door. A good idea is to make sure that there are no knobs or other obstructions above the pet door that could interfere with the security cover.
- Second, be sure that the rough opening will be at least four inches from the bottom and from the side of the 'people' door. This will maintain the integrity of the door. (This measurement may vary depending on the size and type of door being used.)
Step 3
Makes Marks On Door
- Mary the installation area using a level for accuracy. Use masking tape to record the placement before drilling.
- Measure and mark all four sides before sawing. Use masking tape to mark the rectangle. Use the following dimensions to get the correct size rough opening for your size door:
Pet Door Size
Rough Opening
Width x Height
Small
7 3/8" x 9 3/8"
Small Medium
8 1/2" x 11 1/2"
Medium
10 1/2" x 14 1/2"
Tall Medium
10 1/2" x 18"
Large
13" x 18"
Tall Large
13" x 21 5/8"
Tall Large Plus
13" x 25 5/8"
Extra Tall Large
13" x 29 5/8"
Extra Large
16" x 21 5/8"
Extra Large Plus
16" x 25 5/8"
Giant
17 5/8" x 29 5/8"
Step 4
Cut Hole Out Of Door
- After the holes are connected, use a reciprocating saw, scroll saw or jig saw to cut out the opening along the lines you've marked.
Optional Step
Attach Rain Cap
- If you elected to use the rain cap for your petdoor installation, attach it to the outer frame as shown. It will simply hook onto the top of the outer frame
Step 5
Place Frame In Door
- Place the inside frame of the pet door into the opening in the door. Place the outside frame of the pet door into the other side of the door and let the pet door frame telescope together. Squeeze the two sides of the pet doors frame together tightly. You may hold them together with carpenter's clamps as you proceed.
Step 6
Screw Door Into Place
- Using the pre-drilled pilot holes in the pet door frame and a 7/64” bit, drill one hole through the inside edge of the outside frame at the bottom. Insert and loosely tighten one screw. Make sure the door is level and adjust if needed.
- When door is level, tighten the inserted screw and repeat drilling and inserting the rest of the screws in the pet door frame. Also, retighten the screws that hold the pin bolt lock in place.
Step 7
Seal Gaps With Caulk
- Once the pet door is installed you can fill any gaps or seal the edges with caulking if desired.
- After you apply the caulking and smooth it, you can remove the tape for a clean edge and no mess on your people door.
Step 8
Slide Locking Cover On
- The Starboard® cover will slide easily into place in the built in frame and can be easily locked and unlocked with the positive action pin bolt lock.
Step 10
Clean-Up Door
- Remove the drop cloths and clean up the area. We recommend cleaning the frame and flaps of the pet door also. Use soap and water or glass cleaner without ammonia.
Step 1 Pre-Installation Prep
- Review the large illustration of the pet door at the end of the instructions and familiarize yourself with the various components.
Step 2 Decide Where to Install Door
- Decide where to place your pet door. A good idea is to make sure that there are no knobs or other obstructions above the pet door that could interfere with the security cover.
- Second, be sure that the rough opening will be at least four inches from the bottom and from the side of the 'people' door. This will maintain the integrity of the door. (This measurement may vary depending on the size and type of door being used.)
Step 3 Makes Marks On Door
- Mary the installation area using a level for accuracy. Use masking tape to record the placement before drilling.
- Measure and mark all four sides before sawing. Use masking tape to mark the rectangle. Use the following dimensions to get the correct size rough opening for your size door:
| Pet Door Size | Rough Opening Width x Height |
| Small | 7 3/8" x 9 3/8" |
| Small Medium | 8 1/2" x 11 1/2" |
| Medium | 10 1/2" x 14 1/2" |
| Tall Medium | 10 1/2" x 18" |
| Large | 13" x 18" |
| Tall Large | 13" x 21 5/8" |
| Tall Large Plus | 13" x 25 5/8" |
| Extra Tall Large | 13" x 29 5/8" |
| Extra Large | 16" x 21 5/8" |
| Extra Large Plus | 16" x 25 5/8" |
| Giant | 17 5/8" x 29 5/8" |
Step 4 Cut Hole Out Of Door
- After the holes are connected, use a reciprocating saw, scroll saw or jig saw to cut out the opening along the lines you've marked.
Optional Step Attach Rain Cap
- If you elected to use the rain cap for your petdoor installation, attach it to the outer frame as shown. It will simply hook onto the top of the outer frame
Step 5 Place Frame In Door
- Place the inside frame of the pet door into the opening in the door. Place the outside frame of the pet door into the other side of the door and let the pet door frame telescope together. Squeeze the two sides of the pet doors frame together tightly. You may hold them together with carpenter's clamps as you proceed.
Step 6 Screw Door Into Place
- Using the pre-drilled pilot holes in the pet door frame and a 7/64” bit, drill one hole through the inside edge of the outside frame at the bottom. Insert and loosely tighten one screw. Make sure the door is level and adjust if needed.
- When door is level, tighten the inserted screw and repeat drilling and inserting the rest of the screws in the pet door frame. Also, retighten the screws that hold the pin bolt lock in place.
Step 7 Seal Gaps With Caulk
- Once the pet door is installed you can fill any gaps or seal the edges with caulking if desired.
- After you apply the caulking and smooth it, you can remove the tape for a clean edge and no mess on your people door.
Step 8 Slide Locking Cover On
- The Starboard® cover will slide easily into place in the built in frame and can be easily locked and unlocked with the positive action pin bolt lock.
Step 10 Clean-Up Door
- Remove the drop cloths and clean up the area. We recommend cleaning the frame and flaps of the pet door also. Use soap and water or glass cleaner without ammonia.
Difficulty
Difficult
Steps
10
Time Required
1 - 2 hours
Sections
03
Flags
05
Parts
- Hale pet door frame
- 1 Instructions and Warranty for Hale Pet Door
- 1 Locking cover 5/8”
- 5/8” #6 Phillips head screws
- 4 2-1/4" (5,7cm) screws
- 1 raincap (optional; must be purchased separately)
Tools
- Blue tape
- Drill
- Jigsaw or Reciprocating Saw
- Measuring Tape
- 7/64” drill bit
Please read instructions & notes thoroughly before installation.
Metal Door Installation Instructions
Step 1 Pre-Installation Prep
- Review the large illustration of the pet door at the end of the instructions and familiarize yourself with the various components.
Step 2 Decide Where to Install Door
- Decide where to place your pet door. A good idea is to make sure that there are no knobs or other obstructions above the pet door that could interfere with the security cover.
- Second, be sure that the rough opening will be at least four inches from the bottom and from the side of the 'people' door. This will maintain the integrity of the door. (This measurement may vary depending on the size and type of door being used.)
Step 3 Makes Marks On Door
- Mary the installation area using a level for accuracy. Use masking tape to record the placement before drilling.
- Measure and mark all four sides before sawing. Use masking tape to mark the rectangle. Use the following dimensions to get the correct size rough opening for your size door:
| Pet Door Size | Rough Opening Width x Height |
| Small | 7 3/8" x 9 3/8" |
| Small Medium | 8 1/2" x 11 1/2" |
| Medium | 10 1/2" x 14 1/2" |
| Tall Medium | 10 1/2" x 18" |
| Large | 13" x 18" |
| Tall Large | 13" x 21 5/8" |
| Tall Large Plus | 13" x 25 5/8" |
| Extra Tall Large | 13" x 29 5/8" |
| Extra Large | 16" x 21 5/8" |
| Extra Large Plus | 16" x 25 5/8" |
| Giant | 17 5/8" x 29 5/8" |
Step 4 Cut Hole Out Of Door
- After the holes are connected, use a reciprocating saw with a 14 tooth/inch blade to cut out the opening along the lines you've marked.
- Be careful that the saw blade does not dent the other side of the door while you cut. The Hale Pet Door™ “door” model is completely self-framing so there is no need to 'frame out' the inside of the door.
Optional Step Attach Rain Cap
- If you elected to use the rain cap for your petdoor installation, attach it to the outer frame as shown. It will simply hook onto the top of the outer frame
Step 5 Place Frame In Door
- Place the inside frame of the pet door into the opening in the door. Place the outside frame of the pet door into the other side of the door and let the pet door frame telescope together. Squeeze the two sides of the pet doors frame together tightly. You may hold them together with carpenter's clamps as you proceed.
Step 6 Screw Door Into Place
- Using the pre-drilled pilot holes in the pet door frame and a 7/64” drill bit, drill one hole through the inside edge of the outside frame at the bottom. Insert and loosely tighten one screw. Make sure the door is level and adjust if needed.
- When door is level, tighten the inserted screw and repeat drilling and inserting the rest of the screws in the pet door frame. Also, retighten the screws that hold the pin bolt lock in place.
Step 7 Seal Gaps With Caulk
- Once the pet door is installed you can fill any gaps or seal the edges with caulking if desired.
- After you apply the caulking and smooth it, you can remove the tape for a clean edge and no mess on your people door.
Step 8 Slide Locking Cover On
- The Starboard® cover will slide easily into place in the built in frame and can be easily locked and unlocked with the positive action pin bolt lock.
Step 10 Clean-Up Door
- Remove the drop cloths and clean up the area. We recommend cleaning the frame and flaps of the pet door also. Use soap and water or glass cleaner without ammonia.
How to Adjust Magnets
You may also adjust the magnets in the frame if necessary. They can either be raised or lowered so the flaps seal but swing freely.
Adjust Upward
- Adjust the magnets upward by twisting a flat headed screwdriver below the magnet between the magnet and the frame.
Adjust Downward
- Adjust the magnets downward by tapping lightly with the handle of your screwdriver.
Note:
- NEVER hit a magnet hard with a hammer as this may bend the legs of the magnet and cause it to eventually fall out of the door track.
Notes for Various Types of Doors
Raised Panel Doors
Two types of raised panel door are illustrated above. A true raised panel door will be built of solid wood, and the panels will be separate pieces of wood contained in the body of the door. This type of door is common on older homes, but in newer homes you are more likely to find doors whose surfaces have been molded to look like a raised panel door.
Carefully consider placement of your pet door before cutting the rough opening. Ideally, the pet door should be either centered on the door or centered on a panel. If the door is a true raised panel door, centering the pet door on the people door is not a good idea. Cutting out the vertical support will structurally weaken the door.
Once you have determined where to place the door, cut out the rough opening and install the pet door as described above. There should be gaps that need to be filled between the pet door and the door where the grooves from the raised panel are. Put blue masking tape on the door so that the bottom of the tape is even with the top of the pet door. Fill the gaps with "caulking backer rod". Make sure your filler does not come up to the edge of the pet door frame.
Fill the gap with caulk of an appropriate type and color. Smooth the caulk with a putty knife or a razor blade. Remove the blue tape carefully. Clean up and you are finished.
Cross Hatch Doors
To drill starter holes through a solid wood door, use a 7/8" paddle bit and drill almost all the way through the door. Go to the other side of the door and finish the hole. This will prevent splintering wood.
A crosshatch door, also called a farmhouse door, usually has a window in the upper half. The lower half is constructed very much like a raised panel door, but the panels are usually sunken in compared to the rest of the door. These doors are almost always solid wood. Be very careful when drilling your starter holes in wood. If you push too hard the wood may splinter.
Installation of the pet door is about the same as with any other door. The difficulty is filling in the gaps. Depending on how deep the gap is, there are several different ways to approach this. If the gap is not very deep, caulking backer rod and caulk will work nicely. If the gap is deep you may want to consider filling with pieces of wood. This will require a hacksaw, miter box, and careful measuring.
Hollow Core Doors
If you are installing in a hollow core door, don’t cut your rough opening with a reciprocating saw if you can avoid it. It tends to shake the door surface violently, sometimes separating it from the interior “honeycomb”. Use a circular saw and diamond blade. It makes a clean, easy cut.
Fiberglass Doors
Fiberglass doors can be cut with a reciprocating saw or a circular saw with a diamond blade but be sure to wear a good dust mask! You do not want to be inhaling fiberglass.
Wood Doors
Cut wood doors with a reciprocating saw. Do not try to use the circular saw. The diamond blade will simply scorch the wood, barely cutting it, and a wood blade will grab the wood and take off, which will be dangerously hard to control.
Steel Skin Doors
Steel skin doors are made of a foam core covered with thin steel skin. If the pet door you are installing is small, (medium or smaller), you can cut the rough opening with a diamond blade and clean up the corners with a reciprocating saw. If the pet door is larger than a medium, sink the diamond blade into the door in one spot on all four sides of the rough opening. This creates four grooves you can get a reciprocating saw blade into. Use a fine blade on the reciprocating saw. (18-tooth per inch at a minimum.)
Videos
FAQ
|
What is the main difference between this weather proof and others? The Hale pet door offers a flexible, vinyl flap while other weatherproof models choose harder flap material, such as the freedom pet pass pet door with a canvas flap. These vinyl flaps are thicker than standard, offering a greater resistance to extreme weather. |
|
Can I add additional magnets? Yes! You can attach and remove magnets. Removing magnets makes it easier for smaller pets to push through. With a screwdriver head, you can push the magnets off the flap. Adding magnets is a great way to combat outside weather as well. You can also purchase additional magnets and strikes . |
|
Why would I need a left or right locking load? Hale gives you options on how your locking cover opens based on the unique locations your door will be in. These options are included in case there is a lip above your frame that would stop your locking cover from sliding up. You can open your cover left or right depending on other obstructions on either side of the installation location. |
|
Where do you buy replacement flaps? Hale Replacement Flaps can be bought on our site. These flaps do not have logos on them, so it would be best to measure the flaps to make sure the correct size is ordered. |
|
What is the difference between single and double flap? Double flap mounts increase resistance to extreme weather. These are great options for blazing summer and snowy winters. While a Hale single flap can do the job of some double flap models, the additional vinyl can safeguard from wind and single digit temperatures. |
|
Does this door come in other colors? Yes; it comes in Satin, Arizona Beige (Tan), White, and Bronze. See pictures above for color samples. |
|
What is meant by Different Interior Frame Color? Hale can make a pet door with two different color frames. So you can get the door to match your interior and exterior decor. |
|
Can I attach a locking cover on both sides of the unit? If you want a locking cover on both sides, that would be a special order. Please let us know beforehand if you want to make that happen. Once you have the door in your home, an additional locking cover cannot be added the other side. The exterior locking cover can also only be manufactured to open from the left or right. |
|
Can my cats use a double flap? Cats should be able to push through a double flap mount, even if it is a doggy door for big dogs. It helps there will be a tunnel, since the two flaps will not be back to back so your cat will only go through one flap at a time. If it is difficult, you can also remove some magnets to lessen the resistance. |
|
If I get a single flap can I add another one later? Yes! All you would have to do is purchase a replacement flap kit, which comes with everything you need. |
|
Can you use this on a dutch door? Yes, this is a really good choice for that because if there is anything (like a sill above it sticking out) then you can choose one of the side load locking cover options. |
|
Is this the same as the maxseal? No, that is made by a different manufacturer and parts and dimensions are not the same. |
|
How much does shipping cost? Shipping is calculated at checkout. |
Warranty
Warranty: Lifetime Frame Warranty / 10-Year Parts Warranty Including Flaps
Duration: Lifetime for frame and 10 years for parts including flaps.
Coverage:
Hale Pet Door products and components are guaranteed to be free from defects in materials and workmanship from the date of purchase.
Flaps are made from the best vinyl imported from France using Hale's custom chemical recipe.
Coverage percentages for parts (excluding frame) decreases by 20% every two years over a ten year period.
Returns within 30 days due to dissatisfaction results in a full refund, but if the product is damaged upon return, only 50% credit is provided.
Exclusions:
Warranty does not include shipping to Hale Pet Door or field service labor.
Glass Breakage: 50% replacement cost in the first year if the glass breaks. No warranty on glass after the first year. Excludes in-glass models' glass.
Only 50% credit is provided towards the cost of a replacement Hale Pet Door if damaged due to no fault of Hale Pet Door (e.g., miscutting, mismeasuring) within 30 days of purchase.
