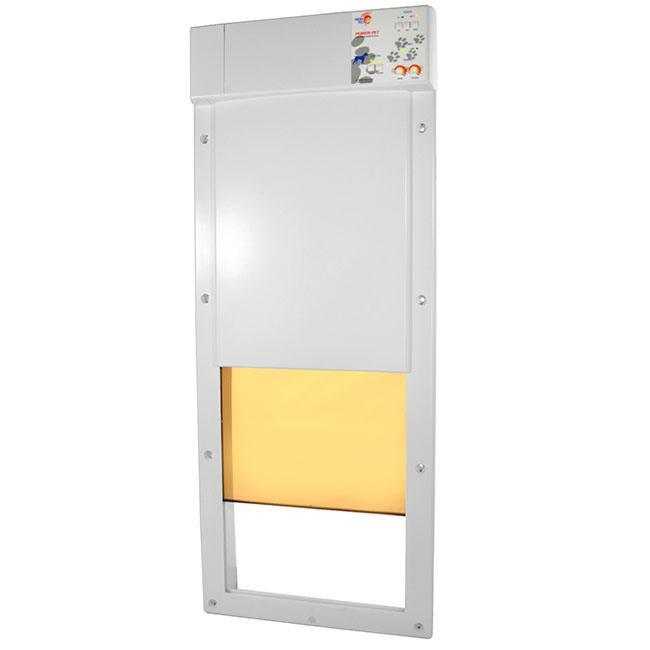

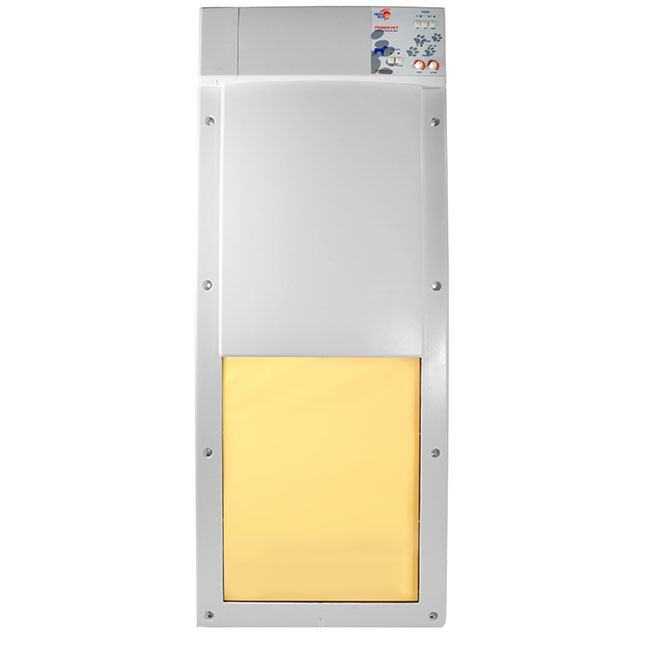

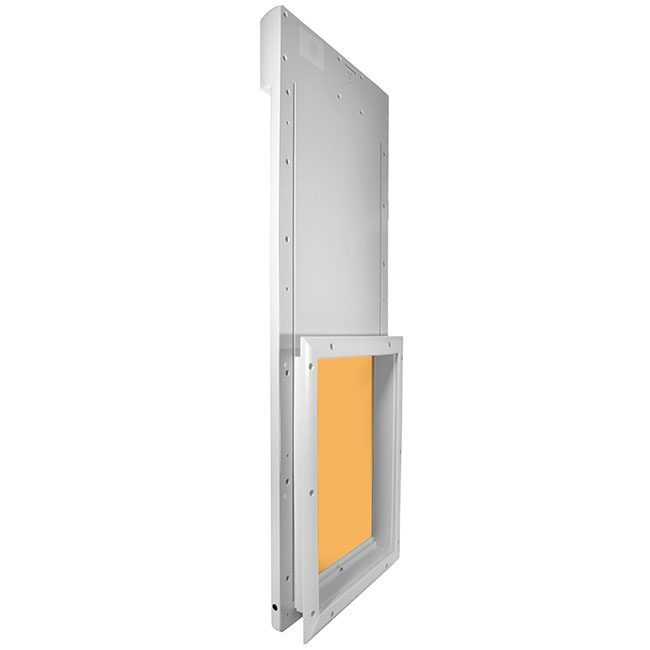

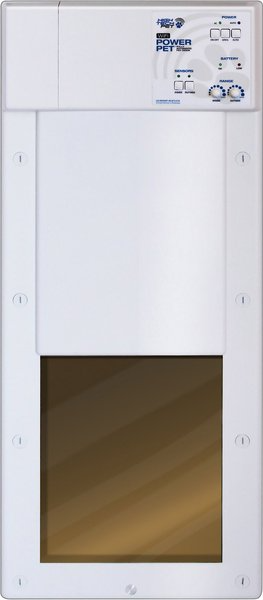

High Tech Power Pet Automatic Door Mount
- Motorized High Tech Power Pet Automatic Door Mount with ultrasonic collar key operation.
- Available in medium (8 1/4"w x 10"h) and large (12 1/4"w x 16"h) sizes for versatile pet compatibility.
- Three power options: outlet, outlet with back-up battery, and fully battery operated.
- Multi-function dual sensors with adjustable distance control and 4-way locking system.
- Comes with a one-year warranty and a 30-day return period.

Product Details
The High Tech Power Pet Automatic Door Mount is a premium pet door solution that offers convenience, security, and comfort for your beloved pets. This motorized pet door operates using inaudible, high-frequency sound programmed in ultrasonic collar keys, providing a smooth and automatic entry and exit for your pet without the need for pushing or prodding.
Available in medium and large sizes, this pet door can accommodate a wide range of pets, from cats and small dogs to large dogs. Choose between three power options for ultimate flexibility: plug the included UL-approved AC adapter into a nearby wall outlet, use an AC adapter with a rechargeable battery backup, or operate it fully on battery power.
The High Tech Power Pet Door features multi-function dual sensors that can be separately programmed for distance and offers a 4-way locking system for additional control. With an automatic deadbolt locking system, you can rest assured that your home stays secure from unwanted animals.
The package includes one waterproof MS-4 collar key, and additional MS-5 waterproof keys are available for purchase. These collar keys can be programmed to work at a range of 1 to 10 feet from the door, allowing you to customize the access distance for each pet.
Designed with your pet's comfort and ease of use in mind, this automatic pet door is a game-changer for busy households.
Looking for something else? Take a look at our full selection of the best electronic dog doors.
Features:
- Automatic opening and closing pet door, requiring no physical push from your pet.

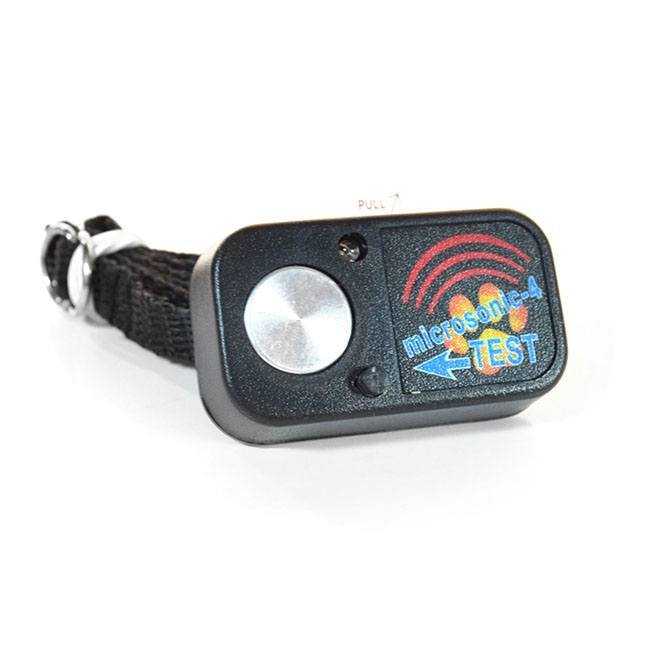

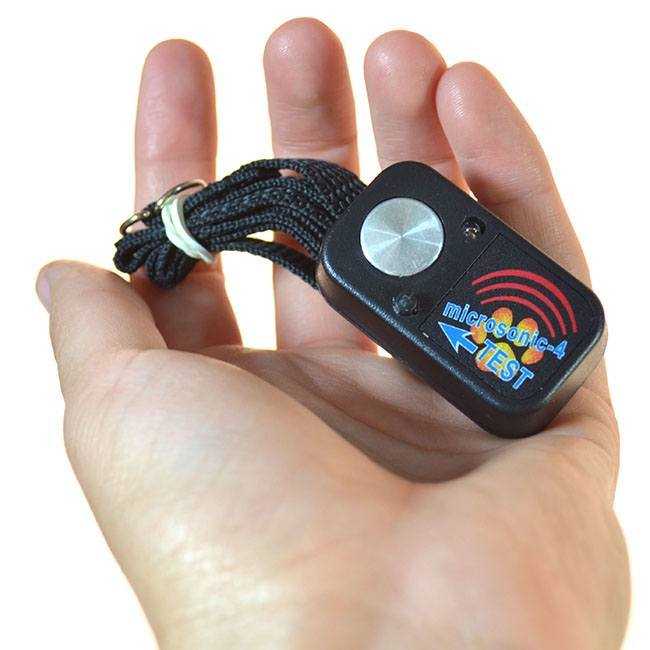

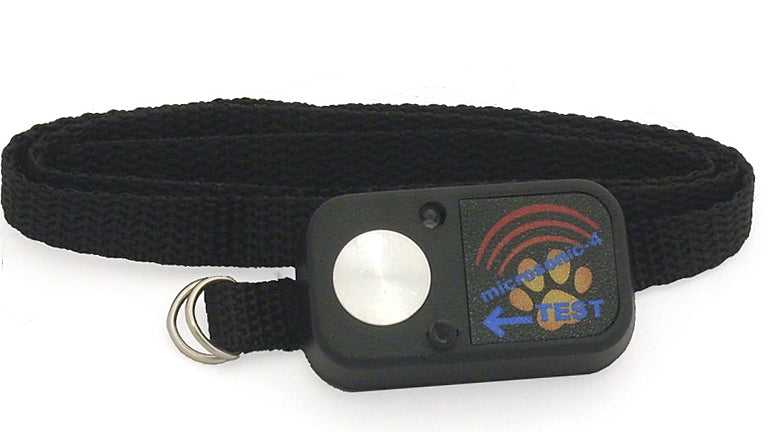

- Responsive to MS-4 water-resistant ultrasonic collar keys, ensuring only authorized access.
- Quiet motorized flap lifts for a seamless entry and exit experience.
- Automatic deadbolt locking system for added security against raccoons and strays.

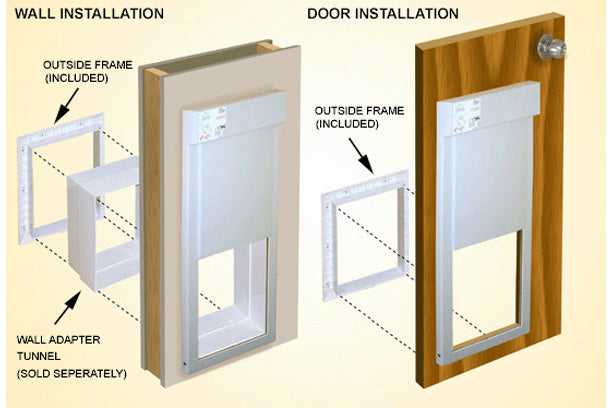

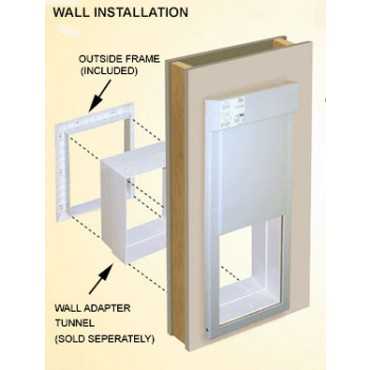

- Can be installed in various door materials and walls with optional wall kit.
- 3 options available for powering the power pet electronic pet door:
- Outlet: comes with a UL-approved AC adapter with 5 feet long cord. Plug the adapter into a nearby wall outlet for continuous operation. The pet door accepts the plug-in on either side.
- Outlet with back-up battery: option of purchasing a rechargeable battery for use along with your AC adapter (5' long cord). In the case of a power outage, the door will automatically switch over to door battery operation, which will run on their own power. When power is restored, the AC adapter will automatically recharge the battery.
- Fully Battery Operation: If an AC outlet isn't located nearby, you can operate the door on battery only. Please note that you will need to recharge the battery periodically. For this type of operation, the battery charger kit and spare battery is recommended.
- Since the door panel weighs less than 2 lbs. and closes smoothly by gravity (not motor), it will not cause any injury to your pet. But for your peace of mind, this pet door comes with a unique Automatic Safety Retract feature that reopens the door if it encounters an obstruction during closure.

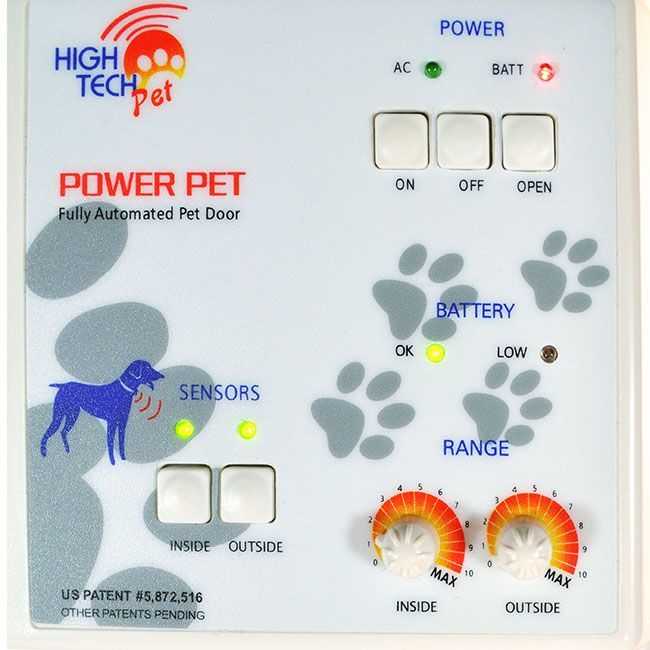

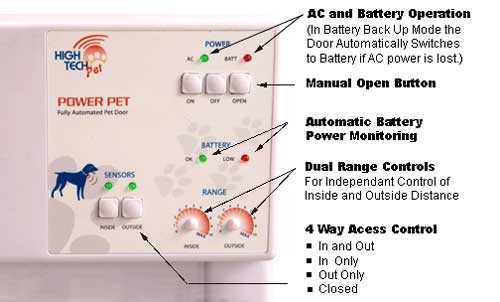

- The collar keys can be programmed to work at a range from 1 ft to 10 ft from the door (inside and outside distance can be adjusted independently). Just push the SENSORS button then turn the RANGE knob to the desired range.
Benefits:
- Regular height ranges run from medium to large sizes allow for pets of varying height to share the pet door.
- Automatic lifting promotes comfortable use for the pet.
- Quiet and non-physical contact pet door uses inaudible, high frequency sound barrier access control - ideal for timid pets.
- Wall outlet adapter ensures that you do not have to worry about losing dual-range controls with a dead battery.
- Airtight system holds up well in the cold weather.
Size Chart
- PXC 1 w/ MS-5 Collar Key 8 1/4"w x 10"h
- PX-2 w/ MS-5 Collar Key 12 1/4"w x 16"h
Flap Dimensions:
8 1/4"w x 10"h
The entry way your dog goes through.Outside Frame Dimension:
Interior Frame:12"w x 28 5/8"h
Exterior Frame: 11 3/8"w x 13 3/4"h
The outer edge of the pet door.


Rough Cut Out::
8.88"w x 11.25"h
The size of the hole needed to fit your pet door into your door.Flap Dimensions:
12 1/4"w x 16"h
The entry way your dog goes through.Outside Frame Dimensions:
Interior Frame: 16"w x 40 5/8"h
Exterior Frame: 15 1/4"w x 19 7/8"h
The outer edge of the pet door.


Rough Cut Out:
12.88"w x 17.25"h
The size of the hole needed to fit your pet door into your door.Flap Size | Mfr Model | Flap Dimension | Rough Cut Out Dimension | Interior Outside Frame Dimension | Exterior Outside Frame Dimension | Recommended Pet Height |
---|---|---|---|---|---|---|
Medium | PX-1 w/ MS-5 Collar Key | 8 1/4" w x 10" h | 8.88" w x 11.25" h | 12" w x 28 5/8" h | 11 3/8" w x 13 3/4" h | 8" - 15" |
Large | PX-2 w/ MS-5 Collar Key | 12 1/4" w x 16" h | 12.88" w x 17.25" h | 16" w x 40 5/8" h | 15 1/4" w x 19 7/8" h | 8" - 24" |
Do not know which flap size to get? Here is a measurement guide to help you out
MS-5 Collar key is waterproof and recommended for dogs that swim or are more active.
Find The Best Pet Door Size For My Pet

A
Pet Height: inches
B
Pet Width: inches
Installation Instructions

Parts
- Interior Frame Pre-Attached to Power Pet Door
- Exterior Frame
- Mounting Screws
- MS-4 Collar Key
- AC Adapter
Tools
- Pencil
- Measuring Tape
- Level
- Screwdriver
- Jigsaw or Reciprocating Saw
Step 1 Installation Notes

- Framing is not necessary if mounting in a door up to 2" thick.
- Your Power Pet Door comes with a pre-made outer frame that will complete the look of the door around the opening.
- Note that the pet door dimensions on the site are for the rough cut-out, not including the frame.
Step 2 Make the Rough Cutout




- Cut the hole in your door according to the diagrams.
- Install the attached inner frame.
- Install the outer frame.
Step 3 Initial Power Up

- Plug the AC adaptor into a 110 VAC wall outlet.
- Plug the adaptor cord into one of the Power Input Jacks on the inside frame.
- Press the front panel ON button to power up the door. Make sure the AC light turns on.
- Press the OPEN button and check that the dog/cat door panel opens/closes.
FAQ
What is the opening of the High Tech Model PX2? That is the large door with a 12 1/4"w x 16"h opening. |
Does my dog have to wear the collar tag to use the door? Yes. Check out our top electronic dog door picks to discover doors with different key options. |
How much does shipping cost? Shipping is calculated at checkout. |
Warranty
High Tech Pet Products Warranty:
All of our products carry a full one year warranty (with the exception of replacement collar key batteries. If your product fails to operate at any time, for any reason, within one year of the original delivery date we will repair or replace it at our expense, no questions asked. If it doesn't work, send it back, get another one. It's that quick and easy.
Guidelines:
Your product must be returned to High Tech Pet Products and must be clean and free of pet hair, dust and dander. Items that are dirty or containing pet hair and requiring cleaning will be subject to a charge equal to 25% of the original purchase price. We will ship the repaired or replaced product back to you via FedEx Ground or USPS priority mail, at our expense however, you are responsible for the cost of shipping the defective product to us.
In no case will High Tech Pet Products arrange or pay for the shipping of the defective product from your location to ours. Should you request the product to be sent out via air service, we will be happy to accommodate your request however, you will be required to pay the entire cost of the expedited service. ALL products, including pet doors, must be returned to us before we send out a replacement unit.
We must receive and examine the defective unit before the repaired or replaced unit is shipped out to you. There are no exceptions to this policy. When returning a product for repair or replacement, you must allow at least 1 – 2 weeks for replacement plus shipping time each way. In some cases, especially for special order items, the replacement time may be longer.
