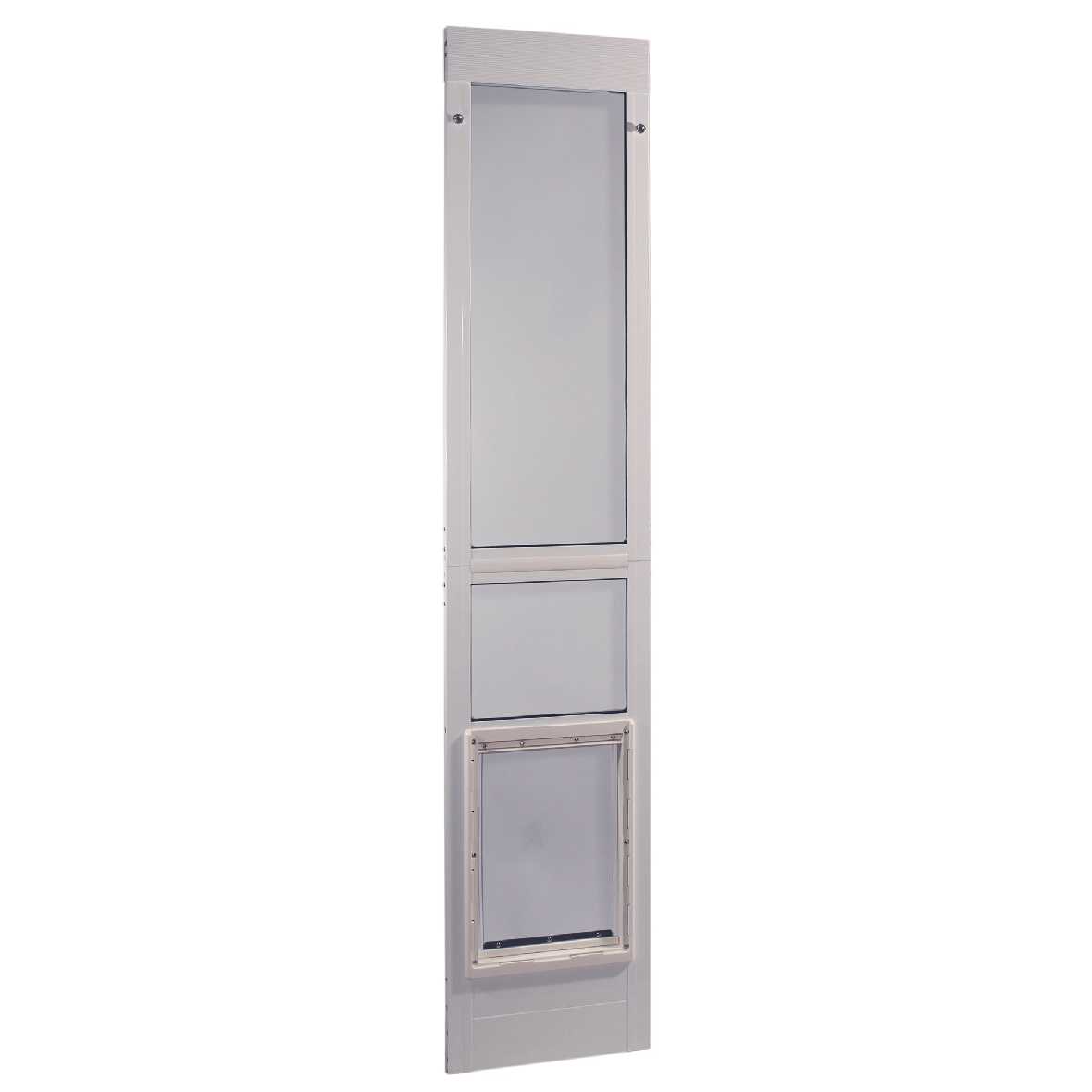

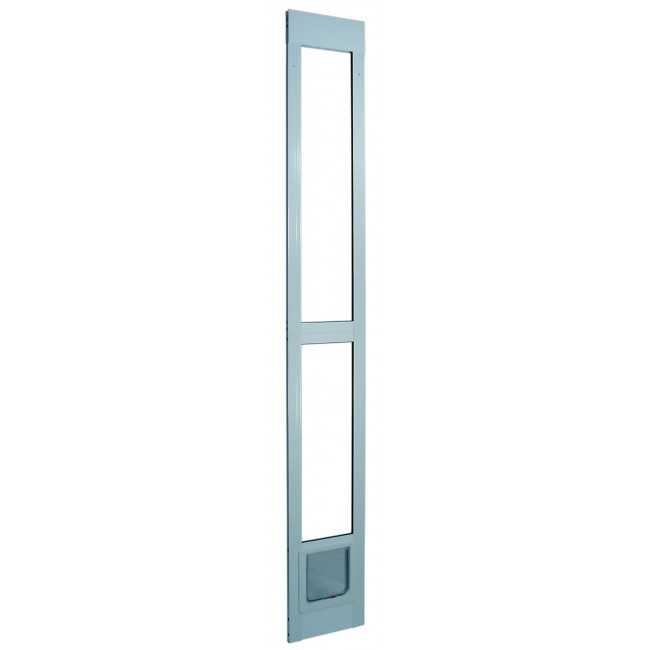

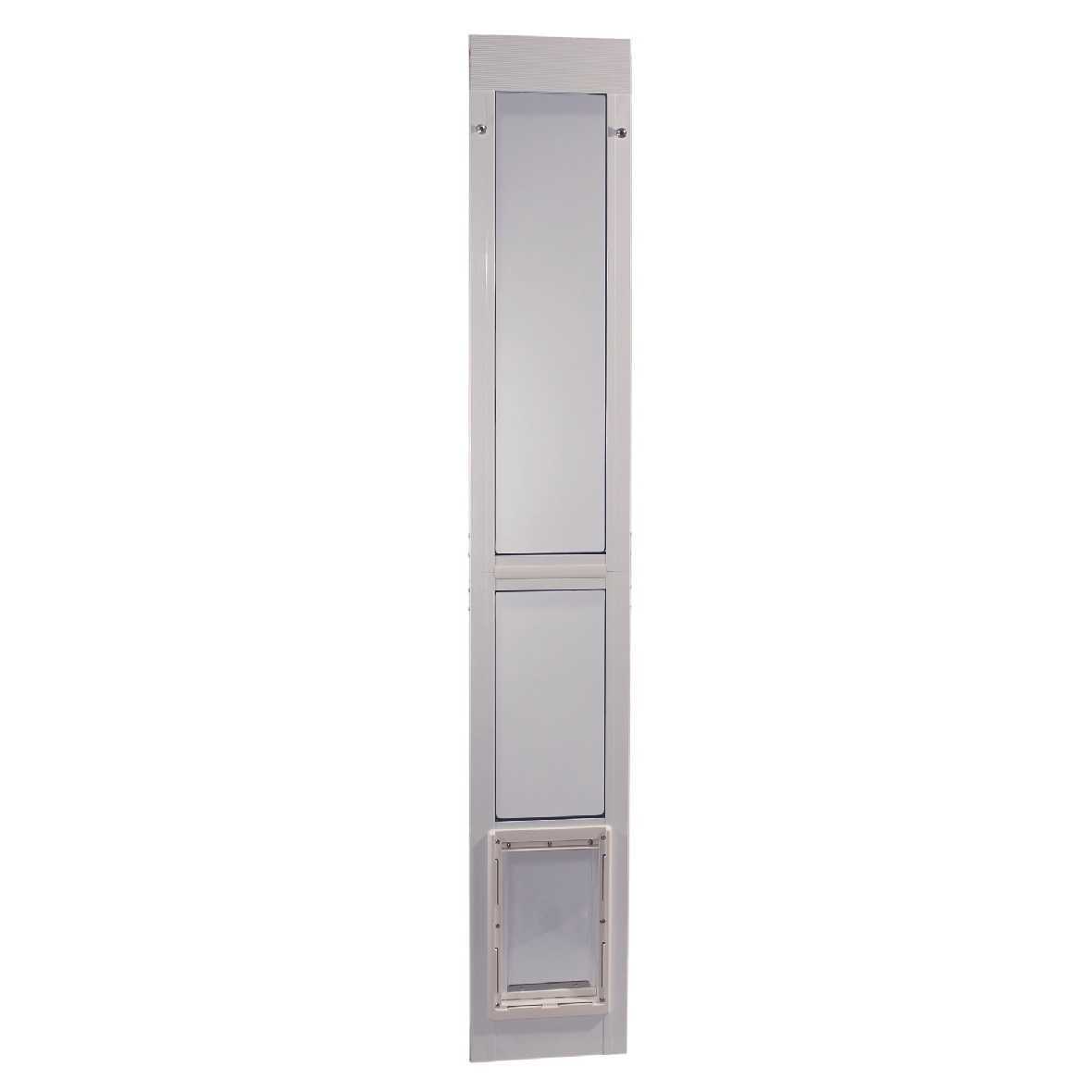

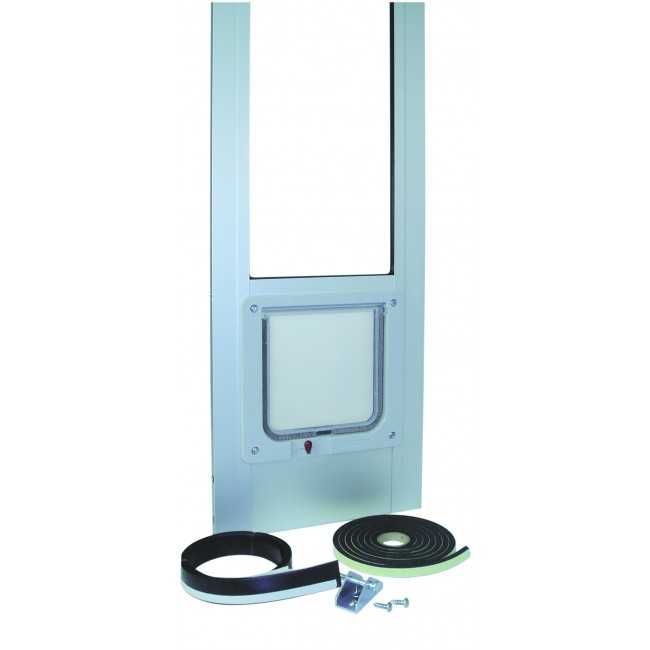

Ideal Modular Patio Pet Door Insert
- Modular pet patio door panel allows it to be shipped in two pieces
- Two-piece design for safer shipping
- Designed for mild climates
- Tool-free installation

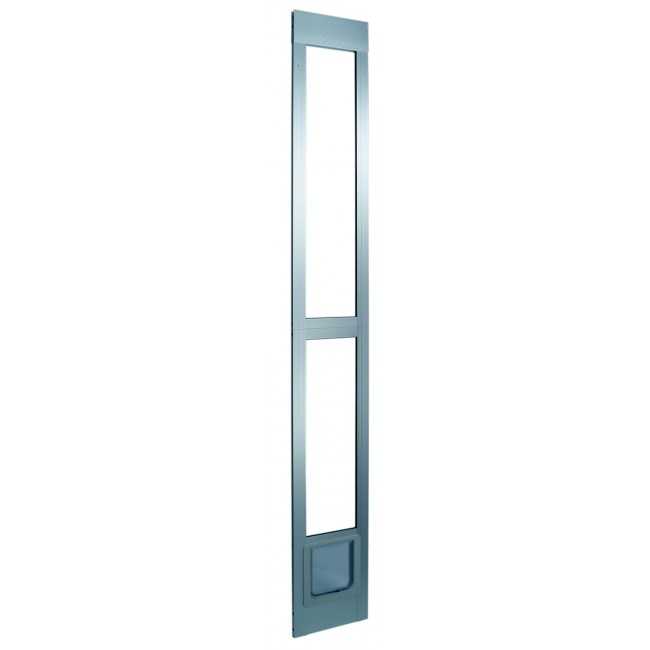

- Available in white or brushed aluminum (silver)
Product Details
The Ideal Modular Pet Patio Door Panel is a two-piece pet door designed to eliminate shipment hassles. The two-piece sliding door dog door panel is similarly constructed to the Ideal Fast Fit when assembled. This modular doggie door has a spring-loaded design and is engineered with single-pane, tempered glass, and a flexible vinyl flap to function best in mild climates. The two parts are shipped individually and connect together at the center during installation, resulting in one whole sliding door dog door insert.
Features:
- Spring-loaded adjustment piece for quick, tool-free installation
- Patio door panel insert fits the following track heights:
- 77 ⅝” ‒ 80 ⅜” (exact height range) available in White or Aluminum; for Cat Flap to XL flap sizes
- 93 ¾” – 96 ½” available in White Only; for Small to Super Large flap sizes
- Track width must be at least ⅞”
- Sturdy, extruded aluminum frame
- Cat Flap is clear, rigid Lexan flap with 4-way lock
- S-XL has a Clear & flexible vinyl flap
- Available in white and brushed aluminum
- ABS plastic locking cover provided for home security
- Extreme weather weatherstripping draft stopper included to seal any gaps
- Pin lock for door flap provided to secure the sliding glass door requires drilling. If you don’t want a permanent lock installation, you can purchase a Charley Bar
- Available in four sizes for cats to large dogs
- Designed for energy efficiency in moderate climates
Benefits:
- Tool-free installation is great for rentals and vacation homes
- Clear, flexible flap is easy for pets to use
- Works for both felines and canines
- Safer shipping due to shorter box design
Size Chart
- Cat Flap6 1/4"w x 6 1/4"h
- Small5"w x 7"h
- Medium7"w x 11"h
- Extra Large10 1/2"w x 15"h
- Super Large15"w x 20"h
Flap Dimensions:
6 1/4"w x 6 1/4"h
The entry way your dog goes through.Step Over Range:
4"h
Distance from the bottom of the flap to the floor you pet must step over to enter the pet door.
Overall Panel Width:
10"
How wide the panel is overall.Flap Dimensions:
5"w x 7"h
The entry way your dog goes through.Step Over Range:
2"h
Distance from the bottom of the flap to the floor you pet must step over to enter the pet door. Overall Panel Width:
9 3/4"
How wide the panel is overall.Flap Dimensions:
7"w x 11"h
The entry way your dog goes through.Step Over Range:
4"h
Distance from the bottom of the flap to the floor you pet must step over to enter the pet door. Overall Panel Width:
11 7/16"
How wide the panel is overall.Flap Dimensions:
10 1/2"w x 15"h
The entry way your dog goes through.Step Over Range:
8"h
Distance from the bottom of the flap to the floor you pet must step over to enter the pet door. Overall Panel Width:
15 1/4"
How wide the panel is overall.Flap Dimensions:
15"w x 20"h
The entry way your dog goes through.Step Over Range:
8"h
Distance from the bottom of the flap to the floor you pet must step over to enter the pet door. Overall Panel Width:
19 5/8"
How wide the panel is overall.| Flap Size | Flap Dimension | Step Over | Overall Panel Width | Recommended Pet Height* |
|---|---|---|---|---|
| Cat Flap | 6 ¼" x 6 ¼" | 4" | 10" | 4" - 8" |
| Small | 5" w x 7" h | 2" | 9 3⁄4" | 4" - 9" |
| Medium | 7" w x 11" h | 4" | 11 7⁄16" | 4" - 16" |
| Extra Large | 10 1⁄2" w x 15" h | 8" | 15 1⁄4" | 4" - 22" |
| Super Large | 15" w x 20" h | 8" | 19 5⁄8" | 4" - 30" |
The recommended pet width is generally 1 – 2" added to the width of the flap.
Still do not know which flap size to get? Here is a measurement guide to help you out.
Height Adjustment Ranges:
- 77 5⁄8" – 80 3⁄8" (Cat Flap through Extra Large Flap Sizes; White or Brushed Aluminum)
- 93 ¾” – 96 ½” (Small Flap through Super Large Flap Sizes; White Only)
Replacement Flaps: You will need to choose a Replacement Flap.
Wondering how to measure your track? Review our Track Measuring Guide.
Find The Best Pet Door Size For My Pet
A
Pet Height: inches
B
Pet Width: inches
Installation Instructions
Difficulty
Easy
Steps
07
Time Required
0.5 hours
Sections
01
Flags
01

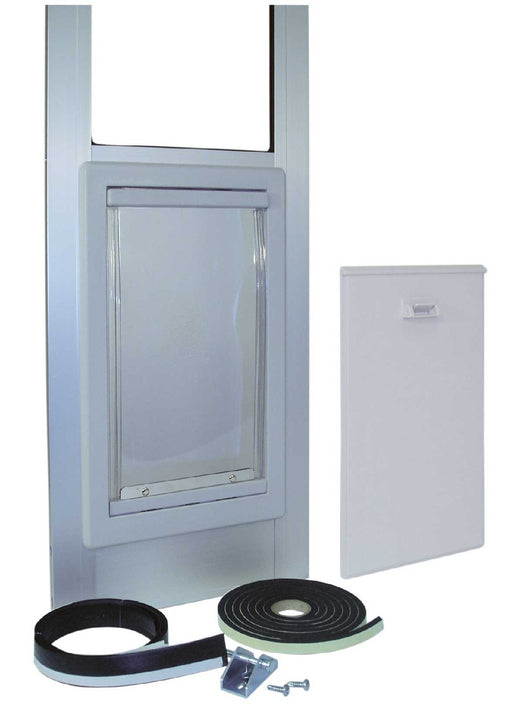

Parts
- Modular Pet Door Panel Sections
- Bumper Seal
- Draft Seal (optional)
- Aluminum Lock
- Locking Cover
Tools
- Screwdriver
- Scissors
Please read instructions & notes thoroughly before installation.
Step 1 Remove Screws
- Remove the screws from the posts on the lower section of the pet door and save them for the next step.
Step 2 Assemble the Pieces
- Assemble the two halves of the panel by sliding the top section into the posts on the bottom section. Press firmly together to create a single panel.
Step 3 Replace the Screws
- Replace the screws into the assembly.
- Use a Phillips head screwdriver to tighten the screws.
- Continue until all four screws have been replaced.
Step 4 Un
- With the panel standing upright, unlock the spring-loaded top section by turning the knobs together slowly to the left.
- Lift the pet door panel slightly to sit in the bottom of the sliding door track.
- Once in place, push the pet door panel tightly against the sliding door jamb. Close the slider to check the fit.
Step 5 Tighten the Knobs
- Check that there are no gaps between the pet door panel and your slider.
- Once in place, make sure the top section is fully extended into the upper track.
- Hand tighten the knobs by turning them to the right. Do not overtighten.
Step 6 Apply the Bumper Seal
- Beginning at the bottom of the pet door, roll the bumper seal along the edge of the pet door while removing the adhesive to attach it to the panel.
- Run the seal the entire length of the pet door. Press firmly and keep the seal as straight as possible.
- Remove any excess seal with a pair of scissors.
Step 7 Install the Draft Seal (optional)
- The draft seal should start just above the bottom frame of your slider and should run as close to the glass of the sliding glass door as possible.
- Remove the adhesive as your roll the draft seal along the stationary edge of your sliding door panel all the way up as far as it will reach.
- The Draft seal comes in two pieces. Place the second as seamlessly as possible above the first piece and continue until the top of the glass is reached.
- Cut any excess with scissors.
Videos
How to Measure Your Sliding Glass Door for a Pet Door
FAQ
|
Does this door come in a taller height? No, there is only one height adjustment. They do make another model, the Ideal Fast Fit, that has more track height options. |
|
It the door easy to install? The modular patio door is meant to be more of a DIY temporary installation, check out the videos tab for a preview. |
|
Is this door good for extreme climates? The modular patio door doggy door is really a great product for 3 season moderate climates. |
|
What is the flap made of? The high-quality flap door is a clear flexible vinyl. |
|
Can the flaps be replaced? Yes, we carry Ideal original and deluxe replacement flaps. |
|
What is the frame made of? Aluminum |
|
How do I measure my track? You would need to measure from the deepest part inside the bottom track up into the deepest part of the top tack. |
|
Can I use my sliding door lock? You would not be able to use your existing lock, but they do include a pin type lock. |
|
Would large and small pets be able to share? The flap is easier to push open, however the step over might be a bit tall for smaller pets to use if you go with the Extra Large. |
|
Can I get a replacement frame? Yes, you can purchase the Ideal replacement flap and frame assembly. |
|
How much does shipping cost? Shipping is calculated at checkout. |
Warranty
Disclaimer:
The new and revised warranty that follows this disclaimer supersedes any and all previous warranties of whatever nature or description, whether express, implied or set by law. Any unexpired warranties shall now be governed by the terms of the new warranty for the duration of the existing warranty’s unexpired term.
One Year Warranty:
Ideal’s pet doors are very durable and with the proper care will provide many years of service for you and your pet. Thank you for selecting Ideal for your pet door. However, please be aware the pet doors are not waterproof against inclement weather or any excessive water exposure. The one year warranty set forth below applies to Ideal’s pet door(s).
This product has a One Year Warranty from the date of the purchase of the product to be free of manufacturer’s defects in workmanship and materials. This express One Year Warranty is limited only to the original purchaser of the product and is non-transferable. Satisfactory proof of purchase must be provided to the manufacturer for this one year warranty to apply. In that case, the manufacturer will replace at no charge to the purchaser the defective part(s). No refunds will be provided to the purchaser. No service contract is being provided under this One Year Warranty. Proof of purchase so that the One Year Warranty may be honored must be made to:
Ideal Pet Products, Inc.
24735 Avenue Rockefeller
Valencia, California, USA 91355
Attention: Warranty Department
(661) 294-2266 / 1-877-IDEALPET (433-2573)
Any and all implied warranties are expressly disclaimed and of no force or effect. These warranties include, but are not limited to, the implied warranties of merchantability, implied fitness for any intended purpose, and any warranties under the California Song-Beverly Consumer Act.
This One Year Warranty is void if the damage is due to improper installation, intentional misuse or abuse, repairs by anyone other than the manufacturer, the failure to follow manufacturer’s instructions, or if the product is being used for commercial purposes. Purchaser assumes all risks and liabilities for the misuse or abuse of the product, the commercial use of the product, or the failure to follow the manufacturer’s instructions.
This One Year Warranty only applies if the product is used for domesticated animals. The Manufacturer, Ideal, is not responsible and shall not have any liability for any damage to or defects caused by acts of God, criminal activity, dog abuse including, but not limited to chewing on the door, lightening, abuse, alteration, trespassing, children’s use of the product, unauthorized access, entry by non-domesticated or “stray” animals, or any other unintended use or misuse of the product.
The Manufacturer, Ideal, disclaims and excludes any liability for incidental, consequential, punitive, general, special, or other damages arising out of or connected with the purchase, use, or misuse of the product or concerning any warranty herein.
This One Year Warranty shall be governed by the laws of the State of California, USA. Venue shall be with the Los Angeles Superior Court, North Valley District.
Warning:
This product, or any of its accessories, parts, or attachments may not prevent adults, children, animals, insects, or objects from passing through or using the opening created by the product.
Ideal Pet Products will not be liable for any unintended or accidental usage, misuse, abuse, criminal conduct, water intrusion, acts of god, damages or injuries occurring or accruing from the use of this product except in strict accordance with Ideal's One Year Warranty accompanying the sale of this product to the original purchaser.
Customer Reviews
Size Chart
- Cat Flap6 1/4"w x 6 1/4"h
- Small5"w x 7"h
- Medium7"w x 11"h
- Extra Large10 1/2"w x 15"h
- Super Large15"w x 20"h
Flap Dimensions:
6 1/4"w x 6 1/4"h
The entry way your dog goes through.Step Over Range:
4"h
Distance from the bottom of the flap to the floor you pet must step over to enter the pet door. Overall Panel Width:
10"
How wide the panel is overall.Flap Dimensions:
5"w x 7"h
The entry way your dog goes through.Step Over Range:
2"h
Distance from the bottom of the flap to the floor you pet must step over to enter the pet door. Overall Panel Width:
9 3/4"
How wide the panel is overall.Flap Dimensions:
7"w x 11"h
The entry way your dog goes through.Step Over Range:
4"h
Distance from the bottom of the flap to the floor you pet must step over to enter the pet door. Overall Panel Width:
11 7/16"
How wide the panel is overall.Flap Dimensions:
10 1/2"w x 15"h
The entry way your dog goes through.Step Over Range:
8"h
Distance from the bottom of the flap to the floor you pet must step over to enter the pet door. Overall Panel Width:
15 1/4"
How wide the panel is overall.Flap Dimensions:
15"w x 20"h
The entry way your dog goes through.Step Over Range:
8"h
Distance from the bottom of the flap to the floor you pet must step over to enter the pet door. Overall Panel Width:
19 5/8"
How wide the panel is overall.| Flap Size | Flap Dimension | Step Over | Overall Panel Width | Recommended Pet Height* |
|---|---|---|---|---|
| Cat Flap | 6 ¼" x 6 ¼" | 4" | 10" | 4" - 8" |
| Small | 5" w x 7" h | 2" | 9 3⁄4" | 4" - 9" |
| Medium | 7" w x 11" h | 4" | 11 7⁄16" | 4" - 16" |
| Extra Large | 10 1⁄2" w x 15" h | 8" | 15 1⁄4" | 4" - 22" |
| Super Large | 15" w x 20" h | 8" | 19 5⁄8" | 4" - 30" |
The recommended pet width is generally 1 – 2" added to the width of the flap.
Still do not know which flap size to get? Here is a measurement guide to help you out.
Height Adjustment Ranges:
- 77 5⁄8" – 80 3⁄8" (Cat Flap through Extra Large Flap Sizes; White or Brushed Aluminum)
- 93 ¾” – 96 ½” (Small Flap through Super Large Flap Sizes; White Only)
Replacement Flaps: You will need to choose a Replacement Flap.
Wondering how to measure your track? Review our Track Measuring Guide.
Find The Best Pet Door Size For My Pet
A
Pet Height: inches
B
Pet Width: inches
Installation Instructions
Difficulty
Easy
Steps
07
Time Required
0.5 hours
Sections
01
Flags
01
Parts
- Modular Pet Door Panel Sections
- Bumper Seal
- Draft Seal (optional)
- Aluminum Lock
- Locking Cover
Tools
- Screwdriver
- Scissors
Please read instructions & notes thoroughly before installation.
Step 1 Remove Screws
- Remove the screws from the posts on the lower section of the pet door and save them for the next step.
Step 2 Assemble the Pieces
- Assemble the two halves of the panel by sliding the top section into the posts on the bottom section. Press firmly together to create a single panel.
Step 3 Replace the Screws
- Replace the screws into the assembly.
- Use a Phillips head screwdriver to tighten the screws.
- Continue until all four screws have been replaced.
Step 4 Un
- With the panel standing upright, unlock the spring-loaded top section by turning the knobs together slowly to the left.
- Lift the pet door panel slightly to sit in the bottom of the sliding door track.
- Once in place, push the pet door panel tightly against the sliding door jamb. Close the slider to check the fit.
Step 5 Tighten the Knobs
- Check that there are no gaps between the pet door panel and your slider.
- Once in place, make sure the top section is fully extended into the upper track.
- Hand tighten the knobs by turning them to the right. Do not overtighten.
Step 6 Apply the Bumper Seal
- Beginning at the bottom of the pet door, roll the bumper seal along the edge of the pet door while removing the adhesive to attach it to the panel.
- Run the seal the entire length of the pet door. Press firmly and keep the seal as straight as possible.
- Remove any excess seal with a pair of scissors.
Step 7 Install the Draft Seal (optional)
- The draft seal should start just above the bottom frame of your slider and should run as close to the glass of the sliding glass door as possible.
- Remove the adhesive as your roll the draft seal along the stationary edge of your sliding door panel all the way up as far as it will reach.
- The Draft seal comes in two pieces. Place the second as seamlessly as possible above the first piece and continue until the top of the glass is reached.
- Cut any excess with scissors.
Videos
How to Measure Your Sliding Glass Door for a Pet Door
FAQ
|
Does this door come in a taller height? No, there is only one height adjustment. They do make another model, the Ideal Fast Fit, that has more track height options. |
|
It the door easy to install? The modular patio door is meant to be more of a DIY temporary installation, check out the videos tab for a preview. |
|
Is this door good for extreme climates? The modular patio door doggy door is really a great product for 3 season moderate climates. |
|
What is the flap made of? The high-quality flap door is a clear flexible vinyl. |
|
Can the flaps be replaced? Yes, we carry Ideal original and deluxe replacement flaps. |
|
What is the frame made of? Aluminum |
|
How do I measure my track? You would need to measure from the deepest part inside the bottom track up into the deepest part of the top tack. |
|
Can I use my sliding door lock? You would not be able to use your existing lock, but they do include a pin type lock. |
|
Would large and small pets be able to share? The flap is easier to push open, however the step over might be a bit tall for smaller pets to use if you go with the Extra Large. |
|
Can I get a replacement frame? Yes, you can purchase the Ideal replacement flap and frame assembly. |
|
How much does shipping cost? Shipping is calculated at checkout. |
Warranty
Disclaimer:
The new and revised warranty that follows this disclaimer supersedes any and all previous warranties of whatever nature or description, whether express, implied or set by law. Any unexpired warranties shall now be governed by the terms of the new warranty for the duration of the existing warranty’s unexpired term.
One Year Warranty:
Ideal’s pet doors are very durable and with the proper care will provide many years of service for you and your pet. Thank you for selecting Ideal for your pet door. However, please be aware the pet doors are not waterproof against inclement weather or any excessive water exposure. The one year warranty set forth below applies to Ideal’s pet door(s).
This product has a One Year Warranty from the date of the purchase of the product to be free of manufacturer’s defects in workmanship and materials. This express One Year Warranty is limited only to the original purchaser of the product and is non-transferable. Satisfactory proof of purchase must be provided to the manufacturer for this one year warranty to apply. In that case, the manufacturer will replace at no charge to the purchaser the defective part(s). No refunds will be provided to the purchaser. No service contract is being provided under this One Year Warranty. Proof of purchase so that the One Year Warranty may be honored must be made to:
Ideal Pet Products, Inc.
24735 Avenue Rockefeller
Valencia, California, USA 91355
Attention: Warranty Department
(661) 294-2266 / 1-877-IDEALPET (433-2573)
Any and all implied warranties are expressly disclaimed and of no force or effect. These warranties include, but are not limited to, the implied warranties of merchantability, implied fitness for any intended purpose, and any warranties under the California Song-Beverly Consumer Act.
This One Year Warranty is void if the damage is due to improper installation, intentional misuse or abuse, repairs by anyone other than the manufacturer, the failure to follow manufacturer’s instructions, or if the product is being used for commercial purposes. Purchaser assumes all risks and liabilities for the misuse or abuse of the product, the commercial use of the product, or the failure to follow the manufacturer’s instructions.
This One Year Warranty only applies if the product is used for domesticated animals. The Manufacturer, Ideal, is not responsible and shall not have any liability for any damage to or defects caused by acts of God, criminal activity, dog abuse including, but not limited to chewing on the door, lightening, abuse, alteration, trespassing, children’s use of the product, unauthorized access, entry by non-domesticated or “stray” animals, or any other unintended use or misuse of the product.
The Manufacturer, Ideal, disclaims and excludes any liability for incidental, consequential, punitive, general, special, or other damages arising out of or connected with the purchase, use, or misuse of the product or concerning any warranty herein.
This One Year Warranty shall be governed by the laws of the State of California, USA. Venue shall be with the Los Angeles Superior Court, North Valley District.
Warning:
This product, or any of its accessories, parts, or attachments may not prevent adults, children, animals, insects, or objects from passing through or using the opening created by the product.
Ideal Pet Products will not be liable for any unintended or accidental usage, misuse, abuse, criminal conduct, water intrusion, acts of god, damages or injuries occurring or accruing from the use of this product except in strict accordance with Ideal's One Year Warranty accompanying the sale of this product to the original purchaser.
- Reviews
- Questions
yay
So I am in the army and based in Japan. Fed Ex would not deliver to our base only the usps would. So as all the other panels were too large, this one was able to be delivered to the base as it can be shipped in two separate pieces. The quality of the door is what I expected to see based on the price. I had to modify it it some to make sure it stayed secure in the frame. It is not as insulating in our cold nights, but it does do a great job in the mild weather. I would recommend it to any army or service member living overseas as its an easier door to get shipped and its a great temporary door as well.
Not stable or secure
The middle of the panel flexes a lot. There needs to be another brace or spacer to keep it firmly in place. Also with the insulation between the two surfaces there is a huge gap, so its not latchable.
Or any enclosed space and saveI highly recommend this device.
We have been using one of these for almost 2 years. It allows our two cats to go freely from our home onto our lanai and then allows us to shut things down for the night or wheneverwe want them to stay inside such as if our landscaping or grass is being sprayed with chemicals. I found the unit to be very well constructed and it's measurements to be accurate. I wouldn't be too concerned about trying to secure a sliding door as any burglar worth their salt can pop a sliding door out of its track in two minutes. You should also look at how your current door or doors are aligned since this does require one door to be essentially open all the time it may not allow your other door to open as far as it used to. It wasn't a problem for us but it may be if you need the entire width that you used to have. Again this depends on if you have a 3 foot or 4 foot door also. If you really feel that you need some type of "security" device for the door you can use most any of the devices that are made for sliding doors. I would also not suggest using the foam tape that they give you to fill the gap between the two sliding doors. Are you home and rubber seals that are attached to the door itself are of a higher enough quality that they will mold to most any track and appear to be very durable as I see no degradation after two years of use. Remember, this will be just like having one of your doors partway open all the time and because of that the two doors will overlap approximately 10 to 12 inches and there will be a space in between where air can freely move in and out. Rather than use the the thin foam tape that they gave us we simply purchased a link of the black pipe insulation foam that you'll find at any home Center. If you slice that foam in half you will find that it slides easily into an opening and can be removed easily but seals perfectly. We think this was the best solution for us but if you are opening your doors constantly do you from two will have to be removed and replaced after each opening. While this takes approximately 20 seconds some people may find that an irritation. I purchased an extra flap because I didn't know how long they would last. But after two years our original flap shows no ware other than the normal oil's that your cat will put on the flap when they push it open. Simple cleaning every couple of weeks will take care of that. If you are using this because your cat litter pan smells bad and you're going to stick it out in some location where you cat has to go there to use the cat pan, I'd suggest you do a better job of keeping the cat pan clean instead of this door. This door should be used to give cats freedom to go onto the porch or lanai Or any enclosed space and save you the trouble of having to go to the door every time they want to go out or come in. I highly recommend this device.
mostly satisfied
I'm pretty satisfied with my purchase my only complaint is that my slider does not lock into the pet door. Which leaves me vulnerable to burglars. It would be nice if you fixed this.

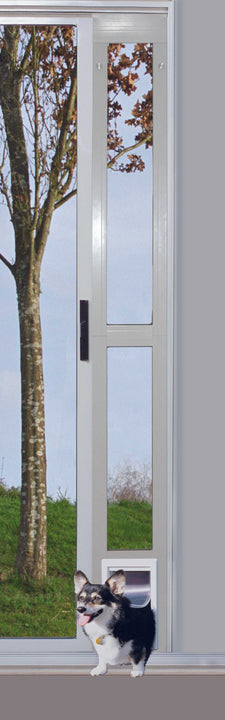

Ideal Modular Pet Patio Door is Ideal for Our Purposes
Glad I found this product. It's great. We live on the 4th floor of a small apartment and have a covered patio. We wanted to put the cat's litter on the patio so we don't have to live with the smell. For awhile, we just kept our patio door open a few inches, then it became cold. The Ideal Modular Door was perfect and exactly as advertised. I followed the instructional video and set it up in about 15 minutes. The cat now goes in and out by herself and our place is stink free. Be sure you measure the inside of the track. That is important. This model does not have a lock but we aren't too concerned about a break in via our patio. If I were in a house, I'd have some concerns, even with a lock, though I think some models sold are semi-permanent. The modular doors would be easy enough to bypass. If the door were breached by a burglar they might be able to squeeze through the opening if they were a small-framed person. That said, this is a great product for the price. ed. note. The Modular pet door should have come with an Ideal dead bolt lock. A Charley Bar is another great solution to locking the sliding glass door.
