Hale "Omni" Panel Pet Door for sliding glass doors
Hale Pet Doors (formerly Hale Security Pet Doors) offers the Hale OMNI Patio Pet Door which features insulated glass and a two-flap pet door for high energy efficiency.
The Hale Omni Panel featured on this product page has a slender frame intended to reduce the amount of door opening you lose when using this pet door. The OMNI panel is secured by means of a patented nut and bolt assembly that exerts pressure, making a very secure fit. The OMNI panel is not screwed into the door frame, so there will be no holes in the door frame if the OMNI is removed. The OMNI is locked by means of a drop bar type lock that is installed behind the slider.

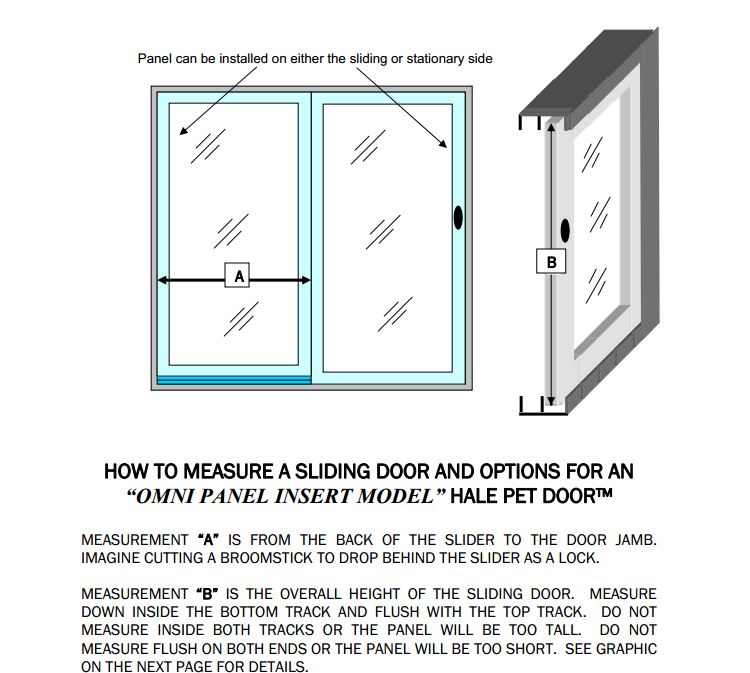

We will need the "G" measurement with your order. "G" is the measurement from the trailing edge of the sliding glass door to the jamb of the stationary side with your sliding glass door closed. This important measurement is used to determine the length of the locking bar used to lock the patio door against the Omni panel.
Locking covers match pet door frame colors and are constructed of 1/4” thick King Starboard® polymer sheet. Extremely shock and impact resistant. The polycarbonate locking covers formerly used have been discontinued.
Because these pet doors are built custom to your specification, returns will be allowed a 50% credit toward the purchase of a different Hale Pet Door.
There are quite a few details that might be important for you to think about in purchasing any panel pet door. Begin with key points to get a quick overview of the most important issues. Then study the comparison chart and read the information on the patio panel FAQ page which cover the fine points of patio pet doors.
All Hale pet doors come standard with "polar" flaps--a vinyl that is more flexible in cold weather than "regular" vinyl.
Very flexible 'training' flaps may be ordered for pets who are initially resistant to pushing through the regular flaps.
Important The Omni panel may be installed in Anderson and Pella units.
Shipping Allow about 3 weeks for shipping from the factory plus 1-5 days transit time to you.
Please read these instructions carefully and completely before attempting to install Hale Pet Doors; they will guide you through the steps and precautions needed for an Omni panel installation. Illustrations and pictures have been added to help you understand various instructions. Hale Pet Doors are designed for ease of installation and are ideal for most sliding patio doors. Do not make any cuts or modifications to the Hale Omni Panel™ Insert. This may invalidate the warranty.
A SAFETY REMINDER!
Always wear eye protection and gloves when appropriate.
Step 1: Before installation, be sure that you have the proper size pet door for your pet. If in doubt, larger is better. It may be harmful for your pet to use a pet door that is too small.
Step 2: Take a brief look at the large illustrations of the Omni panel at the bottom of this page and figure 1 on the next page and become familiar with the various components of this pet door model. This will not only help in understanding the terms used in these instructions, but it can be very useful should you need to call for technical support.
Step 3: Check the package you received to make sure it contains all the necessary parts.
Complete Kit includes:
Hale Omni Panel™ Insert
Omni Panel Extension
Starboard® or Lexan® Security Cover
Two strips of gray pile weather-stripping
Thermal Bond rubber seal

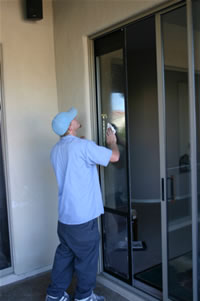

Step 4: The sliding glass doors will overlap once the installation is complete. Before you begin installation, clean this area of glass as it will be difficult to reach later. (Figure 5)
Step 5: Determine with the customer on which side of their patio door they want to install the Omni Panel. The stationary side is preferred, but the sliding side is slightly easier.

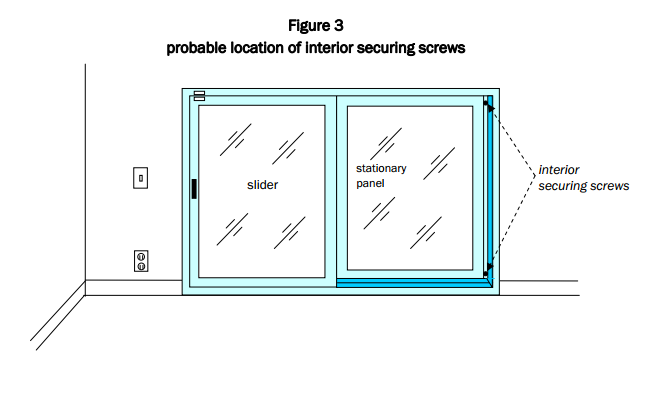

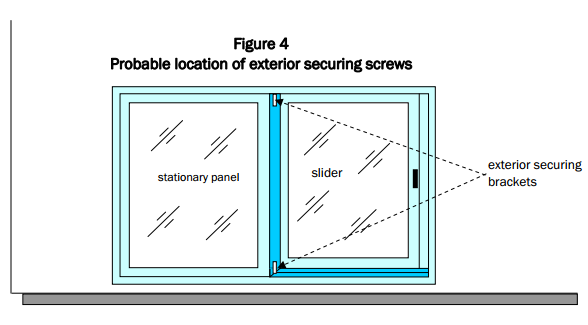

NOTE: If decided on the stationary side, there are usually some screws on the inside securing the stationary panel to the door jamb. (Figure 3) There may also be securing brackets on the outside of the stationary panel. (Figure 4)
If installing in the sliding side, skip steps 6, 11, and 12.
Step 6: Remove the securing screws and brackets, and slide the stationary panel over.

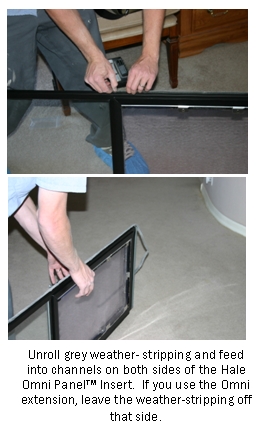

Step 7: Unroll the strips of fuzzy gray pile weather- stripping and feed them into the channel running the length of the Hale Omni Panel™ Insert. There is a channel on both sides of the Hale Omni Panel™ Insert. Apply the pile weather-stripping to both sides. Start at the bottom of the OMNI and push the end of the pile weather-stripping into the channel. Gently push up to feed the entire roll into the channel. You may want to tug gently with a pair of needle-nosed pliers. The weather-stripping will fill the entire channel except for about 4" at the top. If you are going to use the OMNI extension (see step 8), you need to leave the pile weather-stripping off that side. There is also a packet of Thermo Bond rubber seal weather-stripping that goes at the top of the channel. These are to cover the adjusting screws.(Figure 2 C)
Step 8: Set the Hale Omni Panel™ Insert into the door track. If the track is deep enough to interfere with the pet door frame, see the supplemental instructions titled “using the OMNI extension”.
Step 9: With your hand, push the “U” channel (Figure 2 E) up securely into the top of the track (Figure 2 Door Channel). Pull the sliding plate (Figure 2 B) down to expose the adjusting nuts. (Figure 2 A)
Step 10: Tighten the adjusting nuts with your fingers. Slide the stationary panel over tight against the Hale Omni Panel™ Insert (or close the sliding door if you are installing on the sliding side) and inspect for gaps. To close any gaps, the Hale Omni Panel™ Insert can be adjusted by tightening or loosening one adjusting nut. This should cause the Hale Omni Panel™ Insert to lean slightly one way or the other. Once you are satisfied with the insert placement, tighten the adjusting nuts with the wrench provided.
Step 11: Slide the stationary panel away from the Hale Omni Panel™ Insert so you can access the edge of the Hale Omni Panel™ Insert.
Step 12: Slide the short piece of fuzzy weather-stripping (Figure 2 D) up to expose the adjusting screws (Figure 2 C). There are adjusting screws on both edges of the Hale Omni Panel™ Insert, but you only need to deal with the screws on one edge. Do not worry about the screws on the inaccessible edge! Loosen both preset screws one or two full turns. Loosening them too much may cause the slide plates (Figure 2 B) to fall out. Push the slide plates up until they stop. Tighten the adjusting screws. Slide the short piece of fuzzy weather-stripping back down to cover the adjusting screws. There will be a gap above the fuzzy weather-stripping between the edge of the panel and the edge of the adjustment unit. Cover it with a piece of foam tape (included).
Step 13: Slide the stationary panel back up against the Hale Omni Panel™ Insert. You may wish to re-install any securing screws or brackets at this time. If you move the securing screws to a new location, BE VERY CAREFUL THAT YOU DO NOT HIT GLASS when screwing them in.
Step 14: You are now ready to install the 1 7/8" black vinyl weather-stripping to the back edge of the slider or the front edge of the stationary panel to seal the now-existing gap. (Figure 5) Cut the vinyl weather-stripping to the proper length with scissors. Peel the protective paper off the double sided tape and press firmly into position.
Step 15: You may wish to let your door set without the security cover in place for a few hours to avoid any sticking. The cover will slide easily into place in the built in frame and can be easily locked and unlocked with the positive action pin bolt lock. Remove the drop cloths and clean up the area.
Step 16: Clean the glass in the panel to remove any installation residue or fingerprints. If needed, you can also clean the flaps of the pet door with any standard ammonia free window cleaner. If you are installing the Hale Omni Panel™ Insert on the stationary side, you are done. If you are installing on the sliding side, proceed to the lock bar instructions below.
Installing the sliding lock bar
(CAUTION) Drilling holes for installing with screws may result in damaged or fractured glass.Hale Pet Door™ will not be responsible for damage resulting from the use of screws for installing the door lock. Hale Pet Door™ has provided a special double adhesive tape for holding the lock into position.

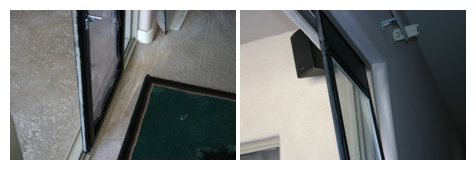

1. Choose an area approximately midway between the top and bottom of the Hale Omni Panel™ Insert. Clean the area inside the door channel and the back of the sliding door. Make sure the areas are dry. Measure from the bottom of the sliding door track and place a pencil mark in the vertical door channel. Repeat this step and mark the back edge of the sliding door. These marks are where you will install the sliding lock bar. (Figure 6)

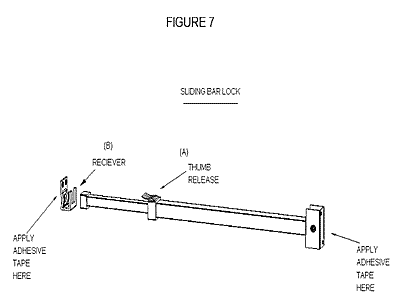

2. Peel the protective paper from the double stick tape on the back of the sliding lock bar. Make sure the thumb release is aligned upwards and press the lock bar into the door channel. (Figure 7) Peel the paper off the back of the receiver and press it very firmly onto the back of the sliding door.
Using the OMNI Extension

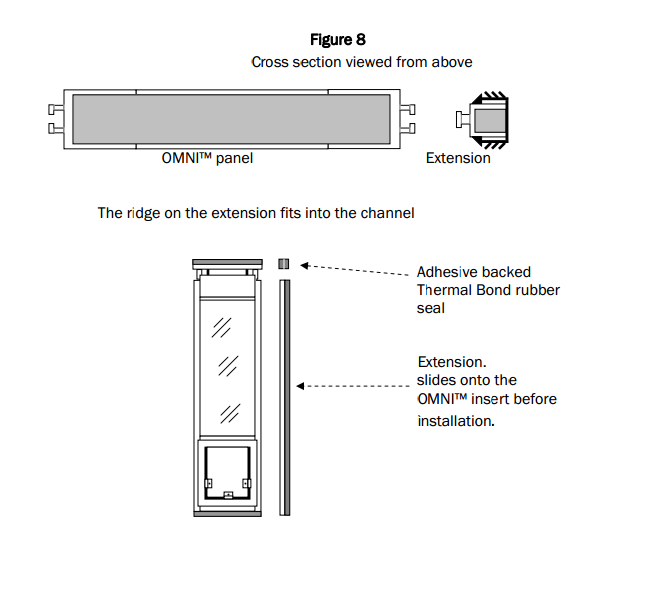

1. An extension the length of your Hale Omni Panel™ Insert has been included in case the door channel is so deep that it interferes with the installation of the Hale Omni Panel™ Insert. The extension is attached to one edge of the OMNI™ when it is packaged. If the extension is not needed it will slide off. If the extension is on the wrong edge, slide it off and put it on the other edge. (Figure 8)
2. There are also two small pieces of Thermo Bond rubber seal weather-stripping included. These are for filling in any gap at the top of the extension. (Figure 8) Once you are satisfied with the extension, continue with step 5 of the main installation instructions.
Q: I have a Hale Single Flap door, which flap mount should I choose, inside or outside?
A: For a Hale pet door single flap, you should select the outside flap.
Q: How easy is the installation for the Hale Omni Panel?
A: The installation for this door can be relatively easy depending on how handy you are. You will need a wrench to install it. On our site you can find step by step installation instructions with pictures going along with each step.
Q: What flap does the Hale Omni Panel use?
A: This door comes with a clear vinyl, flexible, double flap design. It uses the standard Hale replacement flap.
Q: What is the return policy for the Hale Omni Panel?
A: You would only be allowed a 50% credit toward the purchase of another Hale dog door, because each Omni doggie doors for sliding door is custom made.
Q: Does the Hale Omni Panel have a locking mechanism?
A: Yes, it is locked by means of a drop bar type lock that is installed behind the slider, like a charley bar. This is why we need what is called the "G" dimension, or the measurement from the back of the slider to the jamb past the stationary slider:
Q: What are the color choices for the Hale Omni cat door for sliding door?
A: The color choices for the frame are brushed aluminum, bronze, white, and Arizona beige.
